Virnig

VAB60

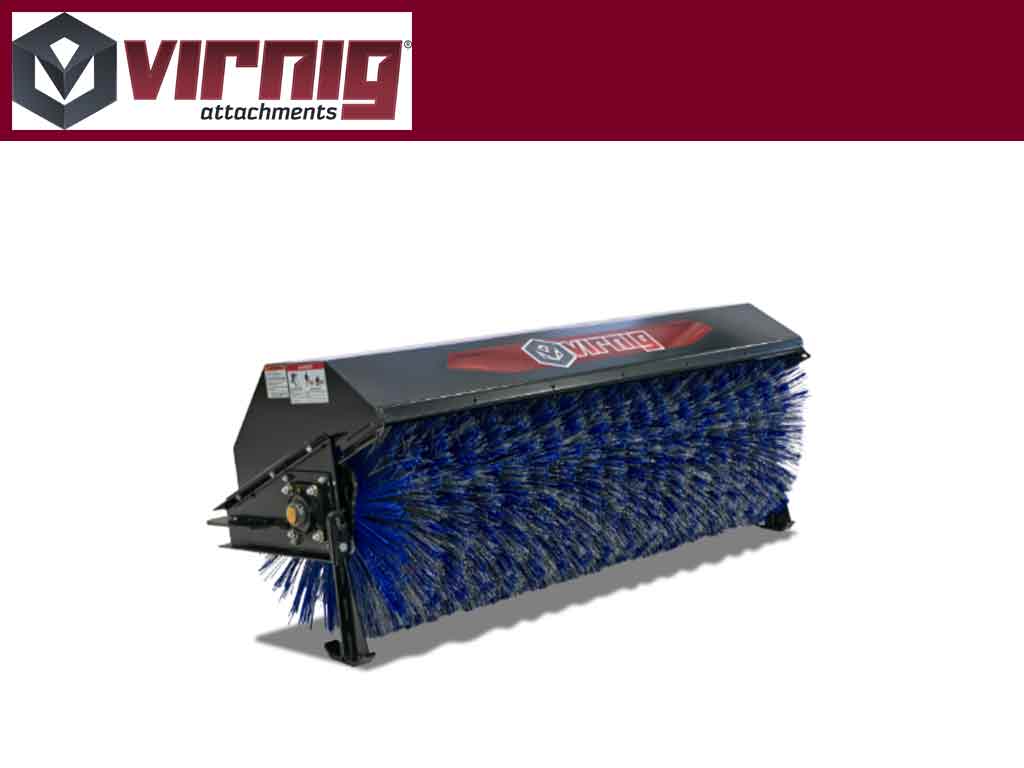

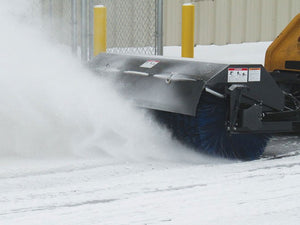

Virnig Angle Broom (SSL)(CTL)

Size
Style
Harness

Virnig Angle Broom available is two styles:

  • Manual
  • Hydrailc Angle which allows the operator to quickly angle the rake 25 degrees in either direction to window debris.
    • One-cylinder design using an electric control valve.
    • 2 1/2" bore, 8" stroke cylinder with a NitroSteel rod.
    • Greaseable 1 1/4" cylinder and 1 9/16" linkage pins.
    • Requires one of the listed electric control harnesses.

THIS ATTACHMENT INCLUDES

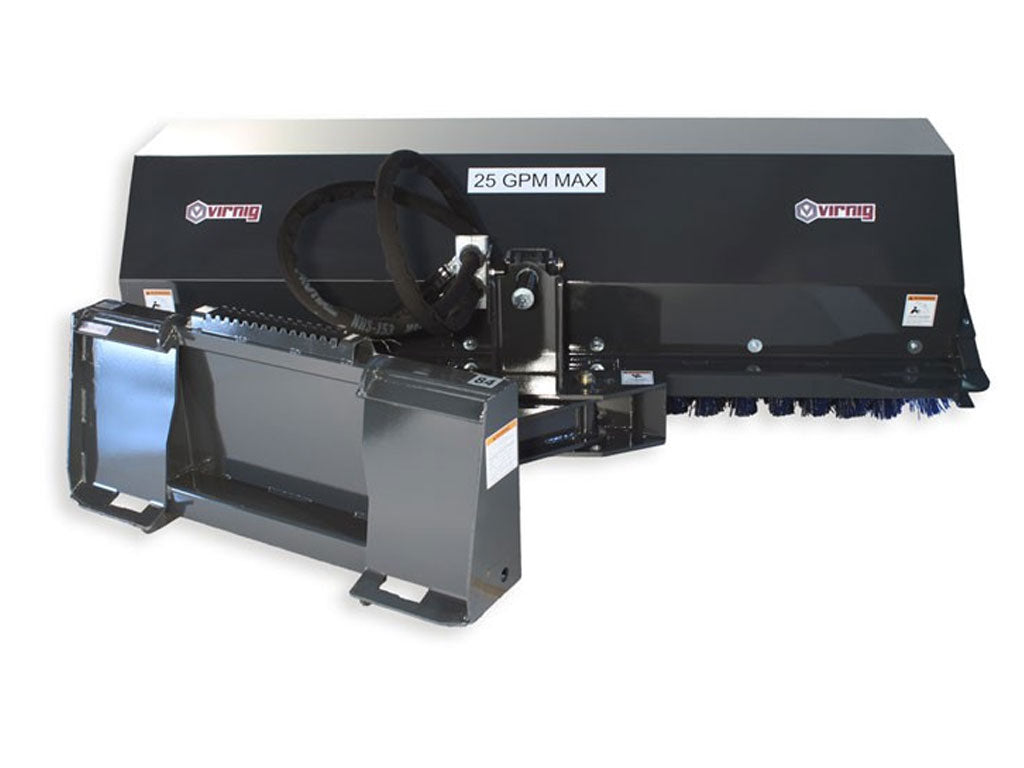

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & POLY/WIRE WAFER PACK

Virnig Brooms use direct drive motors. Direct drive systems have less replaceable wear parts and are more powerful than other drive systems. They are safer than mechanical systems because there are no belt or chain pinch points and no stored energy if hydraulic pressure is properly relieved.

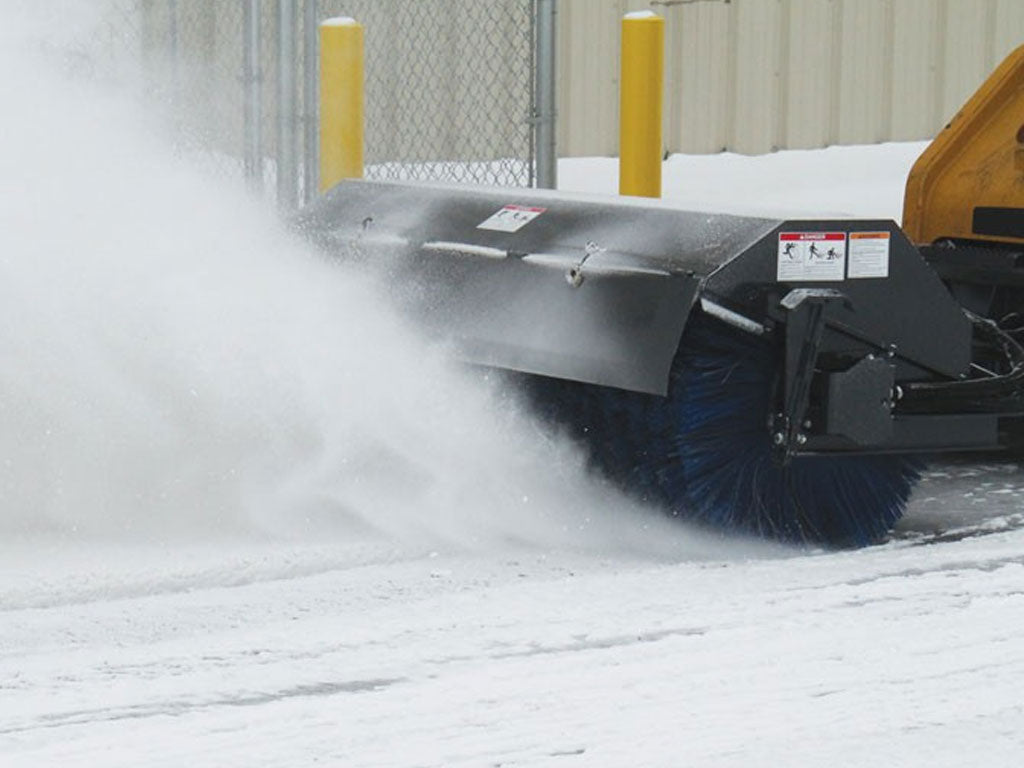

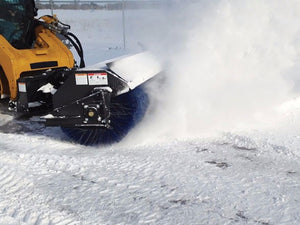

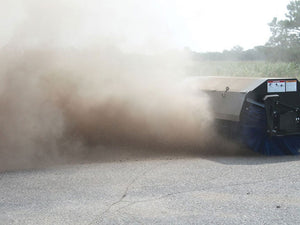

  • Powerful, direct drive motor clears dirt and snow in no time.
  • Direct drive design with replaceable drive components allowing forward and reverse operation.

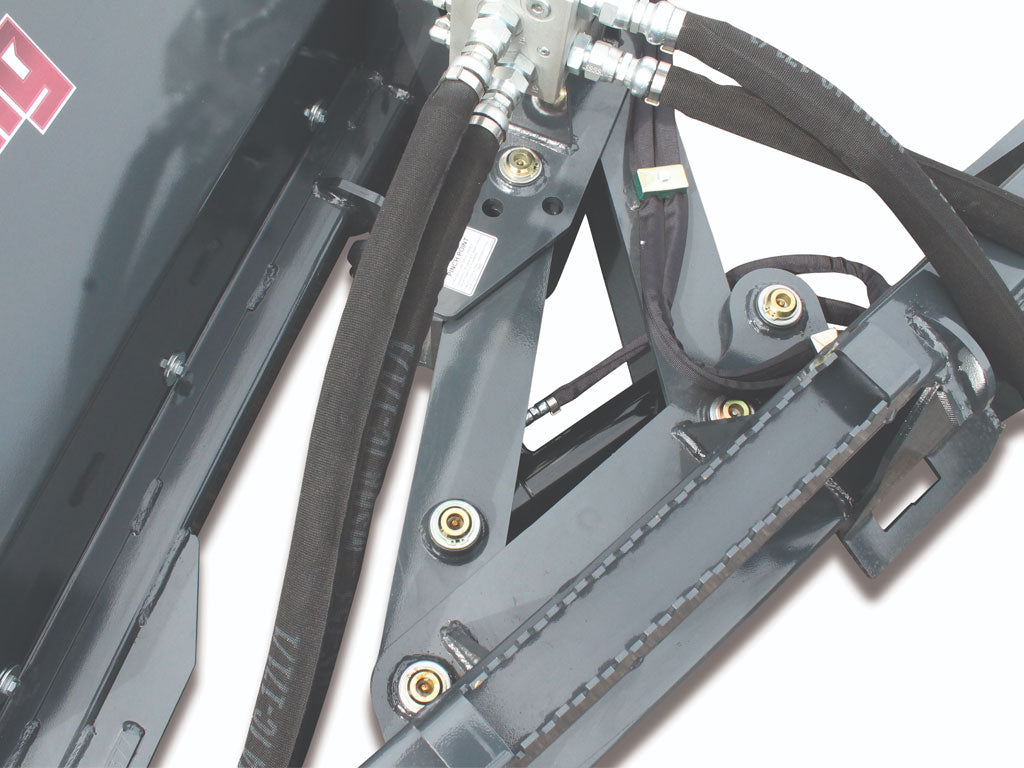

  • Centering swing linkage better centers broom in front of loader when angled.
  • Heavy-duty stands flip up for storage. No pins required.
  • Easy exchange of wafers; no disconnecting of hydraulic hoses required.

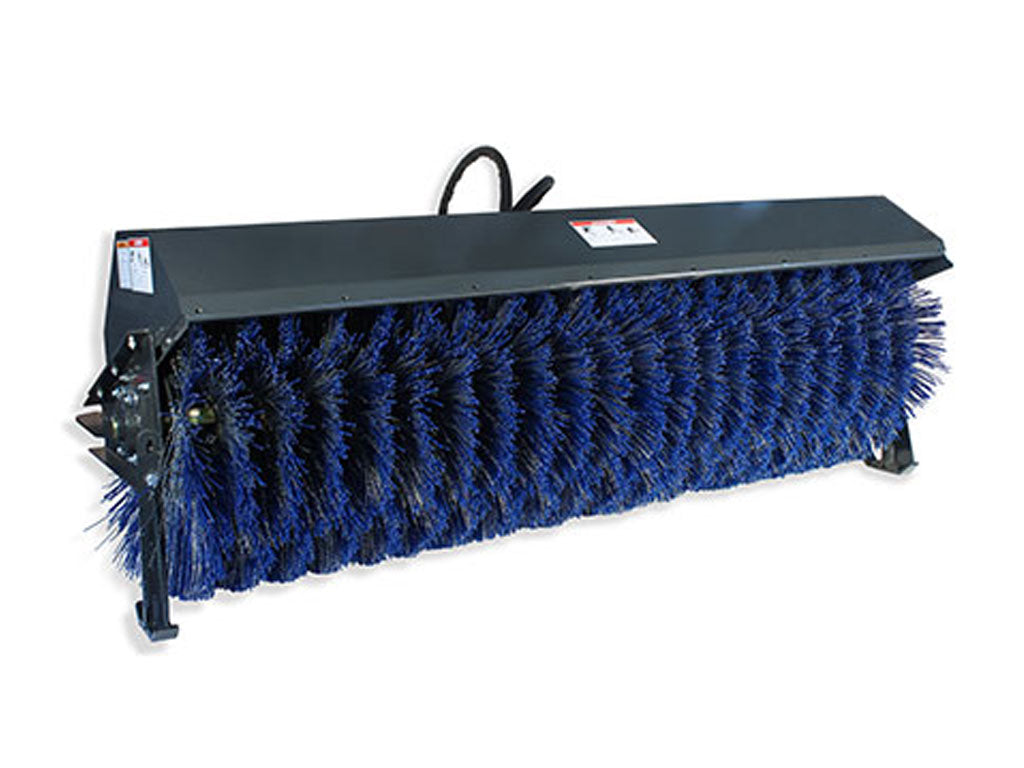

  • Standard with 32″ diameter poly/wire wafers.
  • Standard 2″ diameter bearings.
  • Motor is guarded while allowing access for maintenance.

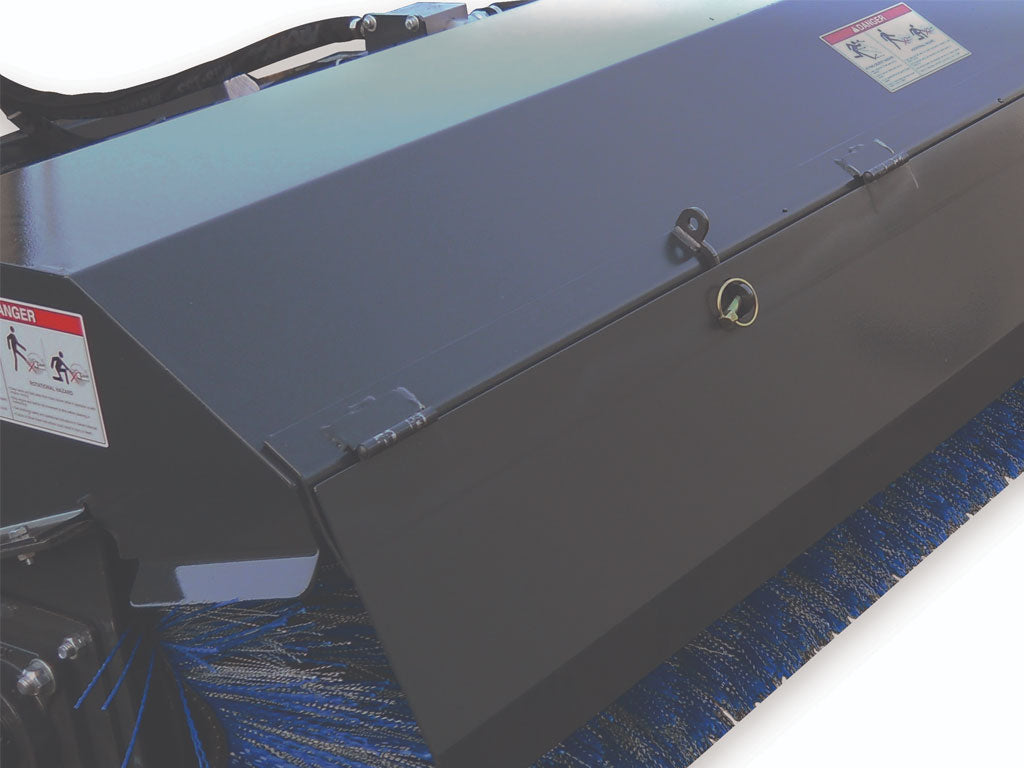

  • Hood made from 14 gauge steel with formed edge fold for additional strength.

Available Accessories for Hydraulic Angle - Call for pricing

  • 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
  • Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control

Model VAB60 VAB72 VAB84 VAB96
Sweeping Width, Straight (in) 60.0 72.0 84.0 96.0
Overall Width (in) 69.1 81.1 93.1 105.1
Rotation Angle (degrees) 27
Sweeping Width, Full Angle (in) 53.5 64.2 74.8 85.5
Overall Width, Full Angle (in) 73.4 83.9 94.3 105.4
Recommended Flow Rate (gpm) 15-25
Number of 32 inch Diameter Wafers 29 35 41 47
Manual Approximate Weight (lbs) 970 1035 1095 1160
Recommended Loader Capacity Greater than 1500 pounds



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
