Virnig

BG54

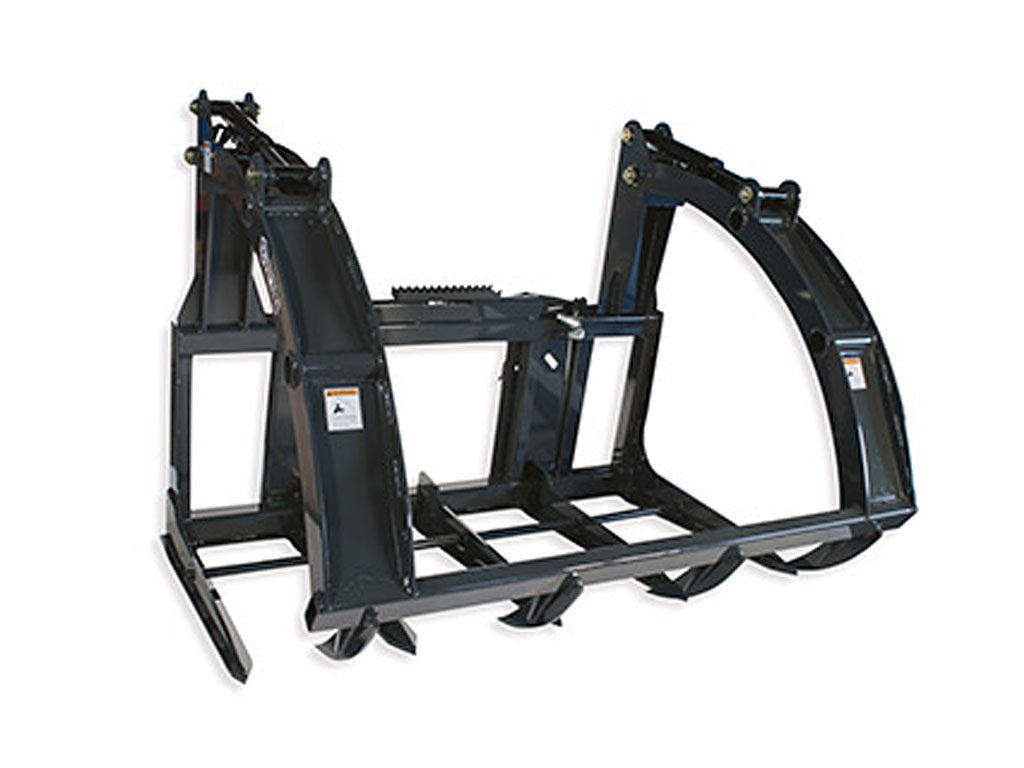

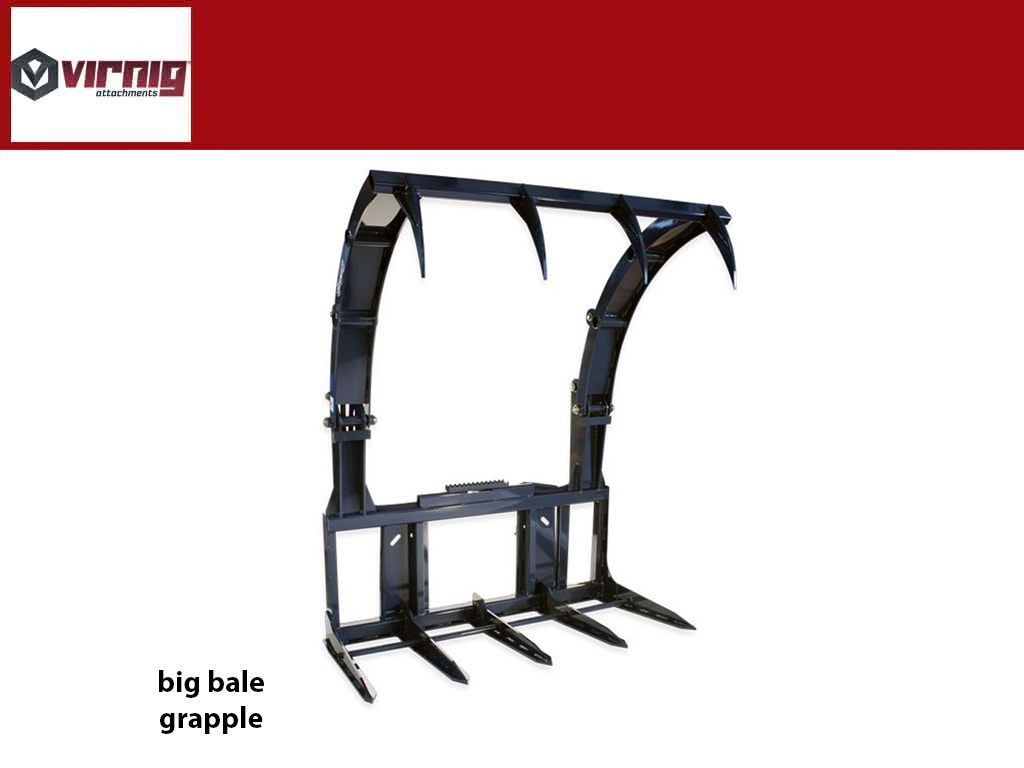

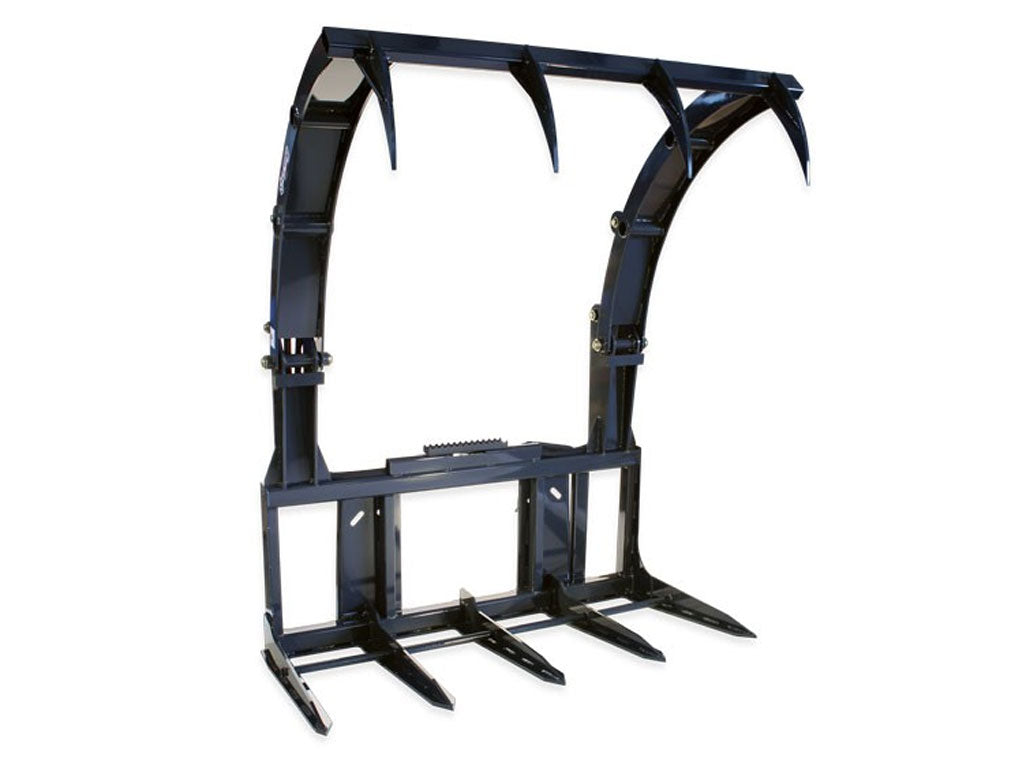

Virnig Big Bale Grapple (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.

  • Open bottom and back gives excellent visibility and allows debris to fall through.
  • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
  • Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
  • Teflon® coated bushings provide lubrication at all pivot locations.
  • Machine specific hydraulic package available.

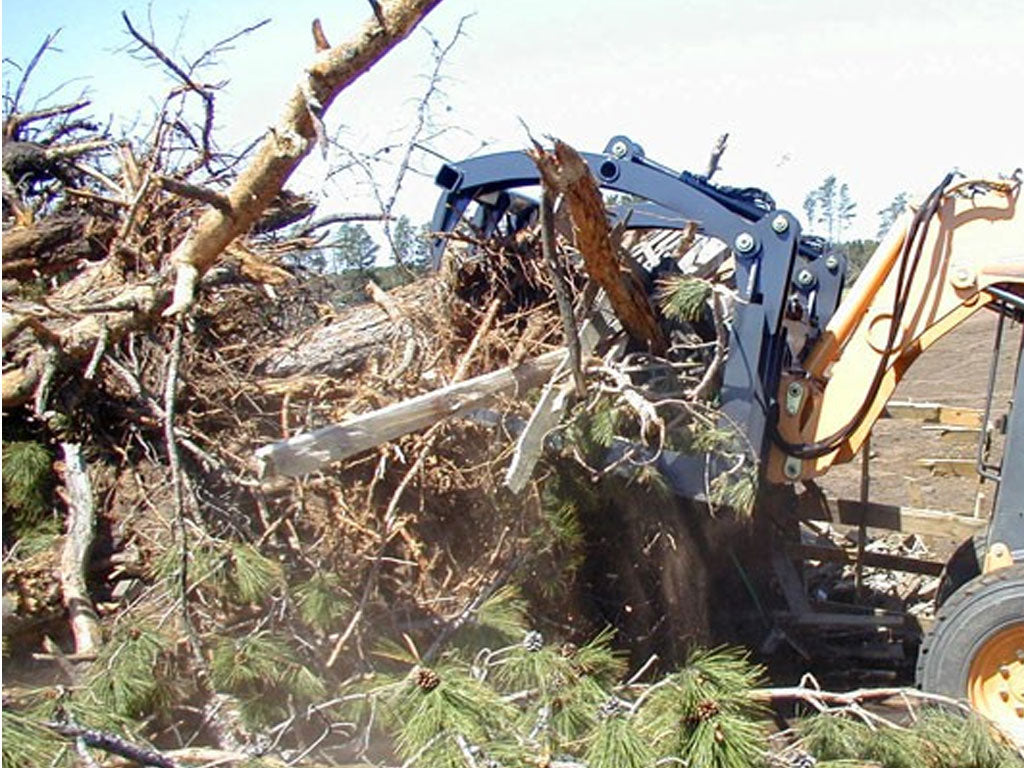

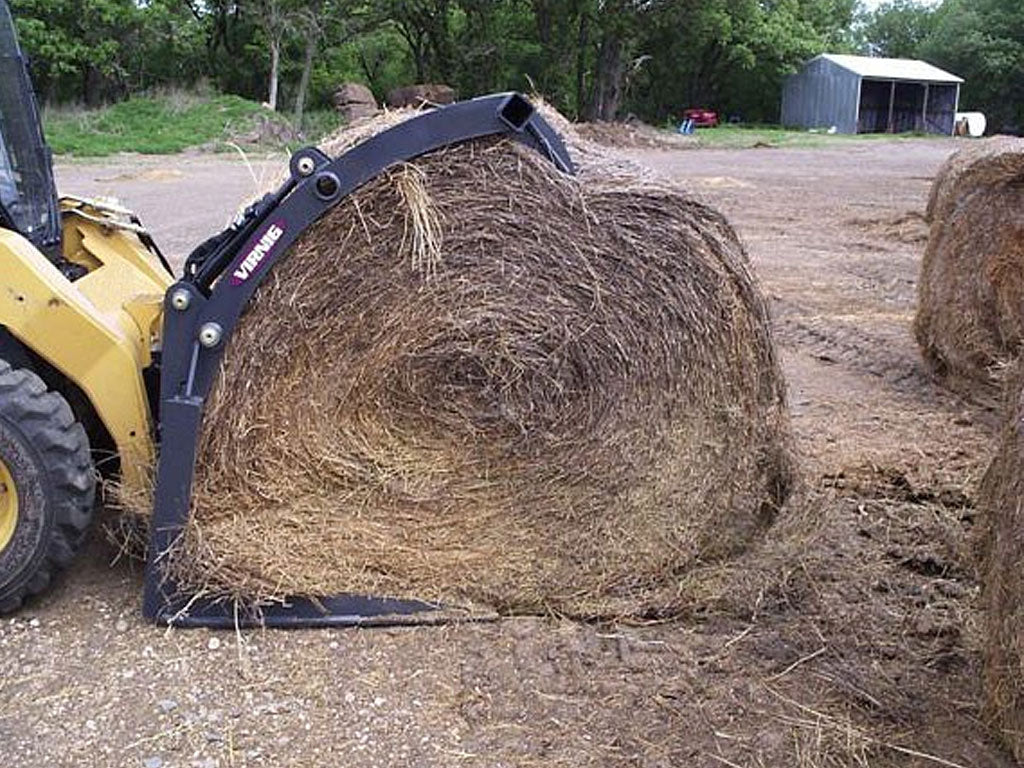

The Big Bale Grapple is designed to effectively handle and transport large, loose round bales. It can also be used to handle scrap, brush and many other jobs suited to a skeleton grapple. The Big Bale Grapple can be used with twine or net wrapping but should not be used with plastic wrap to prevent tearing.
    • Grapple Jaw Opening (in): 73.4"
    • Bucket Tine Thickness (in):  0.5"
    • Grapple Tine Thickness (in):  0.5"
    • Tine Material is Grade 80 Plate
    • Recommended loader capacity - Greater than 2400 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
    Model 54" 72" 84"
    Overall Bucket Width (in) 56.0 74.0 86.0
    Bucket Depth (in) 40.8 40.8 40.8
    Bucket Height (in) 30.8 30.8 30.8
    Number Bucket Tines 3 5 6
    Space Between Tines 26.5 17.5 16.3
    Number Grapple Teeth 3 4 4
    Space Between Grapple Teeth 20.0 19.3 19.3
    Weight (lbs) 900 1050 1150
