HBG72

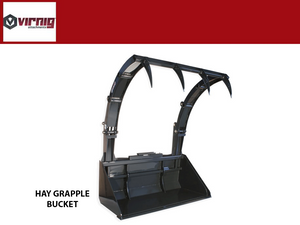

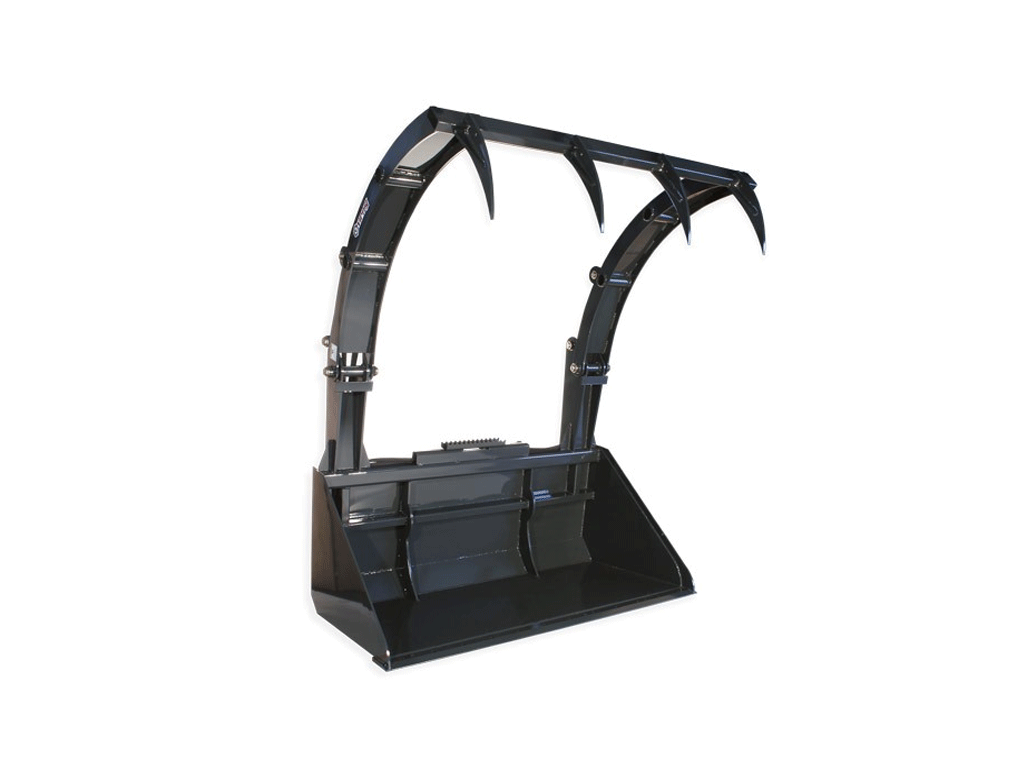

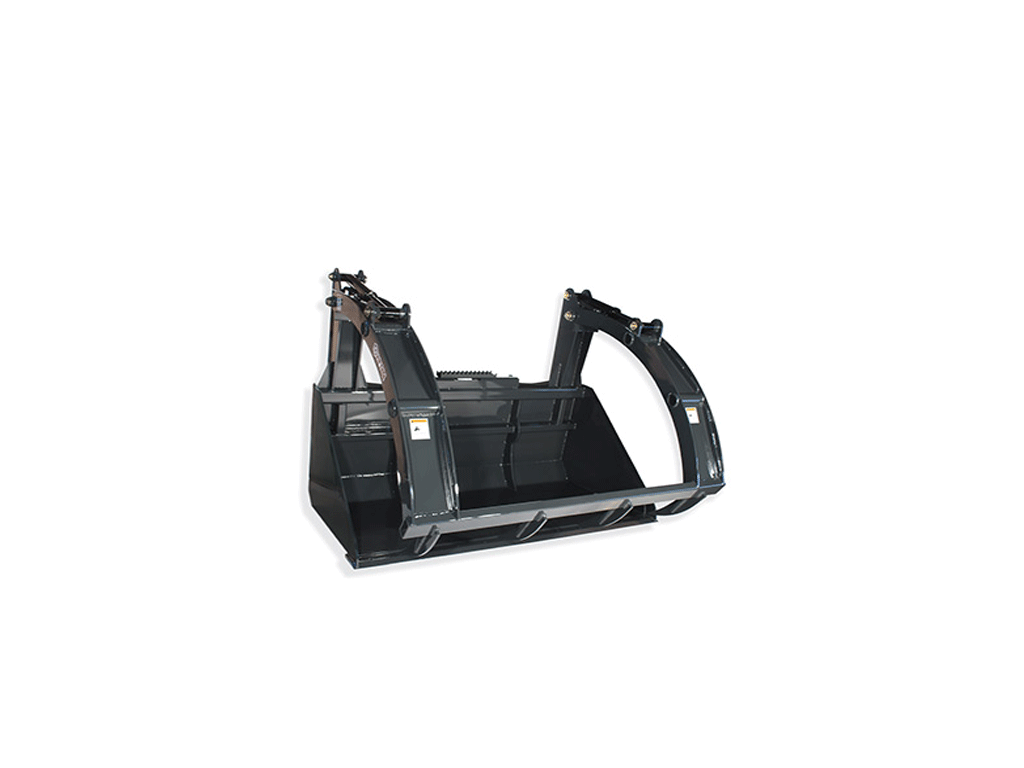

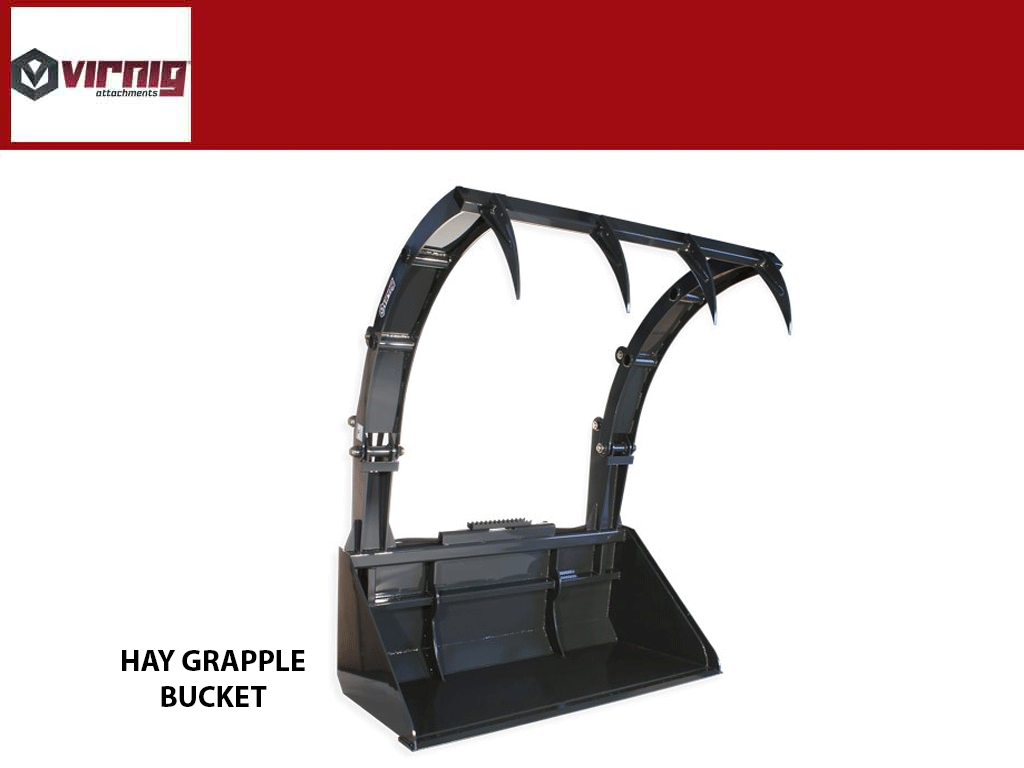

Virnig Hay Bucket Grapple (SSL)(CTL)

Size
Edge

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

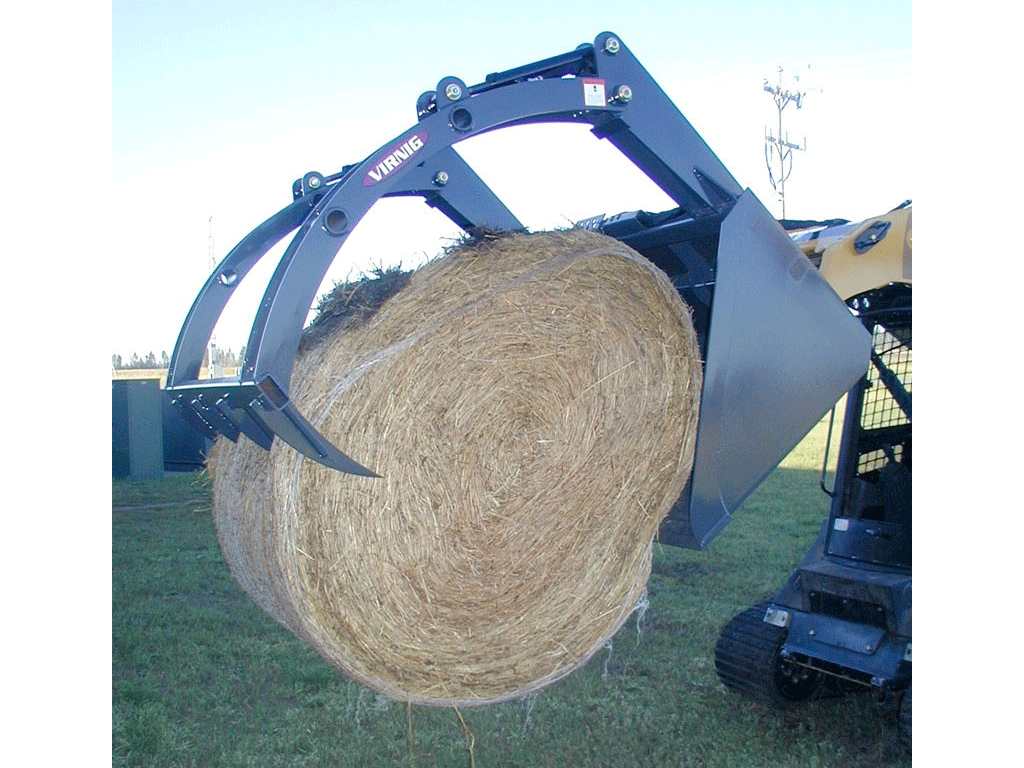

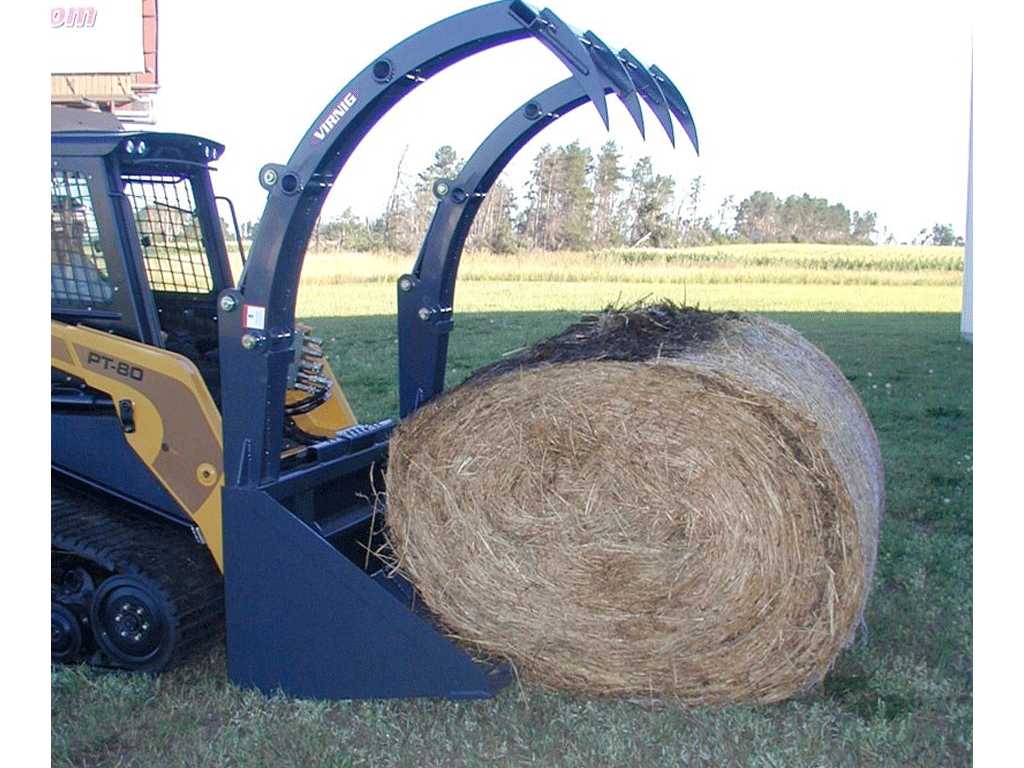

Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.

  • Two-cylinder grapple with large jaw opening allows handling of big round bales, while curved tines penetrate bales with minimal damage.
  • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
  • Greasable 1 9/16” diameter hinge pins and 1 1/4” diameter cylinder pins.
  • Teflon® coated bushings provide lubrication at all pivot locations.
  • 3/4” x 6” weld-on cutting edge with holes to accept optional edges.
  • Machine specific hydraulic package available.
  • Big Bale Grapple with an open bottom also available.

 OPTIONS

  • Bolt on Cutting Edge (BOCE) installed
  • Serrated Edge (SE) installed
    • Grapple Jaw Opening (in): 74.3"
    • Grapple Tine Thickness (in):  0.5"
    • Tine Material is Grade 80 Plate
    • Recommended loader capacity - Greater than 2400 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
    Model 72" 84"
    Overall Bucket Width (in) 73.5 85.5
    Bucket Depth (in) 40.0 40.0
    Bucket Height (in) 31.4 31.4
    Number Bucket Tines 4 4
    Space Between Tines 19.3 19.3
    Number Grapple Teeth 4 4
    Space Between Grapple Teeth 19.3 19.3
    Bucket Struck Capacity (Ft3 27.7 32.2
    Bucket Heaped Capacity 33.2 38.8
    Structural Wear Bars under Bucket (1/2" x 4") 5 5
    Weight (lbs) 1350 1450



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks
