Virnig

BOGV6084

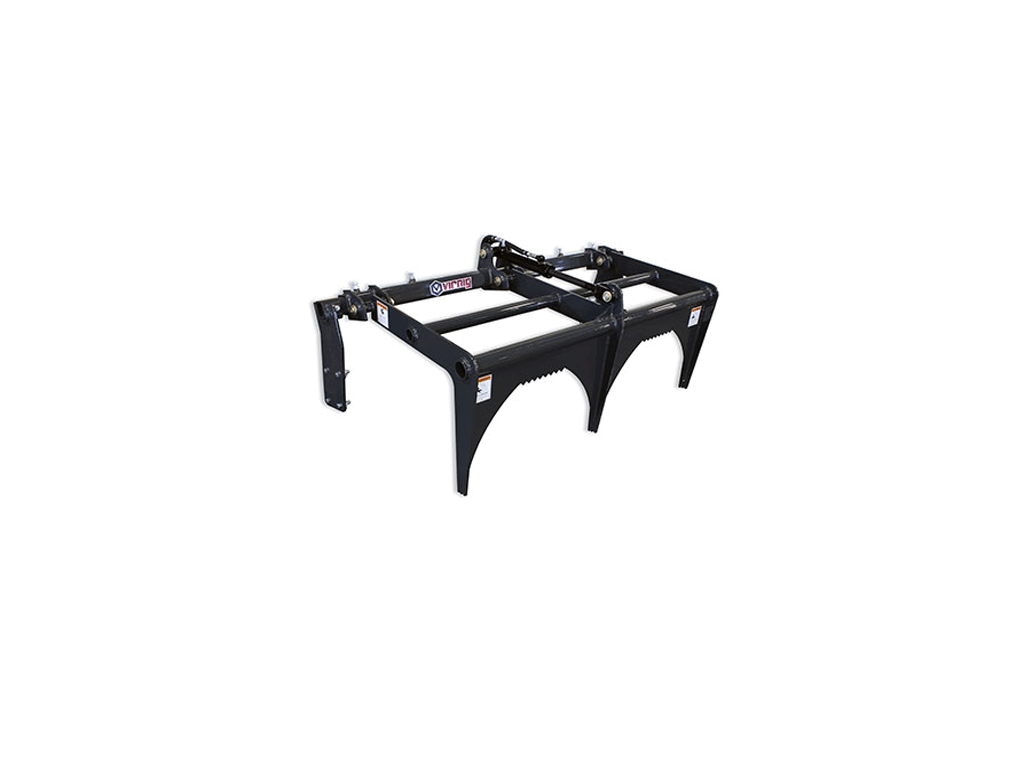

Virnig Bolt-On Grapple (SSL)(CTL)

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

    The Virnig Bolt 0n Grapple makes turning a bucket into a grapple simple. No welding or cutting required.

    • Telescoping mount system fits various width and style buckets.
    • Corrosion, dent and flake resistant NitroSteel® cylinder rod made in the USA.
    • One-cylinder design with machine specific hydraulic package.
    • Designed for use on Virnig buckets that are 60”-84” wide. See list in Specifications tab.  It is not guaranteed to work on other brands. A fitment guide can be provided upon request.
    • Easy to install and can be detached, unlike fixed jaw grapples. Because of the versatility, the Bolt-On Grapple is also a cost effective alternative to buying a purpose specific fixed jaw skid steer grapple.
      Model BOGV6084
      Number of Cylinders 1
      Minimum Bucket Width (Inches) 60*
      Maximum Bucket Width (Inches) 84*
      Approximate Jaw Opening (Inches) 42**
      Approximate Weight (Pounds) 275
      Recommended Loader Capacity Less than 1800 pounds

      *Mount Tubes Telescope to Fit Various Width Buckets
      **Jaw Opening Varies with Type of Bucket and Installation



      The Bolt-On Grapple is compatible with:

      • V40 Low Profile Dirt Buckets (additional drilling or welding will be required to secure the Bolt-on Grapple to the V40 Low Profile Dirt Bucket)
      • V50 Low Profile Dirt Buckets
      • V60 Heavy-Duty Low Profile Dirt Buckets
      • V50 Utility Buckets
      • V60 Utility Buckets
      • V40 Skeleton Rock Buckets
      • V50 Skeleton Rock Buckets
      • V60 Skeleton Rock Buckets
      • V40 Utility Forks

      *While the Bolt-on Grapple will mount on all the above buckets, the Loader Capacity still needs to be under 1800 lbs.

      The Bolt-On Grapple is NOT compatible with:

      • All Snow/Light Material Buckets
      • Manure Slurry Buckets
      • V30 Compact Tractor Utility Forks
      • V30 Compact Tractor Rock Buckets



      In stock items usually ship in 3-5 days

      Non stock items usually ship in 4-6 weeks
