Virnig

DZR72 / ELC7

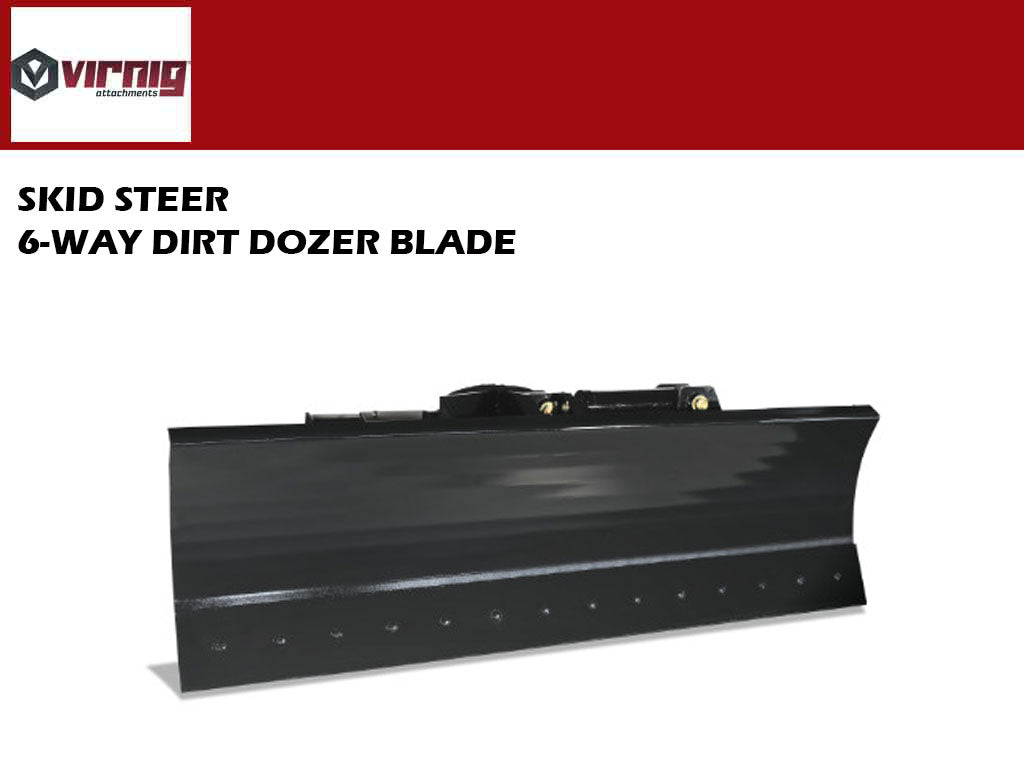

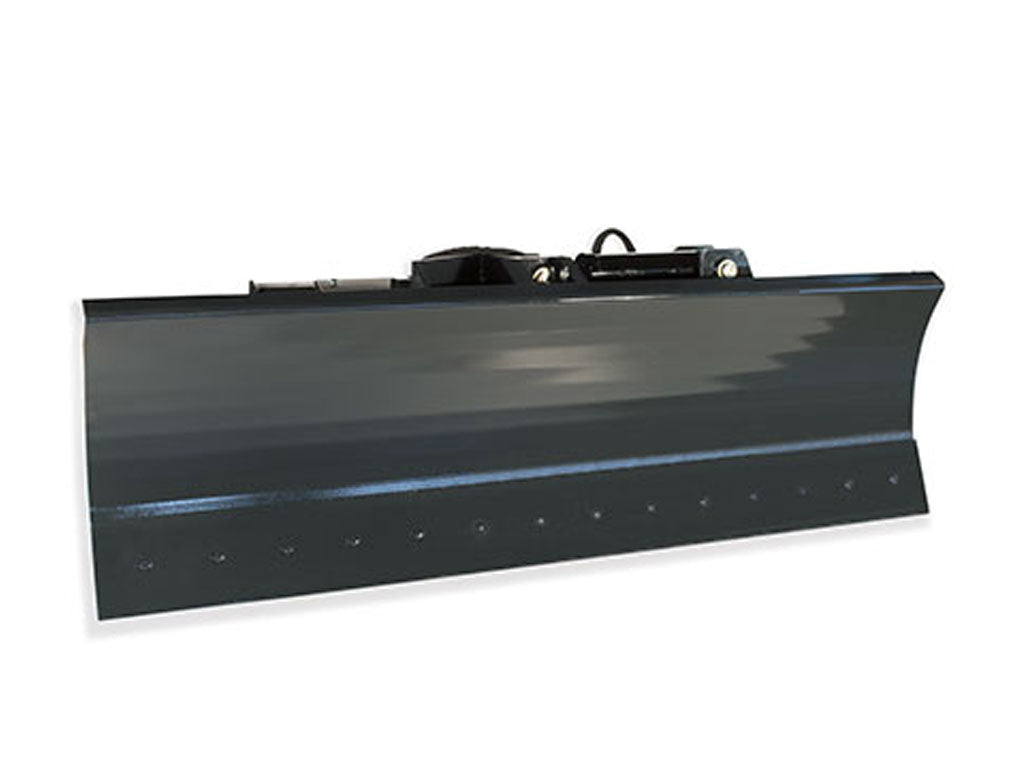

Virnig Dozer Blade - 6 Way (SSL)(CTL)

Size
Electric Control

THIS ATTACHMENT INCLUDES

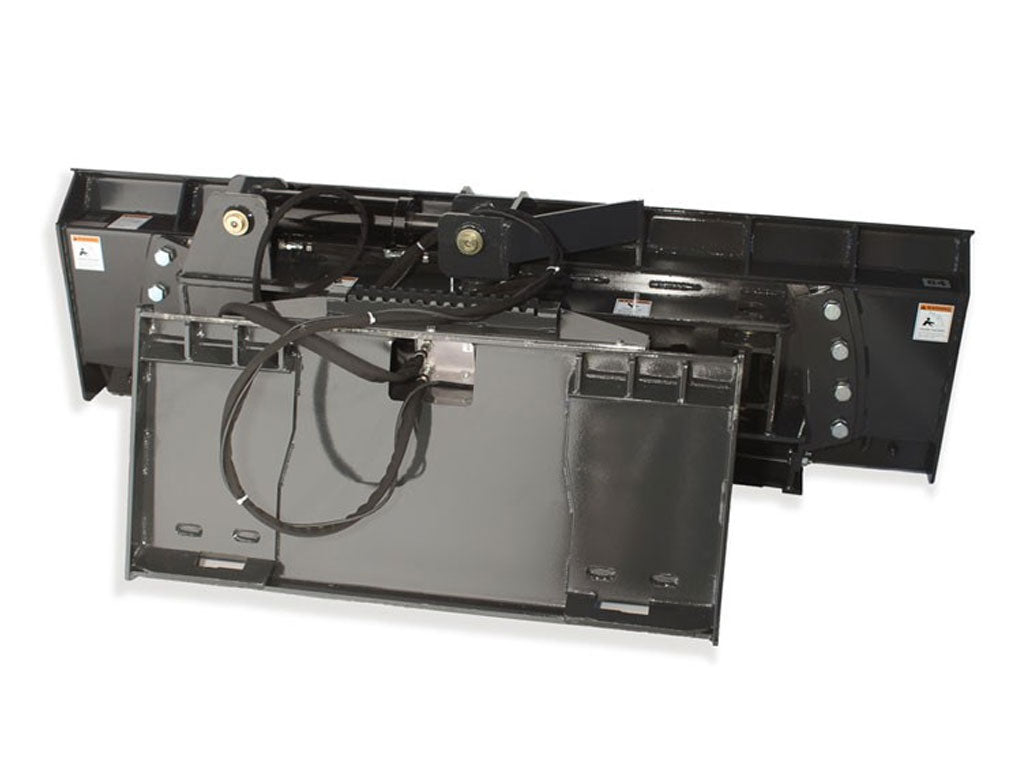

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS
Six-way dozer blade with heavy-duty frame, 3/8″ thick moldboard and adjustable skid shoes.
  • Two-cylinder hydraulic angle and one-cylinder hydraulic tilt utilizing one electric valve and one loader valve.
  • Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA.
  • 2 1/8” hinge and oscillation pins, replaceable Teflon® coated bushings provide lubrication at all pivot locations.
  • 5/8” x 8” reversible, replaceable bolt-on wear edge.
  • NOTE: Does not have a trip edge or trip moldboard.

AVAILABLE OPTIONS

  • 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
  • Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control
  • Blade Angle (Degrees):  +/- 30
  • Blade Oscillation (Degrees):  +/- 10
  • Center Edge:  5/8" x 8" Bolt-on
  • Cylinder Bore / Stroke:  3.5" / 8.0"
  • Pins: Cylinder/ Hinge /Oscillation:  1.563" / 2.125" / 2.125"
  • Recommended Loader Capacity: Greater than 1800 lbs ROC
Model 72" 84" 96"
Overall Blade Width (in) 74.0 86.0 98.0
Width at Full Angle (in) 64.1 74.5 84.9
Blade Height (in) 25.8 25.8 25.8
Overall Height (in) 28.1 28.1 28.1
Overall Depth (in) 38.0 38.0 38.0
Moldboard Thickness (in) 0.375 0.375 0.375
Weight (lbs) 1510 1575 1640

In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
