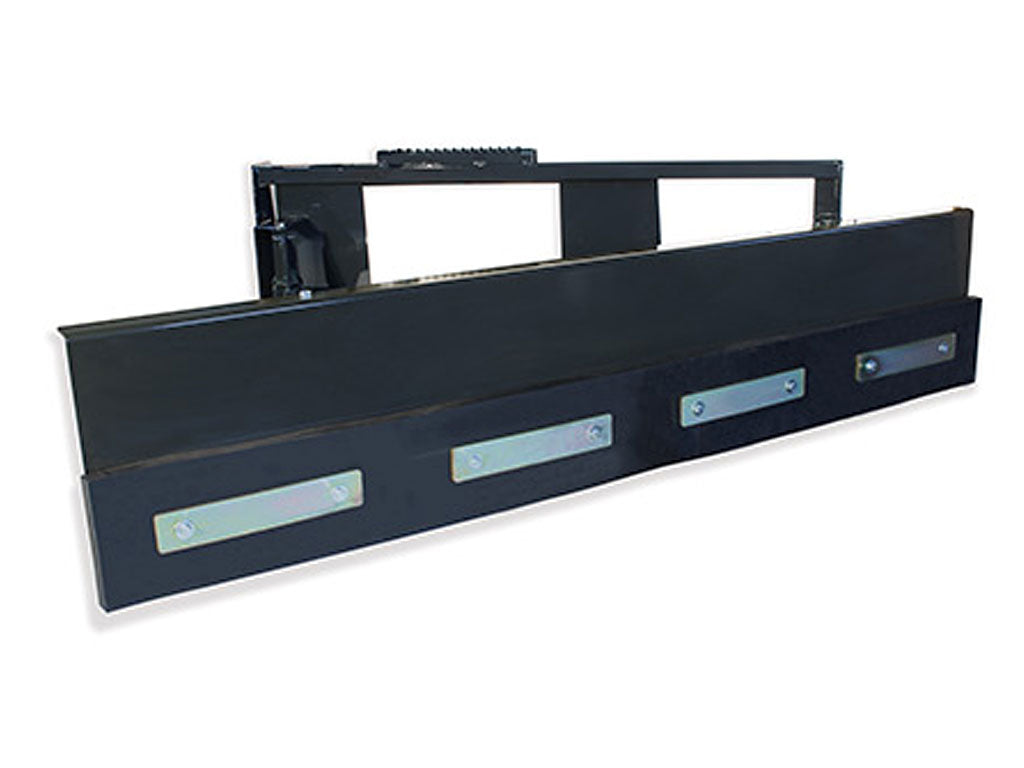

Virnig Feed Pusher

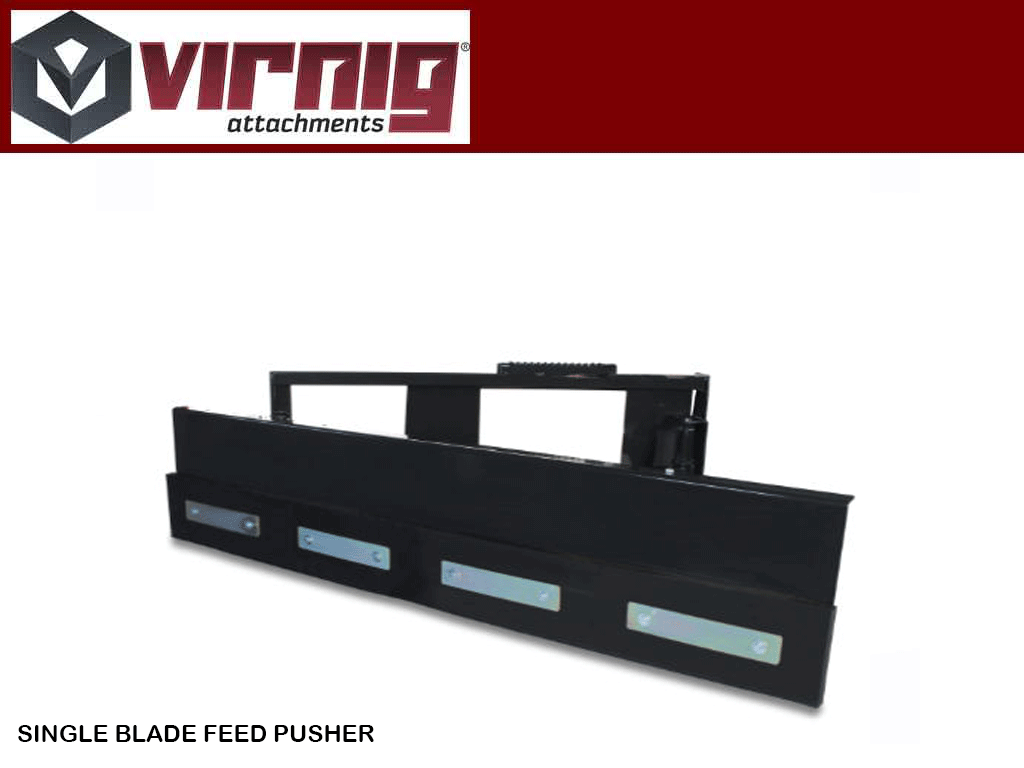

SINGLE BLADE FEED PUSHER

Virnig Feed Pusher has multiple width and angle adjustments with a replaceable rubber edge.

  • Manufactured with a universal mount to fit most skid steer loaders.
  • Five width adjustments keeps feed away from tires.
  • Eight angle adjustments keeps feed moving efficiently.
  • 1 ½” x 10” reversible, replaceable rubber edge allows 6” of total wear.
  • Rubber edge is effective at scraping clean paths on uneven ground so feed doesn’t get run over.
  • Rubber edge dampens vibrations, is gentle on concrete, and will not rust.


    MODEL FPV
    Overall Width, Straight (Inches) 96.0
    Overall Height (Inches) 20.0
    Width Adjustment Position 1 2 3 4 5
    Angle: Min / Max (Degrees) 38.4 / 58.2 40.9 / 61.6 43.0 / 65.0 44.6 / 68.3 45.6 / 71.7
    Push Width: Min / Max (Inches) 50.5 / 75.2 45.6 / 72.5 40.5 / 70.2 35.4 / 68.3 30.1 / 67.2
    Discharge Distance: Min / Max (Inches) (Measured from Center Line of Loader) 48.7 / 49.5 51.3 / 53.9 53.3 / 58.1 54.6 / 62.1 55.3 / 66.0
    Approximate Weight (Pounds) 520
