BSV48F

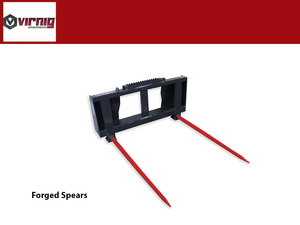

Virnig Hay Handling - Forged Spears (SSL) (CTL)
$960.00 - $1,215.00
Virnig offers five different Forged Spear Hay Handling models to accommodate round and large square hay bales.
- Removable spears are forged and tapered to make piercing compacted bales easier.
- Stabilizers made from 1045 Cold Finished Stress Relieved (CFSR) round stock.
- Manufactured with a universal mount to fit most skid steer loaders
Model Options:

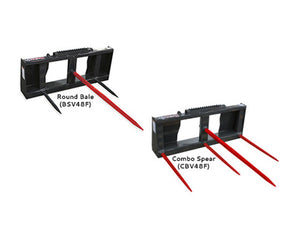

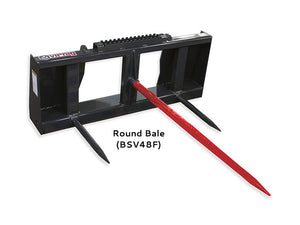

- Forged Round Bale Spear - BSV48F
- One 49” Conus II forged main spear
- Two 1-1/2” x 18" machine pointed stabilizers
- One bale maximum.

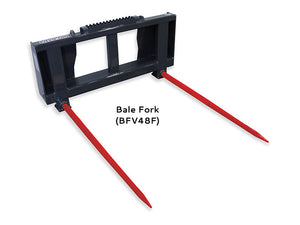

- Forged Bale Fork - BFV48F
- Two 49” Conus II forged spears
- One bale maximum

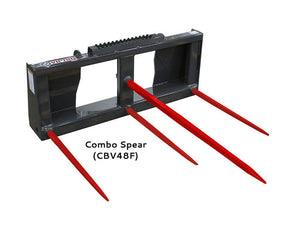

- Forged Round/Square Bale Combo Spear - CBV48F
- One 49” Conus II forged main spear
- Three 32″ Conus I forged stabilizers
- One bale maximum

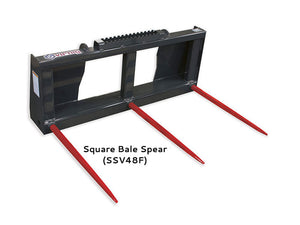

- Forged Square Bale Spear - SSV48F
- Three 32” Conus I forged main spears
- One bale maximum

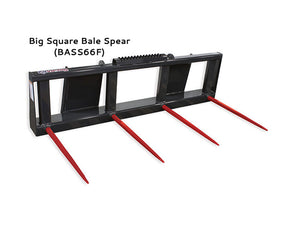

- Forged Big Square Bale Spear - BASS66F
- Four 32” Conus I forged spears
- One bale maximum
- Capacity with bale against frame: 2000 lbs ROC
| Model | BSV48F | BFV48F | CBV48F | SSV48F | BASS66F |
| Name | Forged Round Bale Spear | Forged Bale Fork | Forged Bale Combo Spear | Forged Square Bale Spear | Forged Big Square Bale Spear |
| Frame Width (in) | 45.5 | 45.5 | 45.5 | 45.5 | 66.5 |
| Number of Main Spears | 1 | 2 | 1 | 3 | 4 |
| Main Spear Usable Length (in) | 43.4 | 43.4 | 43.4 | 26.6 | 26.6 |
| Main Spear Thickness (in) | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 |
| Number of Stabilizer Spears | 2 | - | 3 | - | - |
| Stabilizer Spear Usable Length (in) | 17.4 | - | 25.8 | - | 25.8 |
| Stabilizer Spear Thickness (in) | 1.5 | - | 1.5 | - | |
| Weight (lbs) | 210 | 235 | 235 | 205 | 260 |
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks
