Virnig

BSV48

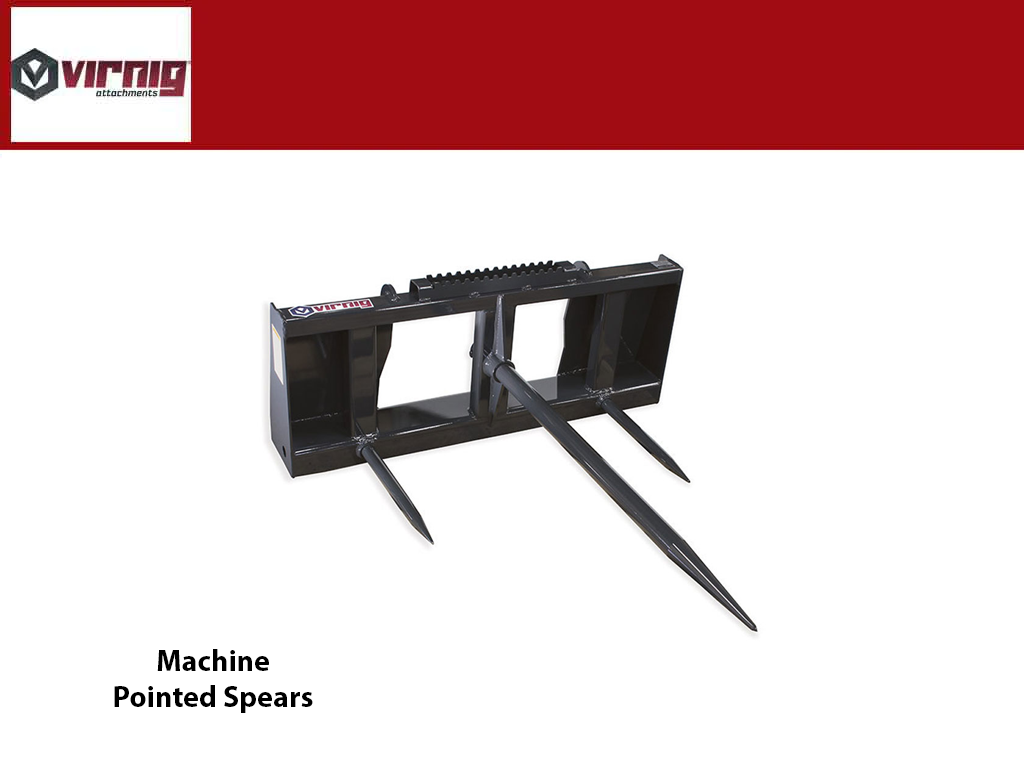

Virnig Hay Handling - Machine Pointed Spears (SSL) (CTL)

Model

Virnig offers five different Hay Handling models with removable machine pointed spears to accommodate round bales and large square bales.

  • Main spears and stabilizers made from 1045 Cold Finished Stress Relieved (CFSR) round stock.
  • Spears extremely strong and durable. Machined spears are less expensive than forged spears.
  • Manufactured with a universal mount to fit most skid steer loaders

Model Options:

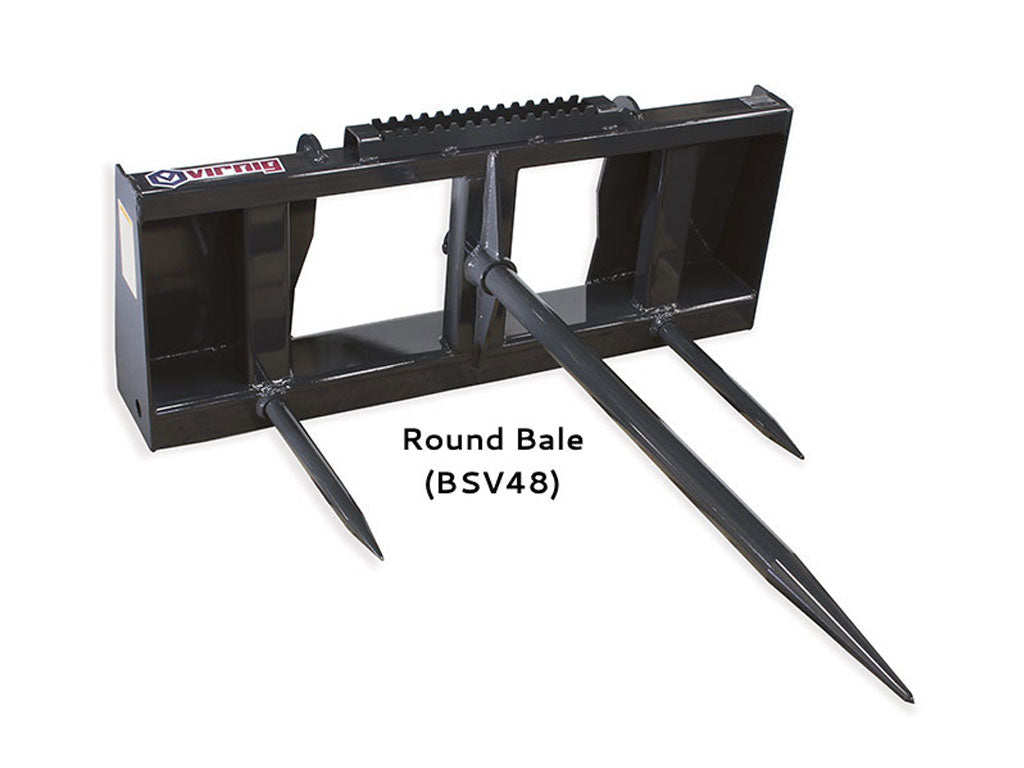

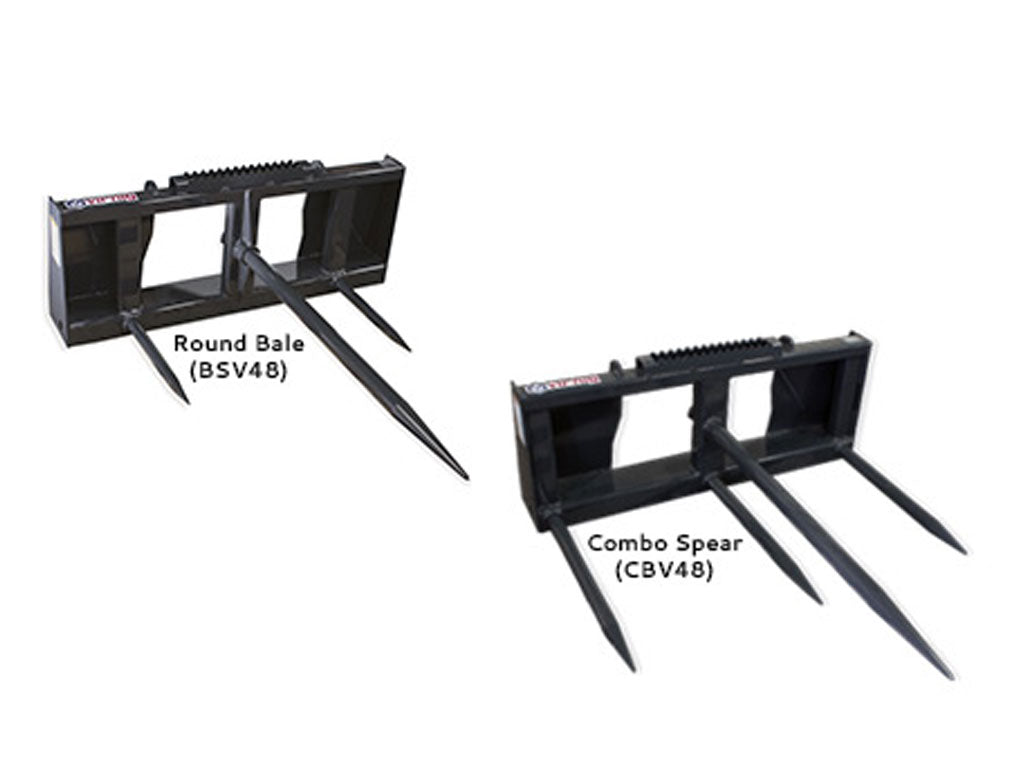

  • Round Bale Spear - BSV48
    • One 2” x 48” main spear
    • Two 1-1/2” x 18" stabilizers
    • One bale maximum.

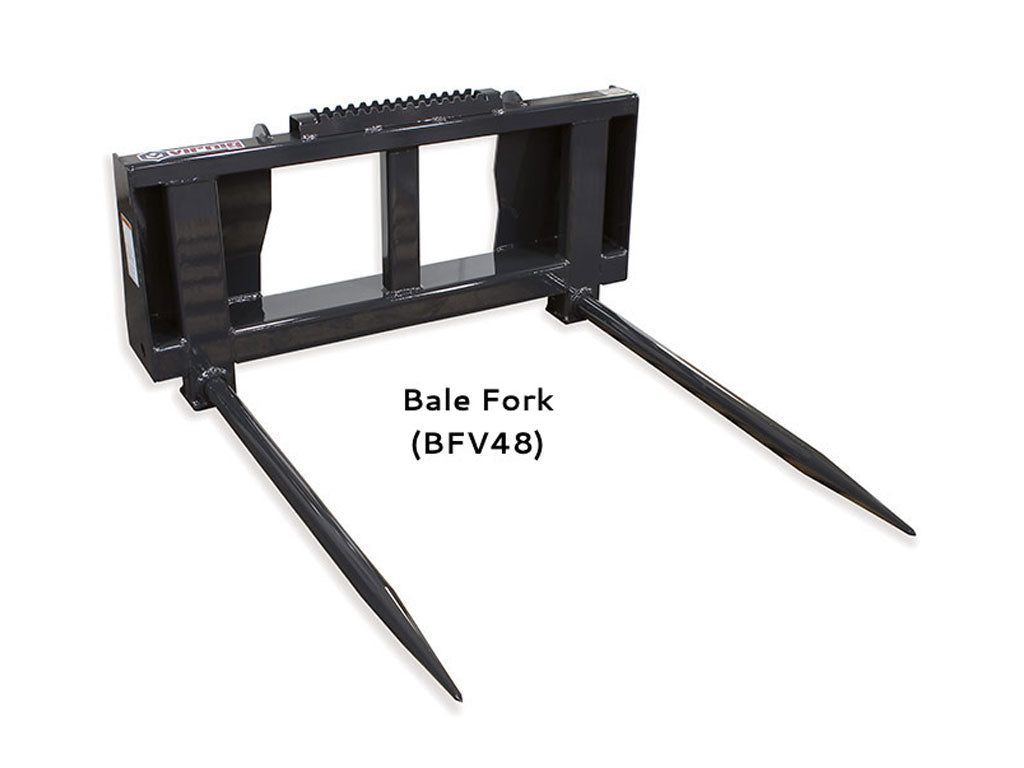

  • Bale Fork - BFV48
    • Two 2" x 48" spears
    • One bale maximum

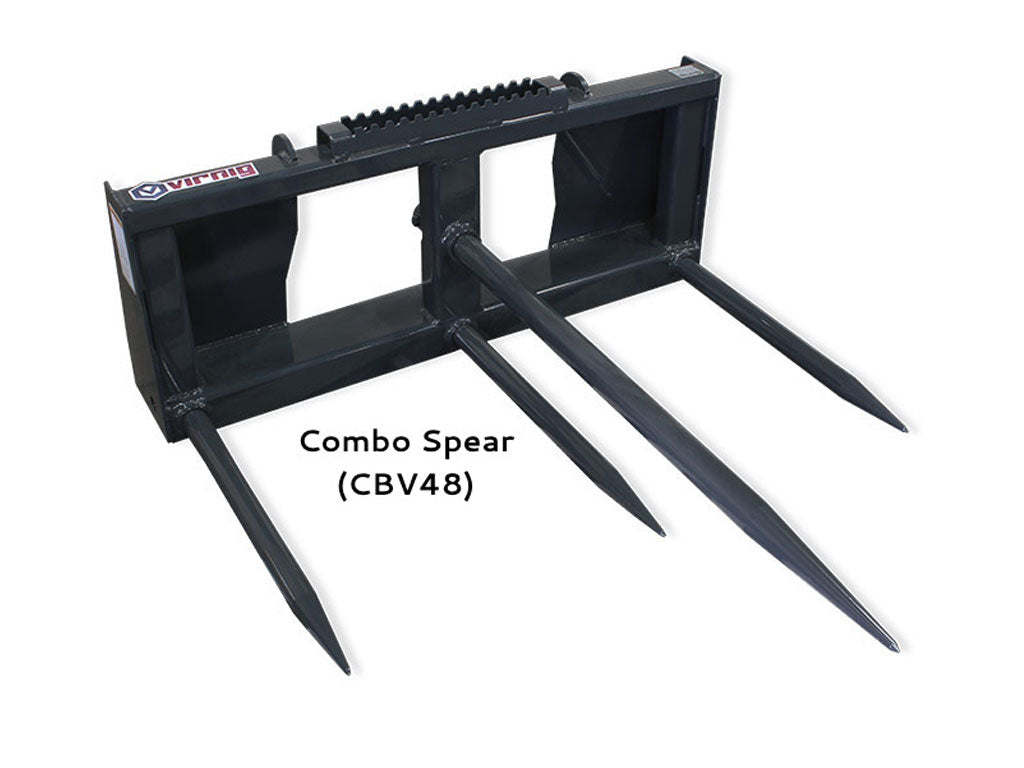

    • Round/Square Bale Combo Spear  - CBV48
      • One 1-3/4” x 42” main spear
      • Three 1-3/4” x 30″ stabilizers
      • One bale maximum

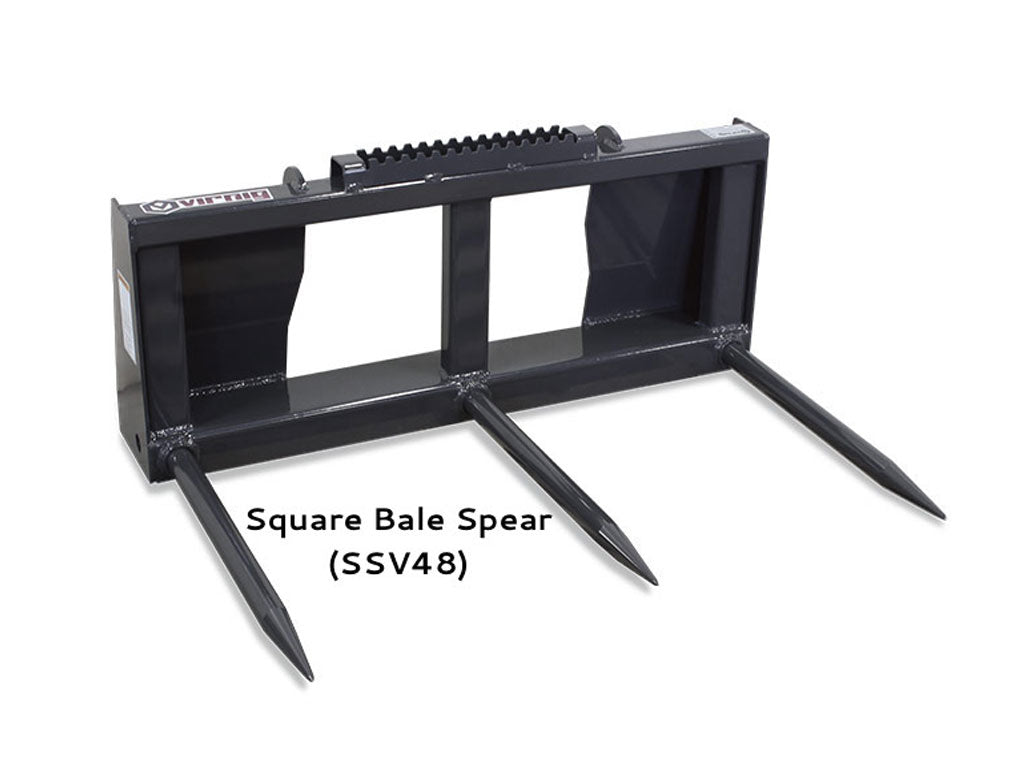

      •  Square Bale Spear - SSV48
        • Three 1-3/4" x 42" main spears
        • One bale maximum

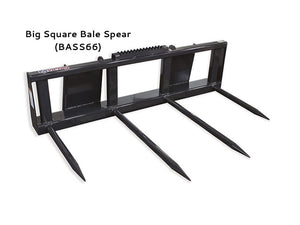

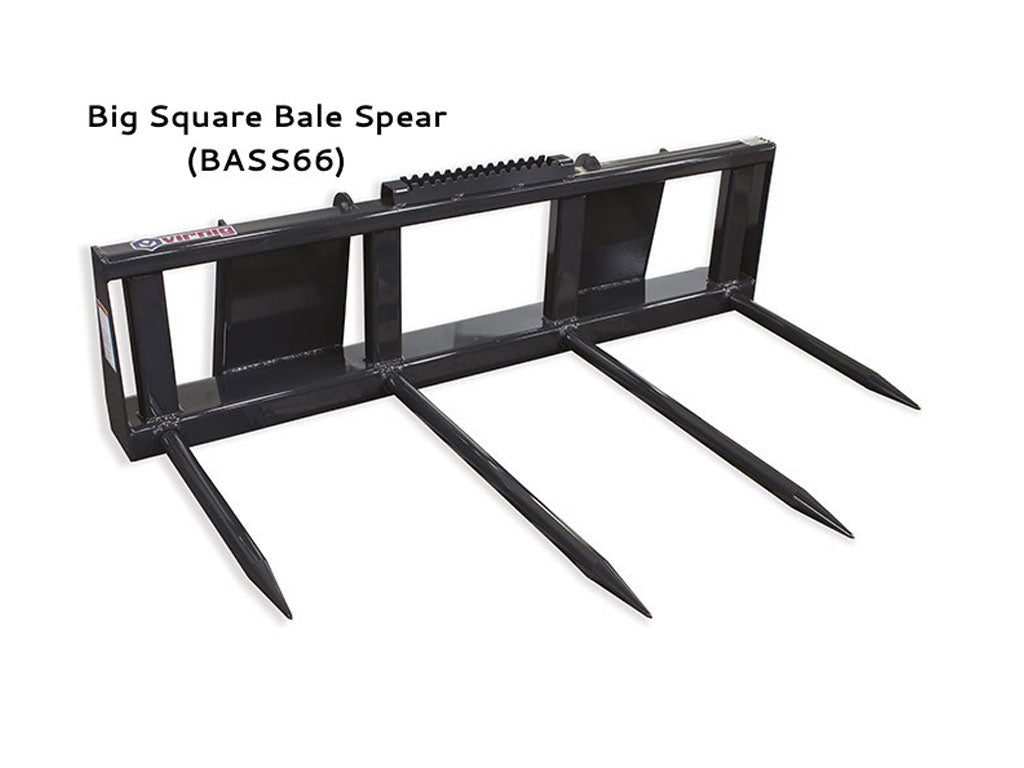

          •  Big Square Bale Spear - BASS66
            • Two 1-3/4” x 42” main spears
            • Two 1-3/4” x 30″ stabilizers
            • One bale maximum



              • Capacity with bale against frame: 2000 lbs ROC
              • Spears made from 1045 CFSR Round Stock.
              Model BSV48 BFV48 CBV48 SSV48 BASS66
              Name Round Bale Spear Bale Fork Bale Combo Spear Square Bale Spear Big Square Bale Spear
              Frame Width (in) 45.5 45.5 45.5 45.5 66.5
              Number of Main Spears 1 2 1 3 2
              Main Spear Usable Length (in) 42.3 42.3 37.8 25.8 37.8
              Main Spear Thickness (in) 2.0 2.0 1.75 1.75 1.75
              Number of Stabilizer Spears 2 - 3 - 2
              Stabilizer Spear Usable Length (in) 17.4 - 25.8 - 25.8
              Stabilizer Spear Thickness (in) 1.5 - 1.75 - 1.75
              Weight (lbs) 230 270 260 225 310



              In stock items usually ship in 3-5 days

              Non stock items usually ship in 4-6 weeks
