Virnig

DMP60

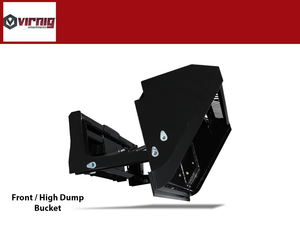

Virnig High Dump Bucket (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

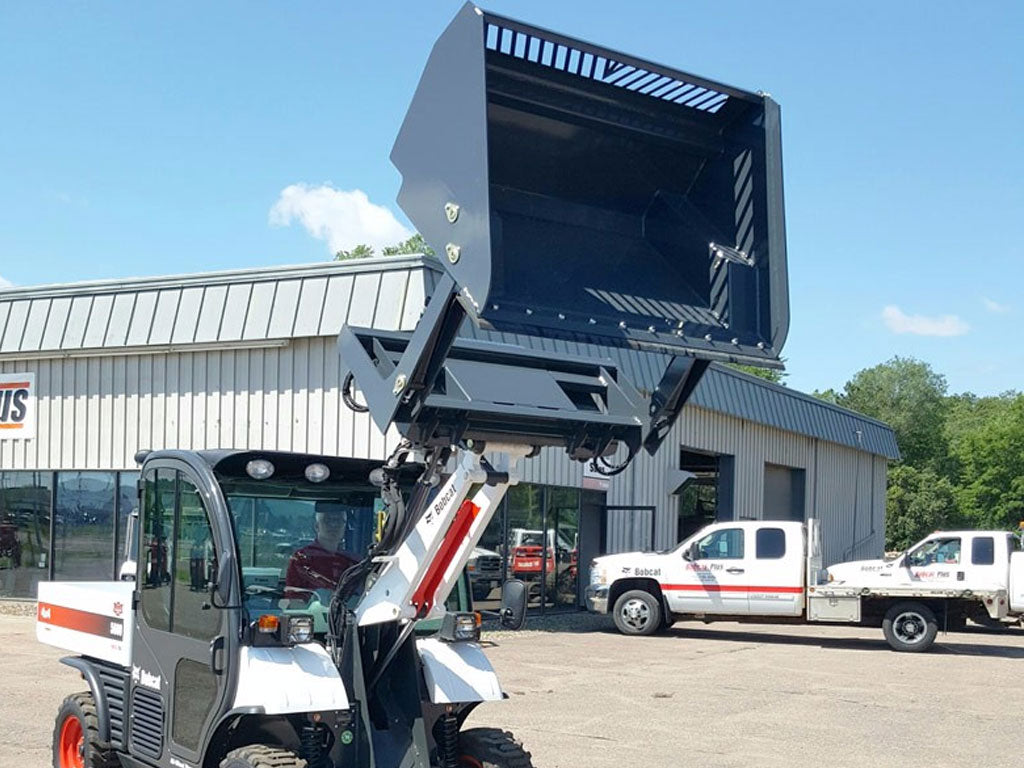

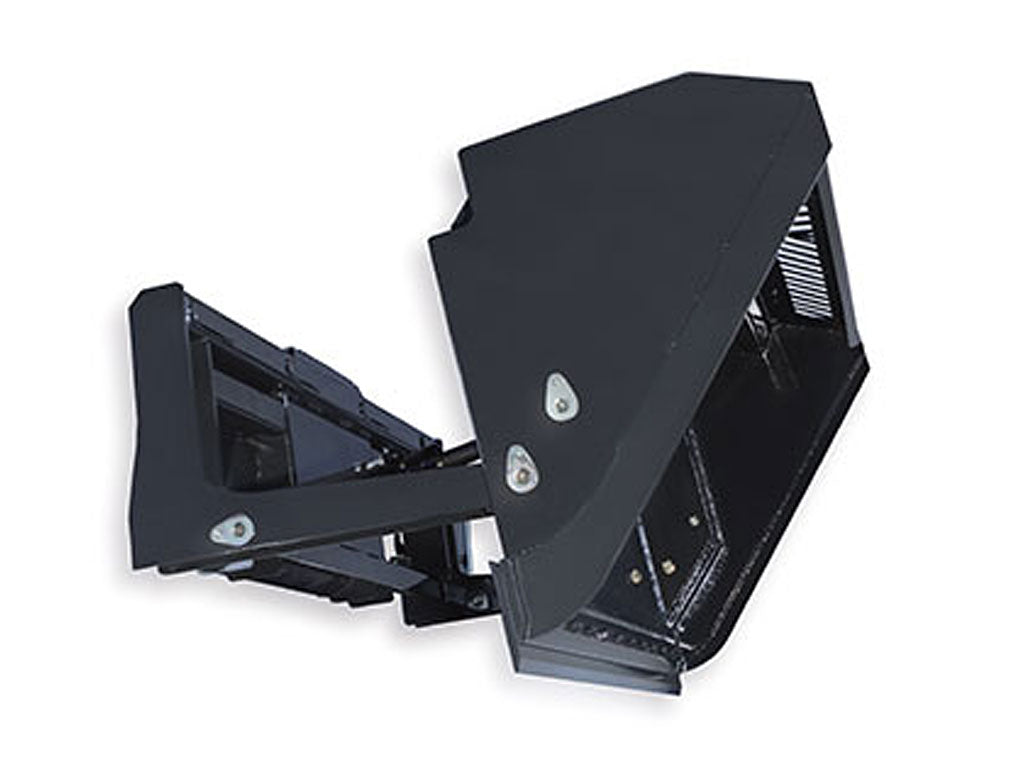

    Two cylinder hydraulic high dump bucket increases lift and reach for easier loading.

    • Increases vertical lift by 44” and horizontal reach by 13” (approximately).
    • Ideal for loading feed mixers and trucks.

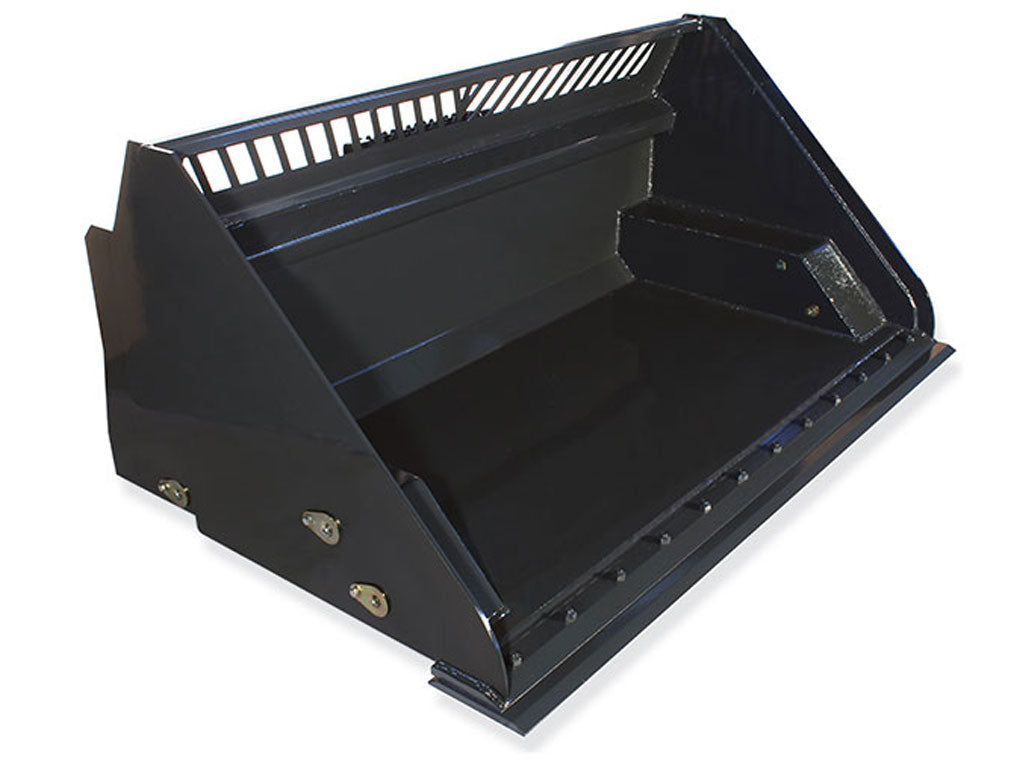

    • Windows in bucket for increased visibility.
    • 3/4” x 6” weld-on edge with holes for optional edges.
    • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods made in USA.
    • Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
    • Teflon® coated bushings provide lubrication at all pivot locations.
    • Machine specific hydraulic package available.
    • Commonly called a rollout bucket.

     OPTIONS

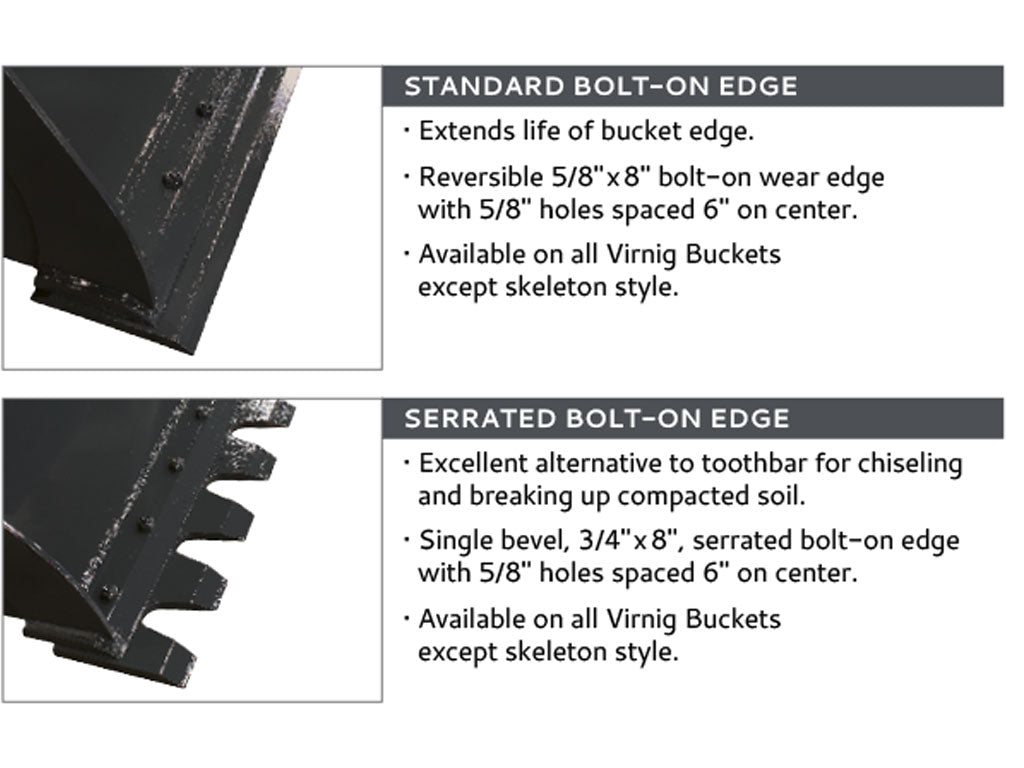

    • Bolt on Cutting Edge (BOCE) installed
    • Serrated Edge (SE) installed

    • Recommended loader capacity - Greater than 1800 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pins Diameter (in) 1.25 / 1.563
    Model 60" 72"" 84" 96"
    Overall Width (in) 61.5 73.5 85.5 97.5
    Depth (in) 47.3 47.3 47.3 47.3
    Height (in) 29.8 29.8 29.8 29.8
    Window Height (in) 4.0 4.0 4.0 4.0
    Dump Angle (degrees) 86.0 86.0 86.0 86.0
    Struck Capacity          (cu ft) 22.8 27.4 32.0 36.6
    Heaped Capacity        (cu ft) 27.4 32.9 38.4 43.9

    Structural Wear Bars Under Bucket              1/2" x 4"

    3 4 4 4
    Weight (lbs) 1015 1115 1215 1310



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks
