PFHA48T

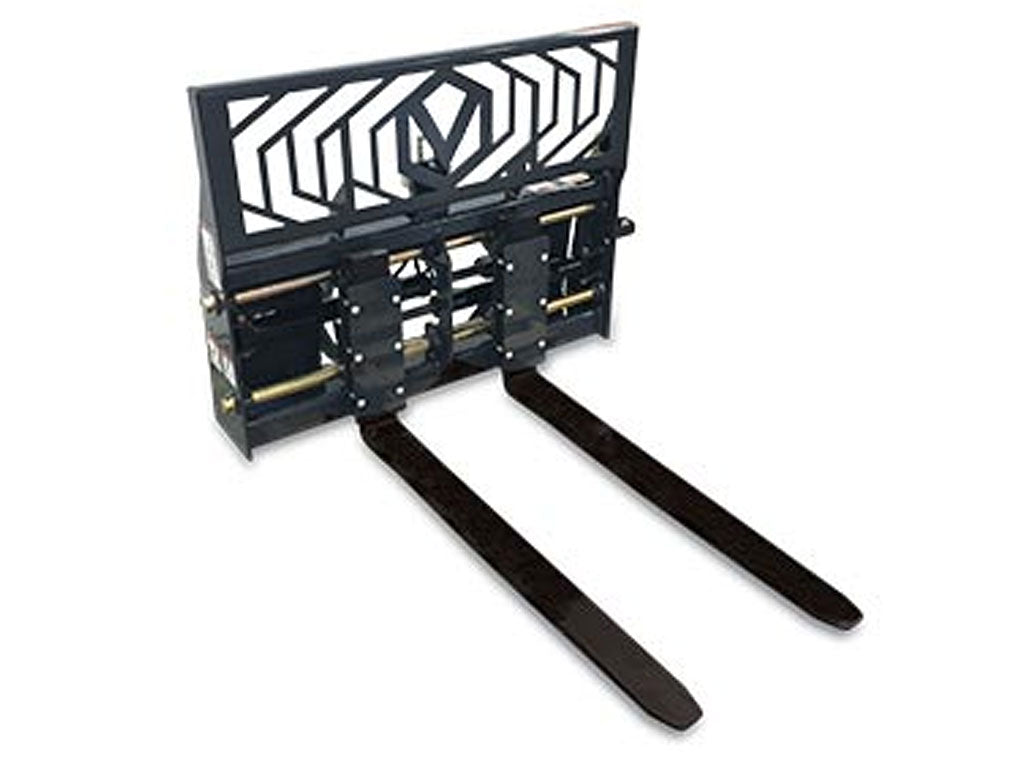

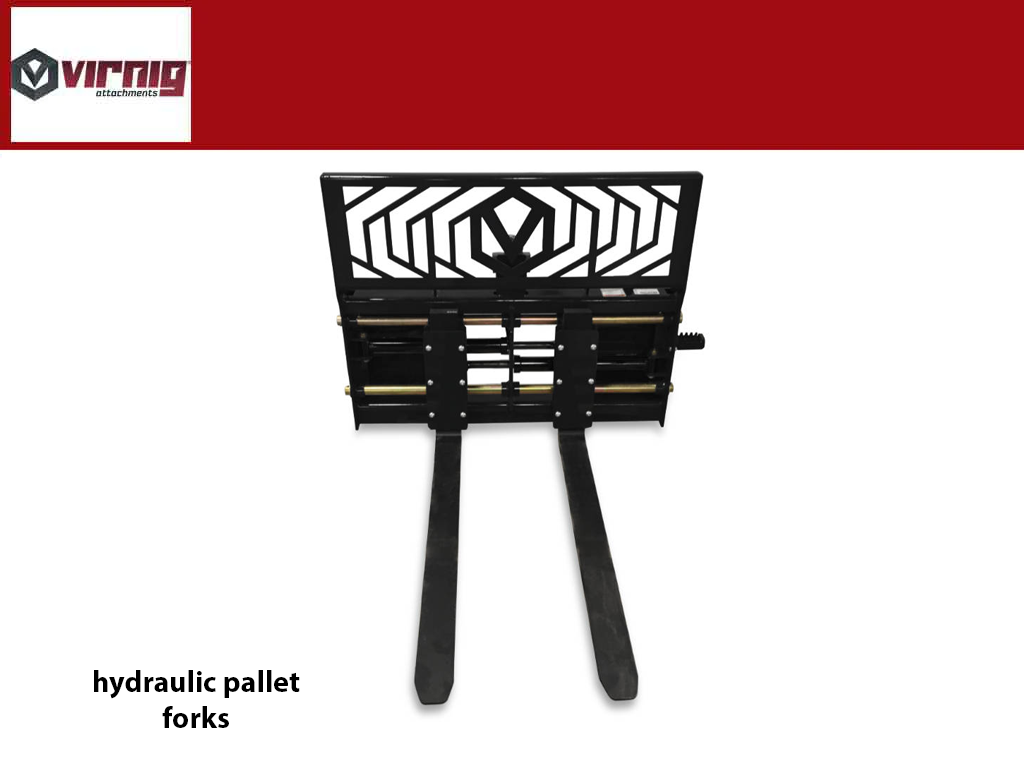

Virnig Hydraulic Adjust Pallet Fork (SSL) (CTL)

OPTIONS

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

Adjust the tines simultaneously from 8” to 38” wide without leaving the cab.

  • Optimized for skid loader use with angles mount plate and high visibility brickguard.
  • Standard ITA Class II forged tines rated at 5,500 lbs per pair.
  • 1 9/16″ diameter shaft.
  • Comes with one step and hardware to install on either side.
  • Same frame for USA and Global Tines.

Recommended Loader Capacity: Greater than 1500lbs ROC

Frame Width (in) 50.1
Overall Height (in) 38.0
Tine Length (in) 48.0
Tine Thickness (in) 1.5
Min Tine Space (in) 7.8
Max Tine Space (in) 38.2
Weight (lbs) 705
Capacity (lbs) 5500
