Virnig

MSB66

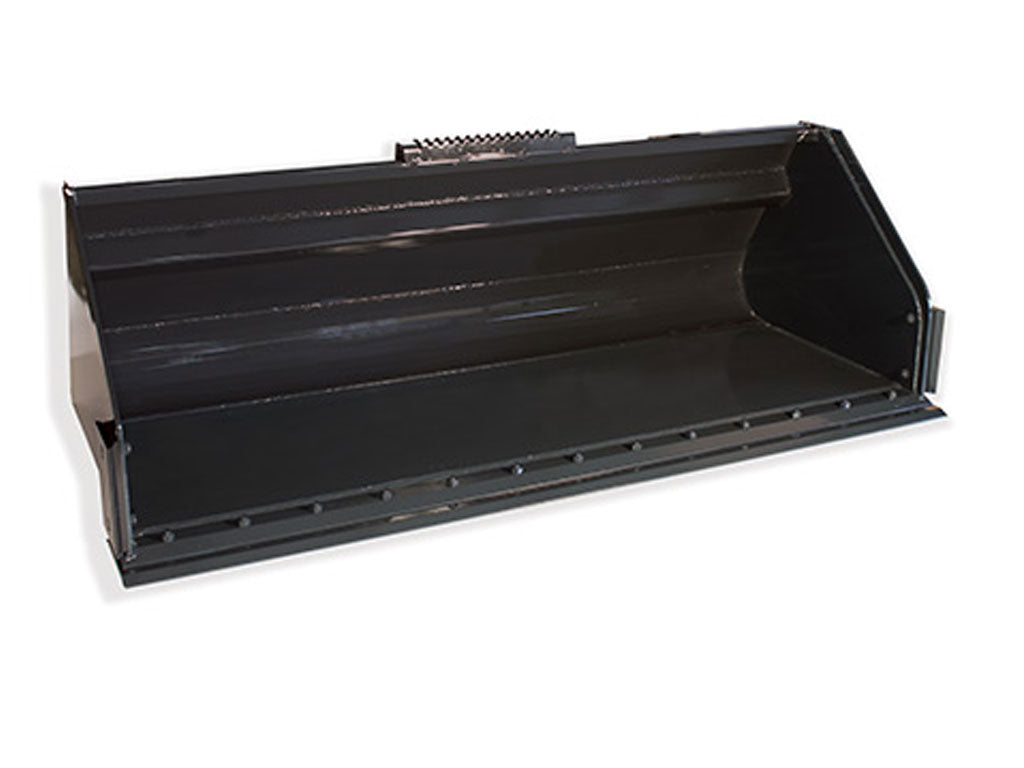

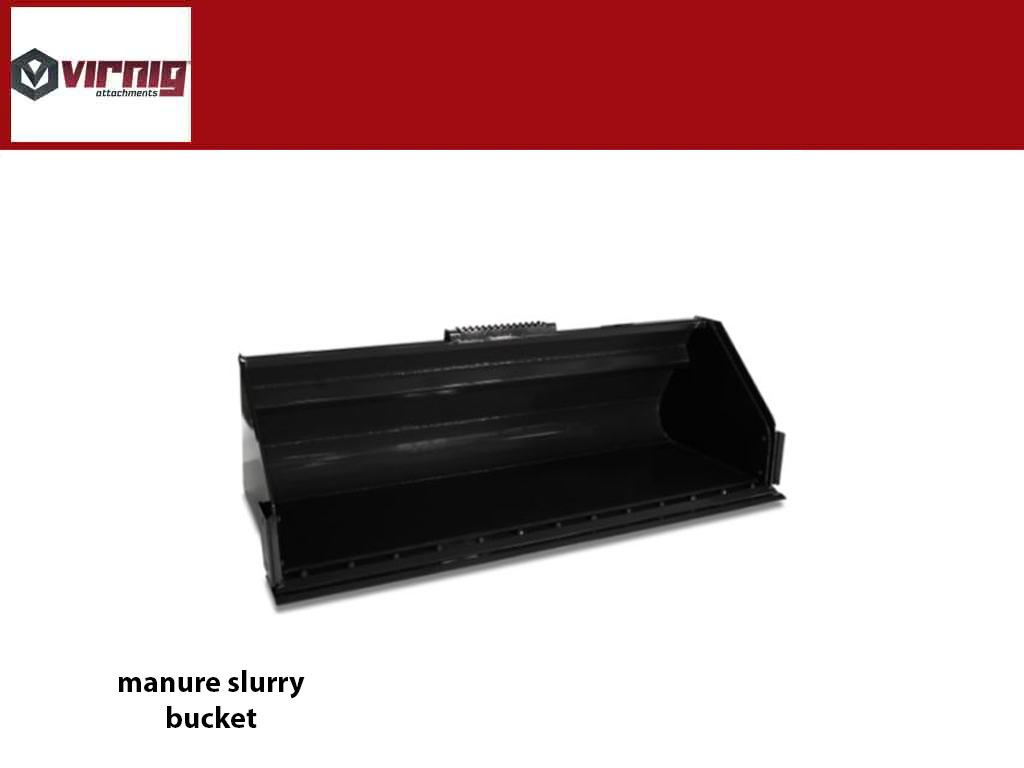

Virnig Manure Slurry Bucket (SSL)(CTL)

Size
Edge
  • Universal skid steer mounting
  • High-strength steel construction and replaceable wear edges.
  • Top formed profile to limit spillage and rolled inside profile for easier clean out.
  • 60 degree back angle and a top formed profile to better hold slurry material and limit spillage off the front of the cutting edge.
  • ¾” x 6” weld-on edge with holes for optional bolt-on edge.

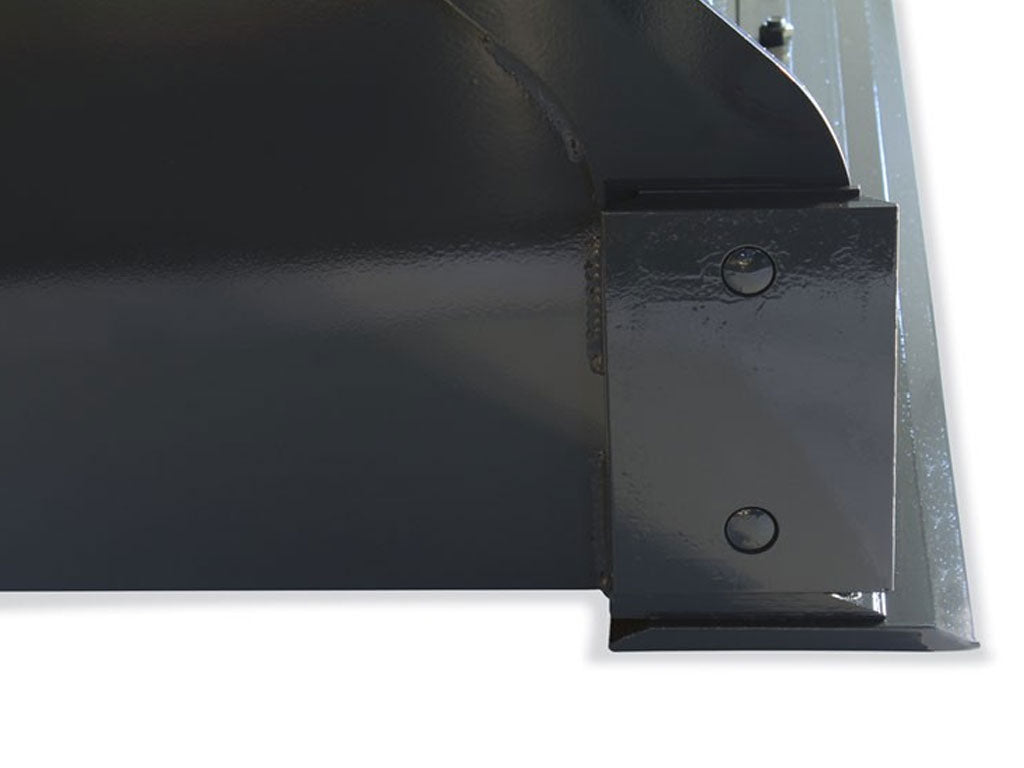

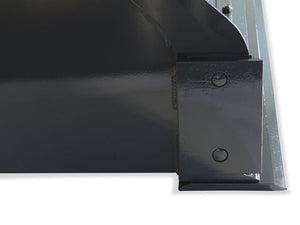

  • Reversible, replaceable bolt-on side wear edges

     OPTIONS

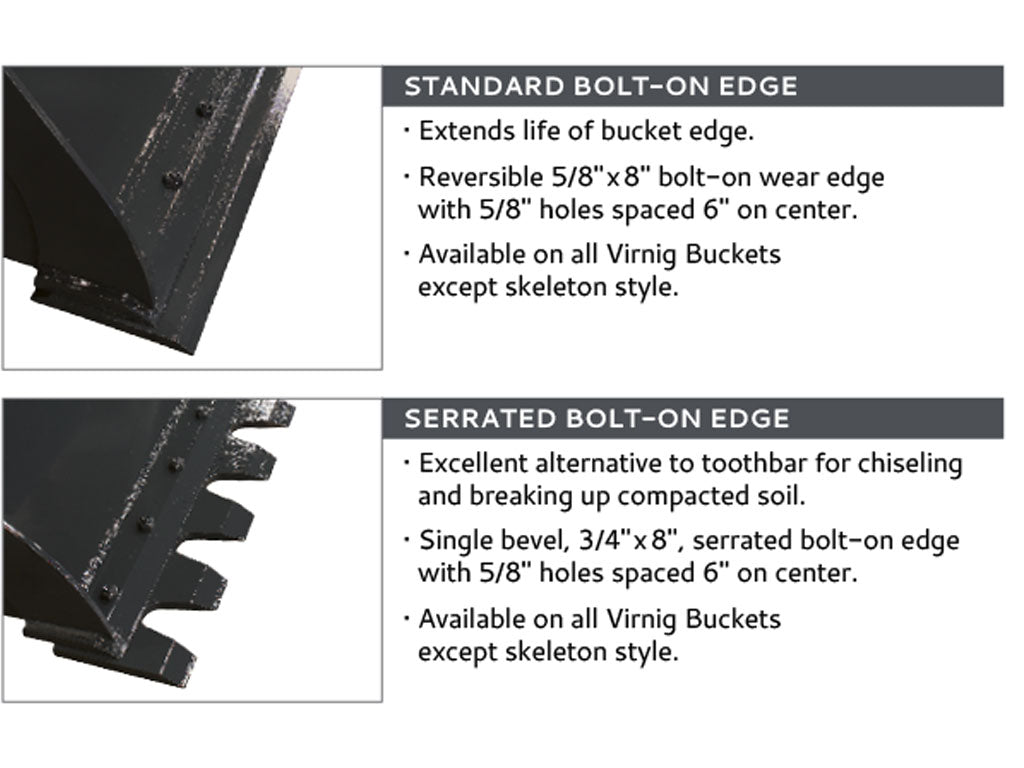

    • Bolt on Cutting Edge (BOCE) installed
    • Serrated Edge (SE) installed



    • Recommended loader capacity - Greater than 1500 lbs ROC
    Model 66" 72"" 78" 84"
    Overall Width (in) 68.3 74.3 80.3 86.3
    Depth: Overall / Inside (in) 37.0 / 32.6 37.0 / 32.6 37.0 / 32.6  37.0 / 32.6
    Height (in) 25.3 25.3 25.3 25.3
    Struck Capacity          (cu ft) 16.9 18.4 20.0 21.5
    Heaped Capacity        (cu ft) 20.3 22.1 24.0 25.8

    Structural Wear Bars Under Bucket              1/2" x 4"

    3 3 4 4
    Weight (lbs) 600 710 770 810



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks
