Virnig

PWR72

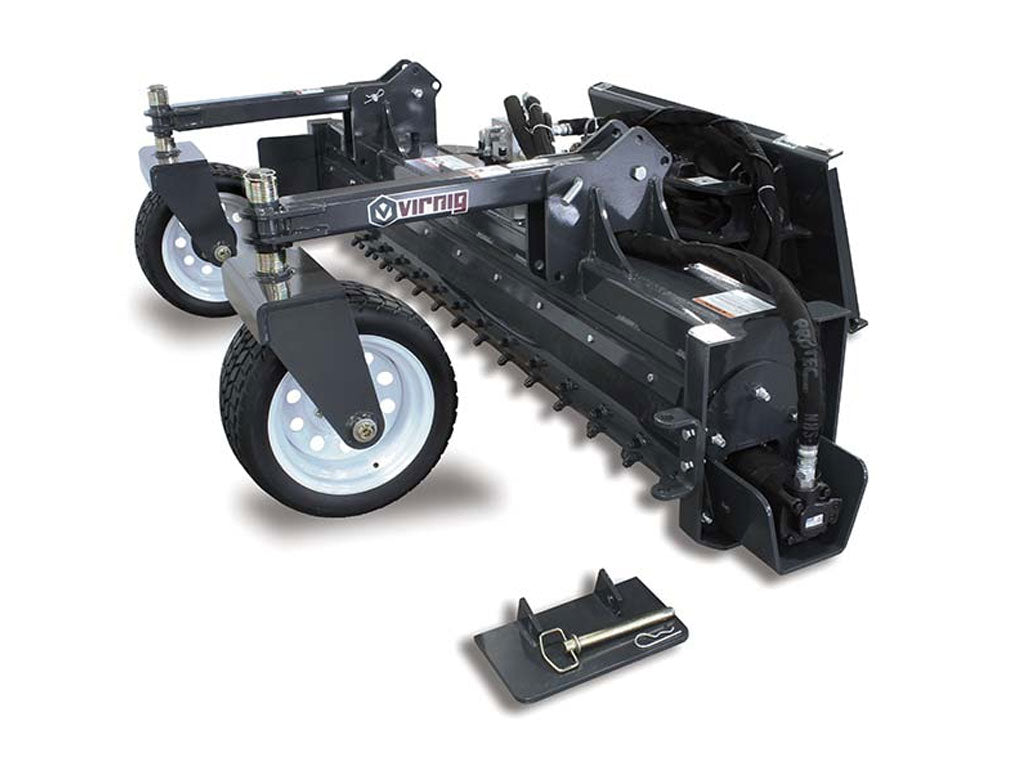

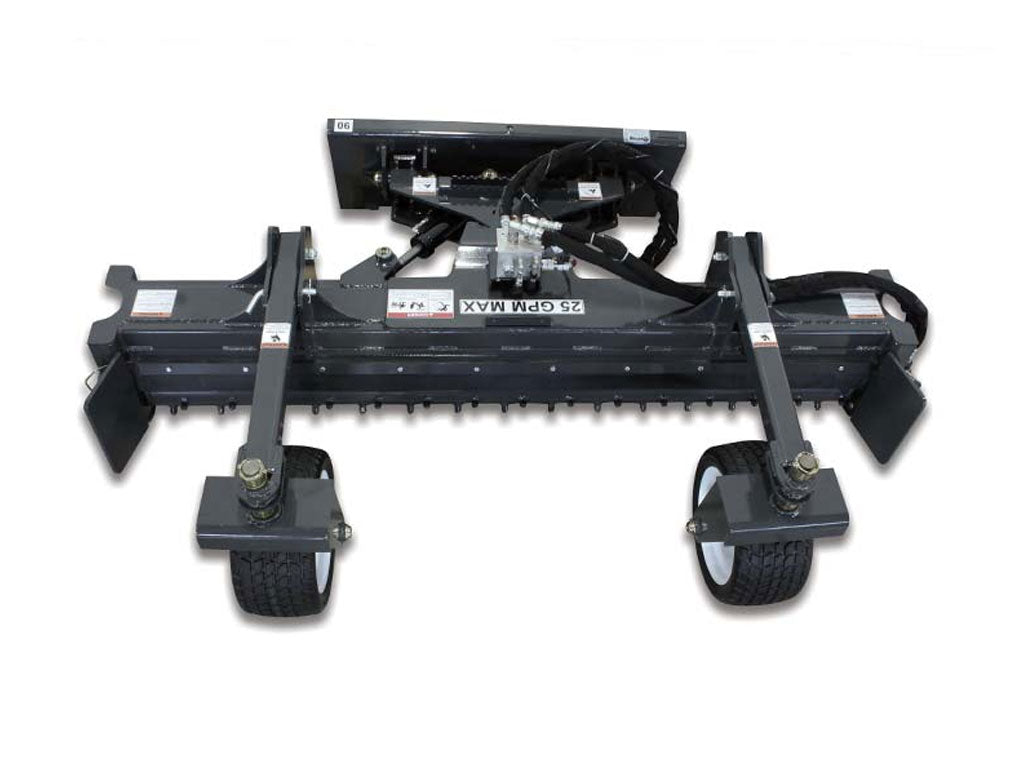

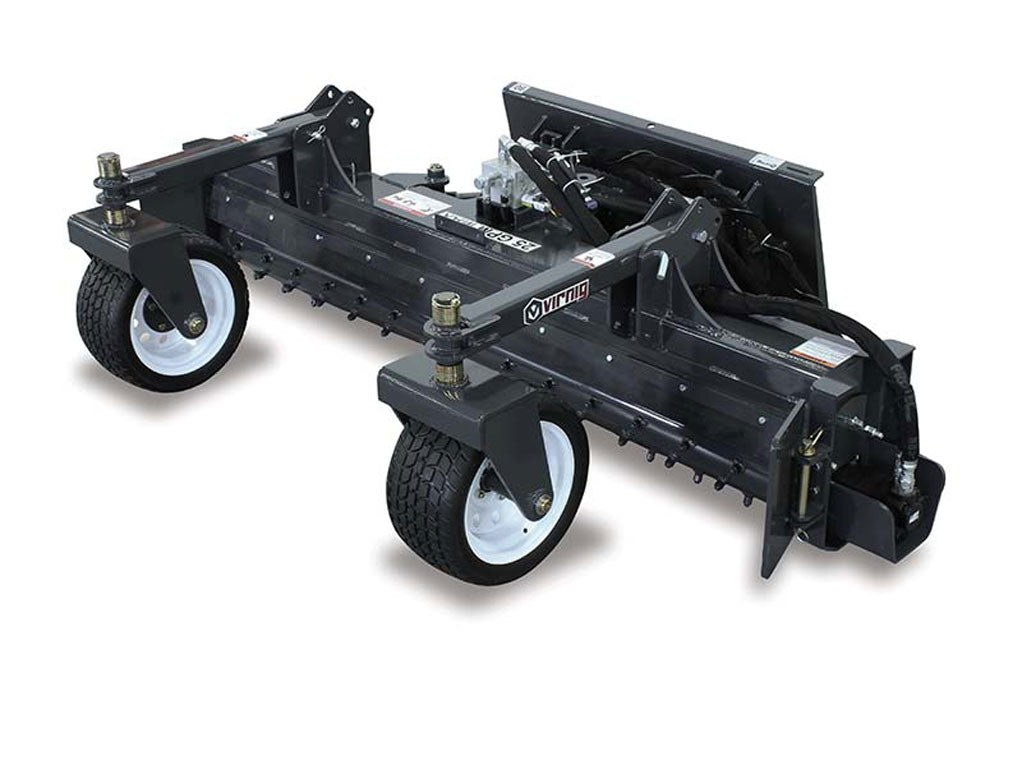

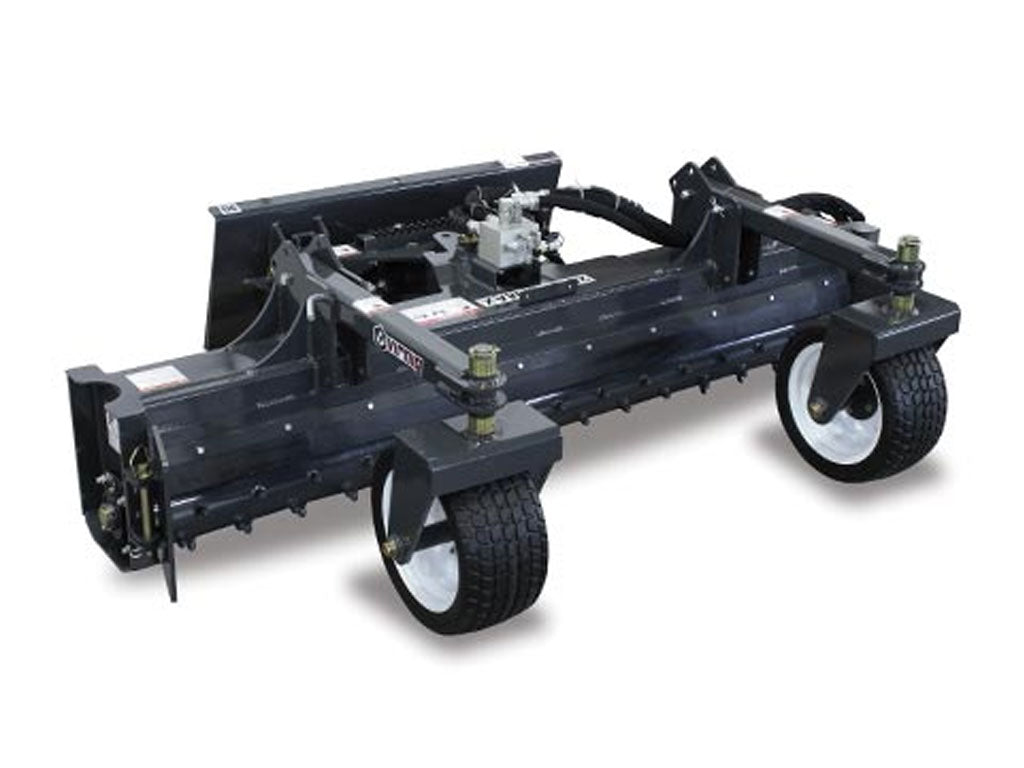

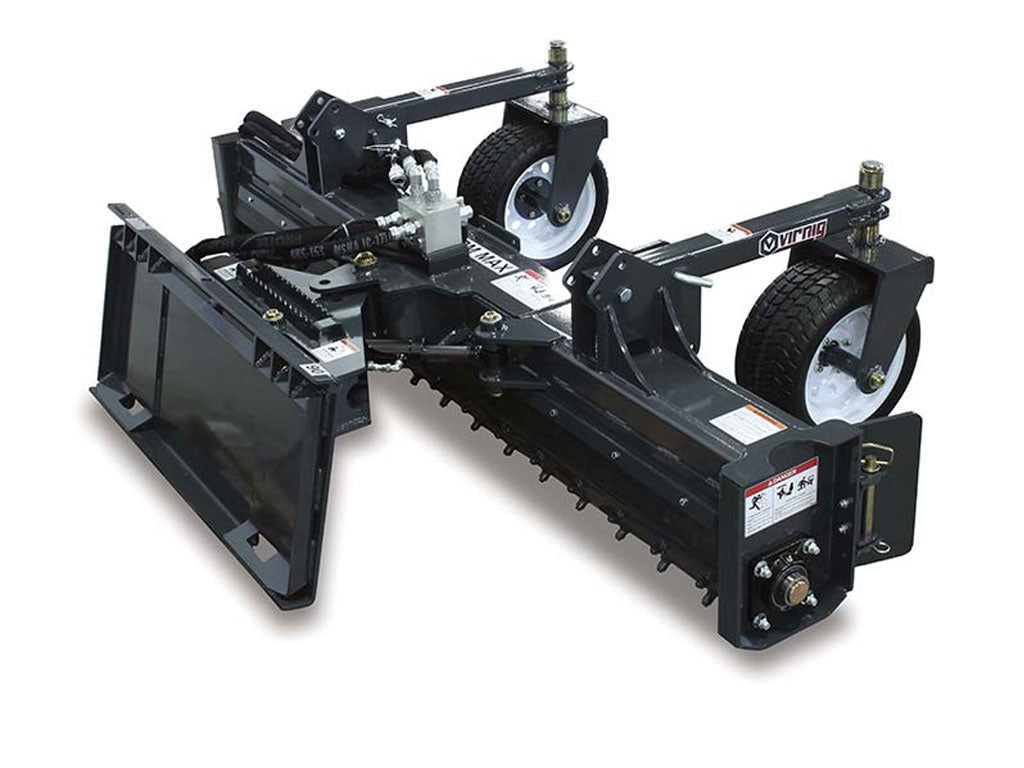

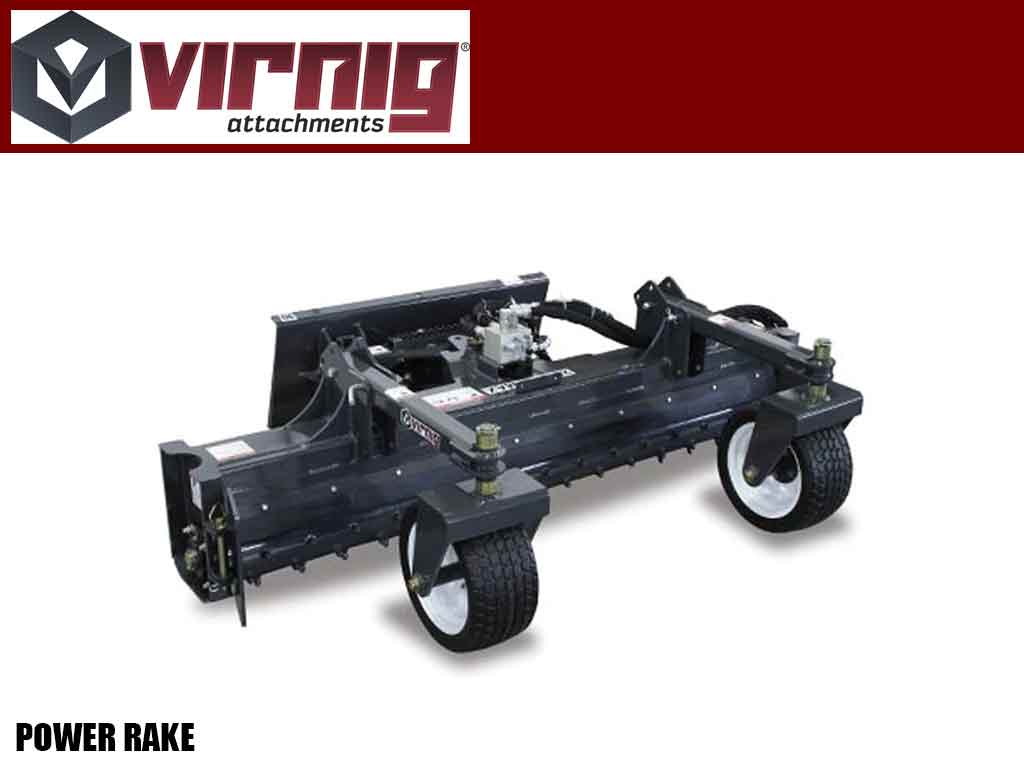

Virnig Power Rake (SSL) (CTL)

Size
Style
Harness

Virnig Power Rake is available is two styles:

  • Manual
  • Hydrailc Angle which allows the operator to quickly angle the rake 25 degrees in either direction to window debris.

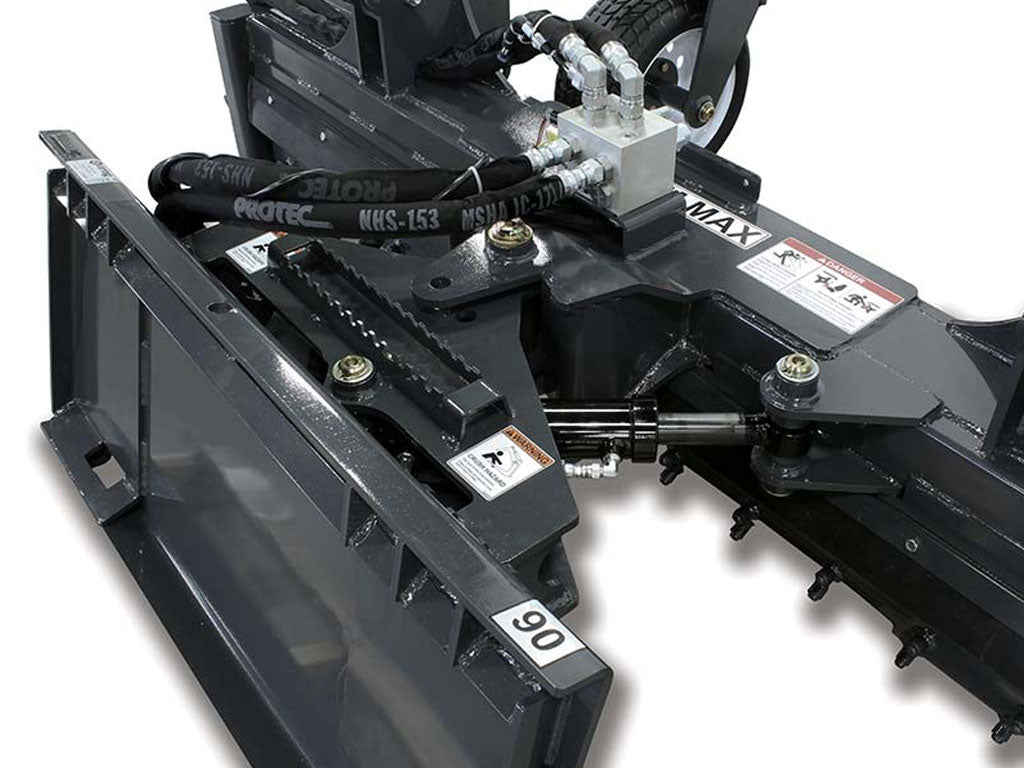

    • One-cylinder design using an electric control valve.
    • 2 1/2" bore, 8" stroke cylinder with a NitroSteel rod.
    • Greaseable 1 1/4" cylinder and 1 9/16" linkage pins.
    • Requires one of the listed electric control harnesses.

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

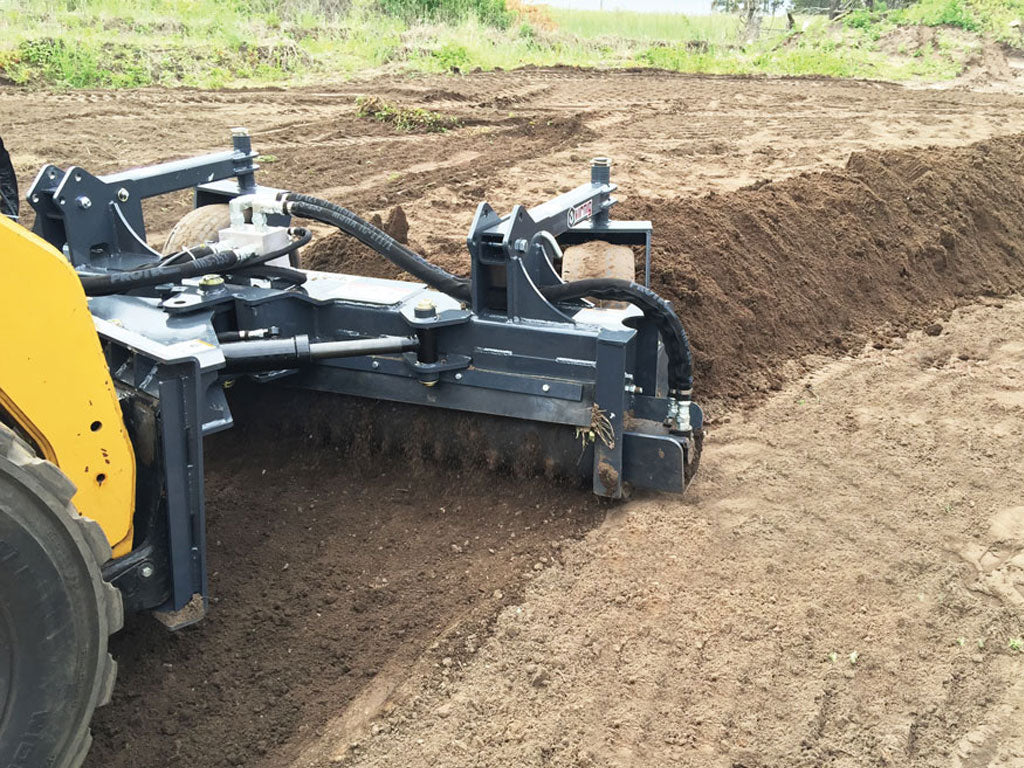

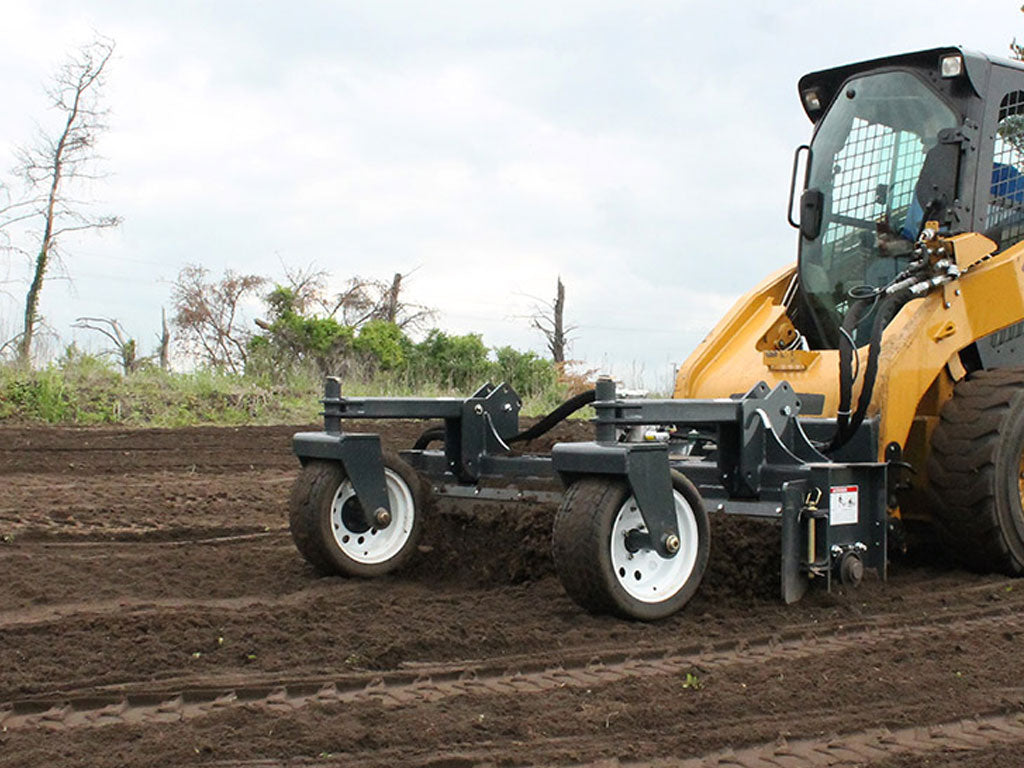

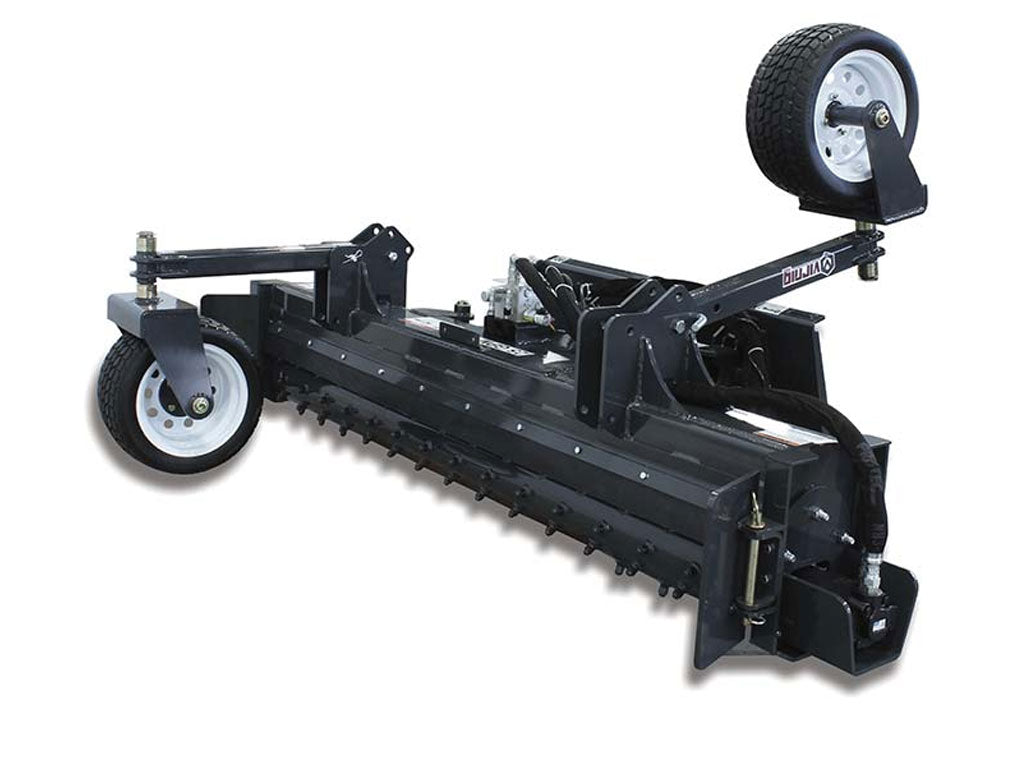

Power Rake - Grade, rake and remove debris all with one attachment.

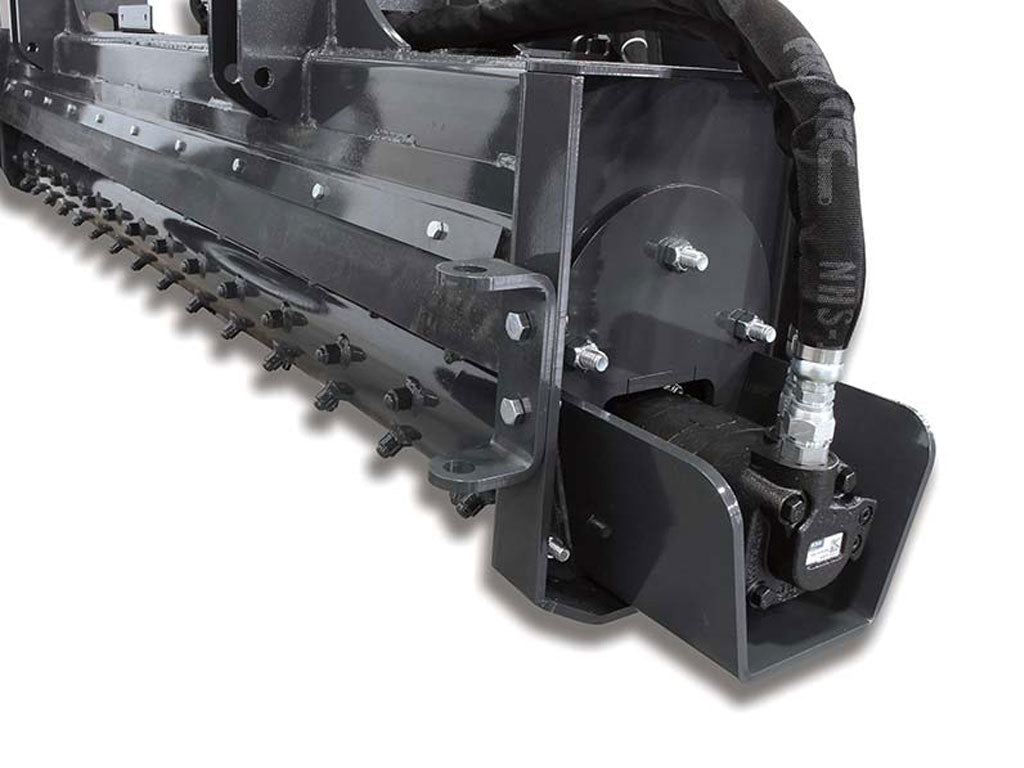

  • Direct drive Eaton® motor reduces downtime and is guarded from damage.
  • Floating design keeps the rake level for a smooth, even finish.
  • Bi-directional drum works the soil in both directions for quick seedbed preparation.
  • Standard carbide tip teeth for long life in many soil conditions.
  • Standard removable end plates help contain raked debris.
  • Solid urethane filled tires eliminate costly interruptions from flats.

 Available Accessories For Hydraulic Angle - Call for pricing

  • 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
  • Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control.





Model PWR72 PWR90
Raking Width (in) 72.0 90.0
Raking Width at Full Angle (in) 65.3 81.5
Overall Width (in) 84.0 102.0
Overall Depth (in) 68.5
Overall Height (in) 27.5
Drum Diameter (in) 8.5
Number of Teeth 119 149
Float Link Angle (degrees) 22
Rake Angle (degrees) +/- 25
Recommended Flow Rate (gpm) 15-25
Approximate Weight (lbs) 1335 1440
Recommended Loader Capacity Greater than 1500 pounds





In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
