Virnig

TSGV72

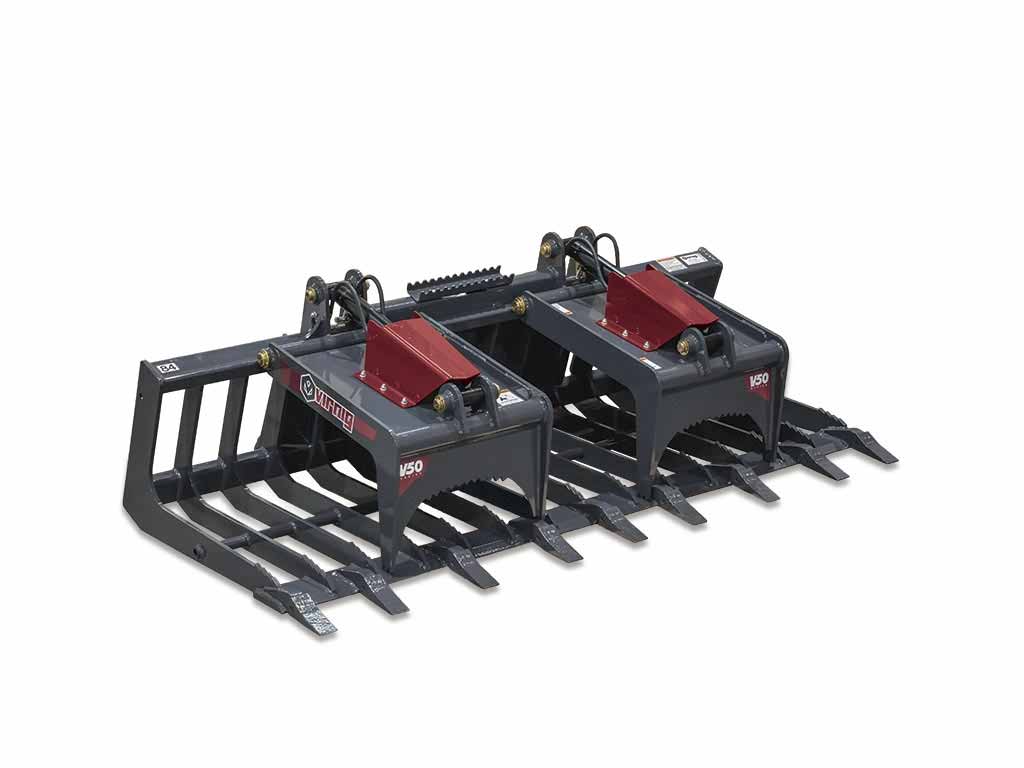

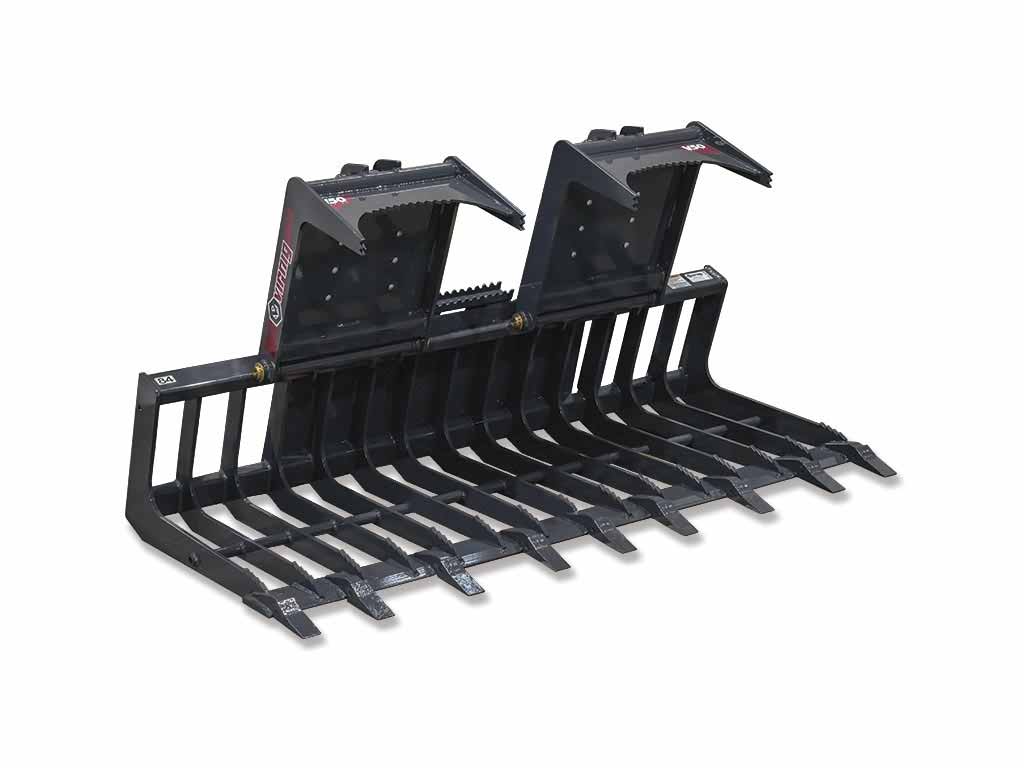

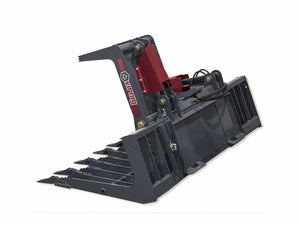

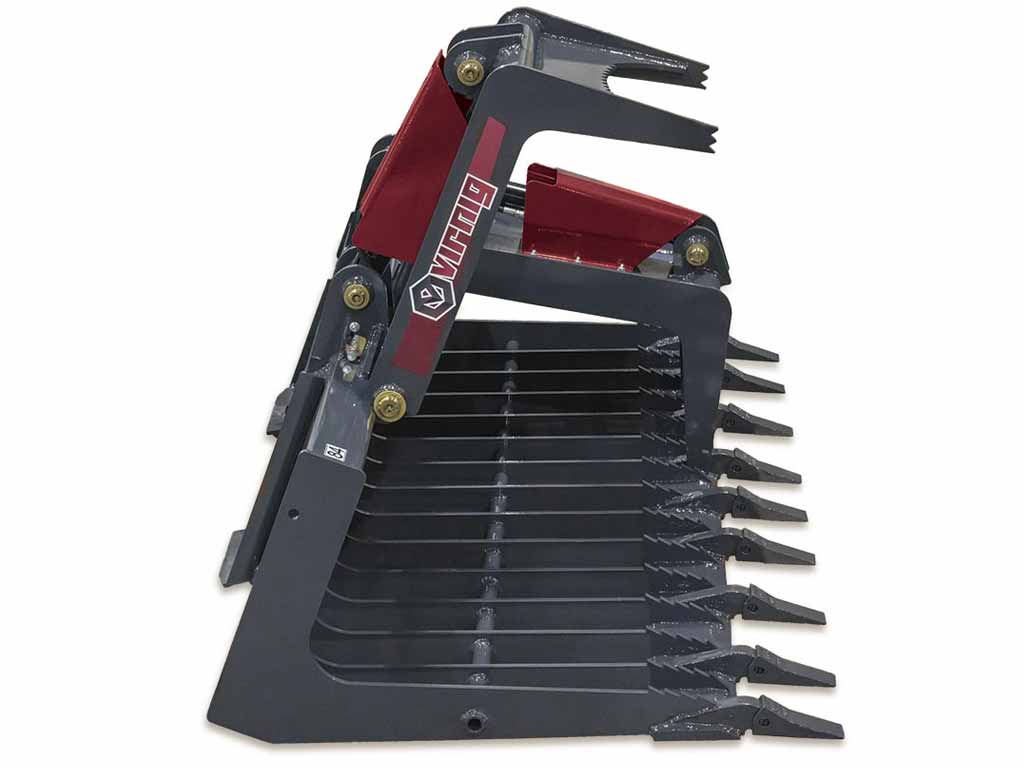

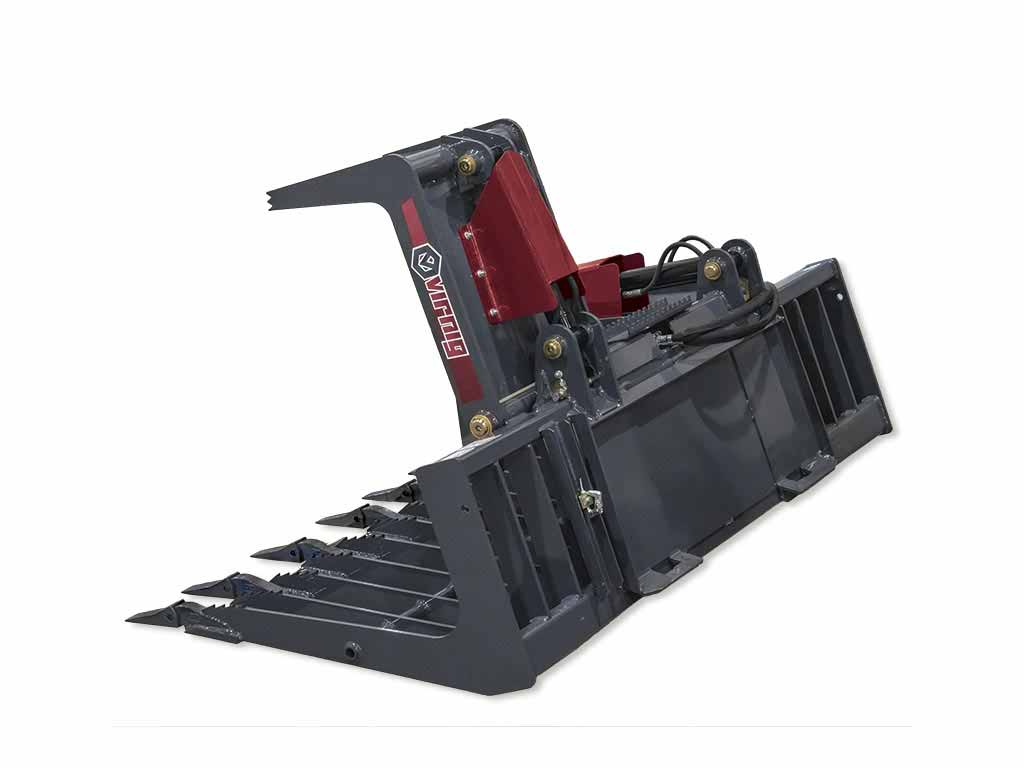

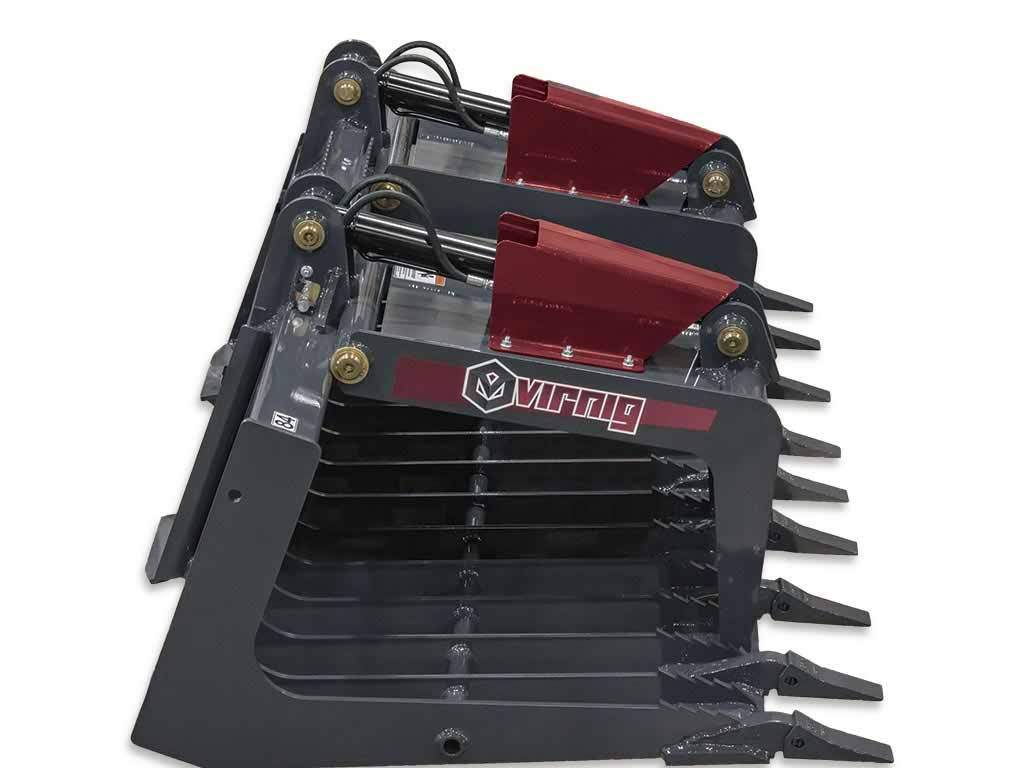

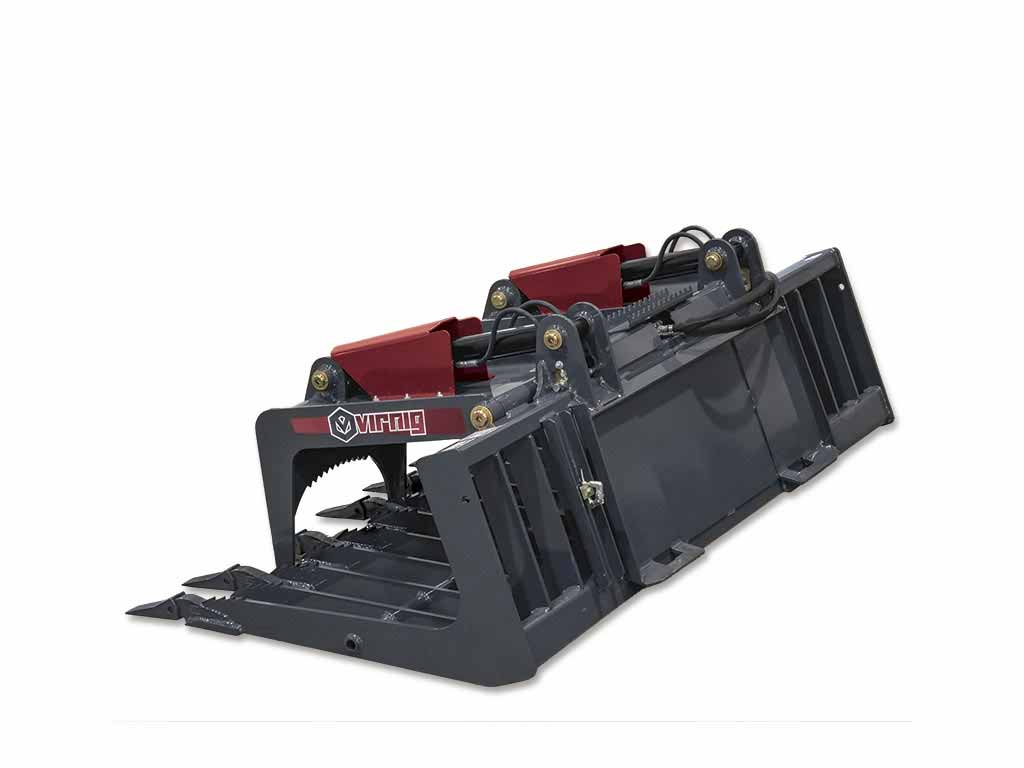

Virnig skeleton tooth grapple (CTL)(SSL)

MODEL

V50 SKELETON TOOTH GRAPPLE

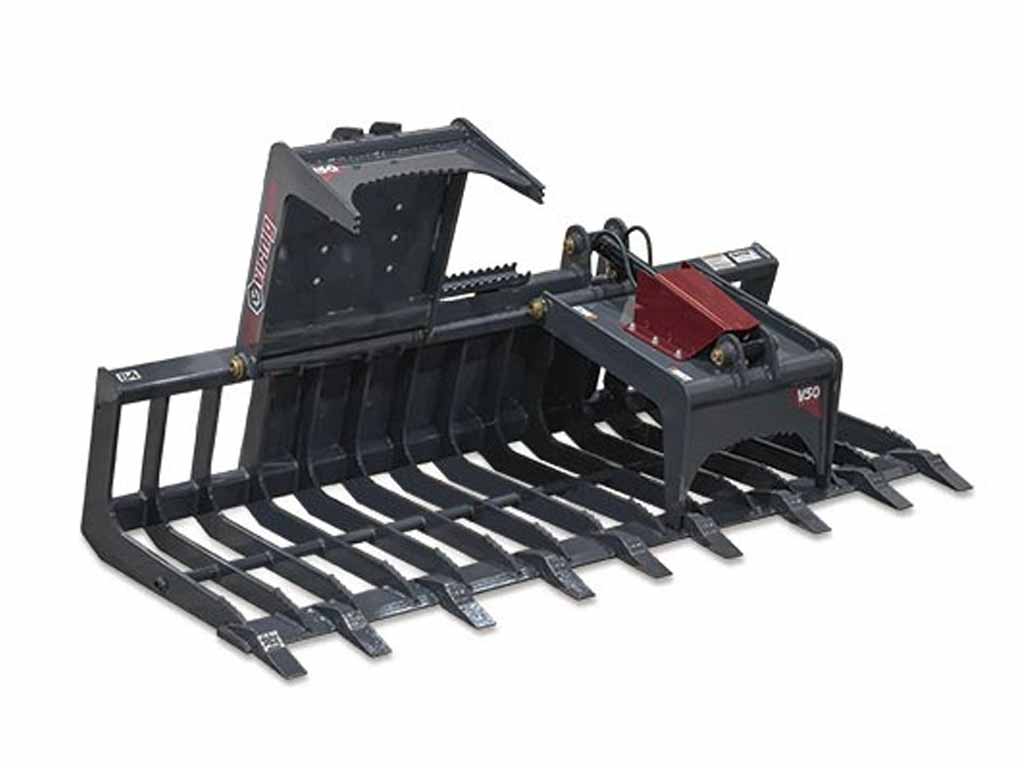

Two-cylinder independent grapple with and open sided design for hauling brush and logs. Open bottom allows dirt to fall through.

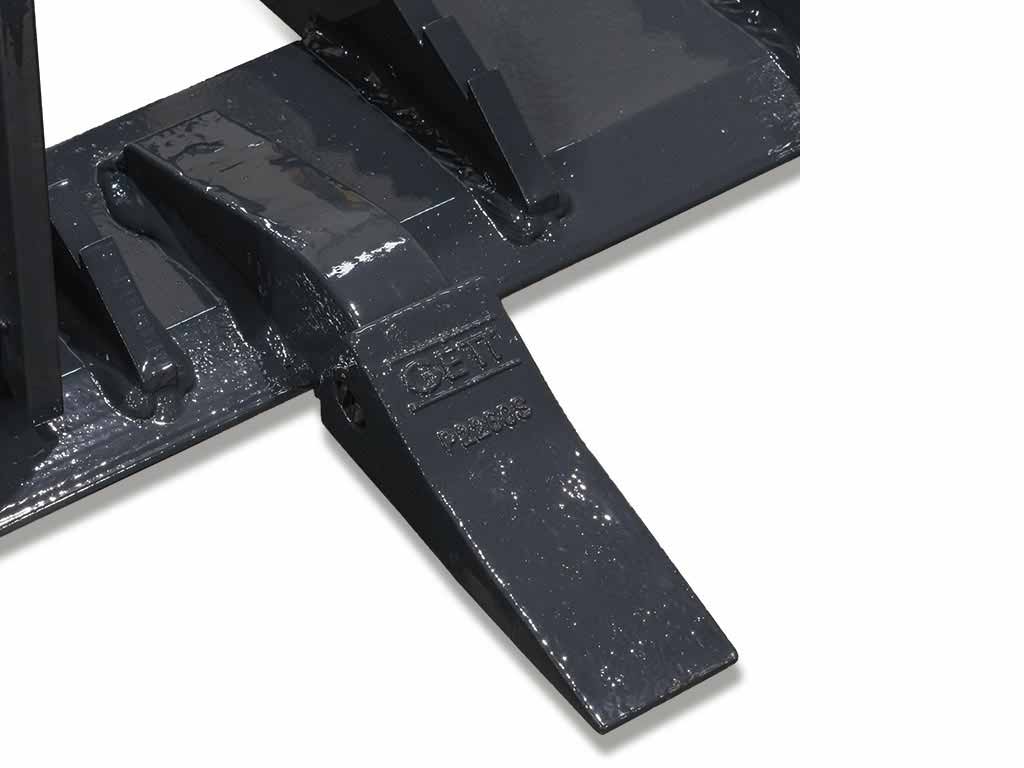

  • Series 23 cast, pin-on teeth help cut into soil, dig out rocks and roots and extend edge life.
  • Every tine is constructed from one piece of 1/2″ Grade 80 steel, from tip to top brace, to add rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with Cylinder Guards.
MODEL TSGV72 TSGV78 TSGV84 TSGV90
Overall Width (Inches) 73.5 79.5 85.5 91.5
Height: Overall / Bucket (Inches) 27.5 / 21.3
Overall Depth (Inches) 43.3
Number of Teeth 8 9 9 10
Space Between Teeth (Inches) 6.8-8.8  6.3-8.8 6.8-9.3 6.8-8.8
Space Between Tines (Inches) 5.5
Tine Thickness (Inches) 0.5*
Cylinder Bore | Stroke (Inches) 2.0 | 8.375
Cylinder Pins | Hinge Pins Diameter (Inches) 1.25 | 1.563
Grapple Jaw Opening (Inches) 40.9
Approximate Weight (Pounds) 1005 1055 1095 1145
Recommended Loader Capacity Greater than 1500 pounds

*Tine Material is Grade 80 Plate (80,000 Minimum Yield Strength).



USUALLY CAN SHIP IN (3) TO (5) DAYS
