Virnig

TLR54

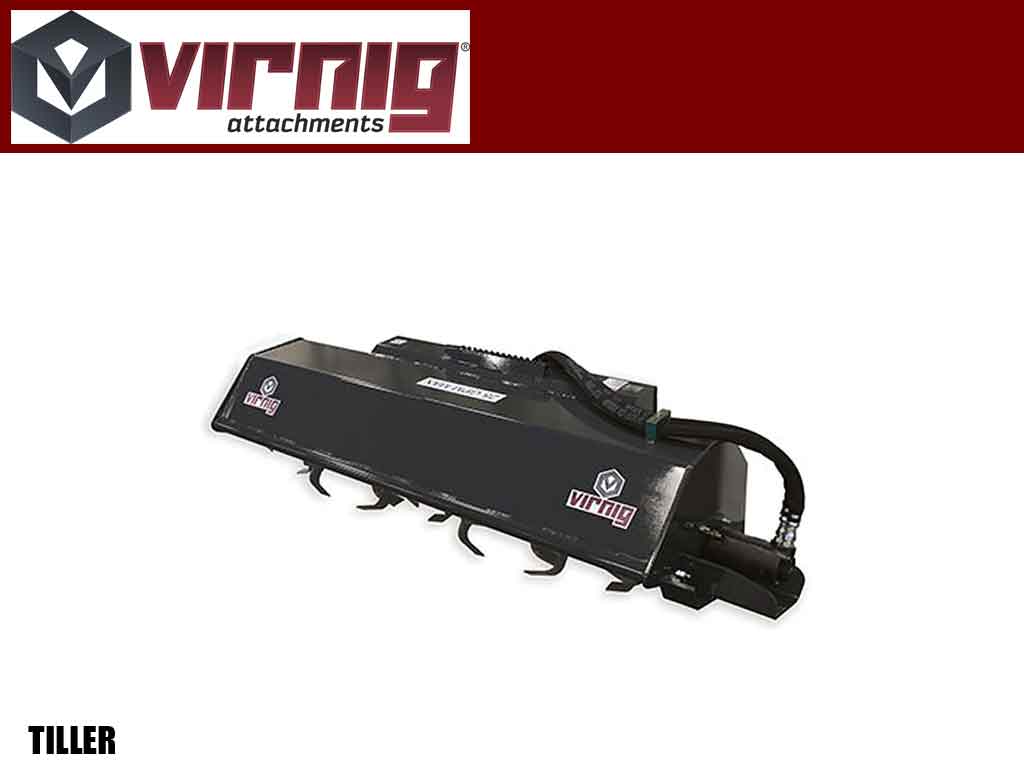

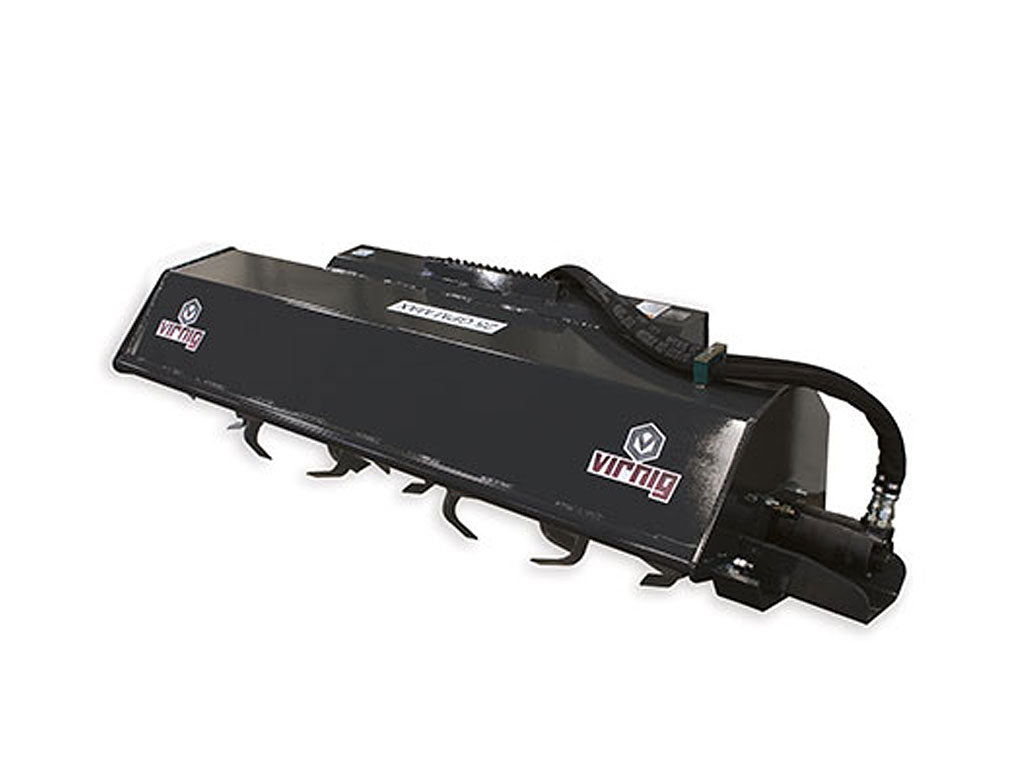

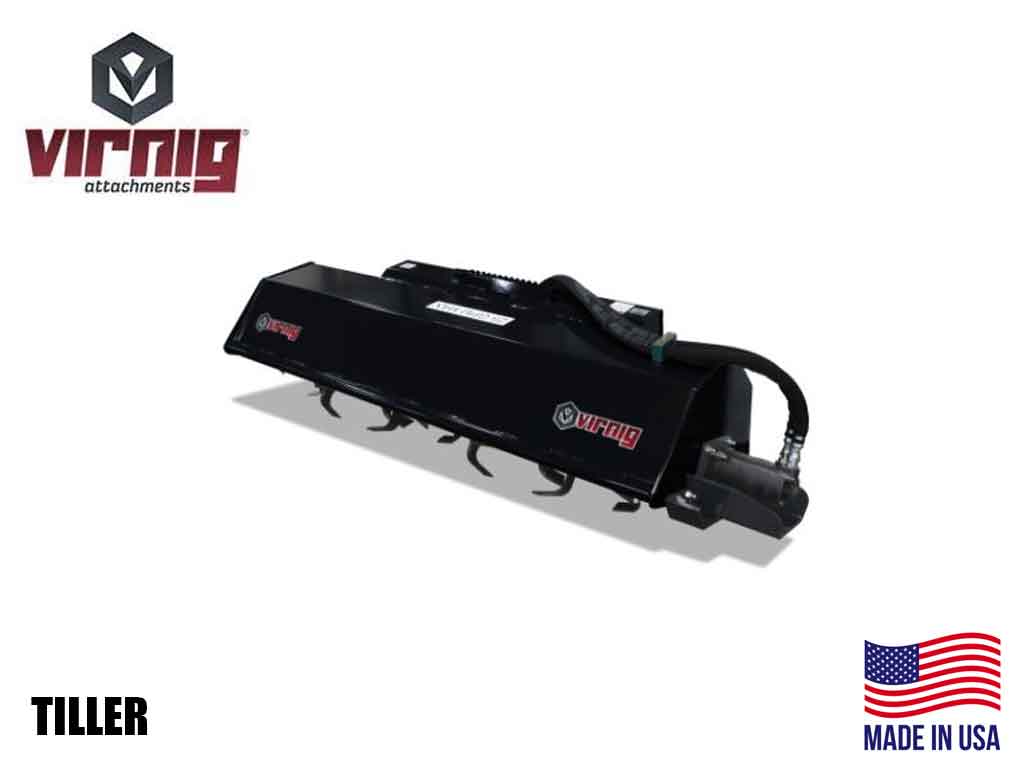

Virnig Tiller (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES & COUPLERS

Bi-directional, direct drive tiller attachment with a bearing supported shaft and replaceable tines.

  • Bi-directional rotation allows tilling going forward or in reverse.
  • Direct drive motor eliminates chains or belts reducing maintenance and downtime.
  • Tillers shaft supported on both ends by 2″ diameter bearings minimizing weight held by the motor.

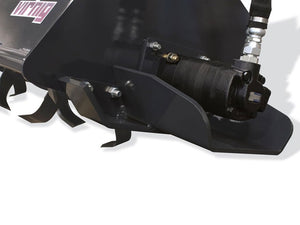

  • Motor guarded on bottom and sides for added protection against rocks and debris.
  • Replaceable, heat-treated, dual-edge tines help break through clumps and tear through hard ground.
  • Offset to cover tire tracks, and allows the operator to till next to buildings, sidewalks, etc.

    • Recommended Loader Capacity: Greater than 1300 lbs ROC
    Model 54" 72"
    Working Width (in) 54.0 72.0
    Overall Width (in) 70.5 88.5
    Loader Width Coverage, Outside Tire (in) 68.0 80.0
    Overall Height (in) 28.0 28.0
    Overall Depth (in) 32.0 32.0
    Tilling Depth (in) 6.0 6.0
    Working Offset (in) 7.0 4.0
    Recommended Flow Rate (GPM) 15-25 15-25
    Drum Diameter (in) 22.0 22.0
    Number Tines 28 36
    Weight (lbs) 900 1050
