AUG30VGHSA
VIRNIG V20 MINI SKID AUGER DRIVE
$3,355.00 - $4,160.00

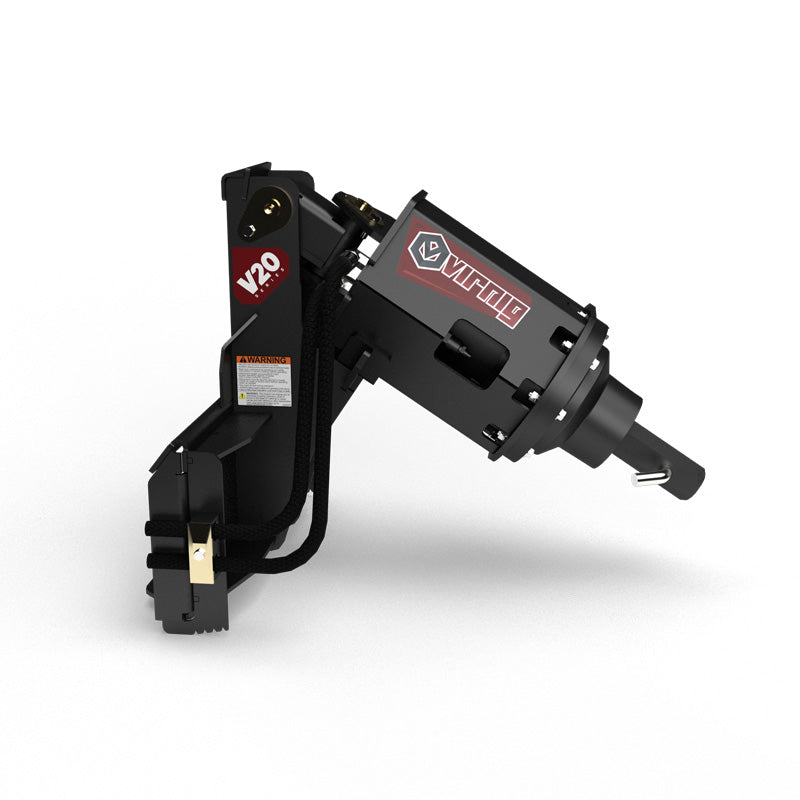

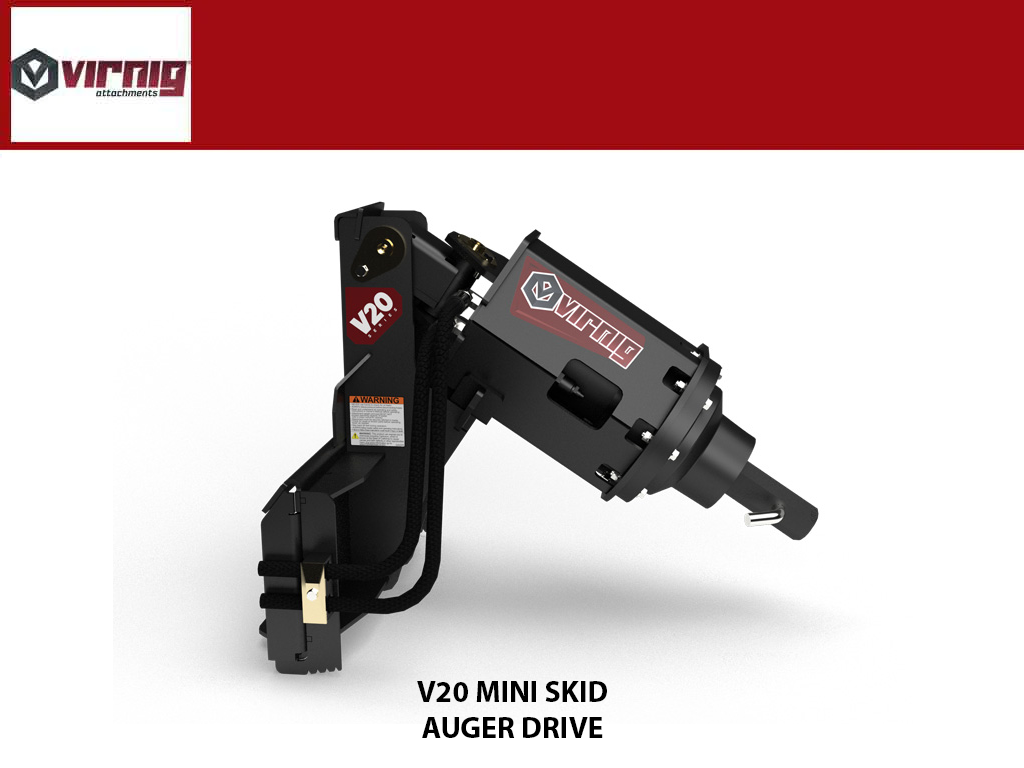

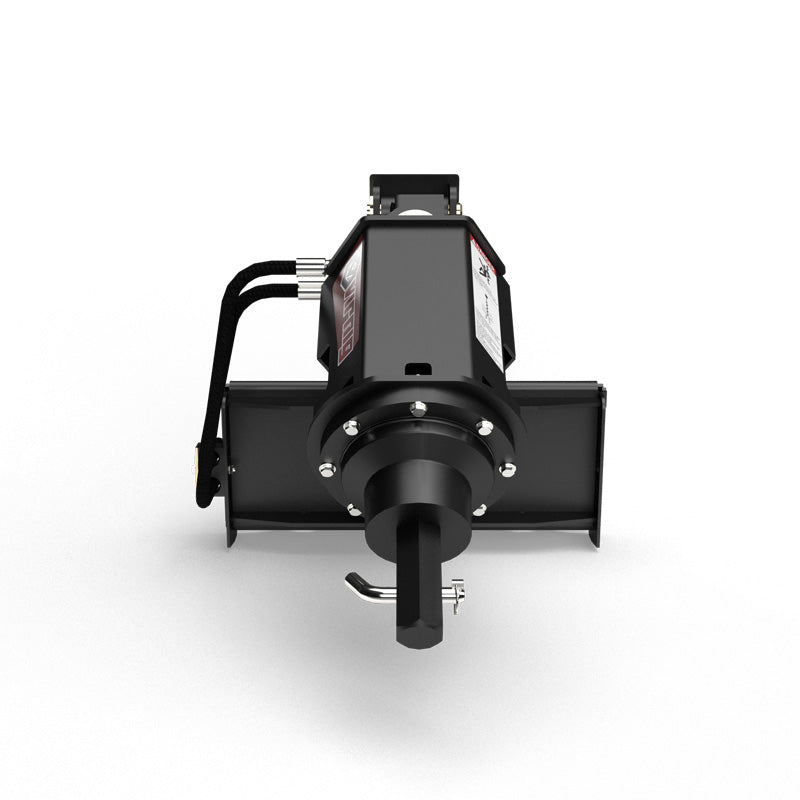

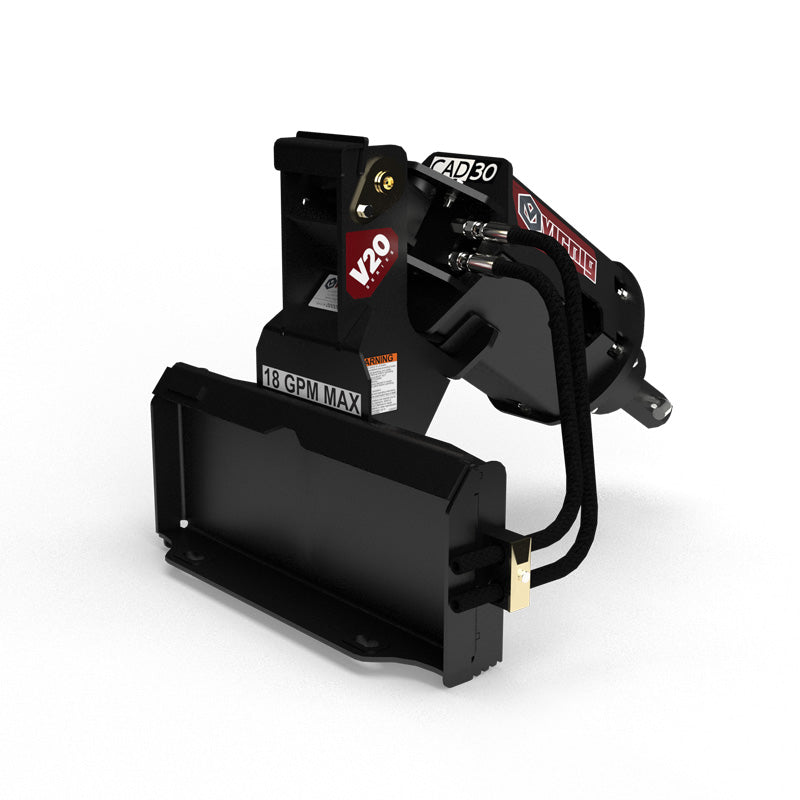

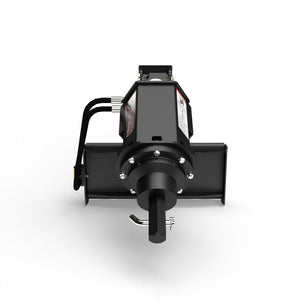

V20 Mini Skid Steer Auger Drive
- HOSES ROUTED FROM TOP OF HOUSING FOR DEEPER DRILLING WITH 12″ DIAMETER BITS
- DIRECT DRIVE MOTOR WITH HYDRAULIC PRESSURE RELIEF PROTECTION
- PLANETARY REDUCTION ENSURES LONGEVITY & CONSISTENT TORQUE
- BI-DIRECTIONAL AUGER ROTATION
- FRAME DESIGN ALLOWS 4′ LONG BITS FOR LOADER HINGE PIN HEIGHT OF 80+ INCHES
| MODEL | AUG30 | AUG30 | AUG36 | AUG36 | AUG36HT |
| Output | 2″ Hex | 2 9/16″ Round | 2″ Hex | 2 9/16″ Round | 2″ Hex |
| Recommended Flow Rate (GPM) | 10-18 | 10-18 | 15-25 | 15-25 | 15-27 |
| Maximum Bit Diameter (Inches) | 30 | 30 | 36 | 36 | 36 |
| Torque @ 3000 PSI (ft.-lbs.) | 2,205 | 2,205 | 2,730 | 2,730 | 3,345 |
| Speed @ 14 GPM | 58 | 58 | |||
| Speed @ 20 GPM | 67 | 67 | 55 | ||
| Weight (lbs.) | 250 | 250 | 280 | 280 | 305 |
| MODEL | AUG30 | AUG36 | AUGHT36 |
| Overall Height/Width (Inches) | 26.3 / 10.8 | 25.1 / 10.8 | 27.0 / 11.5 |
| Maximum Standard/Tree Auger Bit Size (Inches) | 30 | 36 | 36 |
| Maximum Rock Auger Bit Size (Inches) | 12 | 18 | 18 |
| Recommended Flow Rate (GPM) | 10-18 | 15-25 | 15-27 |
| Output Shaft Options | 2″ Hex & 2 9/16″ Round | 2″ Hex & 2 9/16″ Round | 2″ Hex |
| Output Torque @ 2000 PSI (ft-lbs) | 1470 | 1820 | 2230 |
| Output Torque @ 2500 PSI (ft-lbs) | 1835 | 2275 | 2790 |
| Output Torque @ 3000 PSI (ft-lbs) | 2205 | 2730 | 3345 |
| Output Torque @ 3500 PSI (ft-lbs) | 2570 | 3190 | 3905 |
| Output Speed @ 16 GPM (RPM) | 67 | 54 | 44 |
| Output Speed @ 20 GPM (RPM) | – | 67 | 55 |
| Output Speed @ 24 GPM (RPM) | – | 81 | 66 |
| Approximate Weight (Pounds) | 150 | 150 | 175 |
