CAB48

Virnig V20 Mini Loader Angle Broom

Size
Style
Harness

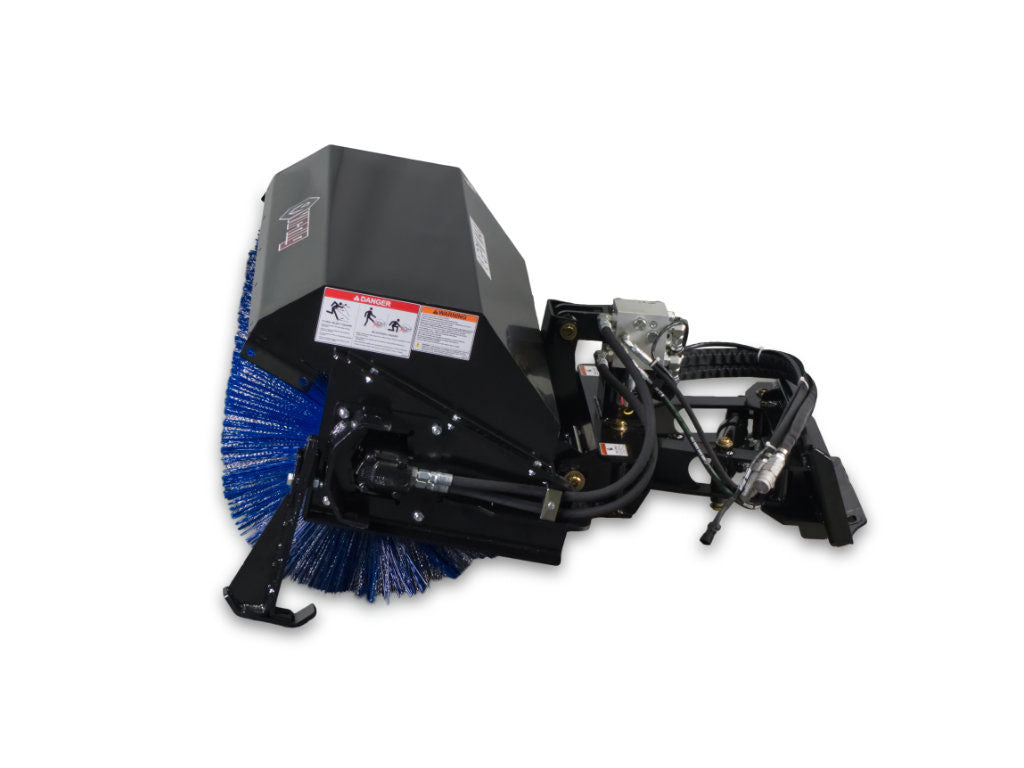

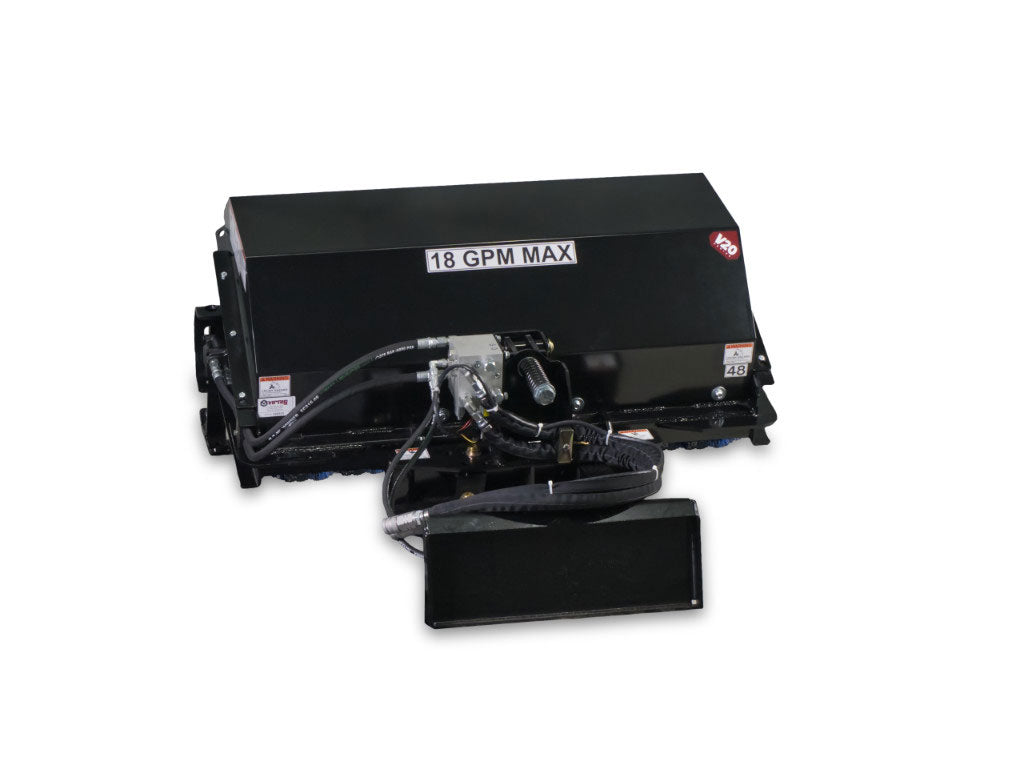

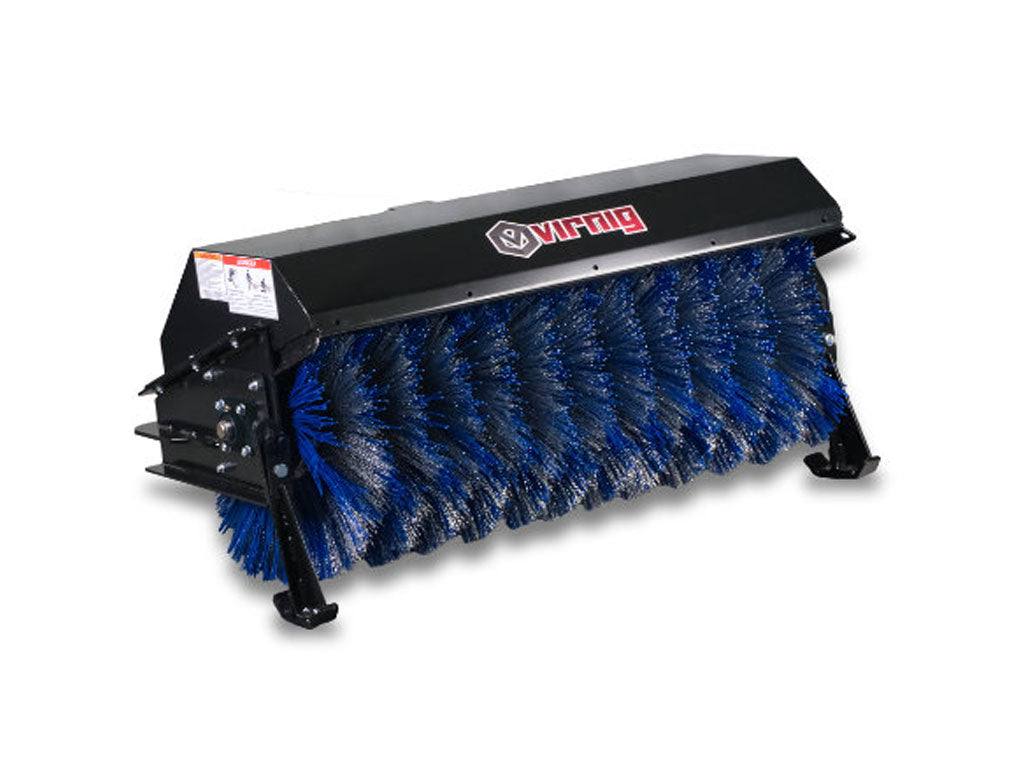

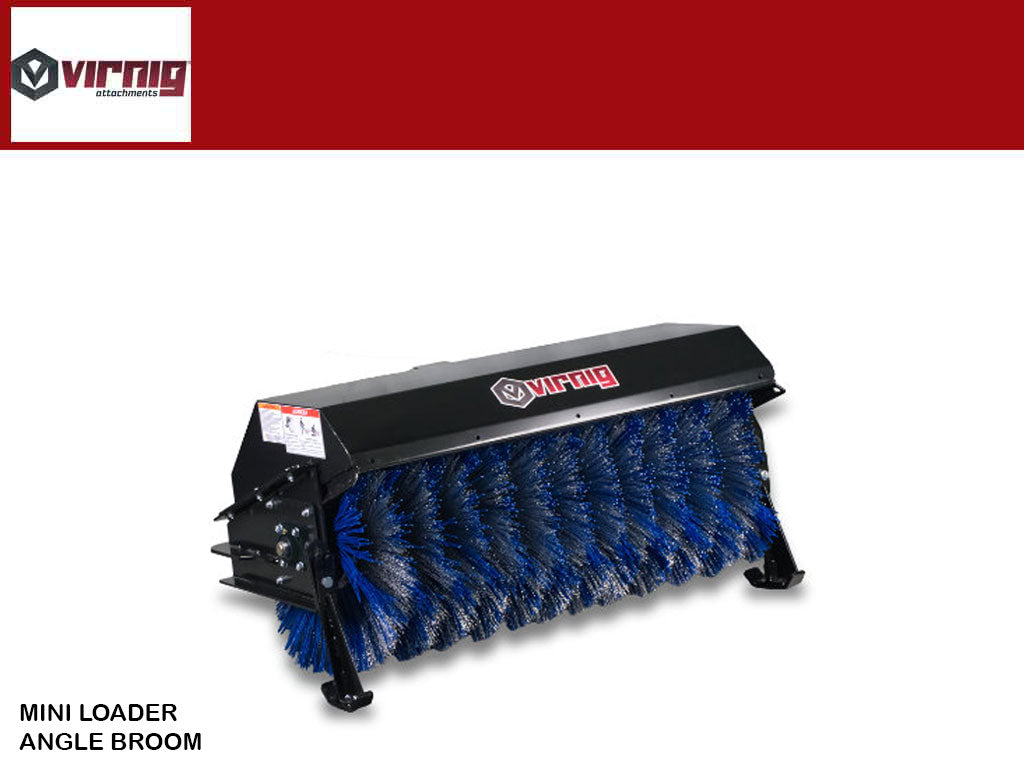

V20 Mini Skid Steer Angle Broom

Direct drive Eaton® motor and exclusive self-centering swing linkage system for optimal sweeping.
Available Widths 48″ & 60″

  • SWING LINKAGE SYSTEM SELF-CENTERS BROOM WHEN ANGLED
  • RECESSED & GUARDED MOTOR
  • HD 1.25″ GREASABLE BEARING
  • REPLACE WAFERS EASILY WITHOUT DISCONNECTING HOSES. STANDARD WITH POLY/WIRE WAFERS
  • STANDS FLIP DOWN TO PROTECT BRISTLES DURING STORAGE



MODEL CAB48 CAB60
Sweeping Width, Straight (Inches) 48.0 60.0
Sweeping Width, Full Angle (Inches) 42.8 53.5
Loader Track Width Coverage, Full Angle (Inches) 38.0 48.0
Overall Width (Inches) 54.3 66.3
Overall Width, Full Angle (Inches) 58.5 68.5
Overall Height / Depth, Straight (Inches) 27.7 / 56.9 27.7 / 56.9
Max Broom Angle (Degrees) 28 28
Number of 26 Inch Diameter Wafers 23 29
Recommended Flow Rate (GPM) 10-18 Standard Flow Only 10-18 Standard Flow Only
Approximate Weight (Pounds) 4951 5301
Recommended Loader Capacity Greater than 500 pounds Greater than 500 pounds
