CPR48

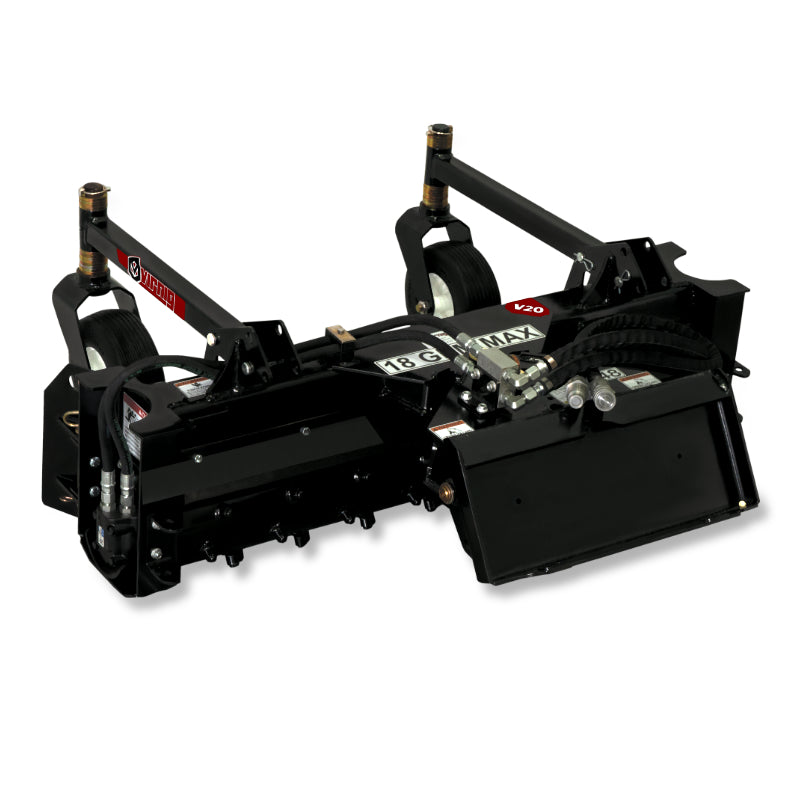

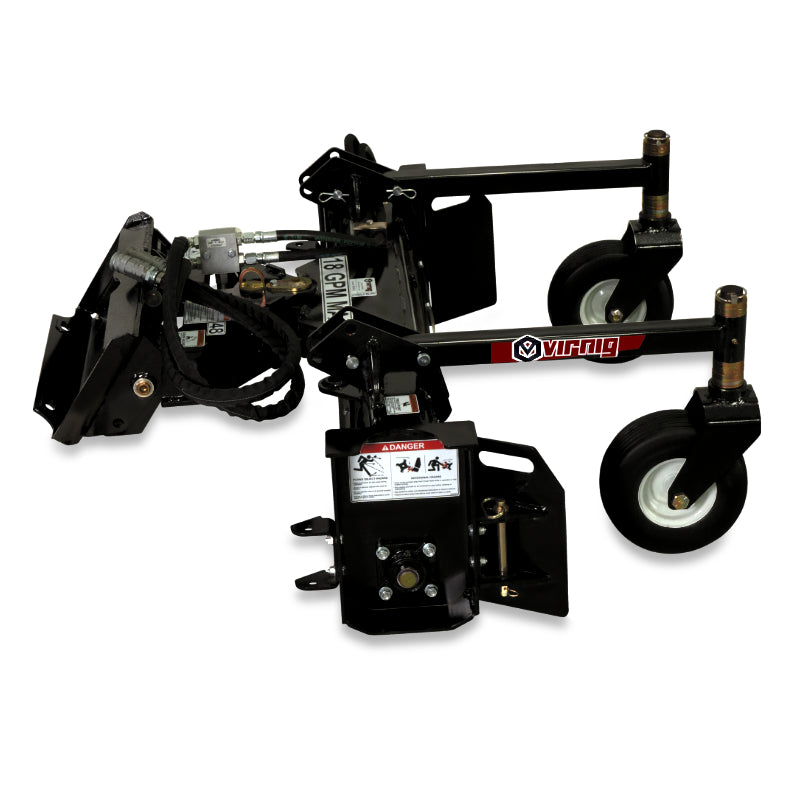

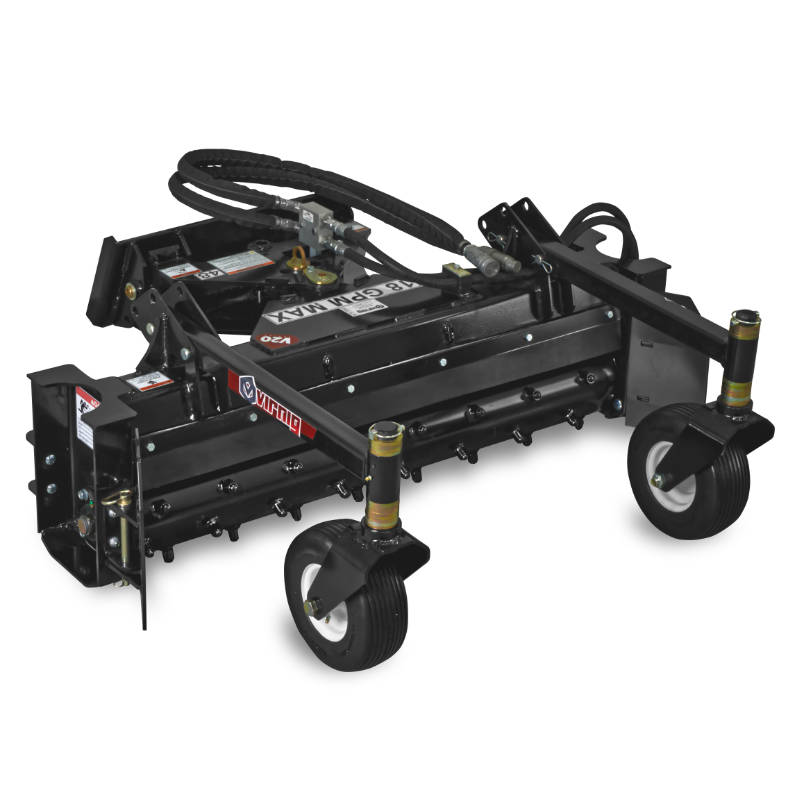

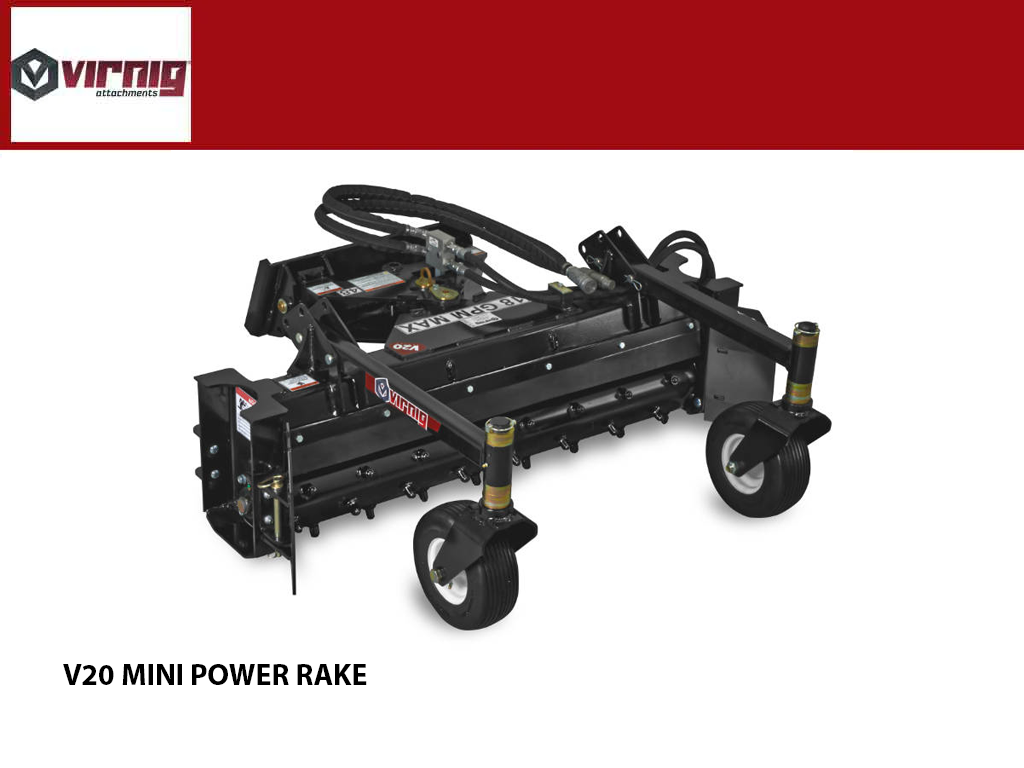

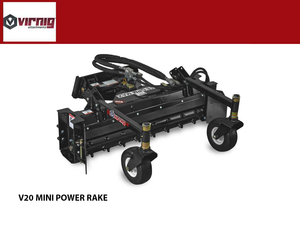

Virnig v20 Mini Skid Steer Power Rake

Size
Style
Harness

Grade soil and gravel, prepare seedbeds and remove debris.
Available Widths 48″ & 60″

  • BI-DIRECTIONAL OPERATION IN FORWARD OR REVERSE
  • REVERSIBLE & REMOVEABLE END PLATES
  • ANGLE THE RAKE 25° LEFT OR RIGHT
  • GUARDED MOTOR
  • FLOATING DESIGN FOR A SMOOTH FINISH & PROVIDES FULL DOWN PRESSURE CAPABILITY
  • CARBIDE TIP TEETH
MODEL CPR48  CPR60
Raking Width (Inches) 48.0 60.0
Raking Width at Full Angle (Inches) 44.0 54.2
Overall Width (Inches) 56.0 68.0
Overall Height (Inches) 22.2 22.2
Overall Depth (Inches) 52.6 52.6
Drum Diameter (Inches) 7.0 7.0
Number of Teeth 62 78
Float Link Angle (Degrees) 22 22
Max Rake Angle (Degrees) 25 25
Recommended Flow Rate (GPM) 10-18 Standard Flow Only 10-18 Standard Flow Only
Approximate Weight (Pounds) 5201 5651
Recommended Loader Capacity Greater than 515 pounds Greater than 515 pounds
