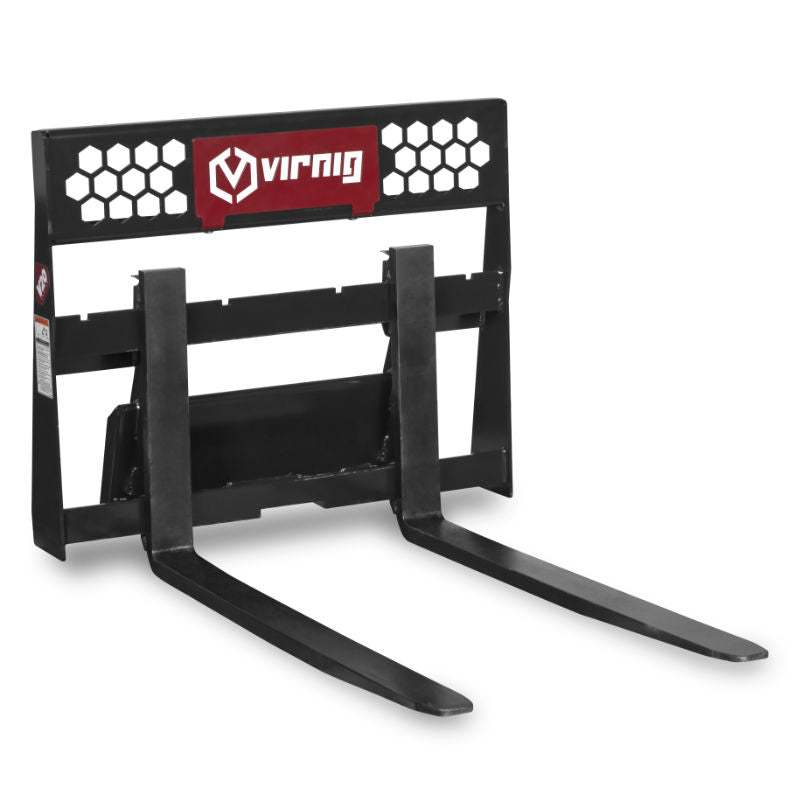

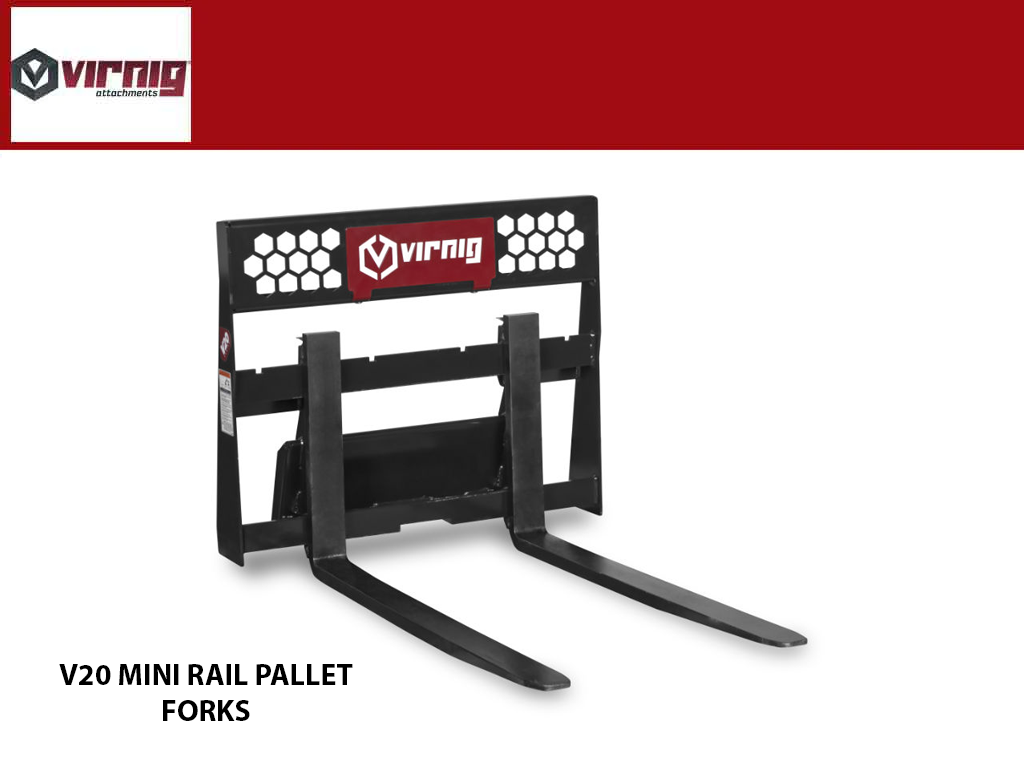

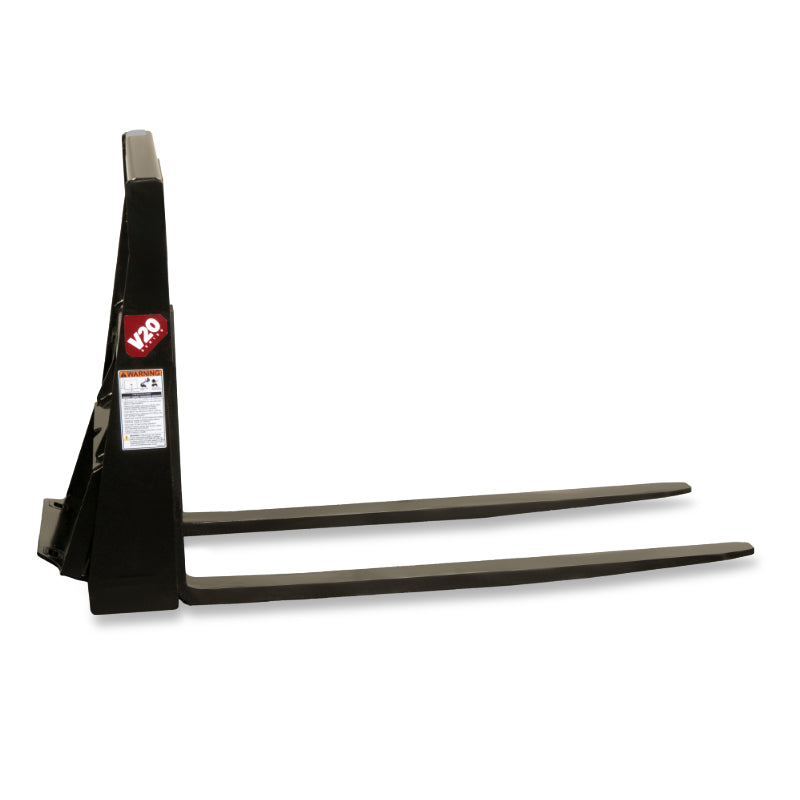

Virnig v20 Mini Skid Steer Rail Pallet Fork

Size

Adjustable ITA Class II forged tines.

  • 3/16″ BRICKGUARD & 3/4″ BEVELED RAIL
  • BRICKGUARD FLUSH WITH TINES TO HELP STABILIZE LOADS
MODELS CPF3622  CPF4222
Width: Frame / Overall w/Step (Inches) 36.0 36.0
Overall Height (Inches) 30.1 30.1
Tine: Length/Width/Thickness (Inches) 36.0 / 3.0 / 1.19 42.0 / 3.0 / 1.19
Tine Space: Min/Max (Inches) 8.4 / 30.9 8.4 / 30.9
Approximate Weight (Pounds) 245 255
Capacity (Pounds) 2200 2200
Recommended Loader Capacity Less than 1650 pounds Less than 1650 pounds
