    Home / EXCAVATOR: TILT BUCKET / Virnig v20 Mini Skid Steer Root Rake Grapple

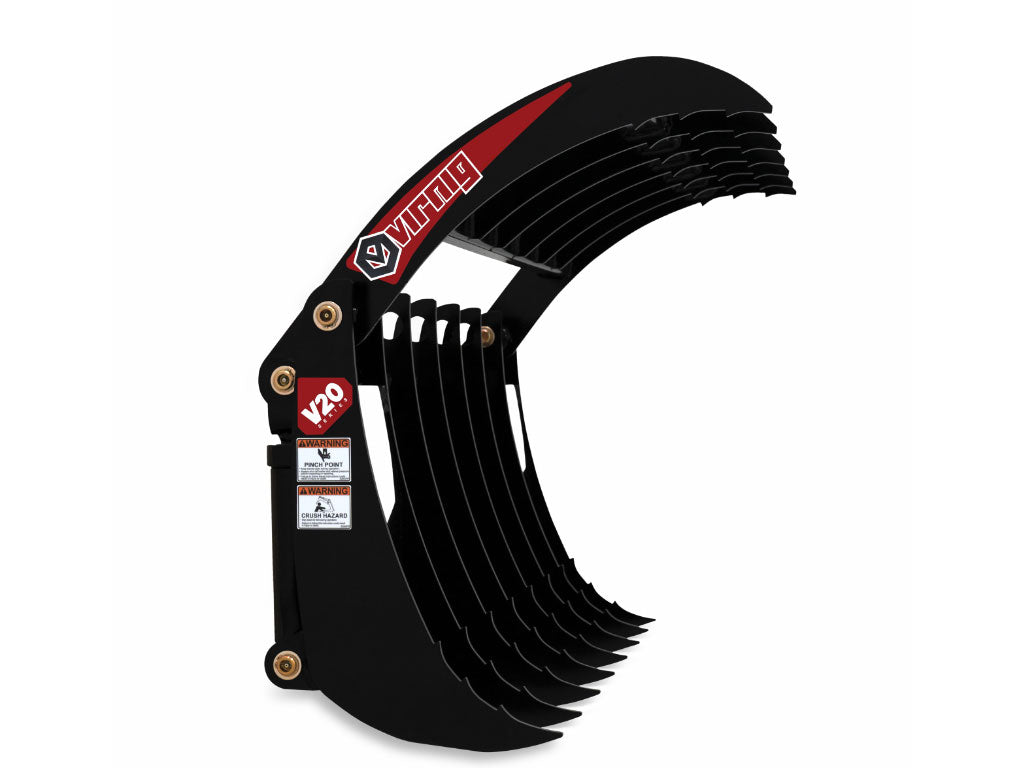

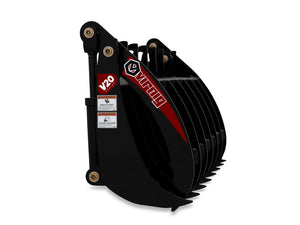

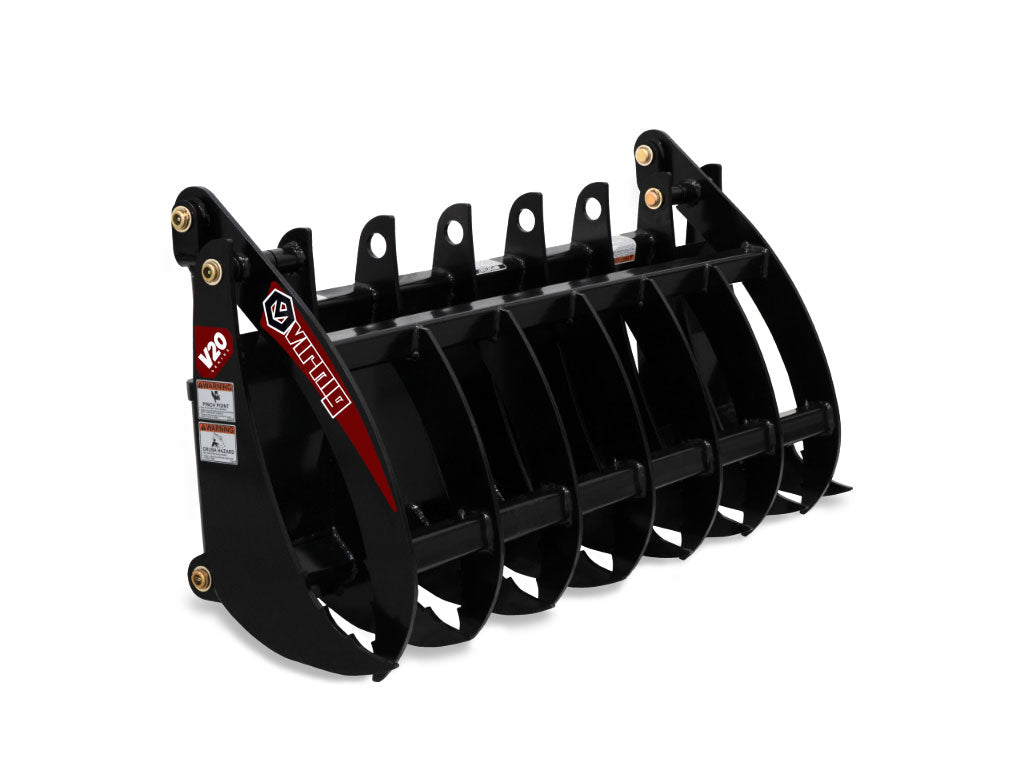

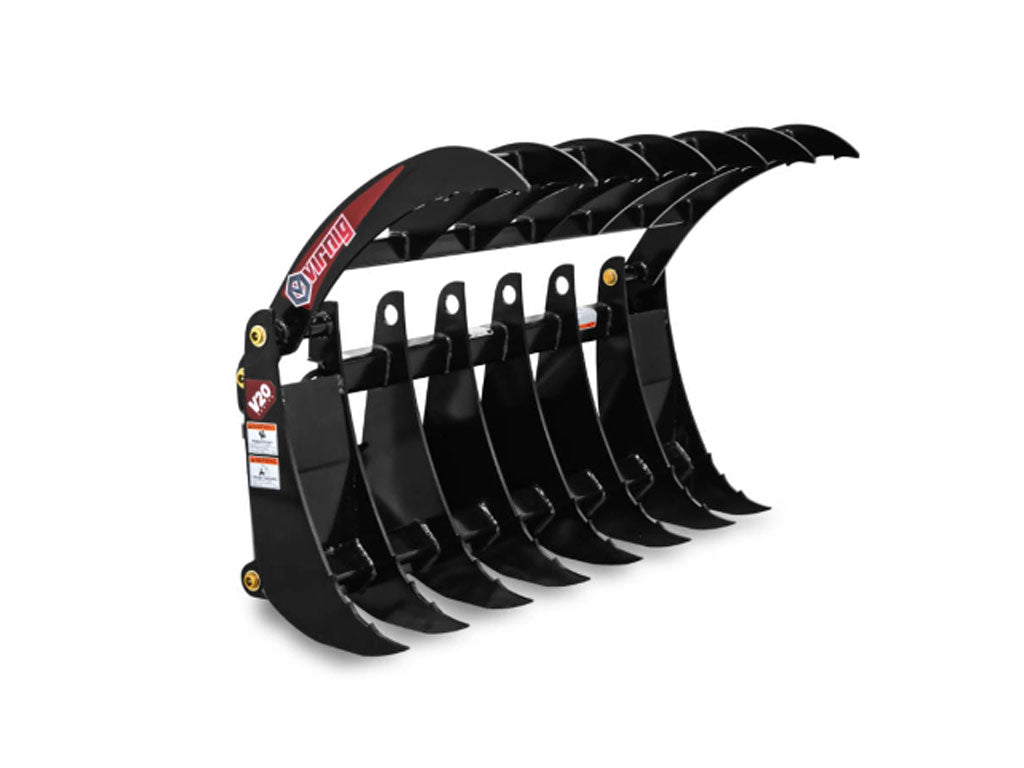

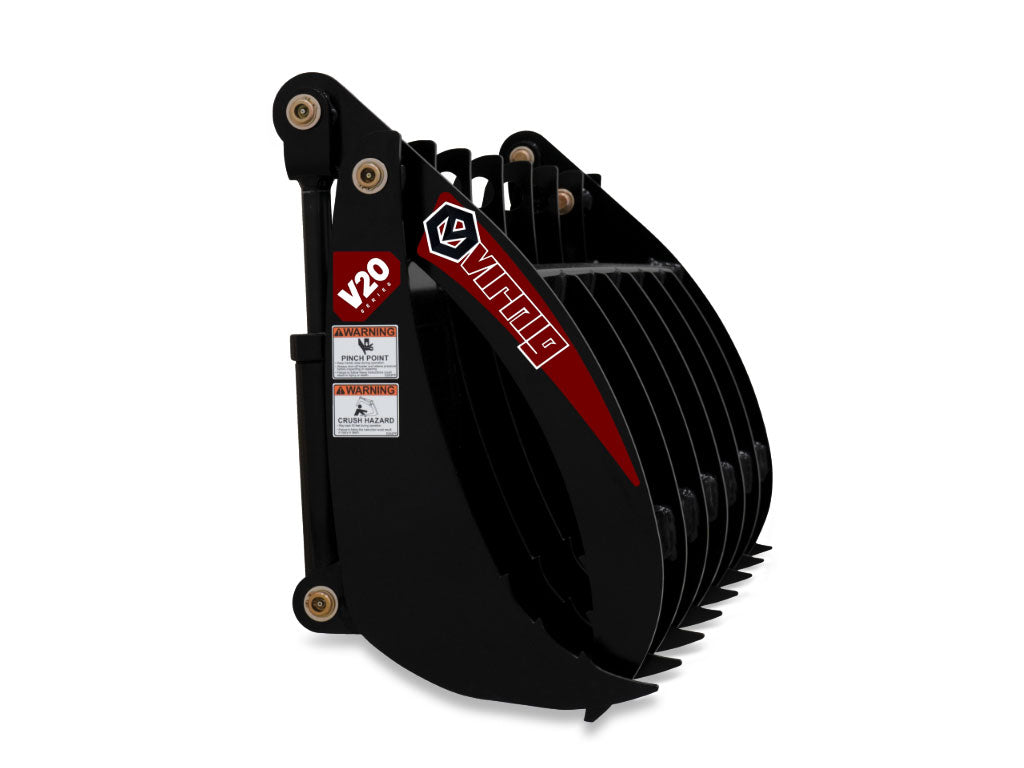

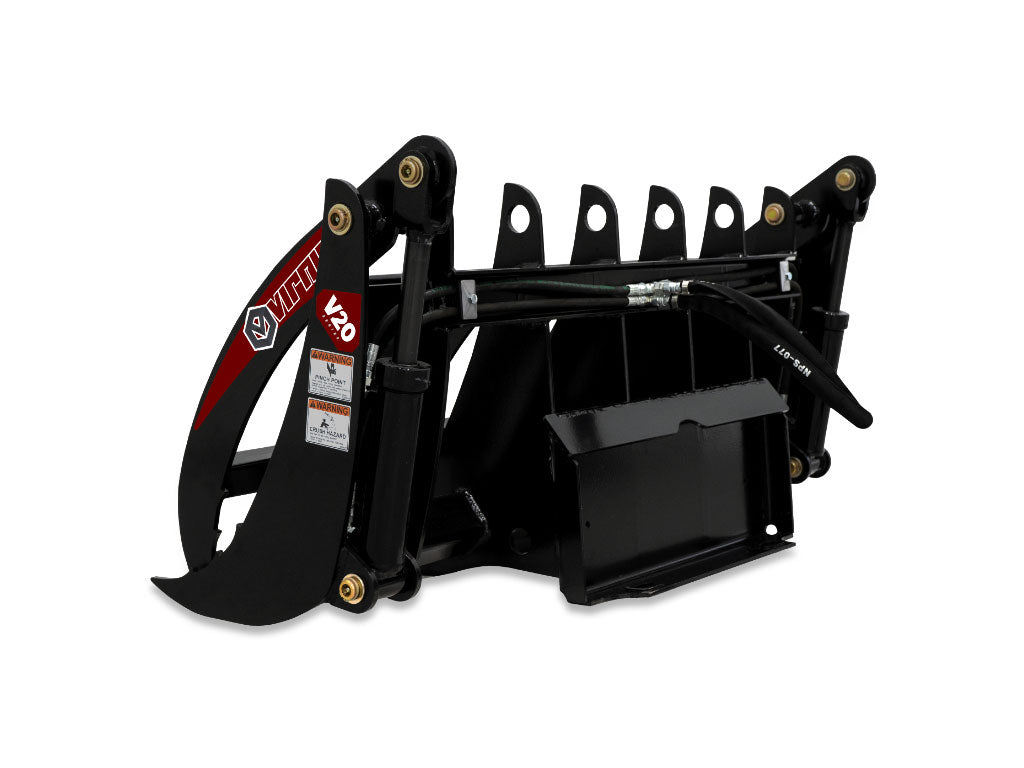

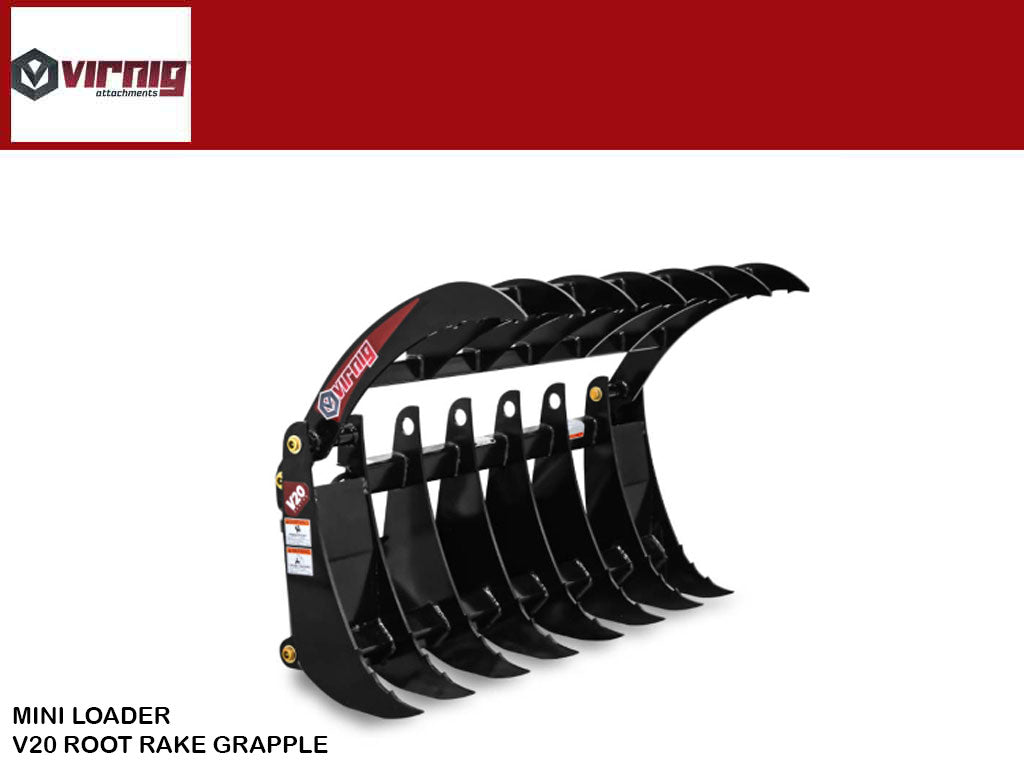

    Virnig v20 Mini Skid Steer Root Rake Grapple

    $2,855.00
    Size

    Quickly dig, rake, pile and load brush. Designed light but tough for mini skid steers.
    Available Widths 36″, 42″, 48″

    • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
    • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

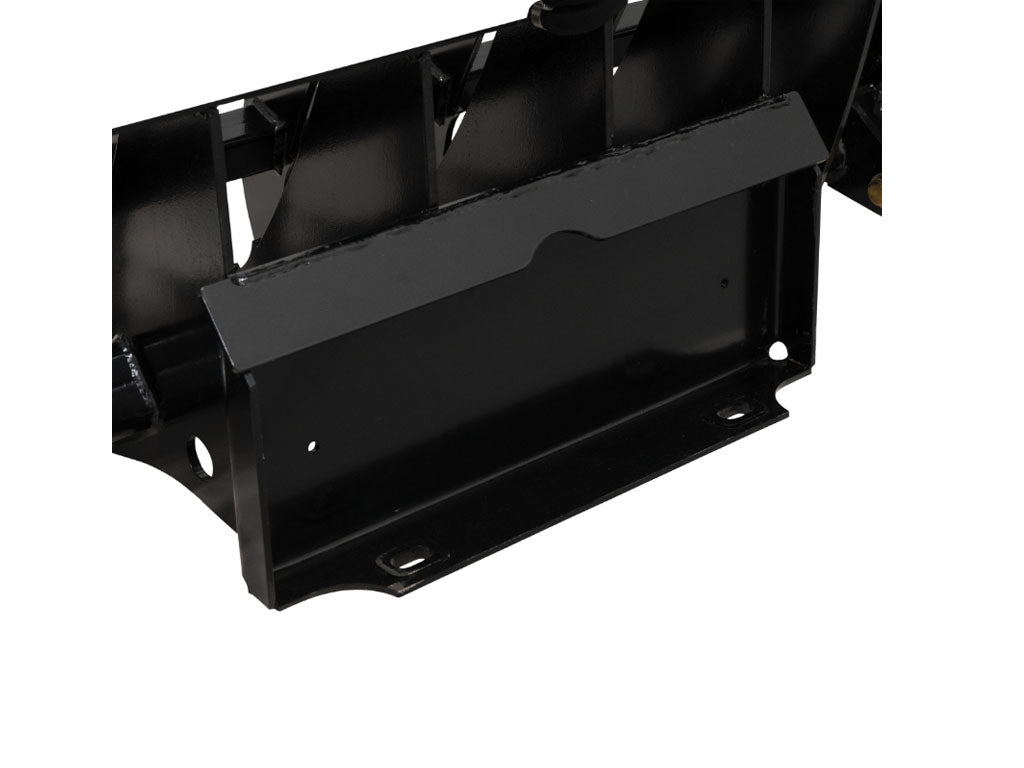

    CHOOSE MINI SKID MOUNT:
    • TORO®/MINI-UNIVERSAL
    • BOBCAT®
    • ASV®
    • Universal skid steer quick tach mount not available.
    MODEL CRG36 CRG42  CRG48
    Overall Width (Inches) 35.8 43.8 51.8
    Height: Overall / Bucket (Inches) 24.7 / 23.6
    Overall Depth (Inches) 21.5
    Number of Tines (With Sides) 6 7 8
    Space Between Tines / Grapple Jaws (Inches) 6.8 / 7.2 7.0 / 7.3 7.1 / 7.4
    Tine Thickness (Inches) 0.375¹
    Cylinder Bore / Stroke (Inches) 2.0 / 6.0
    Cylinder Pins / Hinge Pins Diameter (Inches) 1.0 / 1.0
    Grapple Jaw Opening (Inches) 32.2
    Approximate Weight (Pounds) 270 300 3352
    Recommended Loader Capacity Greater than 500 pounds Greater than 500 pounds Greater than 500 pounds
