Virnig

CSG36-CBEK36A

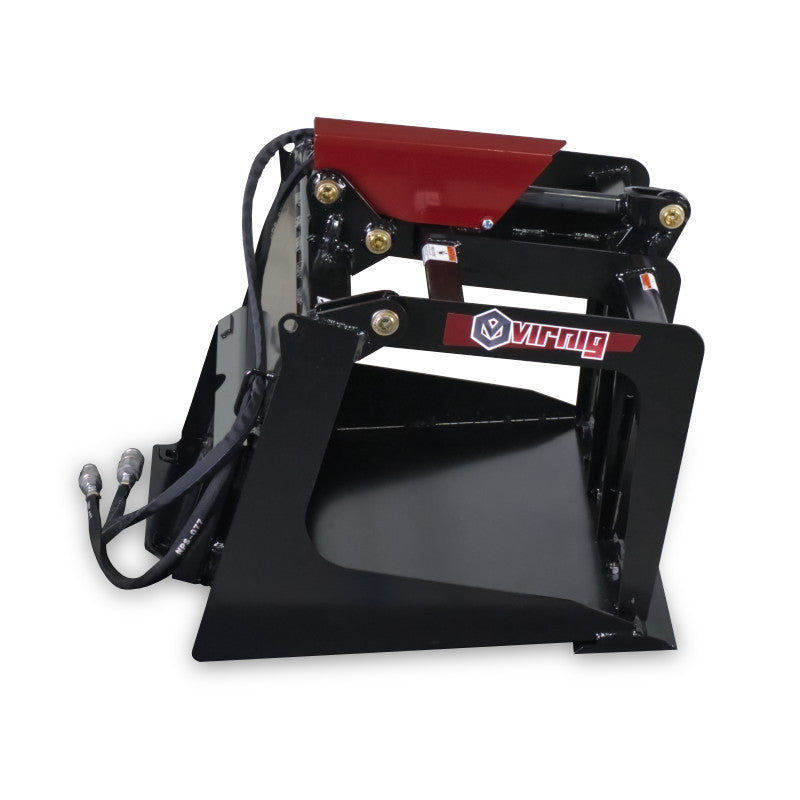

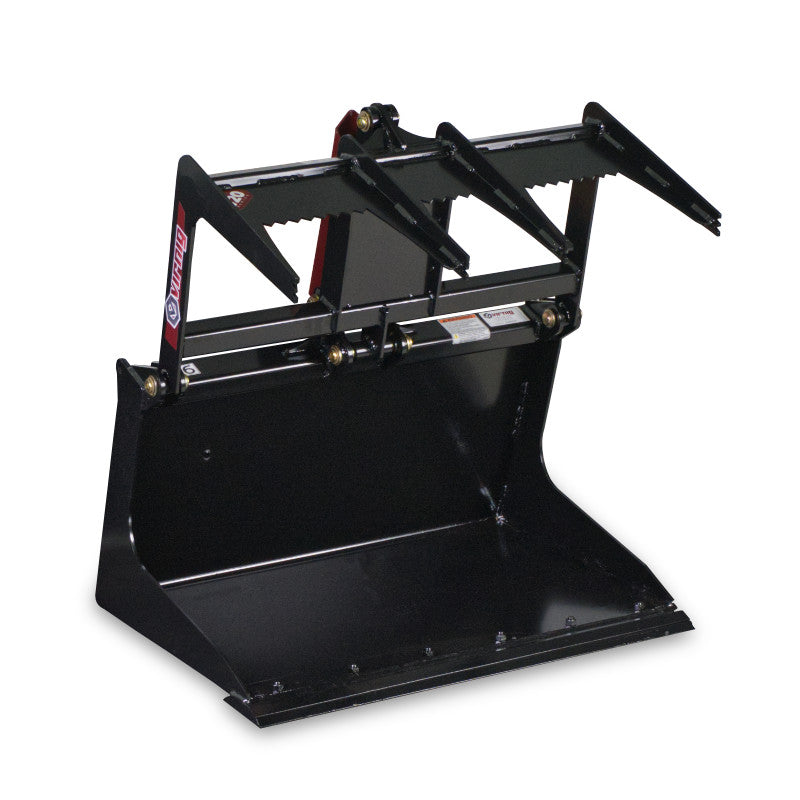

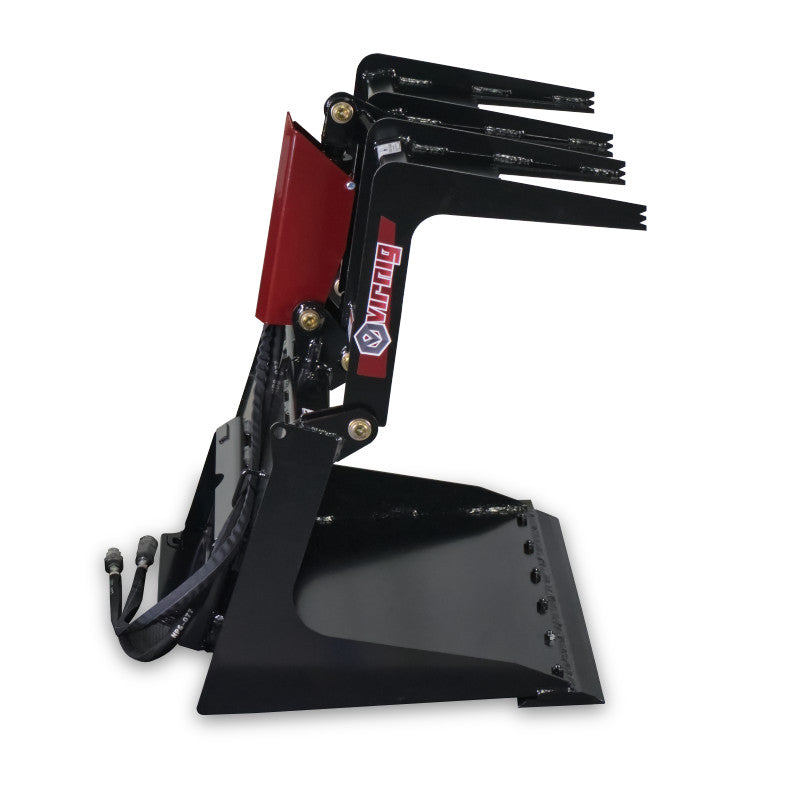

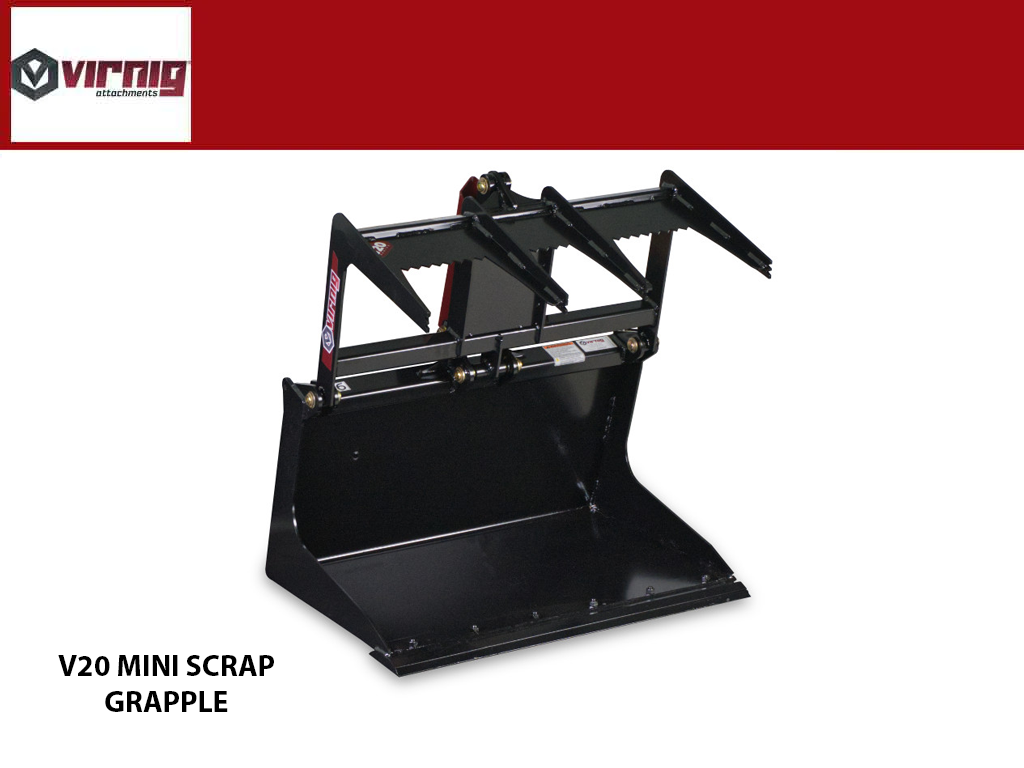

Virnig v20 Mini Skid Steer Scrap Grapple

Size
Edge

Solid bottom grapple for scooping and hauling loose and bulky debris.
Available Widths 36″, 42″, 48″

  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • 1/2″ x 4″ WELD-ON EDGE
  • STANDARD WITH CYLINDER GUARD

CHOOSE MINI SKID MOUNT:

  • TORO®/MINI-UNIVERSAL
  • BOBCAT®
  • ASV®
  • Universal skid steer quick tach mount not available.
MODEL CSG36 CSG42  CSG48
Overall Width (Inches) 36.0 42.0 48.0
Height: Overall / Bucket (Inches) 27.0 / 24.5
Overall Depth (Inches) 30.8
Cylinder Bore / Stroke (Inches) 2.0 / 6.0
Cylinder Pins / Hinge Pins Diameter (Inches) 1.0 / 1.0
Grapple Jaw Opening (Inches) 30.9
Approximate Weight (Pounds) 3251 3551 3801
Recommended Loader Capacity Greater than 500 pounds Greater than 500 pounds Greater than 500 pounds
