CSRG36

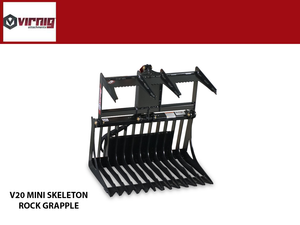

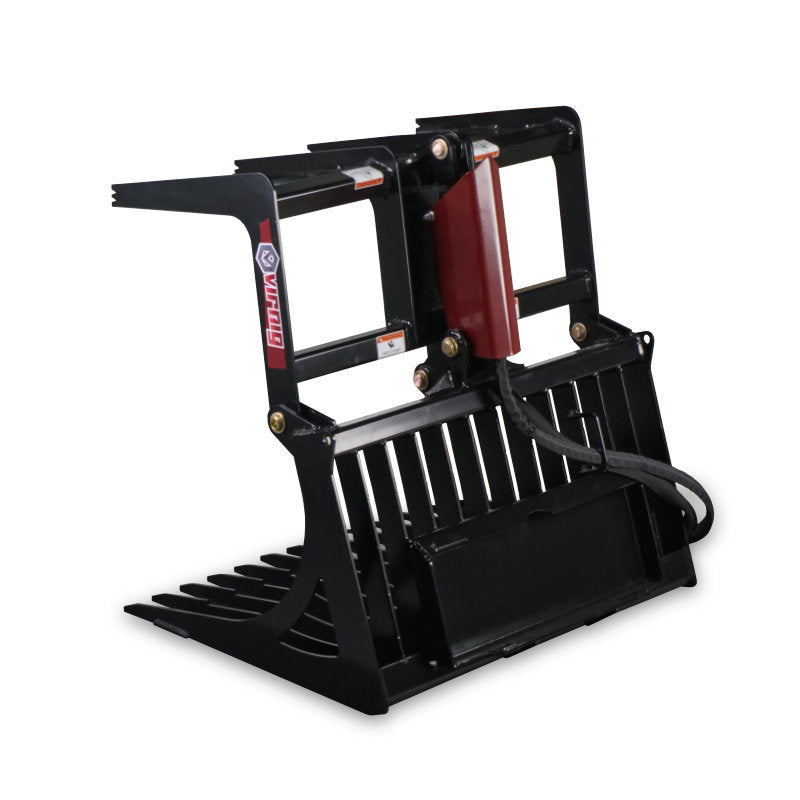

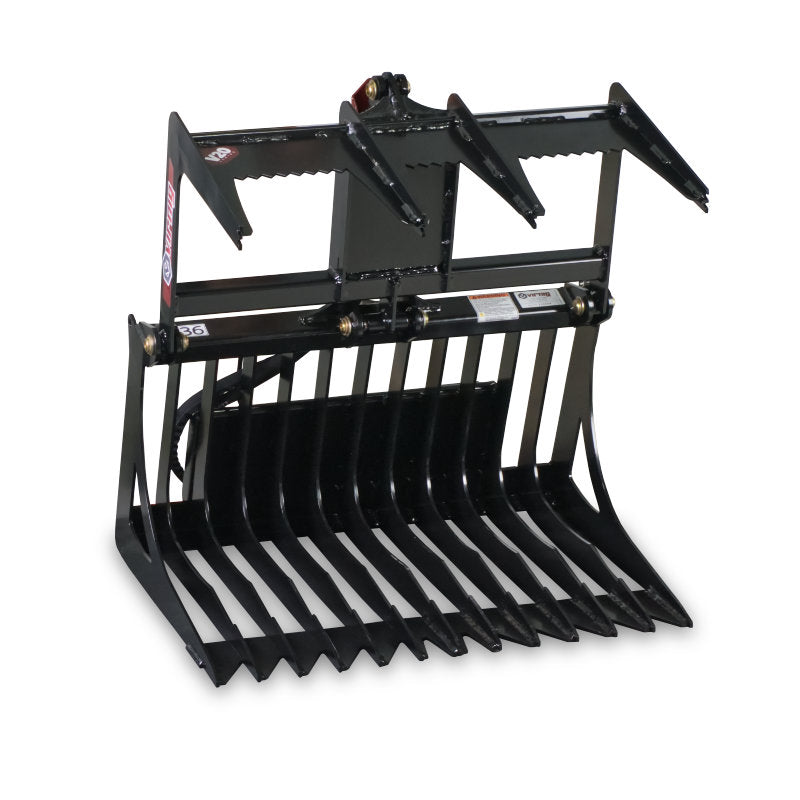

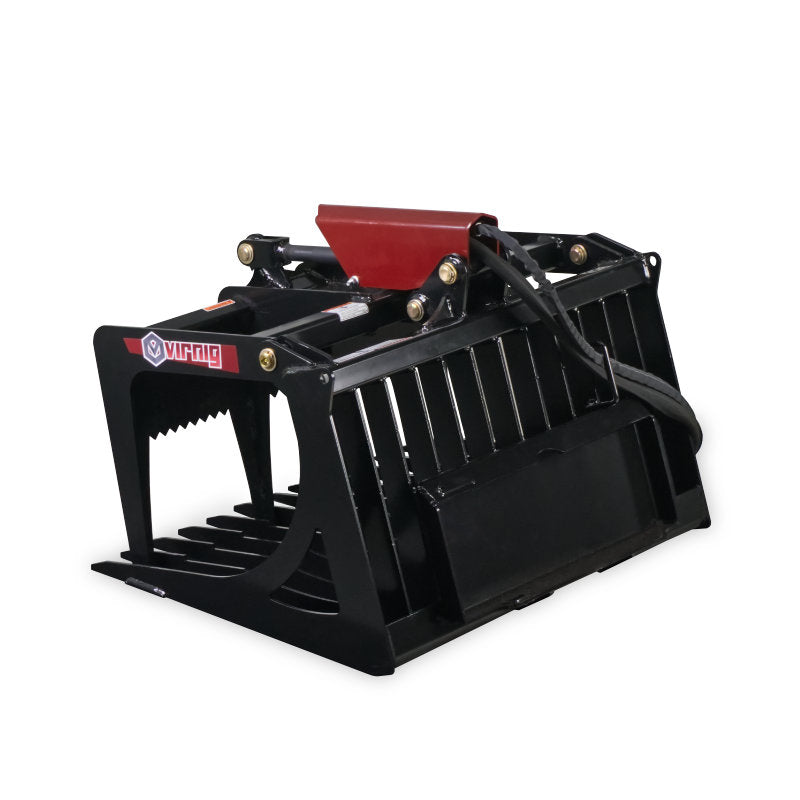

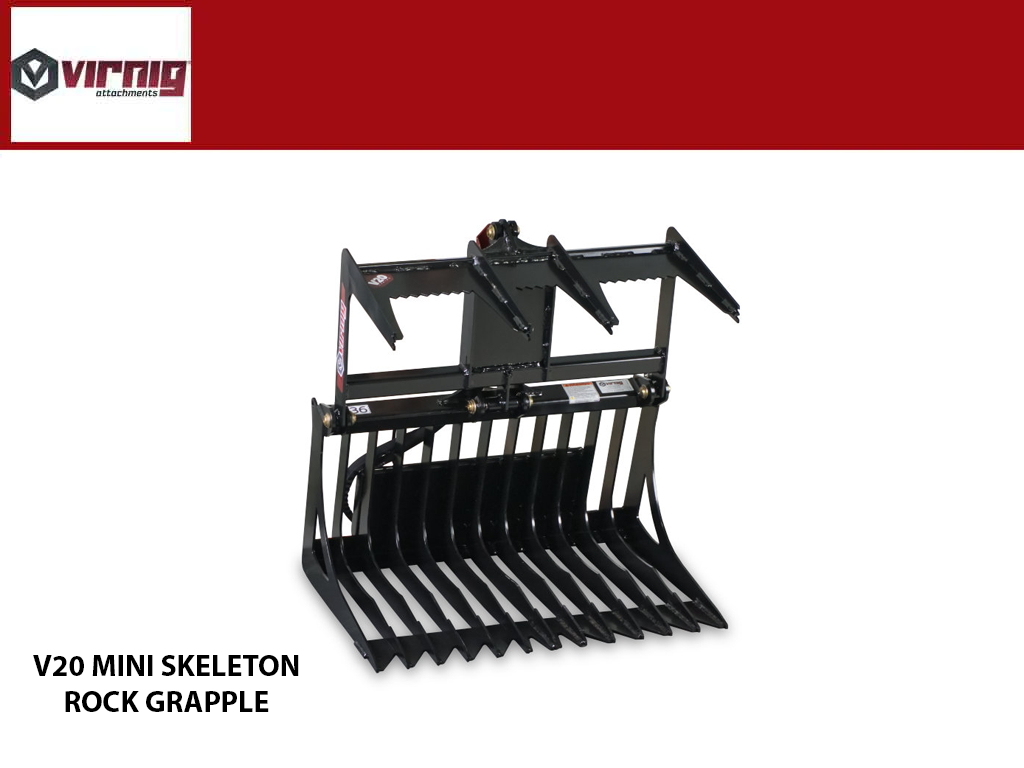

Virnig v20 Mini Skid Steer Skeleton Rock Grapple

Size

The V20 Skeleton Rock Bucket designed with a grapple to help secure rocks and uneven loads. Available Widths 36″, 42″, 48″

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • STANDARD WITH CYLINDER GUARD



MODEL CSRG36 CSRG42  CSRG48
Overall Width (Inches) 36.0 42.0 48.0
Height: Overall / Bucket (Inches) 26.6 / 24.1
Overall Depth (Inches) 31.9
Number of Tines (With Sides) 13 15 17
Space Between Tines (Inches) 2.9
Tine Thickness (Inches) .25¹
Cylinder Bore / Stroke (Inches) 2.0 / 6.0
Cylinder Pins / Hinge Pins Diameter (Inches) 1.0 / 1.0
Grapple Jaw Opening (Inches) 30.3
Approximate Weight (Pounds) 3002 3202 3452
Recommended Loader Capacity Greater than 500 pounds Greater than 500 pounds Greater than 500 pounds
