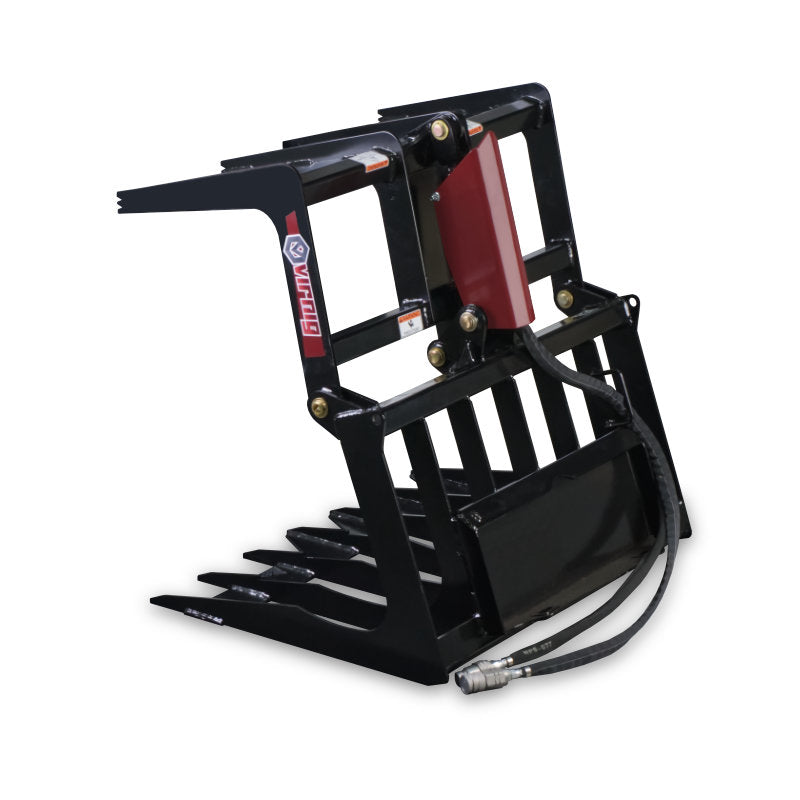

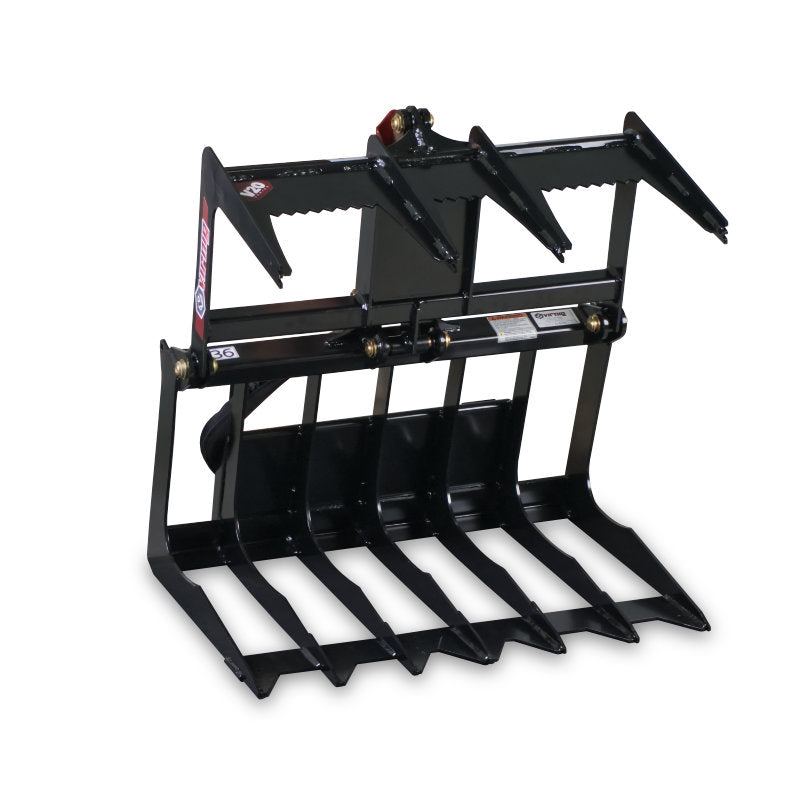

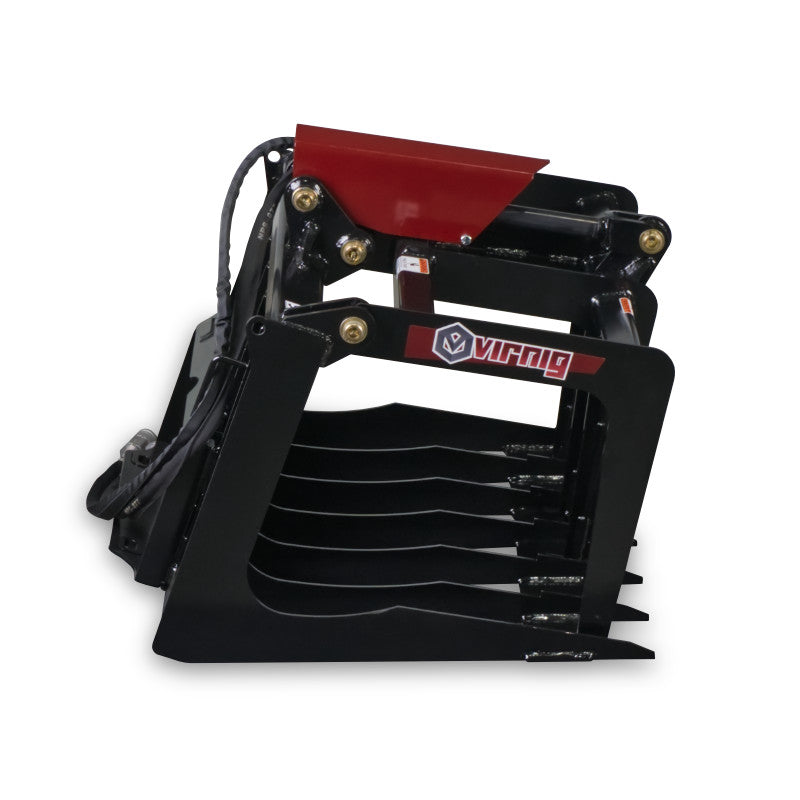

CSGV36
Open-sided design for hauling brush and logs. Open bottom allows dirt to fall through.
Available Widths 36″, 42″, 48″
| MODEL | CSGV36 | CSGV42 | CSGV48 |
| Overall Width (Inches) | 36.0 | 42.0 | 48.0 |
| Height: Overall / Bucket (Inches) | 26.6 / 24.1 | ||
| Overall Depth (Inches) | 31.9 | ||
| Number of Tines (With Sides) | 7 | 8 | 9 |
| Space Between Tines (Inches) | 5.9 | ||
| Tine Thickness (Inches) | 0.25¹ | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.0 | ||
| Grapple Jaw Opening (Inches) | 30.3 | ||
| Approximate Weight (Pounds) | 2402 | 2652 | 2802 |
| Recommended Loader Capacity | Greater than 500 pounds | Greater than 500 pounds | Greater than 500 pounds |
