CWPF3622

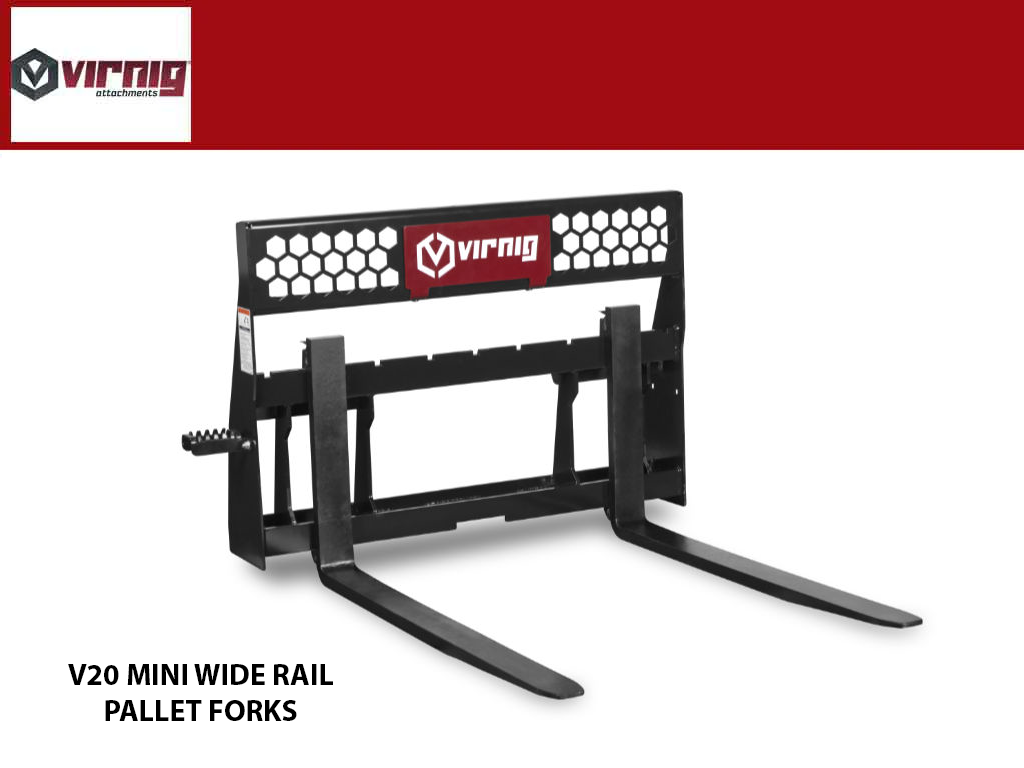

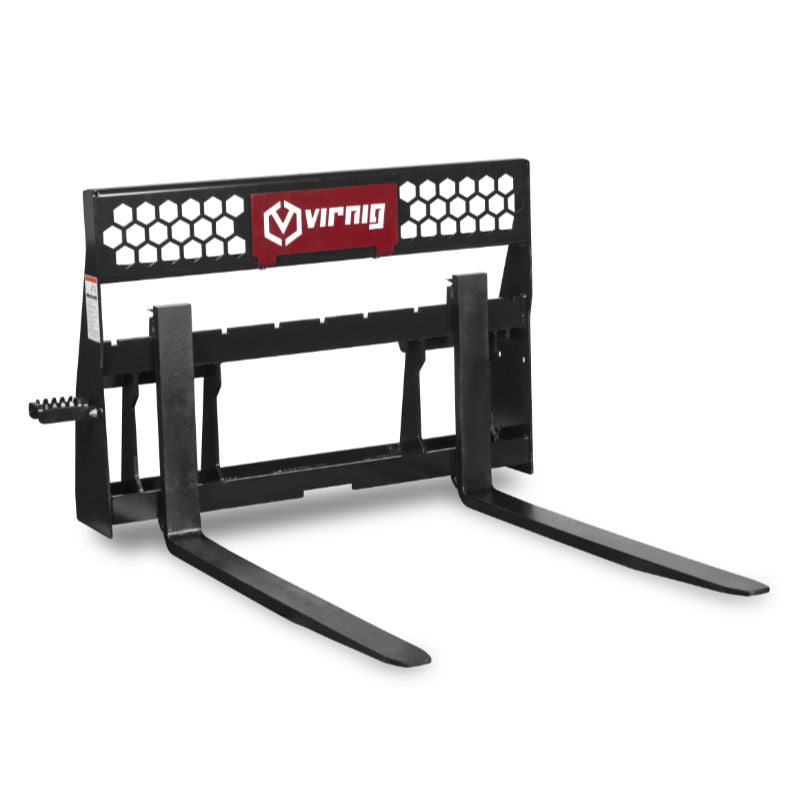

Virnig v20 Mini Skid Steer Wide Rail Pallet Fork

SIZE

Wider rail for better stability and adjustable ITA Class II forged tines.

  • 3/16″ BRICKGUARD & 3/4″ BEVELED RAIL
  • BRICKGUARD FLUSH WITH TINES TO HELP STABILIZE LOADS
  • ASV® PALLET FORK INCLUDES BOLT-ON STEP
MODELS CWPF3622  CWPF4222
Width: Frame / Overall w/Step (Inches) 42.0 / 47.0 42.0 / 47.0
Overall Height (Inches) 30.1 30.1
Tine: Length/Width/Thickness (Inches) 36.0 / 3.0 / 1.19 42.0 / 3.0 / 1.19
Tine Space: Min/Max (Inches) 8.4 / 37.6 8.4 / 37.6
Approximate Weight (Pounds) 265 275
Capacity (Pounds) 2200 2200
Recommended Loader Capacity Less than 1650 pounds Less than 1650 pounds
