Virnig

CBC42-18-O

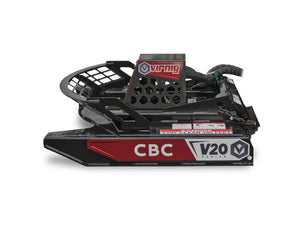

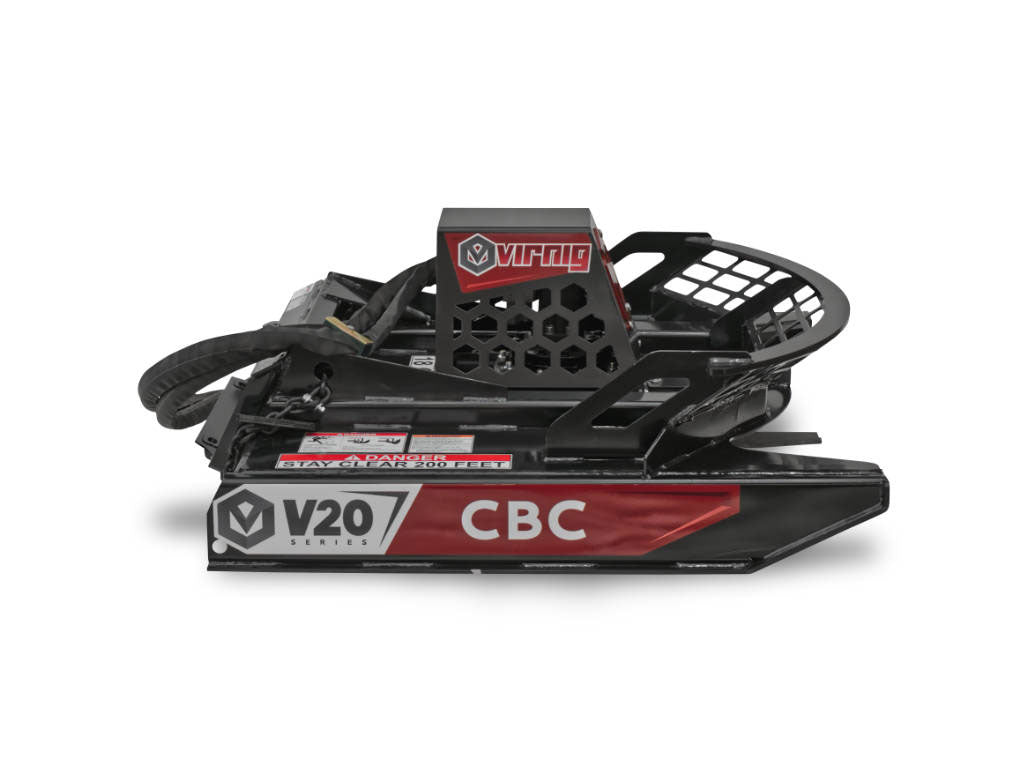

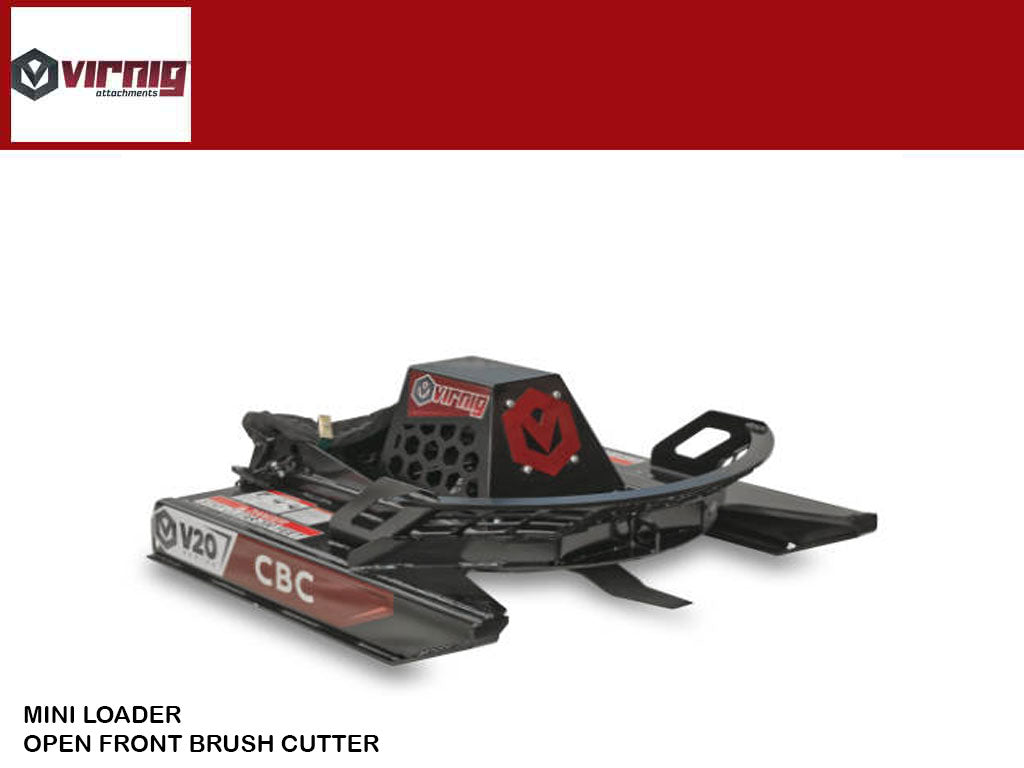

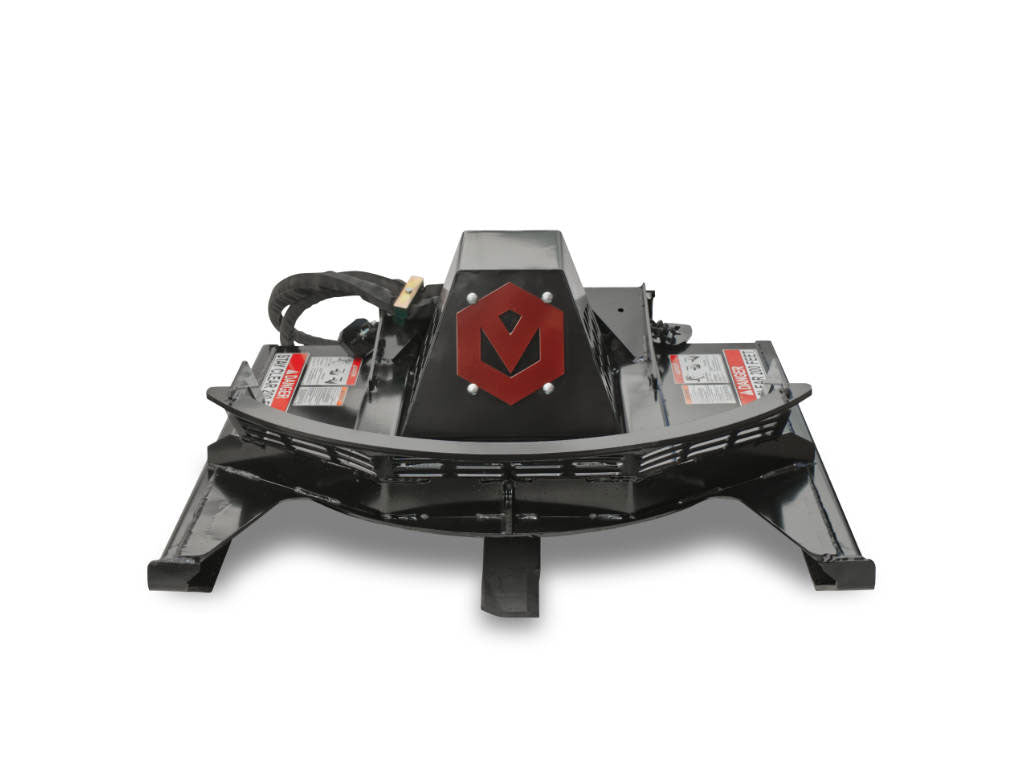

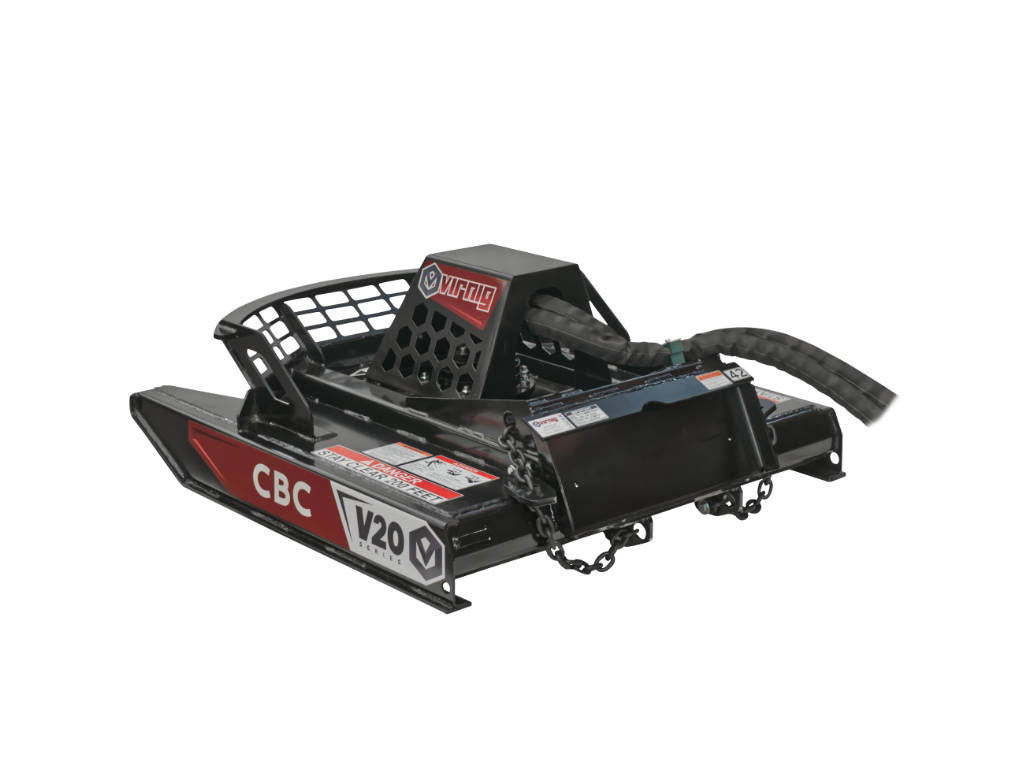

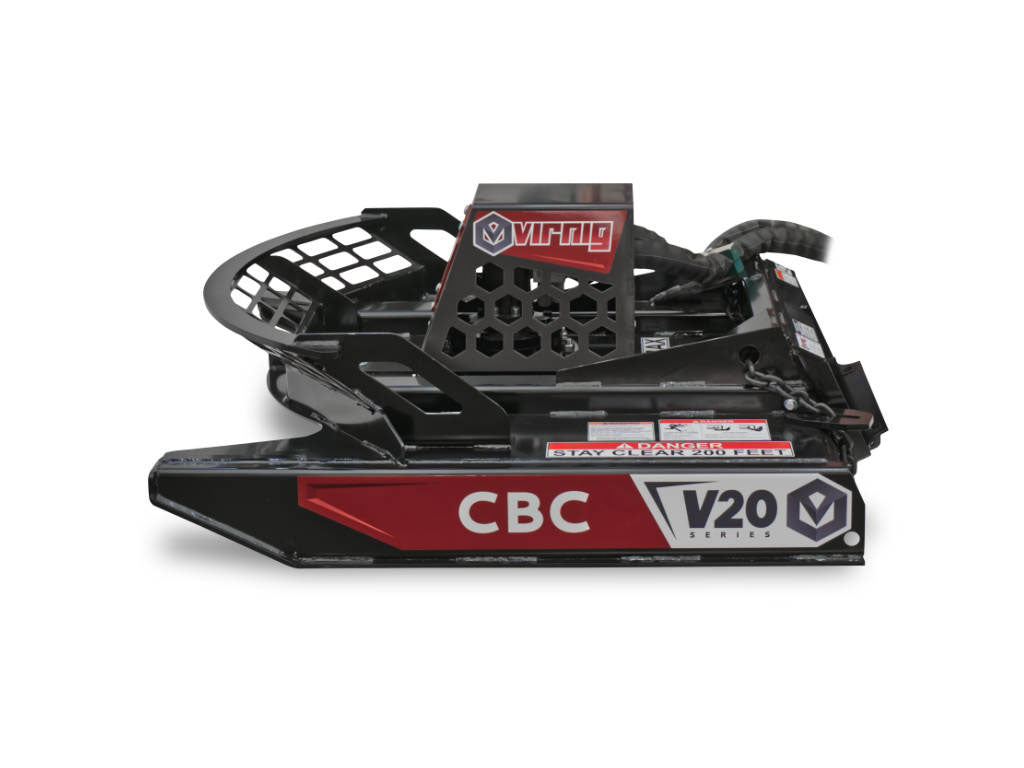

VIRNIG V20 open front rotary brush cutter for mini loader

MODEL

V20 MINI SKID STEER OPEN FRONT ROTARY BRUSH CUTTER

PRODUCT CATEGORY: Mini Skid Steer

Cuts up to 3″ diameter trees and exposed blades allow faster cutting for a maintained finish.

  • DIRECT DRIVE EATON® MOTOR WITH RELIEF VALVES
  • HYDRAULIC BRAKING STOPS FLYWHEEL IN LESS THAN 10 SECONDS

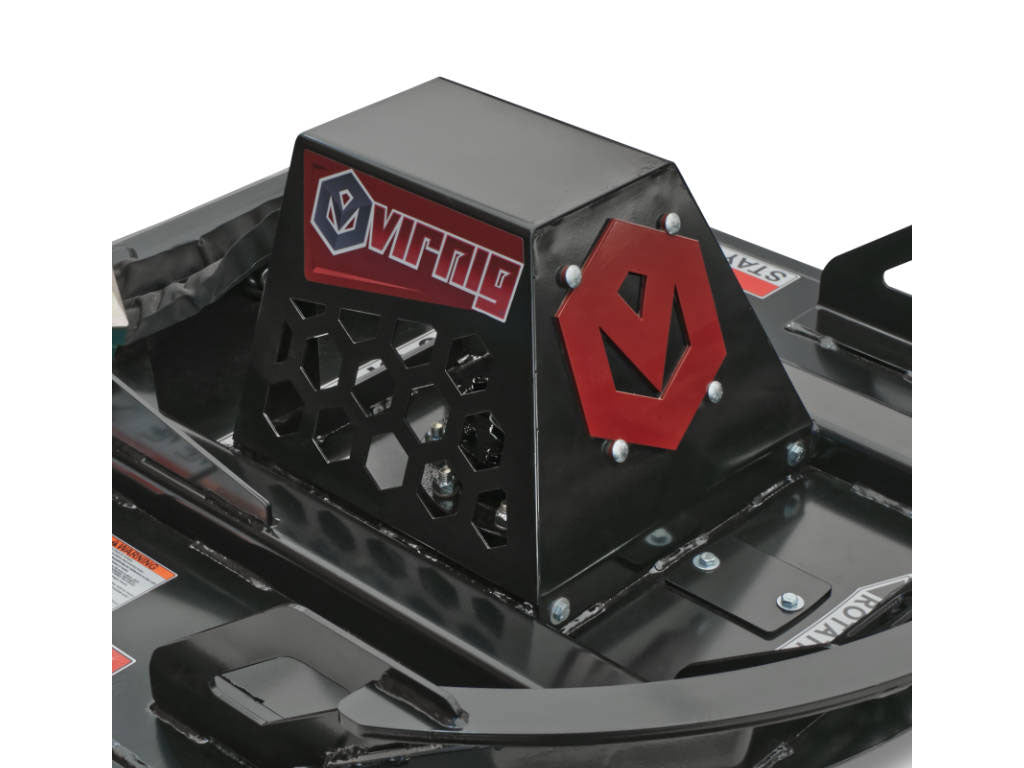

  • STANDARD MOTOR GUARD & SPINDLE GUARD

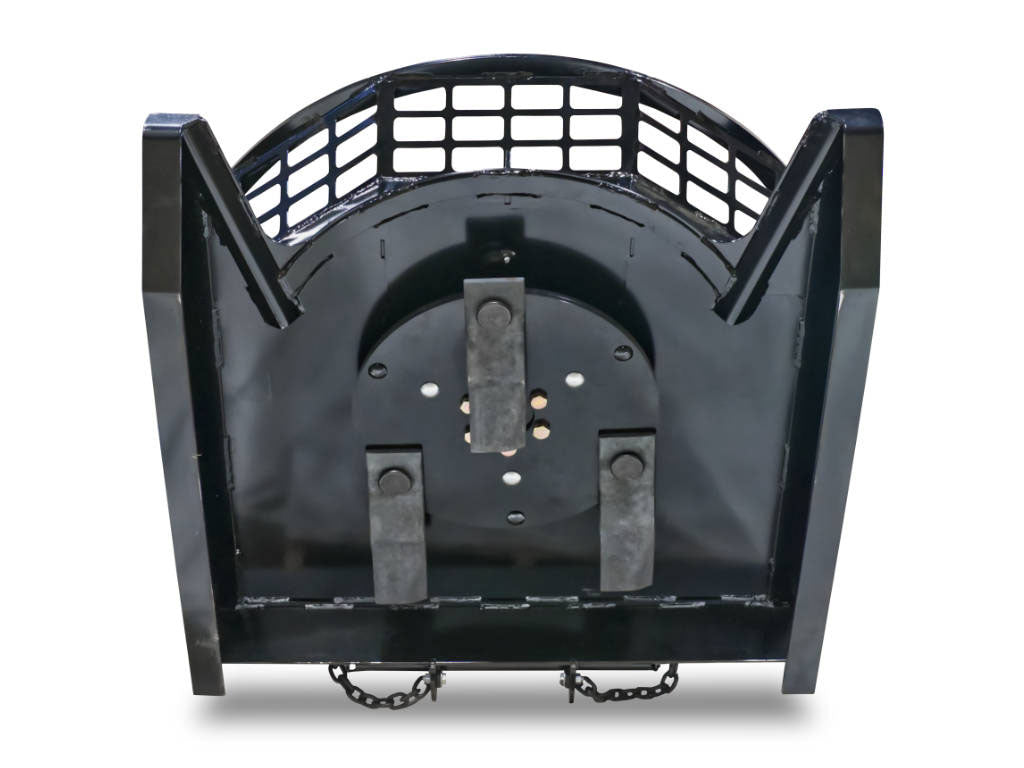

  • CIRCULAR FLYWHEEL WITH 3 UPDRAFT BLADES BOUNCES OFF STUMPS

SPECS:

MODEL CBC42-O CBC48-O
Cut Width (Inches) 42.0 48.0
Overall Width (Inches) 47.0 53.0
Overall Height (Inches) 20.5
Overall Depth (Inches) 51.3 57.3
Deck Height (Inches) 6.5
Minimum Cut Height (Inches) 2.0
Cutting Capacity, Diameter (Inches) 3.0
Deck Thickness: Top / Side (Inches) 0.19 / 0.19¹
Recommended Flow Rate (GPM) 11-18
Approximate Weight (Pounds) 5902 6902
Recommended Loader Capacity Greater than 590 pounds

¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).

2ASV® mount adds approximately 40 pounds and Bobcat® mount adds 35 pounds to model weight.

BLADE TIP SPEEDS (FPM)

MODEL 11 GPM Minimum 18 GPM Maximum
CBC42-O 6,980 11,430
CBC48-O 7,980 13,070

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).
