SBS60-CT
Virnig V30 Angle Snow Blade (SSL)(CTL)(TRK)
$0.00 - $3,970.00
9/26

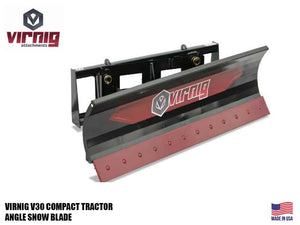

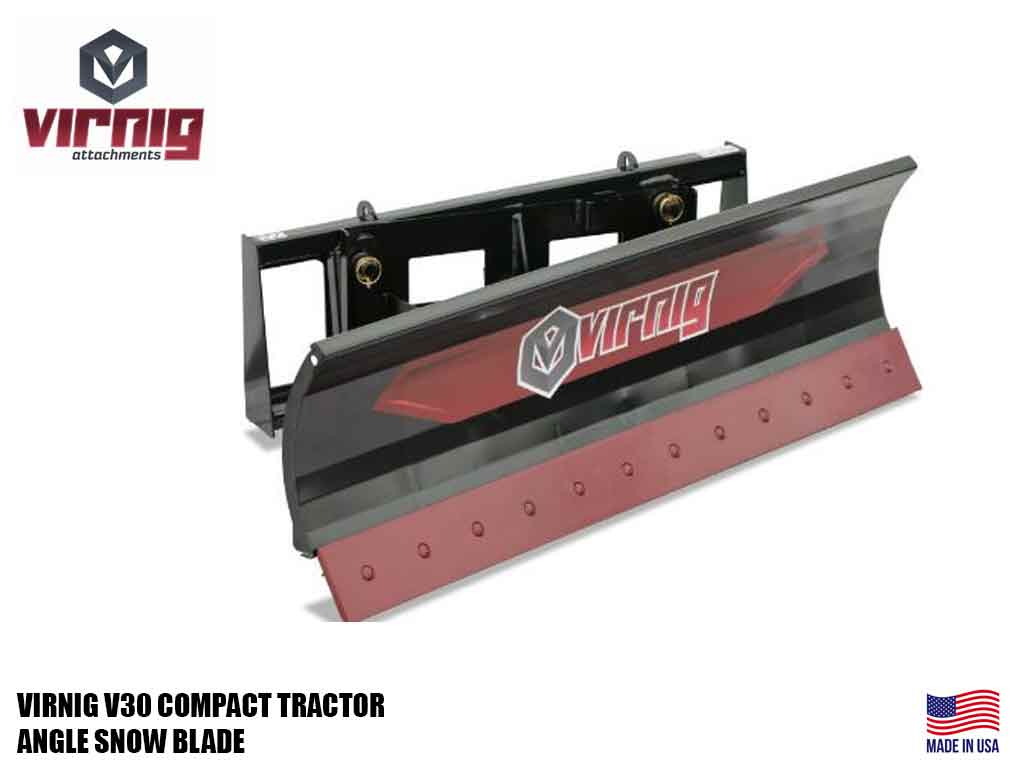

VIRNIG V30 Compact Tractor Angle Snow Blade
Snow plow attachment designed for compact tractors.
- 4° SIDE-TO-SIDE OSCILLATION FOLLOWS UNEVEN SURFACES
- ANGLE THE BLADE 28° LEFT OR RIGHT
- TRIP EDGE PROTECTS OPERATOR & EQUIPMENT
- 5/8″ x 6″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 3 1/2″ OF WEAR
OPTIONS:
One-Cylinder Hydraulic Angle
- Allows the operator to control the blade angle from inside the cab.
Two-Cylinder Hydraulic Angle
- Allows the operator to control the blade angle from inside the cab.
- Hydraulic crossover relief valve helps protect the attachment by absorbing shock by angling the entire blade if a curb or other object is struck.

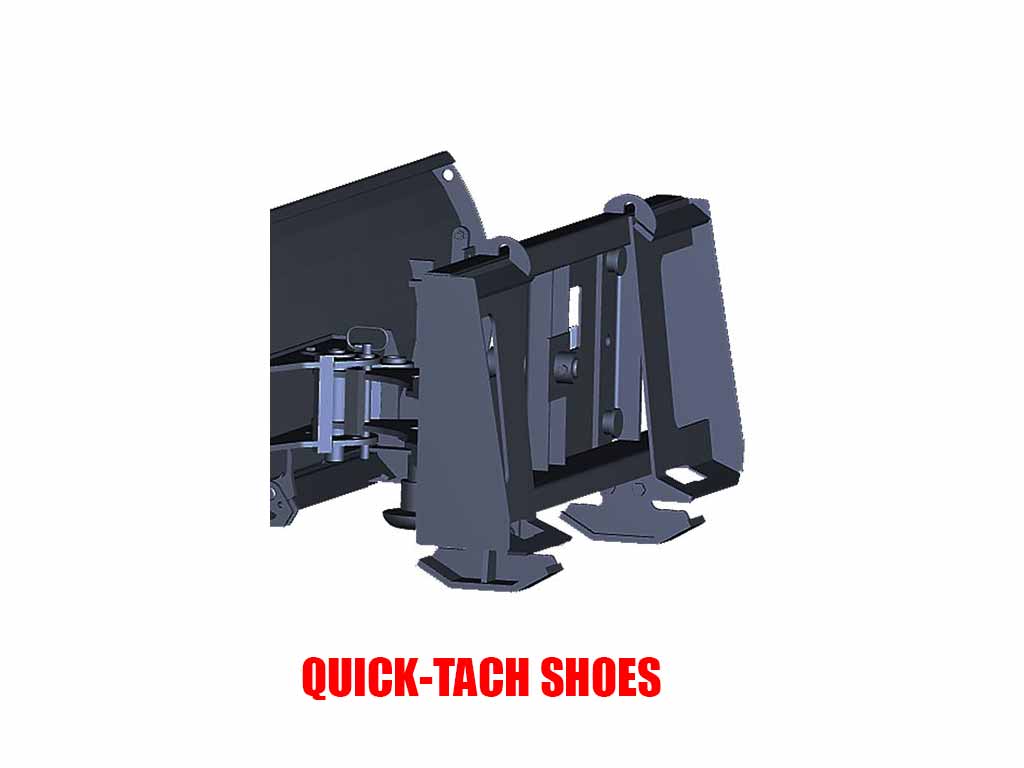

Quick Tach Shoes
- Provides a consistent stopping/bottoming point for compact tractor loader arms and helps keep the blade level.
Poly Edge
- 1” x 7 3/4” reversible, replaceable, reprocessed UHMW polyethylene allows 5 1/4” of total wear.
| MODEL | SBS60-CT | SBS72-CT | ||
| Width: Overall, Straight / Full Angle (Inches) | 61.0 / 53.8 | 73.0 / 64.4 | ||
| Overall Height (Inches) | 21.0 | |||
| Overall Depth, Straight (Inches) | 28.5 | |||
| Blade Angle (Degrees) | +/- 28 | |||
| Moldboard Thickness (Inches) | 0.12 | |||
| Cutting Edge (Inches) | 5/8 x 6 Bolt-on | |||
| Blade Oscillation (Degrees) | +/- 4 | |||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | |||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.25 | |||
| Approximate Weight (Pounds) | 385* | 410* | ||
| Recommended Loader Capacity | Less than 1000 pounds | |||
