Virnig

SGV48-CT

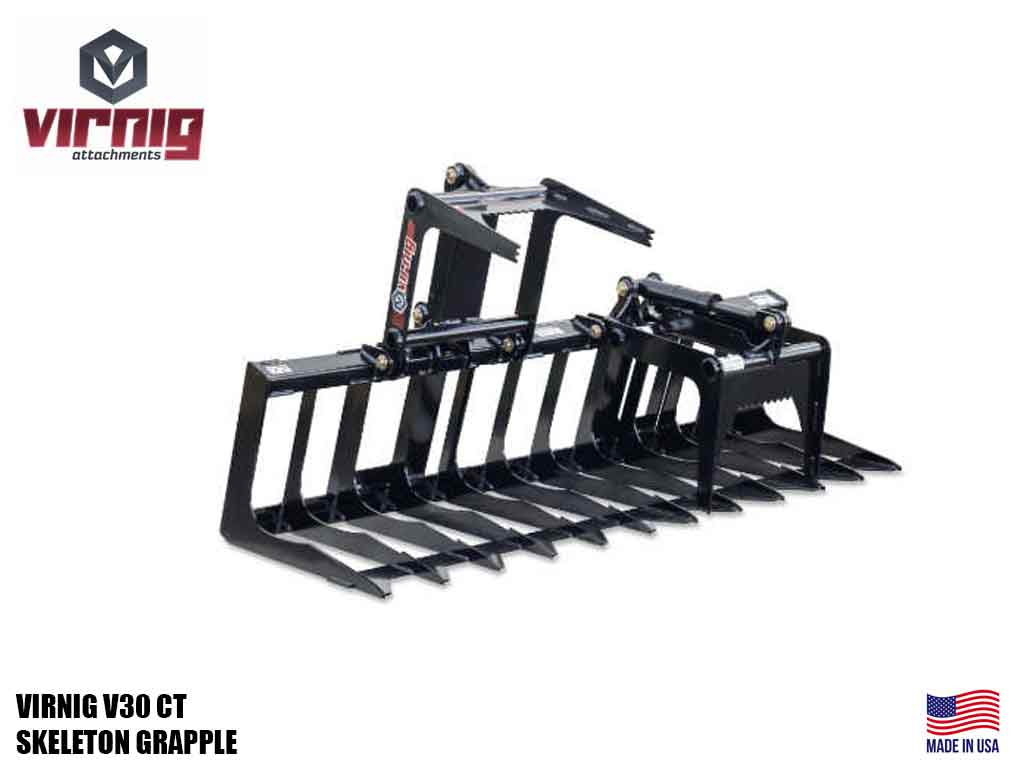

VIRNIG V30 CT skeleton grapple

Size

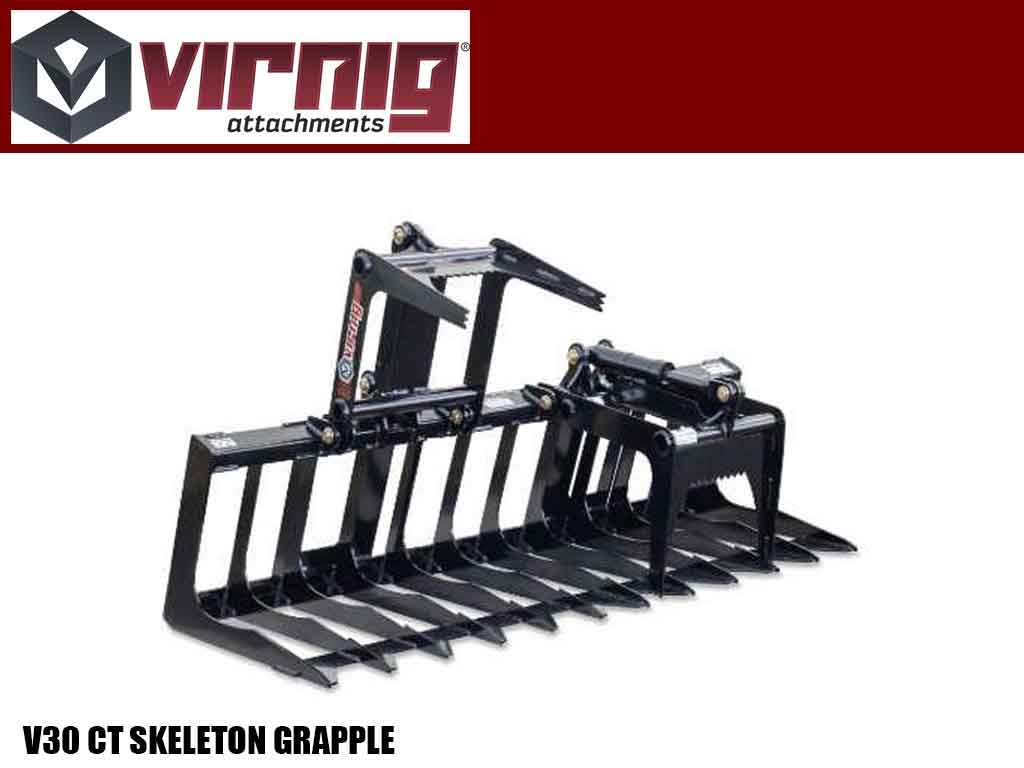

V30 COMPACT TRACTOR SKELETON GRAPPLE

Two-cylinder independent grapple with open-sided design for hauling brush and logs. Open bottom allows dirt to fall through.

  • Every tine is constructed of one piece of 1/4” Grade 50 steel, from tip to top brace, to add rigidity.
  • NitroSteel® cylinder rod and Teflon® coated bushings on hinge.

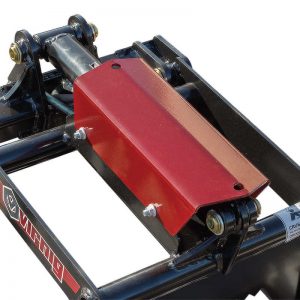

  • Optional Cylinder Guards available.
MODEL SGV48-CT SGV54-CT SGV60-CT SGV66-CT SGV72-CT
Overall Width (Inches) 47.9 54.3 60.9 67.5 74.1
Height: Overall / Bucket (Inches) 22.9 / 19.0
Depth: Overall / Inside (Inches) 29.0 / 23.5
Number of  Tines (With Sides) 8 9 10 11 12
Space Between Tines (Inches) 6.4
Tine Thickness (Inches) 0.25*
Side Plate Thickness (Inches) 0.375*
Grapple Jaw Opening (Inches) 28.7
Cylinder Bore / Stroke (Inches) 2.0 / 6.0
Cylinder Pins / Hinge Pins Diameter (Inches) 1.0
Approximate Weight (Pounds) 290 305 320 335 350
Recommended Loader Capacity Less than 1,500 pounds

*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
