URG54-CT

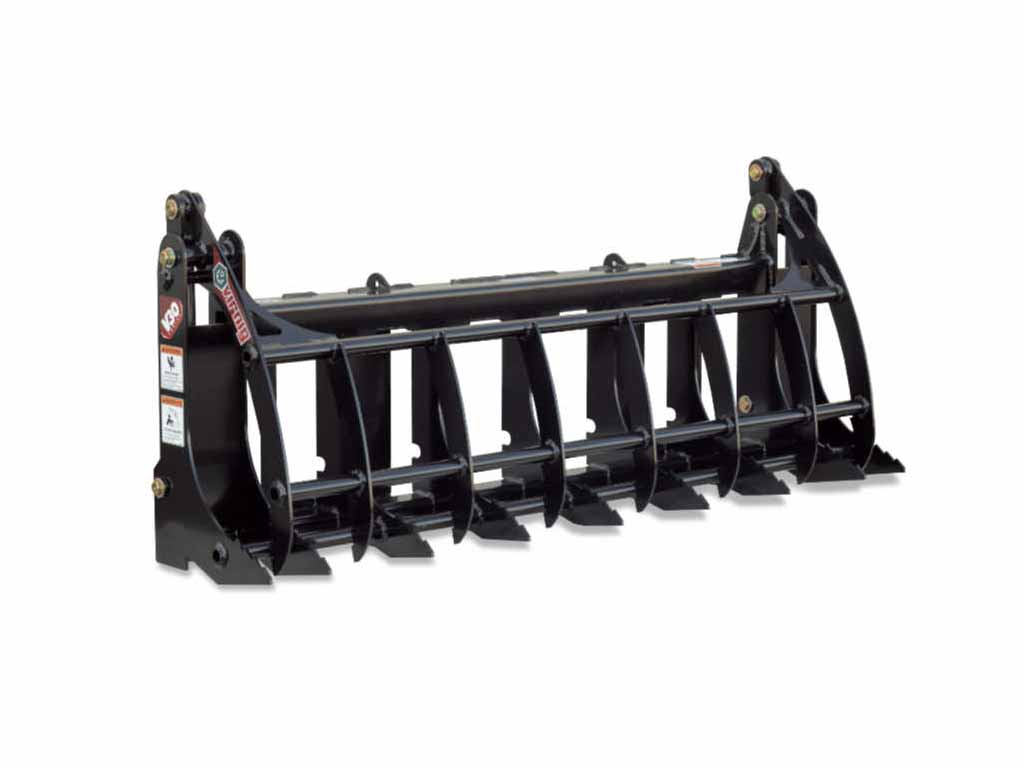

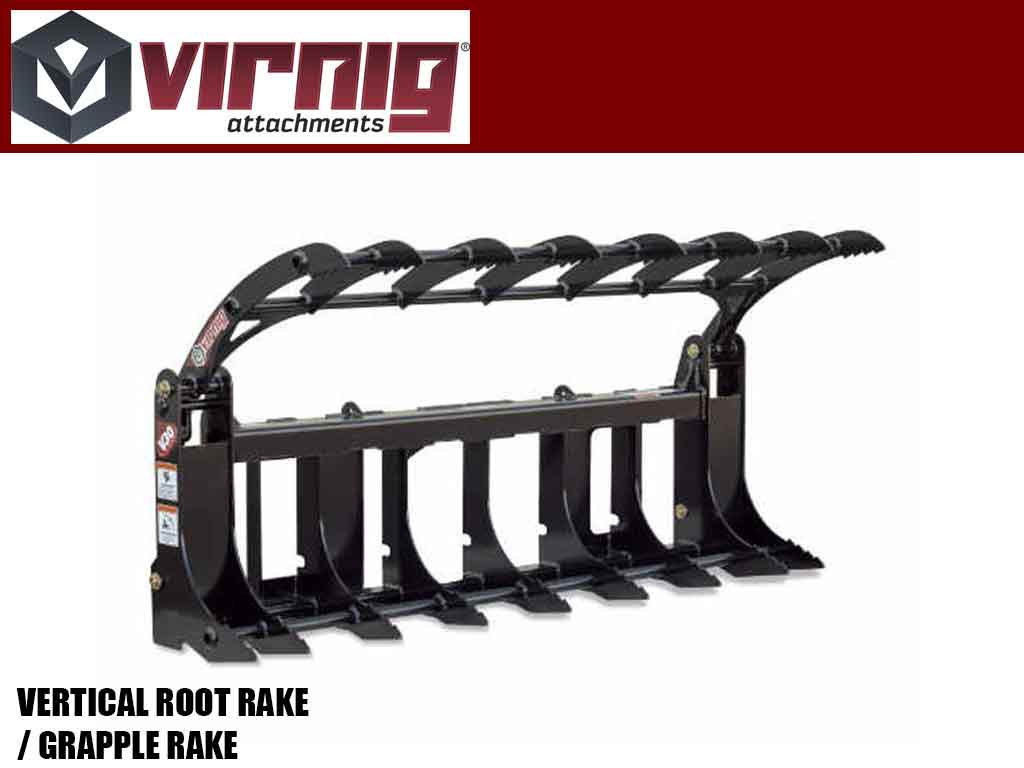

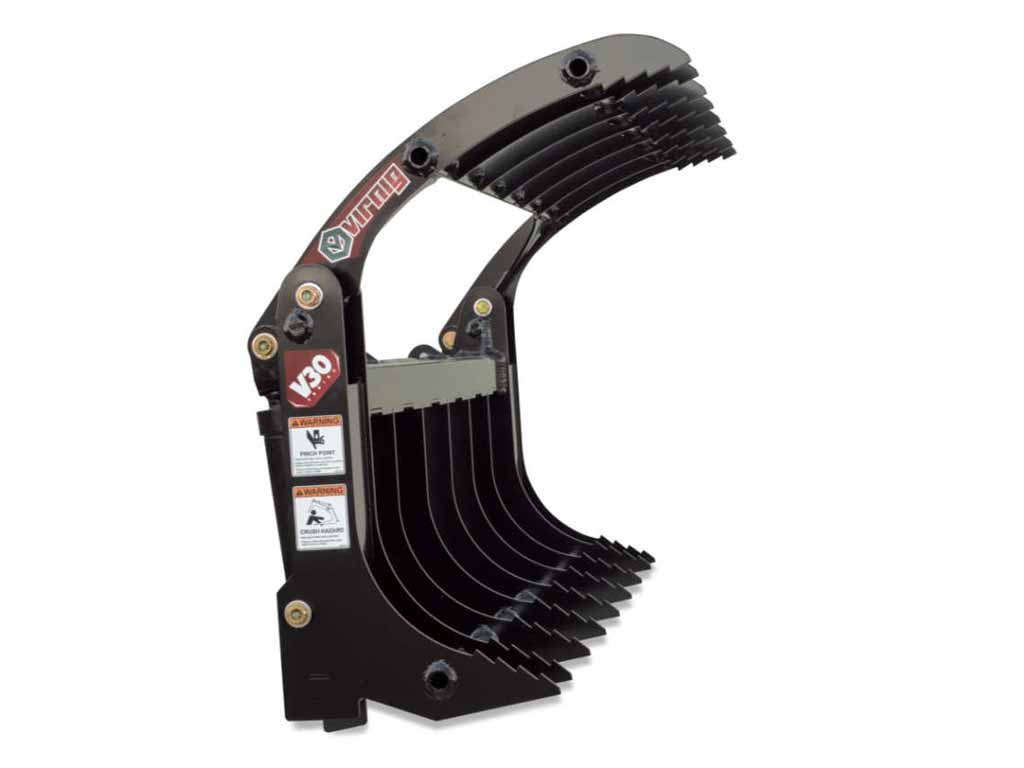

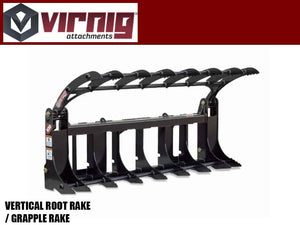

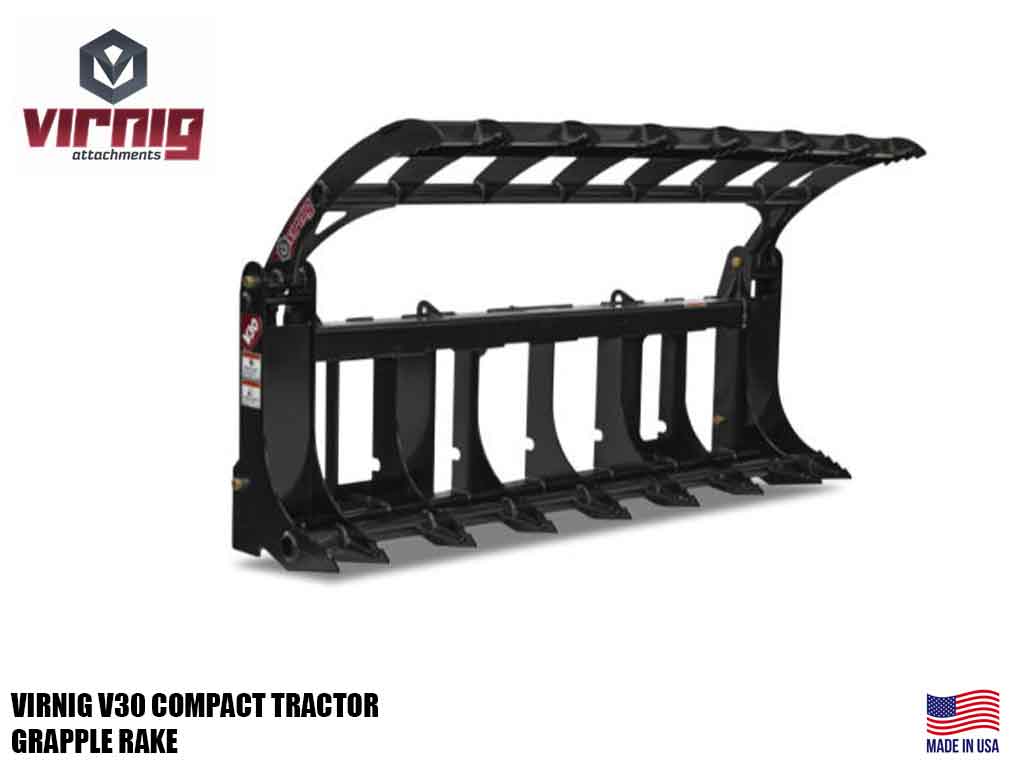

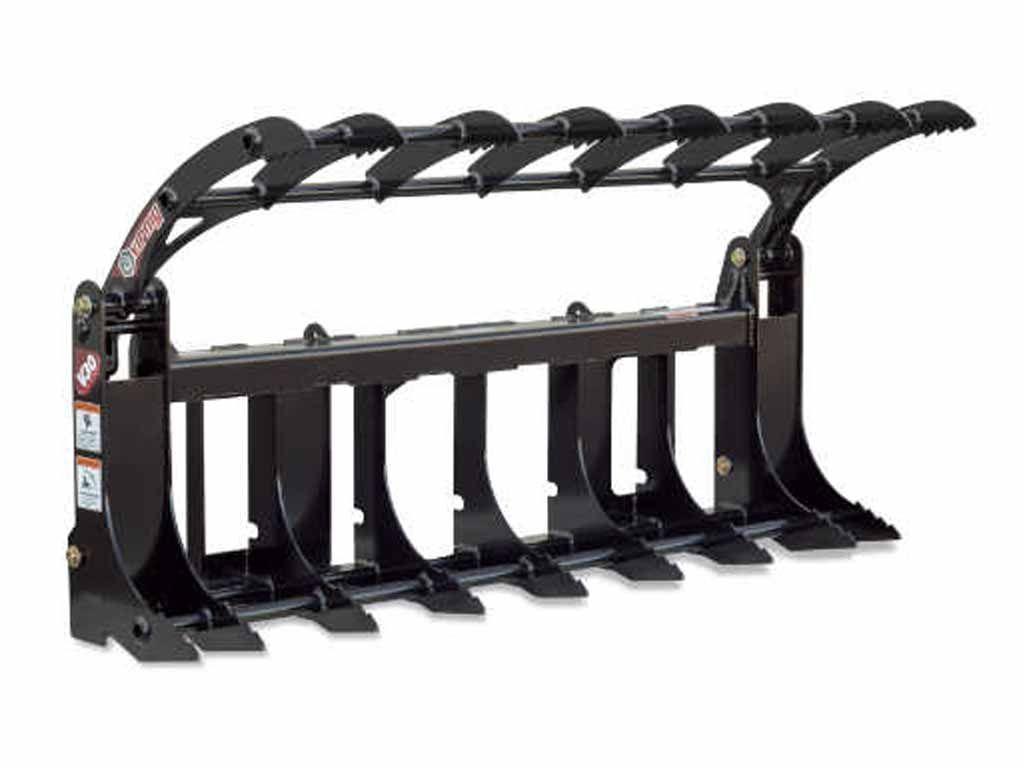

Virnig V30 Root Rake Grapple

Size
HOSES & FITTING

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING

V30 ROOT RAKE GRAPPLE

Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.

  • Unique design allows efficient forward and reverse operation to drag loose material into piles.
  • Every tine is constructed from AR400 steel for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.

HOSES & FITTING OPTION:

  • 90" HOSES, 1/2" MALE AND FEMALE COUPLERS
    MODEL URG54-CT URG60-CT URG66-CT
    Overall Width (Inches) 56.5 61.5 67.5
    Height: Overall / Bucket (Inches) 27.9 / 24.9
    Overall Depth (Inches) 16.6
    Number of Bottom Tines 7 8 9
    Space Between Tines / Bottom (Inches) 4.8 / 10.5 4.8 / 9.8 4.8 / 9.1
    Space Between Tines / Grapple Jaws (Inches) 7.8 / 11.2 7.3 / 9.8 7.0 / 9.2
    Tine Thickness (Inches) 0.25*
    Cylinder Bore / Stroke (Inches) 2.0 / 6.0
    Cylinder Pins / Hinge Pins Diameter (Inches) 1.0
    Grapple Jaw Opening (Inches) 35.5
    Approximate Weight (Pounds) 255 300 320
    Recommended Loader Capacity Less than 1,500 pounds

    *Material is AR400 Plate (150,000 PSI Minimum Yield Strength).



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks



    The V30 series was designed for TRACTORS and SMALL SKID STEER LOADERS. Though this is Virnig’s standard-duty line, the V30 Series often outperforms other brands’ heaviest skid steer attachments.
