Virnig

EDV60

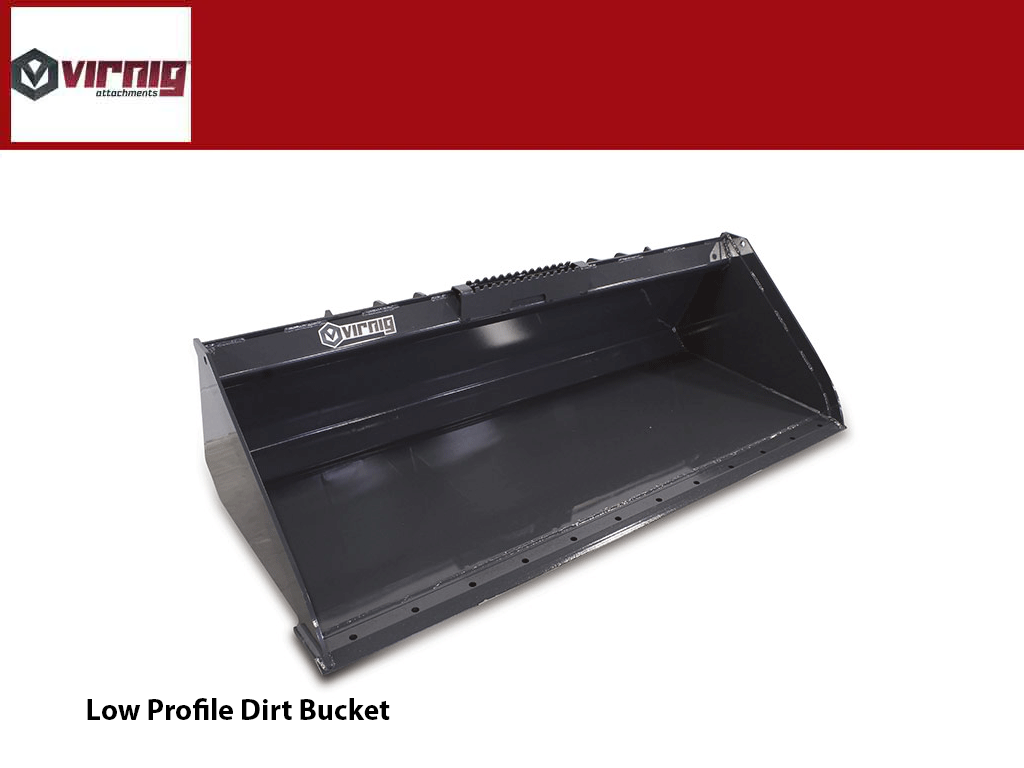

Virnig V40 Low Profile Dirt Bucket (SSL)(CTL)

Size
Edge

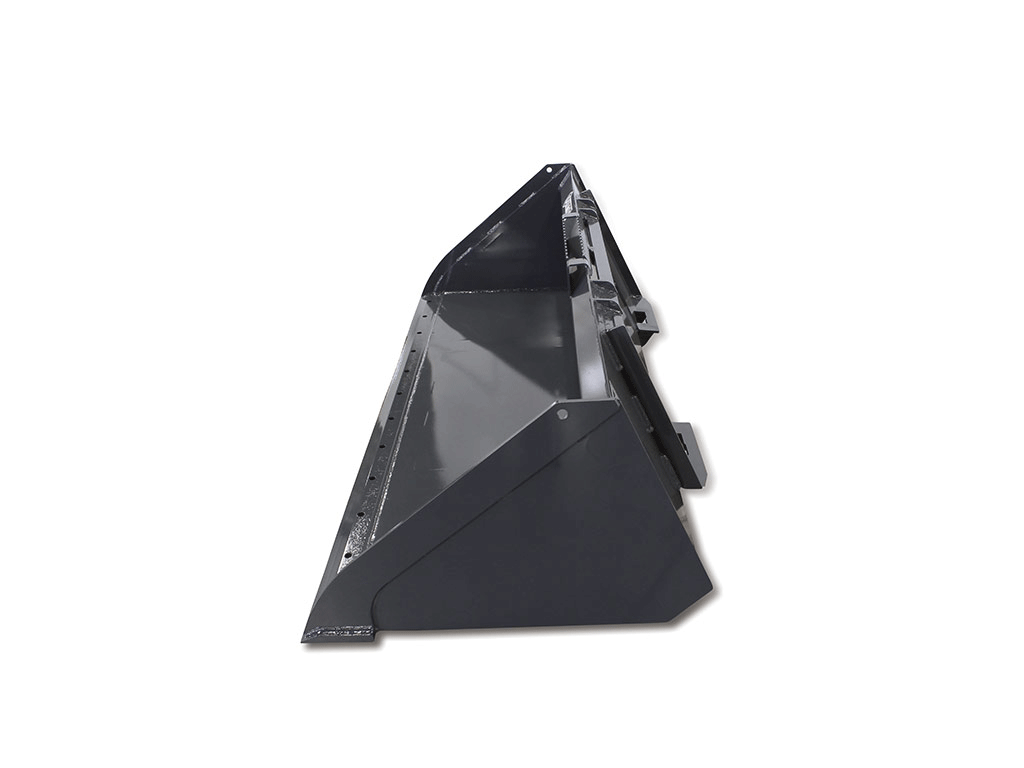

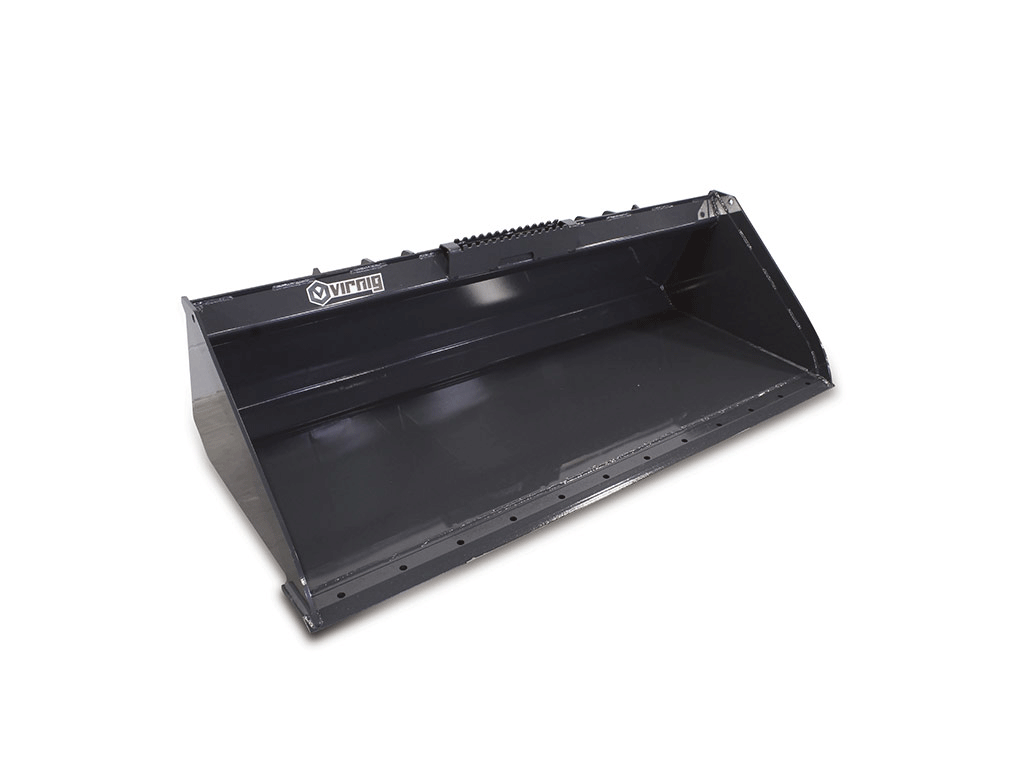

Virnig V40 Dirt Bucket has a low profile design and extended bottom for better visibility of cutting edge.

  • 3/16″ shell and side plates made from Grade 50 steel plate.
  • 1/2″ x 3ˮ structural wear bars underneath for added rigidity and life-span.
  • ¾” x 6″ weld-on cutting edge with holes to accept optional bolt-on or serrated bolt-on edge. See the “Options” tab for bucket edge options.

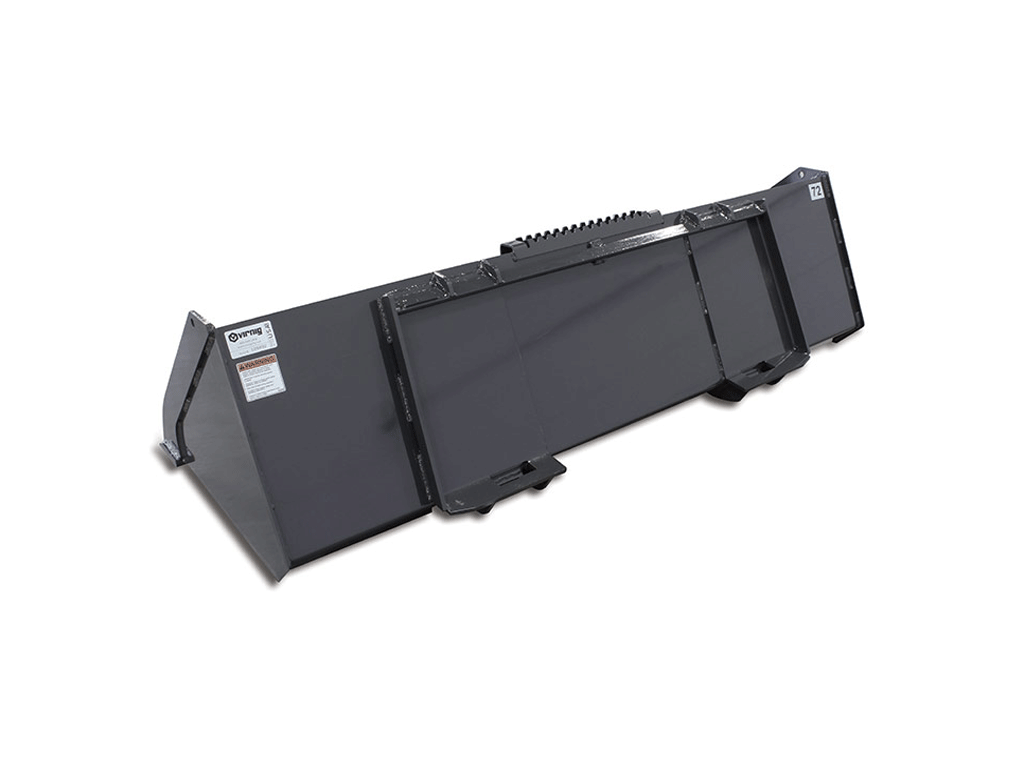

  • Manufactured with a universal mount to fit most skid steer loaders.
  • Lighter and more compact than V50 Dirt Bucket.
    OPTIONS

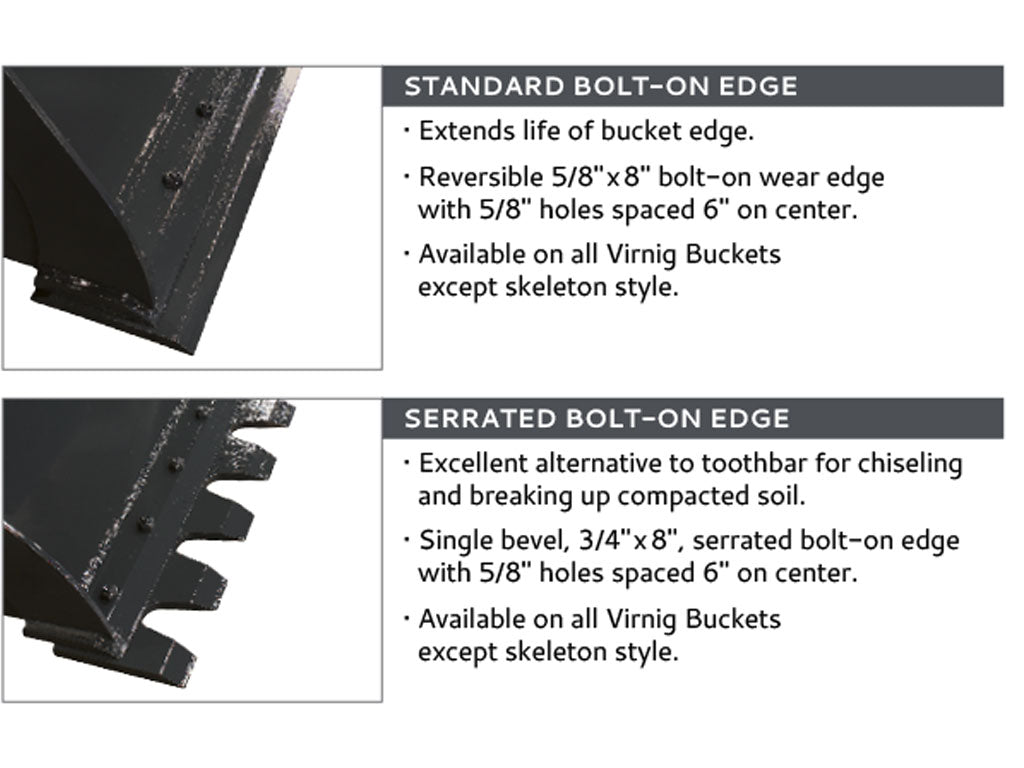

    • Bolt on Cutting Edge (BOCE) installed
      • Extends life of bucket.
      • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
    • Serrated Edge (SE) installed
      • Excellent alternative to toothbar for chiseling and breaking up soil.
      • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.



      Models EDV 60 EDV 66 EDV 72 EDV 78 EDV 84
      Overall Bucket Width (Inches) 61.5 67.5 73.5 79.5 85.5
      Bucket Depth (Inches) 32.4
      Bucket Height (Inches) 20.0
      Struck Capacity (Cubic Feet) 11.6 12.8 14.1 15.4 16.7
      Heaped Capacity (Cubic Feet) 13.9 15.4 16.9 18.85 20.0
      Bucket Back Angle (Degrees) 66
      Shell Thickness (Inches) 0.19
      Side Plate Thickness (Inches) 0.19
      Structural Wear Bars Under Bucket (1/2″ x 3″) 2 2 2 3 3
      Approximate Weight (Pounds) 405 430 455 490 515
      Recommended Loader Capacity Less than 2400 pounds



      In stock items usually ship in 3-5 days

      Non stock items usually ship in 4-6 weeks
