Virnig

URG66

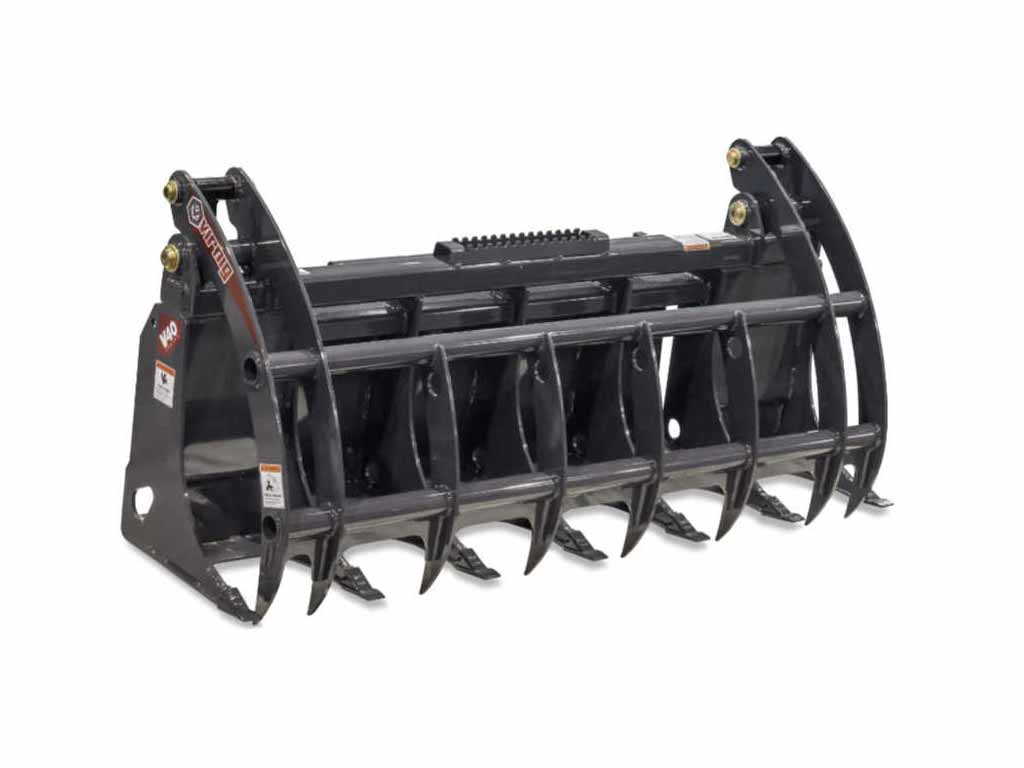

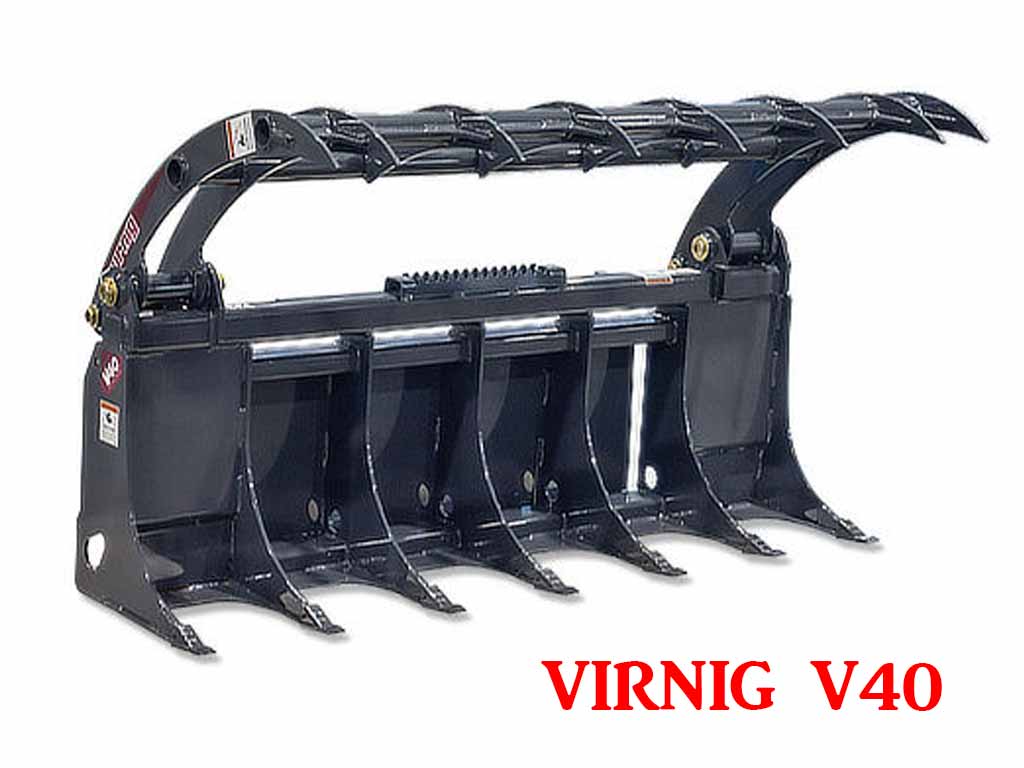

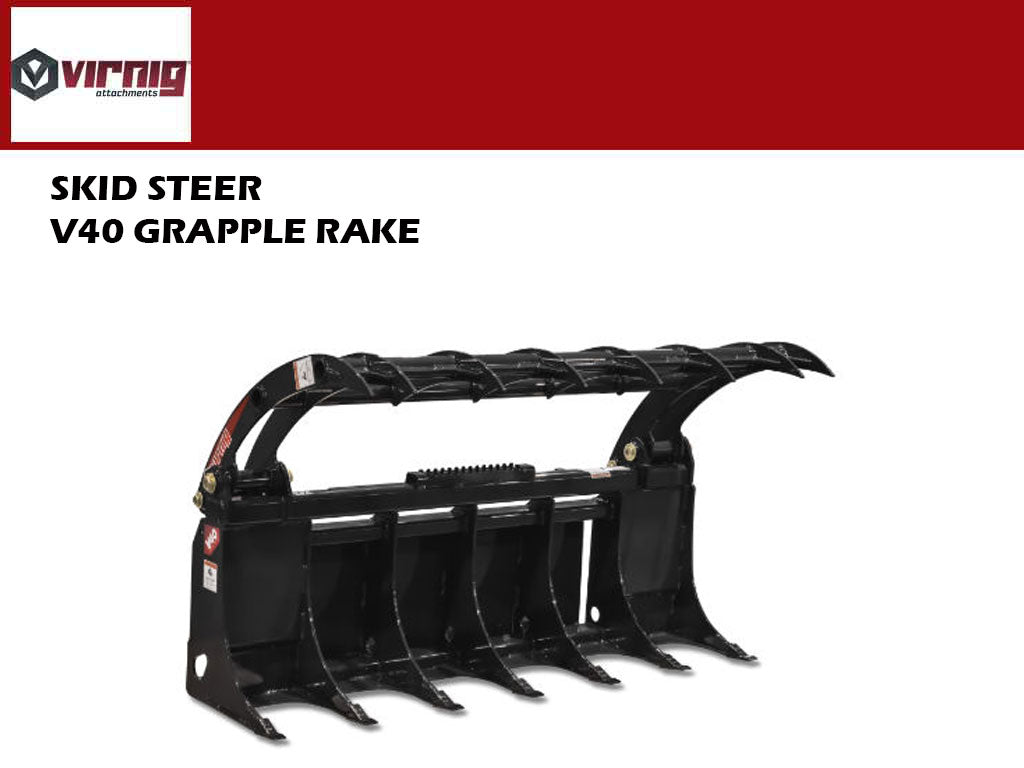

Virnig V40 Root Rake Grapple (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

V40 ROOT RAKE GRAPPLE

Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.

  • Unique design allows efficient forward and reverse operation to drag loose material into piles.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 44” grapple jaw opening to haul large amounts of brush per load.
  • Heavy-duty jaw and rake tines constructed from 3/8″ Grade 50 steel.
  • Replaceable cast teeth.
  • Possible clearance issue with URG-UT on Takeuchi® TL12 and John Deere® 330G, 331G, 332G, 333G.
MODEL URG60-UT URG66-UT URG72-UT
Overall Width (Inches) 61.5 67.5 73.5
Height: Overall / Bucket (Inches) 34.2 / 29.3
Overall Depth (Inches) 22.1
Number of Teeth 6 6 7
Space Between Teeth (Inches) 10.2 11.4 10.2
Space Between Tines / Grapple Jaws (Inches) 5.0 / 10.9 5.0 / 12.4 5.0 / 11.1
Tine Thickness (Inches) 0.375*
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Grapple Jaw Opening (Inches) 44.1
Approximate Weight (Pounds) 625 645 695
Recommended Loader Capacity Less than 2200 pounds

*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks



The V40 series was designed for medium and large frame skid steers. Though this is Virnig’s standard-duty line, the V40 Series often outperforms other brands’ heaviest skid steer attachments.
