BSRGV66

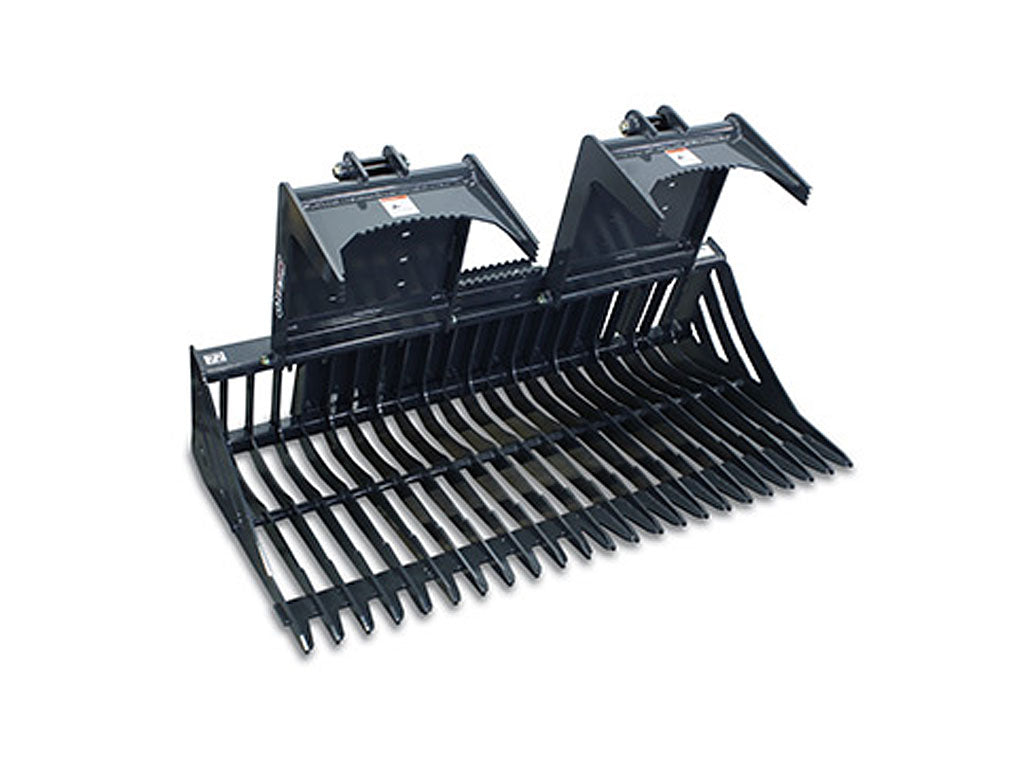

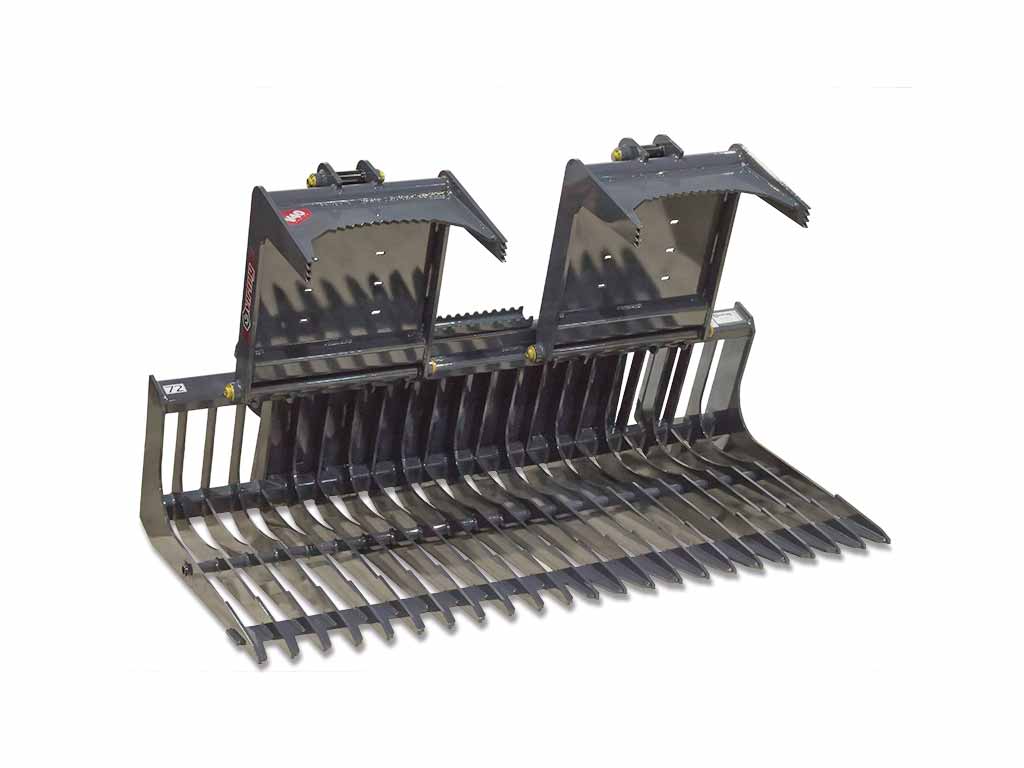

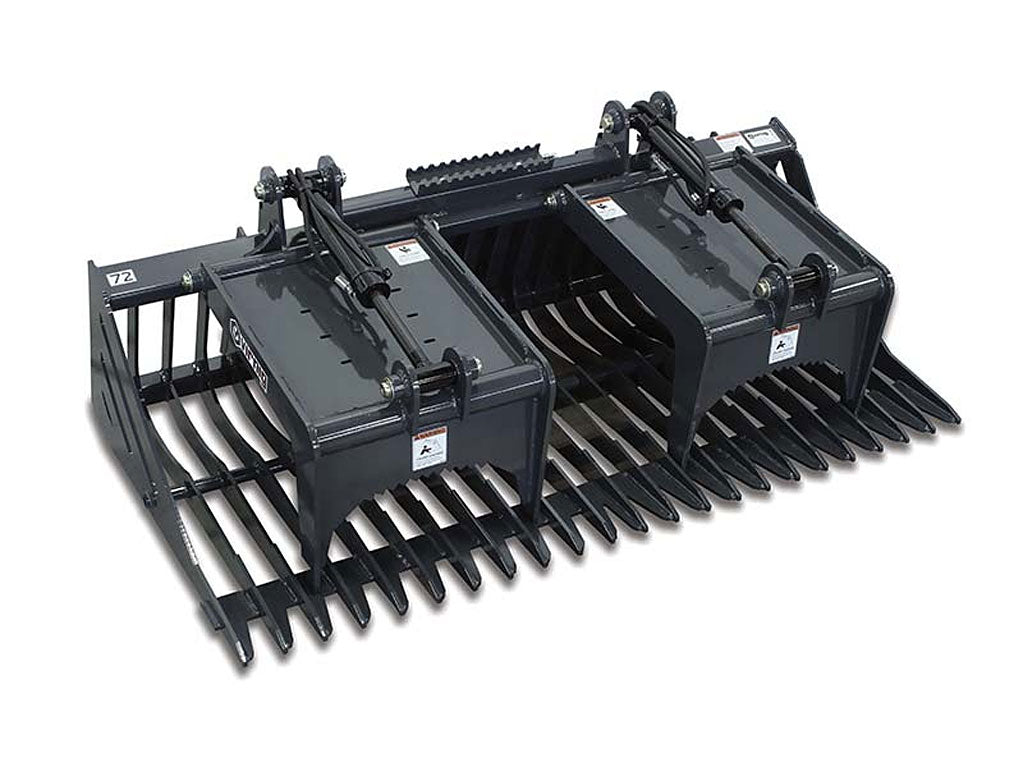

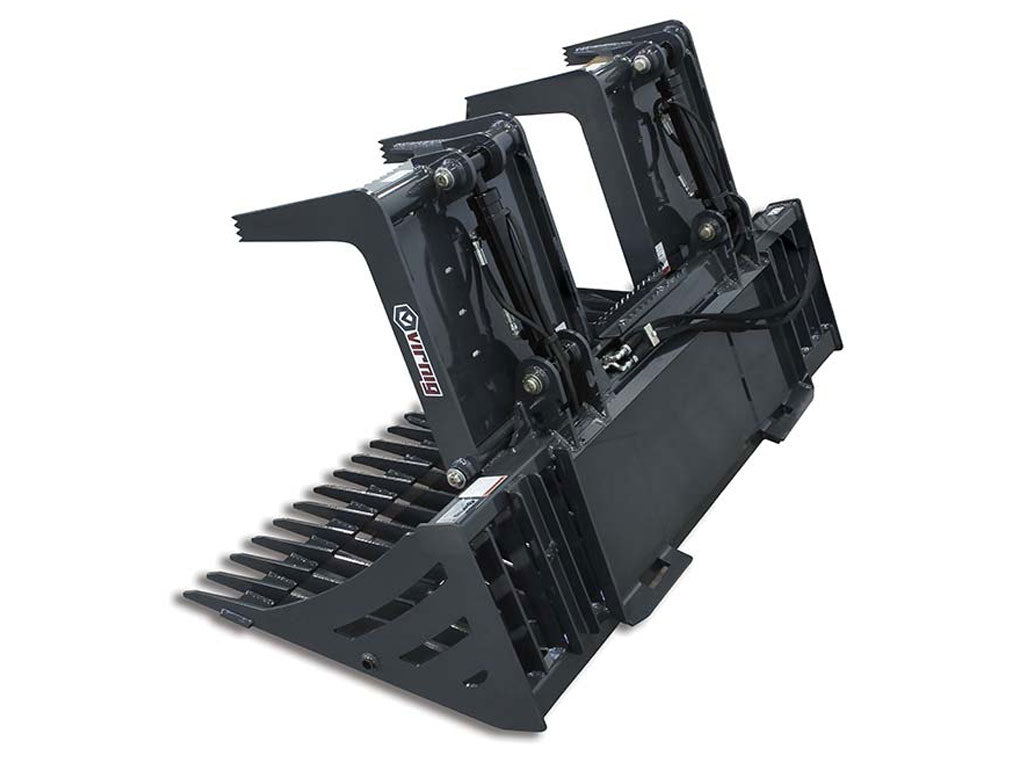

Virnig V40 Skeleton Rock Grapple for skid steer loaders

Size
Bucket Side
Options
7/25

ROCK GRAPPLE

SKID STEER

    Two-cylinder independent grapple with 3” tine spacing designed to pick rocks and debris and leave dirt behind.

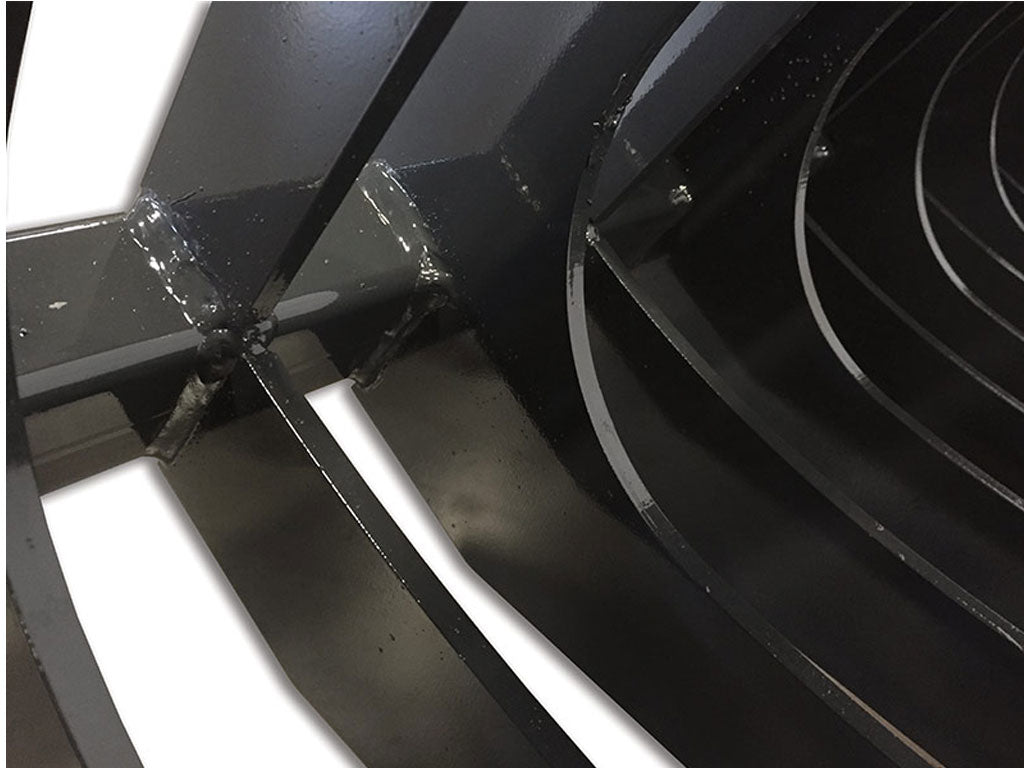

    • Every other tine is constructed of one piece of steel, from tip to top brace, to add rigidity. Every tine is made from 3/8” Grade 50 steel.
    • Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
    • 2” bore, 8 3⁄8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
    • Greaseable 1 1/4” diameter cylinder pins and hinge pins.

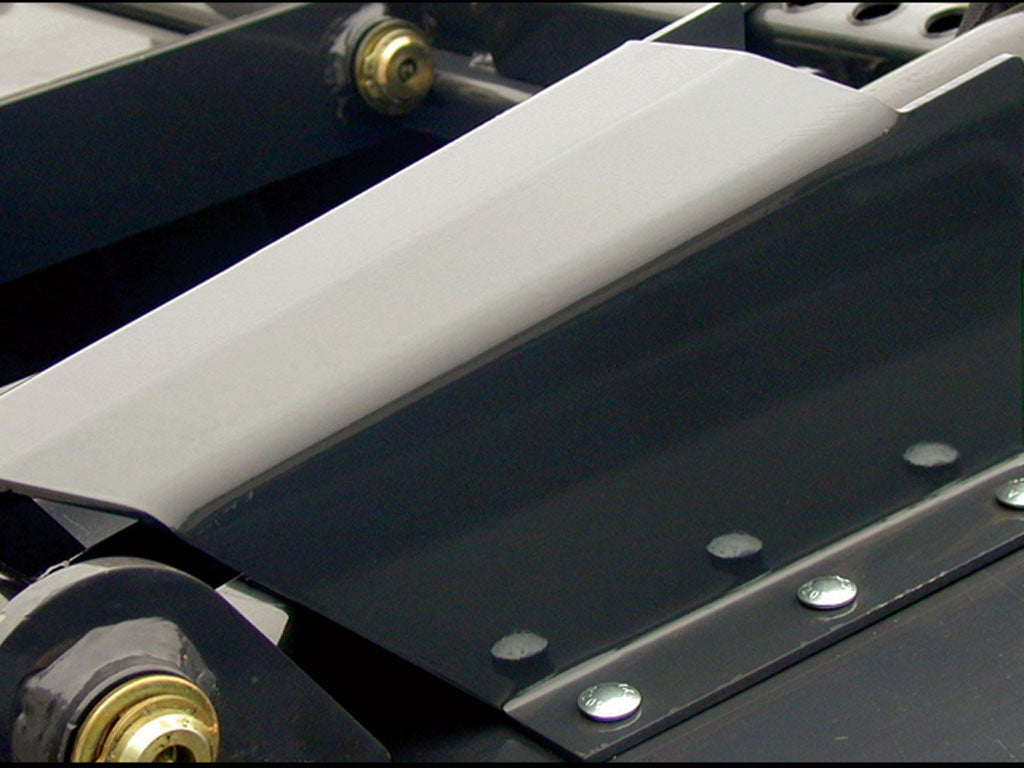

    • Teflon® coated bushings provide lubrication at jaw hinge.
    • Removable bolt on step made of durable, laser cut steel in an aggressive pattern.

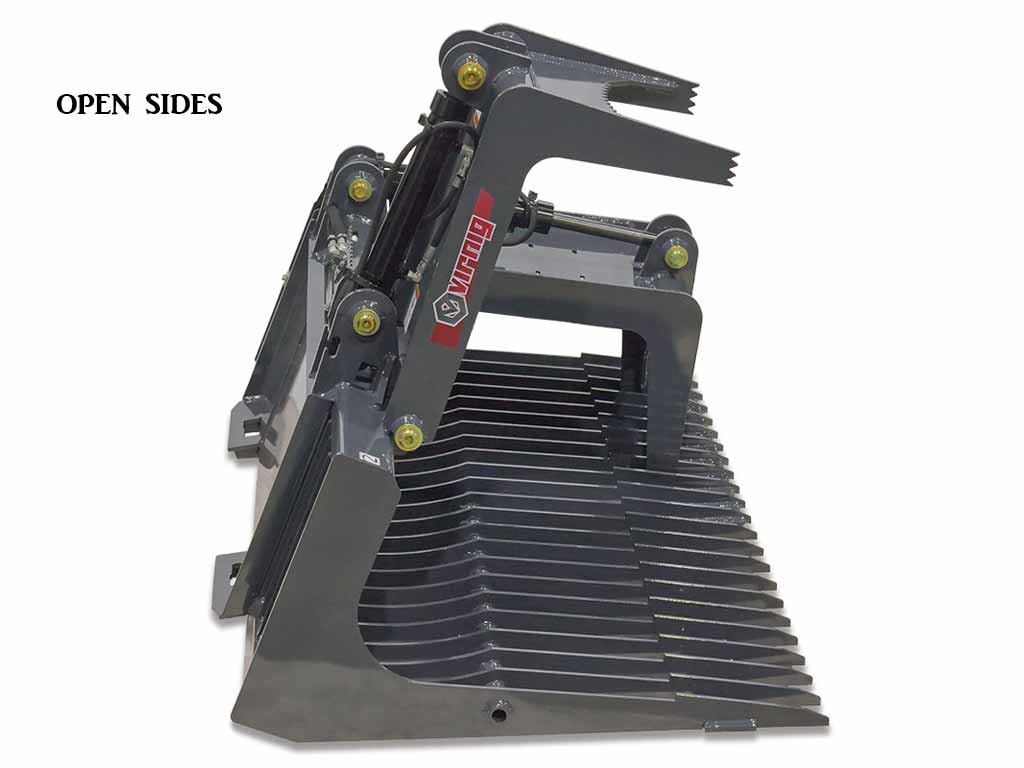

    • Optional Open Sides.
    Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
      • Recommended loader capacity - Less than 2400 lbs. ROC
      • Cylinder Bore / Stroke (in)  2.0 / 8.375
      • Cylinder Pins / Hinge Pins Diameter (in) 1.25
      Model BSRGV66 BSRGV72 BSRGV84
      Overall Width (in) 67.6 74.3 87.5
      Depth (in) 39.9 39.9 39.9
      Height: Overall/Bucket (in) 26.5/20.0 26.5/20.0 26.5/20.0
      Grapple Jaw Opening (in) 35.2 35.2 35.2
      Number of Tines 21 23 27
      Space Between Tines (in) 2.9 2.9 2.9
      Weight (lbs.) 925 960 1040
