Virnig

SLHV60

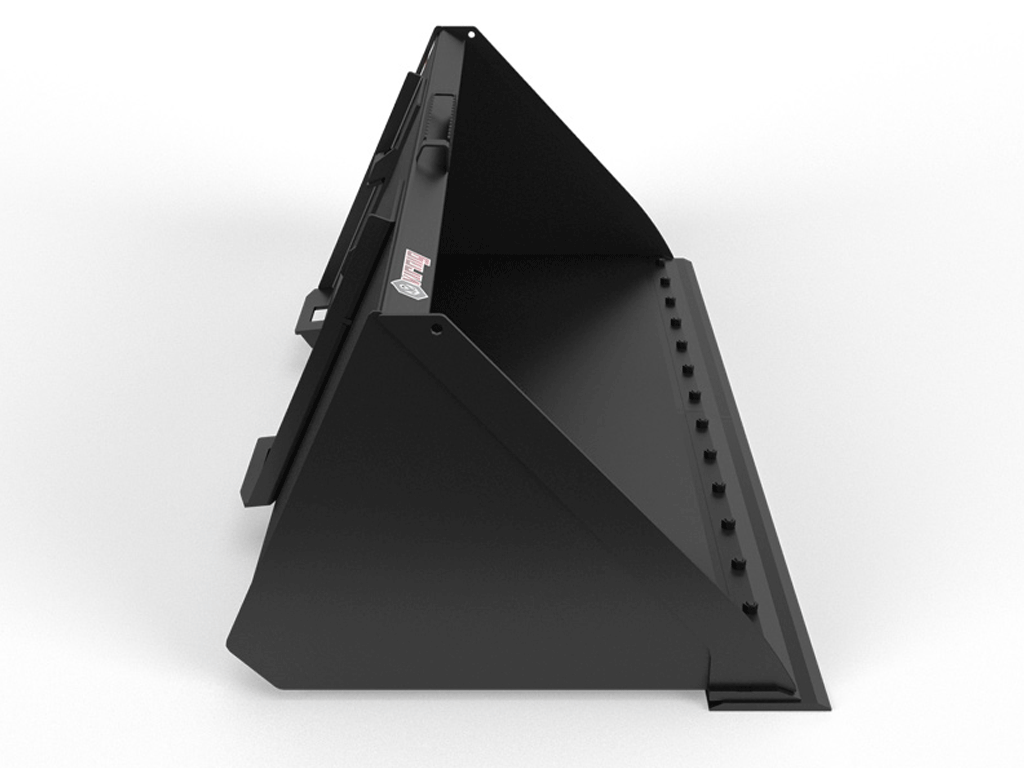

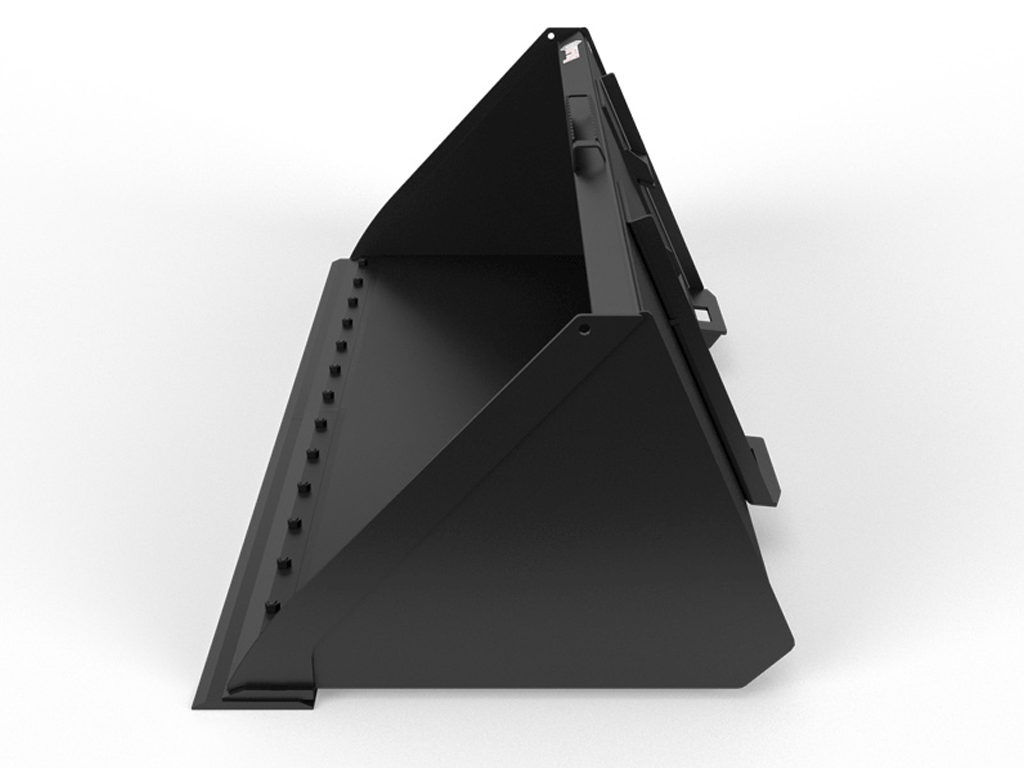

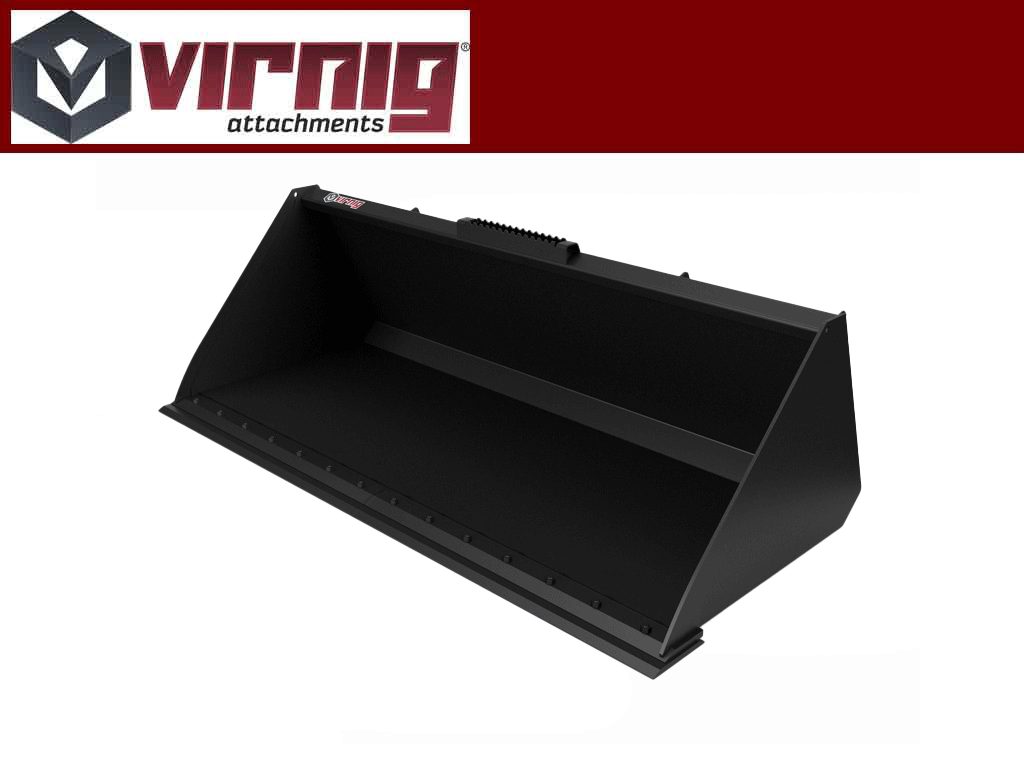

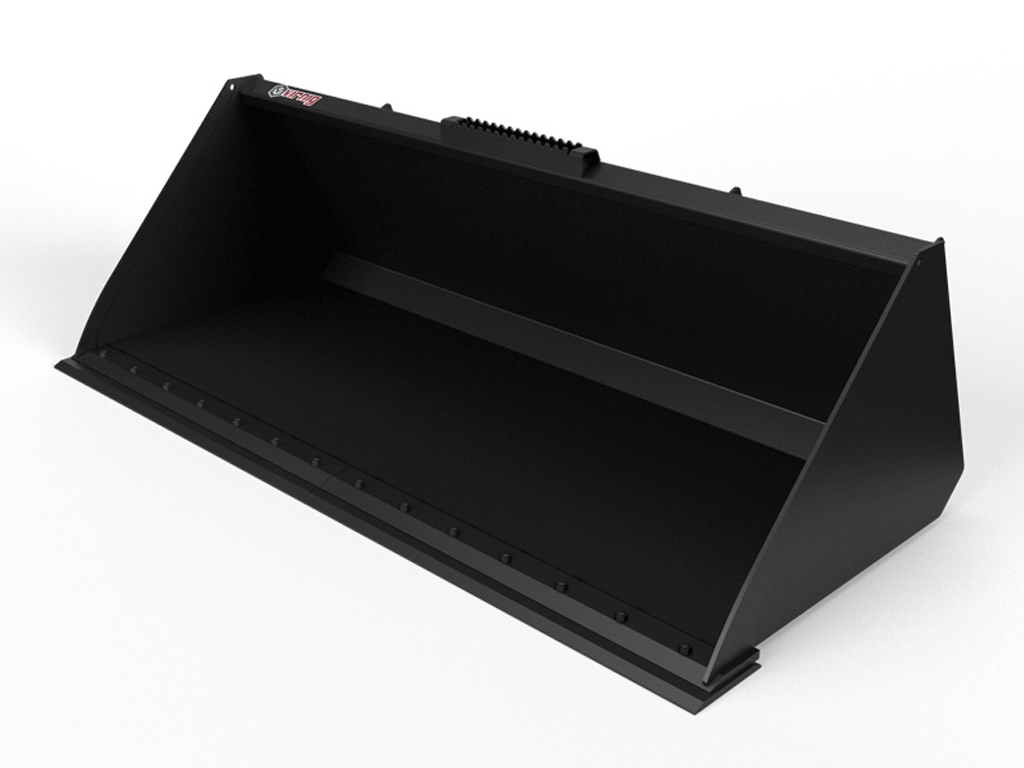

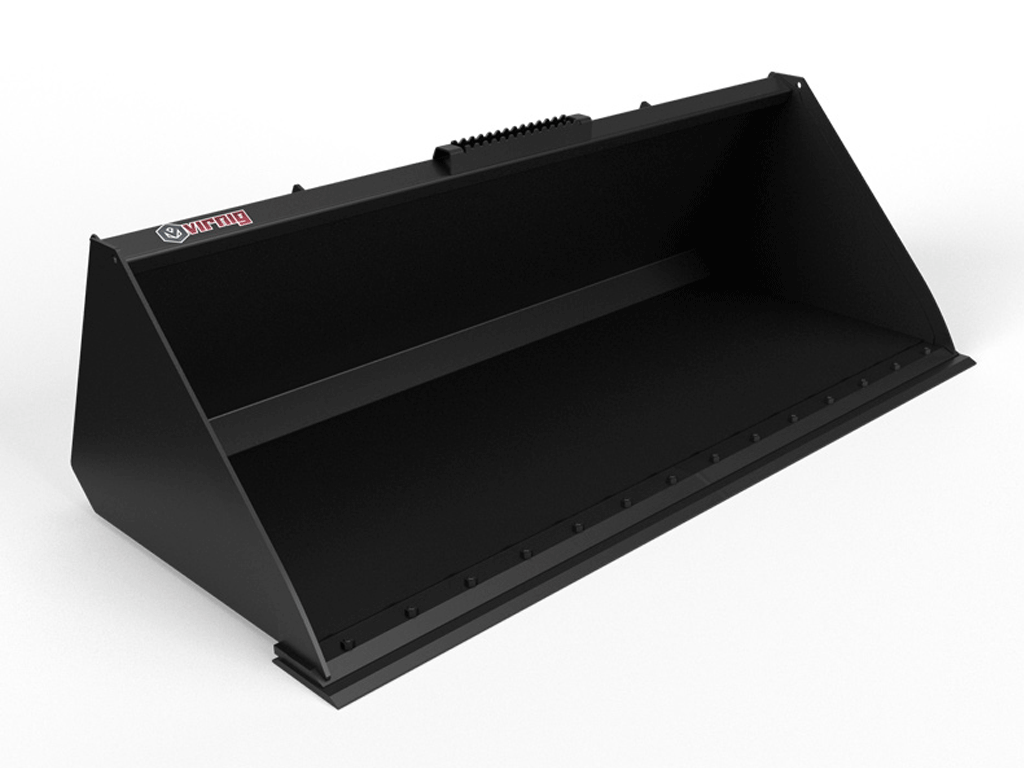

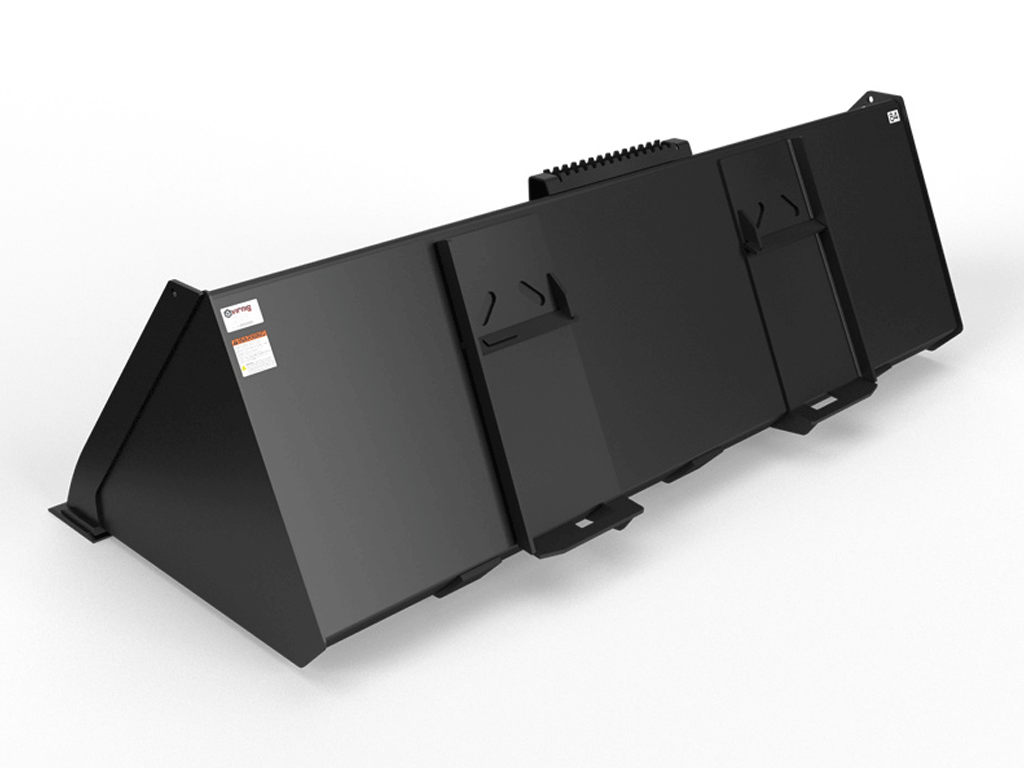

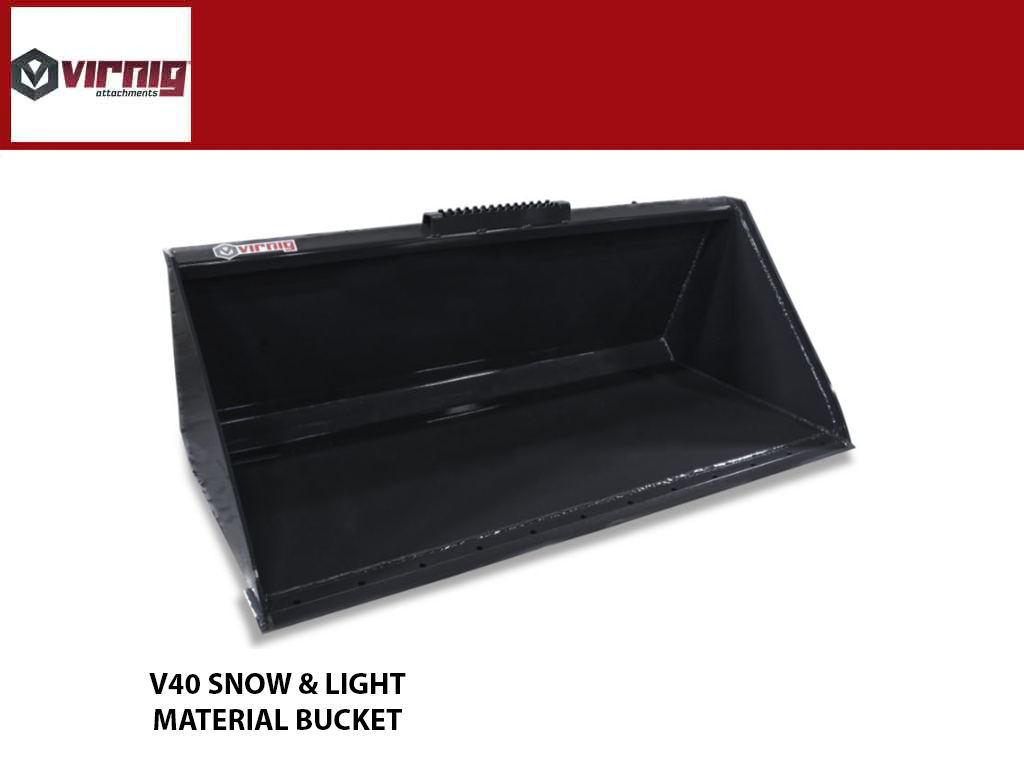

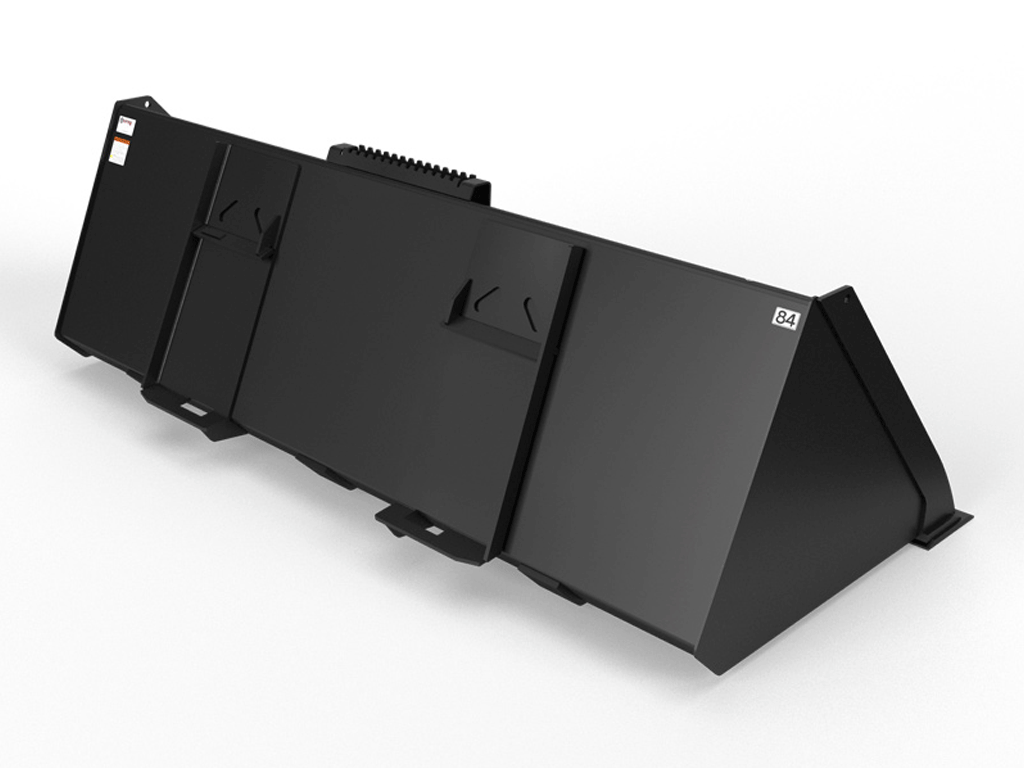

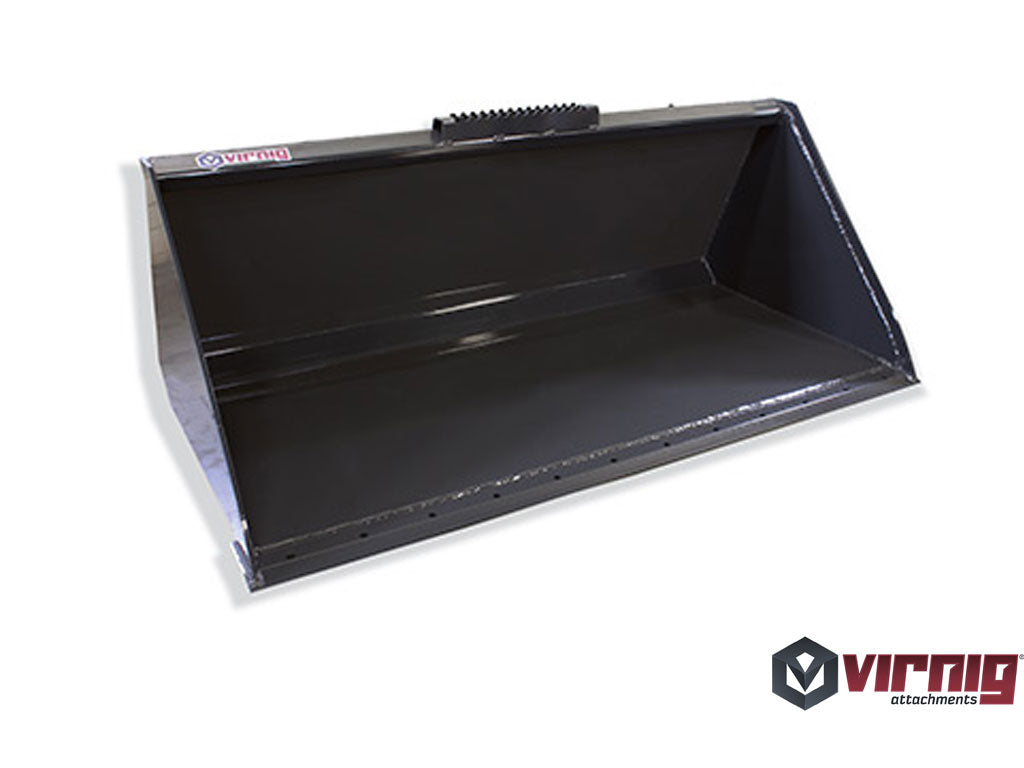

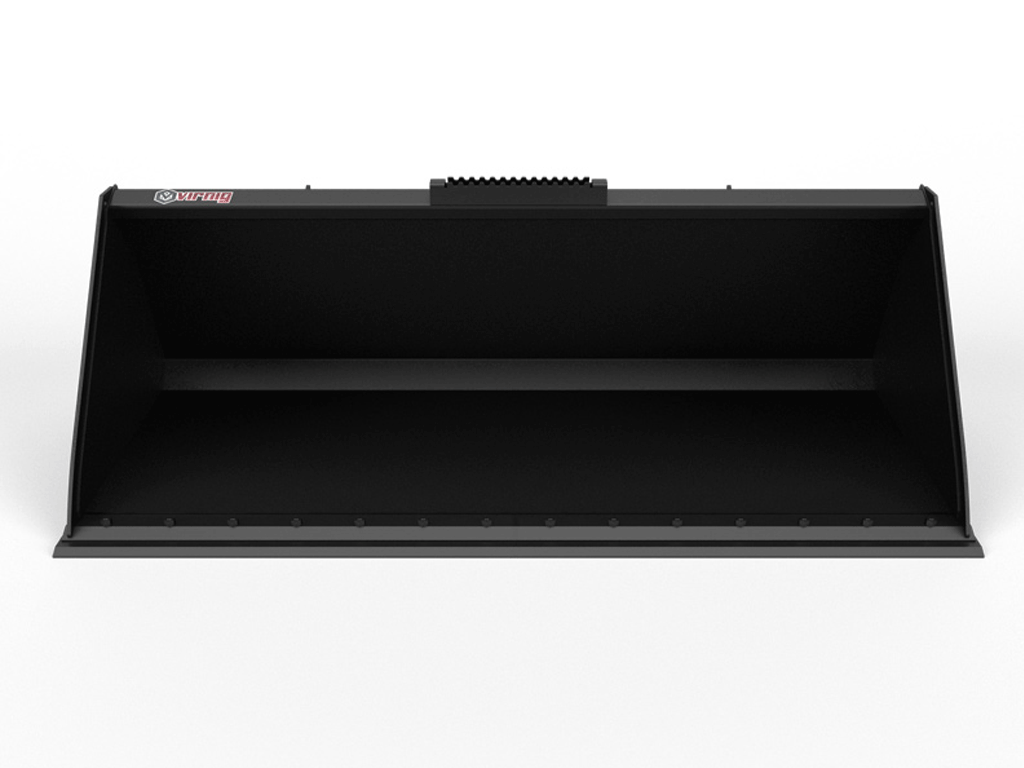

Virnig V40 Snow / Light Material Bucket (SSL)(CTL)

SIZE
EDGE
The Virnig V40 Snow/Light Material bucket is ideal for moving snow and granular materials such as mulch, grain, wood shavings, and fertilizer.
  • High capacity design allows for large volumes of snow or light material to be hauled per load.
  • High-strength, ¾” x 6” weld-on edge with holes for optional edges.

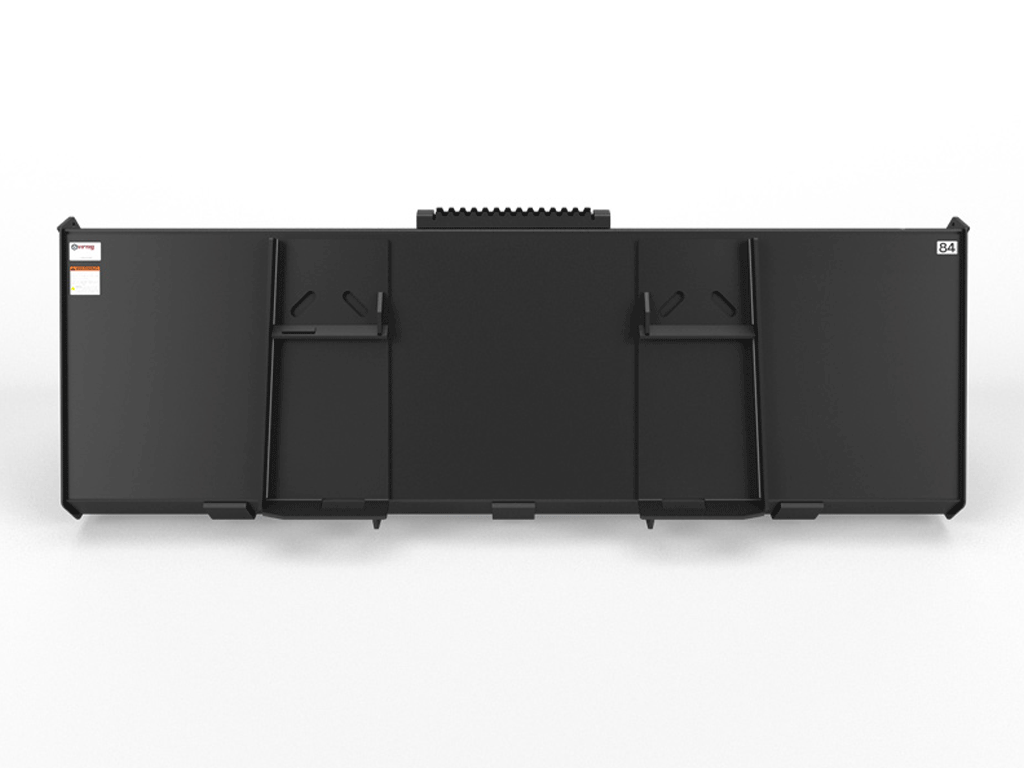

  • Manufactured with a universal mount to fit most skid steer loaders.
  • SLHV96 has two 3/8″ thick vertical braces inside the bucket. Similar to the V50 Snow Bucket.
  • V60 Snow Bucket  also available.
    OPTIONS

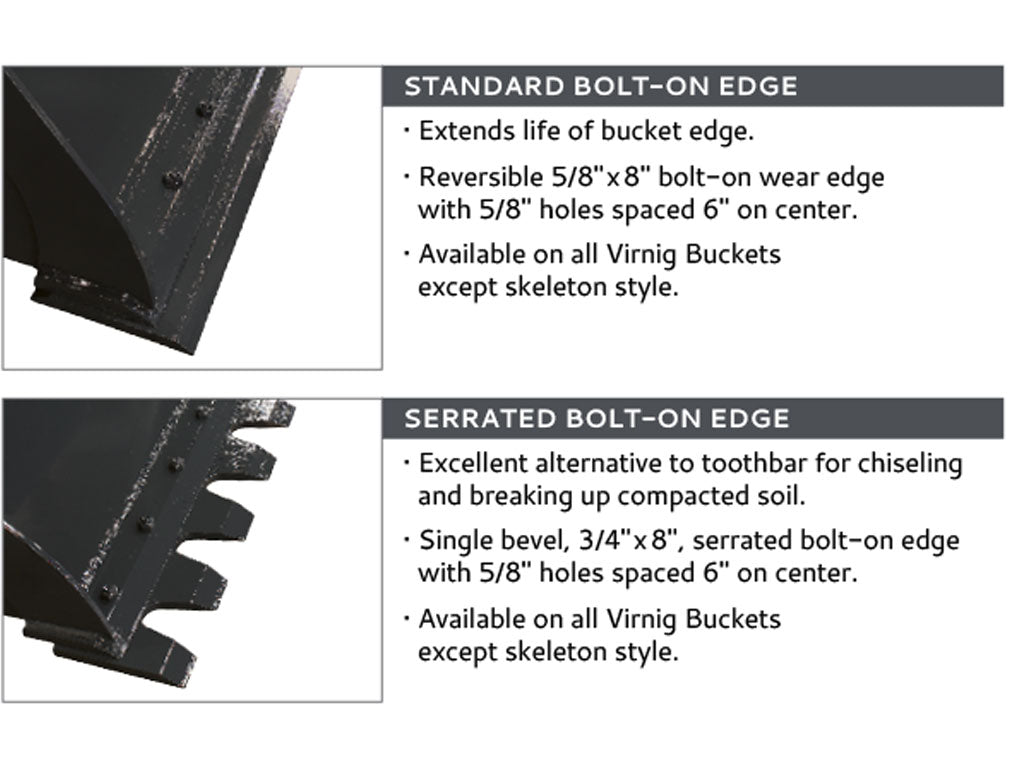

    • Bolt on Cutting Edge (BOCE) installed
      • Extends life of bucket.
      • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
    • Serrated Edge (SE) installed
      • Excellent alternative to toothbar for chiseling and breaking up soil.
      • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.



      Models SLHV 60 SLHV 66 SLHV 72 SLHV 78 SLHV 84 SLHV 96
      Overall Bucket Width (Inches) 61.5 67.5 73.5 79.5 85.5 97.5
      Bucket Depth (Inches) 37.6
      Bucket Height (Inches) 26.6
      Struck Capacity (Cubic Feet) 18.6 20.4 22.2 24.0 25.8 29.4
      Heaped Capacity (Cubic Feet) 22.3 24.5 26.6 28.8 31.0 35.3
      Bucket Back Angle (Degrees) 66
      Shell Thickness (Inches) 0.19
      Side Plate Thickness (Inches) 0.19
      Structural Wear Bars Under Bucket (1/2″ x 4″) 2 2 2 3 3 4
      Approximate Weight (Pounds) 500 535 570 605 640 770
      Recommended Loader Capacity Less than 2400 pounds
