Virnig

MGV160

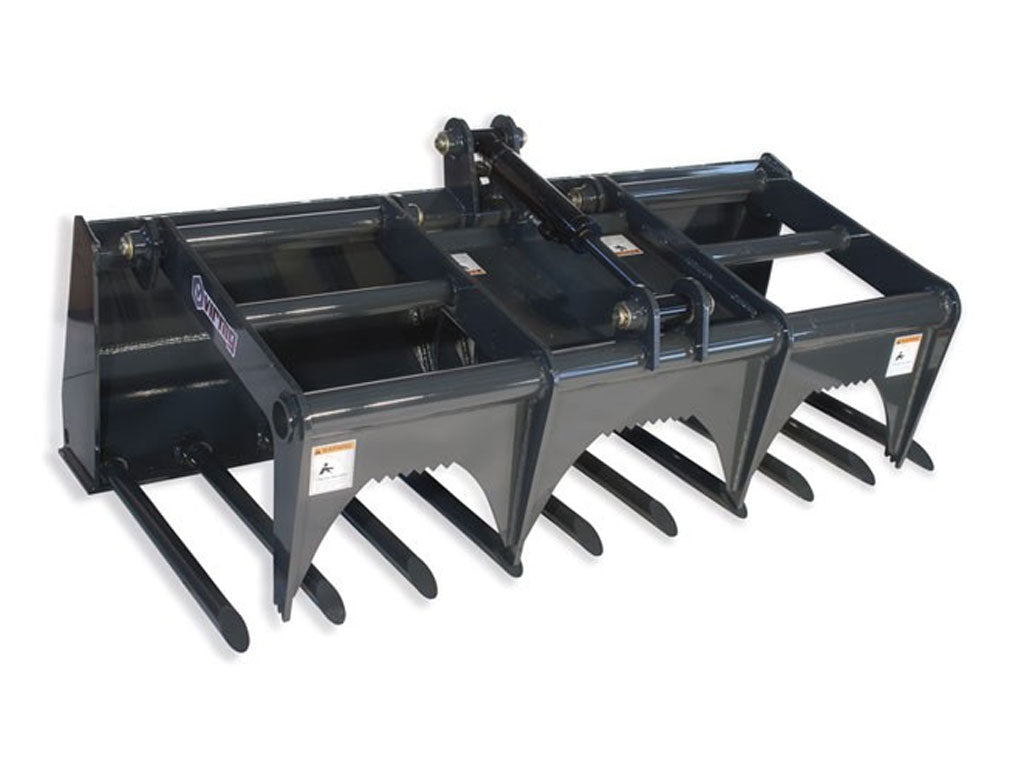

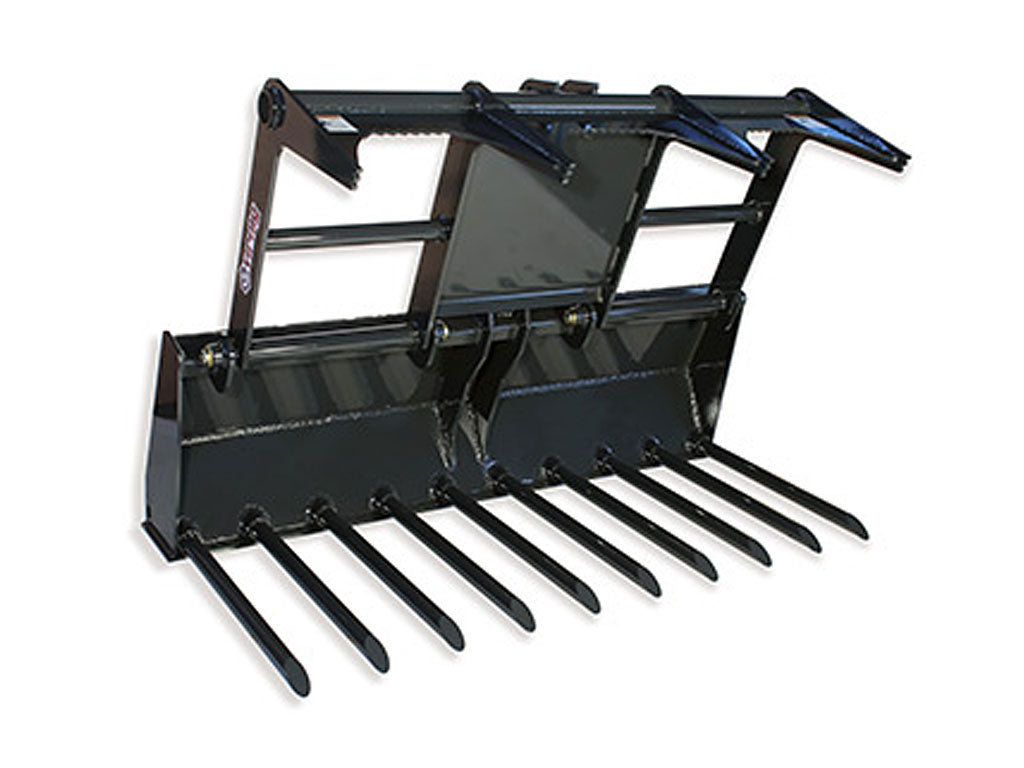

Virnig V40 Utility Fork Grapple (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

    Single Jaw Skid Steer Grapples provide a cost effective alternative to a two-cylinder skid steer grapple with similar quality. Single Jaw Grapples utilize simplified hydraulic plumbing which cuts down on parts cost and time spent for repairs. A single jaw grapple may be preferred for picking up even material such as hay bales.

    One-cylinder grapple designed to handle a variety of materials including manure, brush and debris. No cross member for better penetration.

    • High tensile strength removable, replaceable 1 3/4” diameter tines.
    • No cross member at tine tips allowing better material penetration.
    • 2” bore, 8 3/8” stroke cylinder featuring corrosion, dent and flake resistant NitroSteel® cylinder rod.
    • Greasable 1 1/4” diameter cylinder and hinge pins.
    • Teflon® coated bushings provide lubrication at jaw hinge.
    • Machine specific hydraulic package to completely protect hose routing.
    Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
      • Recommended loader capacity - Less than 2400 lbs ROC
      • Cylinder Bore / Stroke (in)  2.0 / 8.375
      • Cylinder Pins / Hinge Pin Diameter (in) 1.25
      Model 60" 66" 72" 78"
      Overall Width (in) 61.3 67.3 73.3 79.3
      Depth (in) 33.5 33.5 33.5 33.5
      Height: Overall / Bucket (in) 27.6 / 21.5 27.6 / 21.5 27.6 / 21.5 27.6 / 21.5
      Grapple Jaw Opening (in) 38.0 38.0 38.0 38.0
      Number of Tines 9 10 11 12
      Space Between Tines 5.4 5.3 5.2 5.1
      Weight (lbs) 835 860 950 990



      In stock items usually ship in 3-5 days

      Non stock items usually ship in 4-6 weeks
