Virnig

MV60

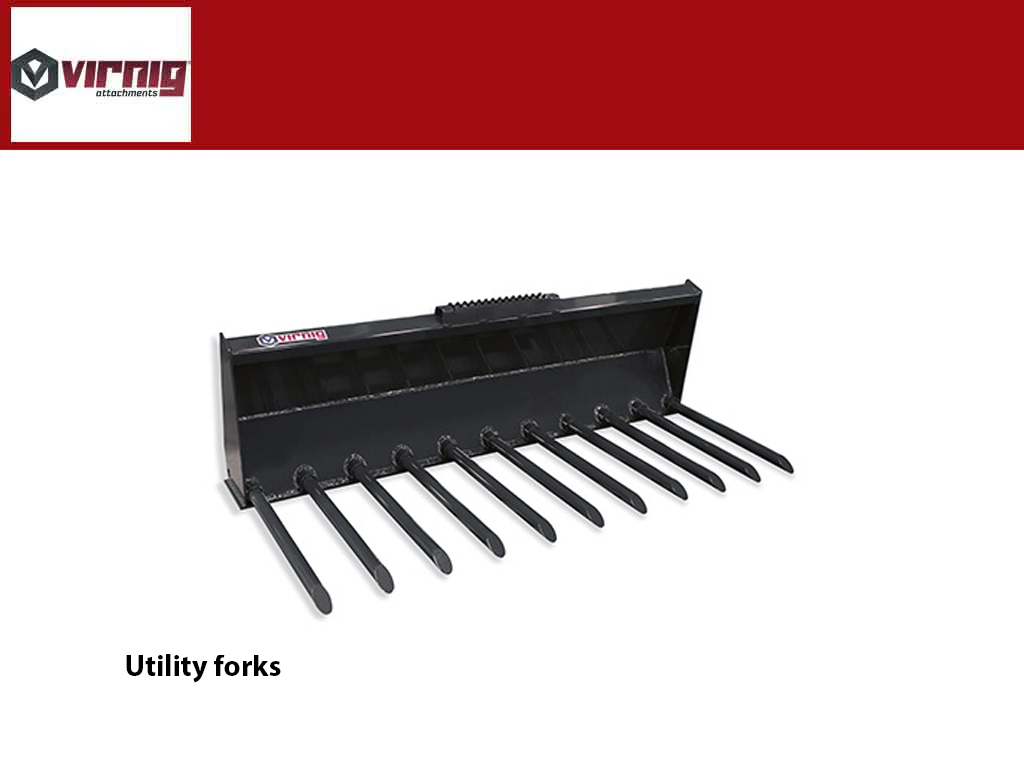

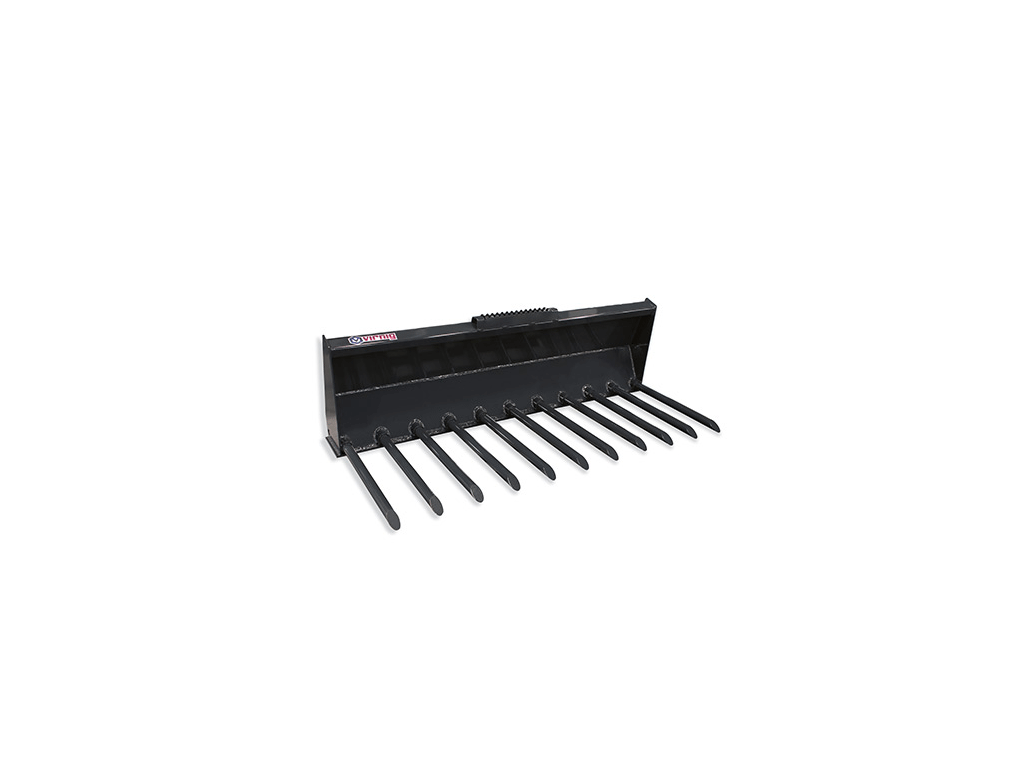

Virnig V40 Utility Fork (SSL) (CTL)

Size

Virnig Utility Fork is a cost effective way to transport semi-loose material. It is fabricated with high grade steel, is generally heavier, has thicker and stronger tines, and includes a better safety step than other forks.

  • Manufactured with a universal mount to fit most skid steer loaders.
  • Tines easily penetrate piles and low profile allows excellent visibility.
  • High tensile strength tines require no maintenance and are removable for easy replacement.
  • 1 ¾ˮ diameter, 1045 CFSR tines require no maintenance removal for easy replacement.



  •  Recommended loader capacity - Less than 2400 lbs ROC
  • Tine Material:  1045 CFSR Round
Model 60" 66" 72" 78"
Overall Width (in) 61.3 67.3 73.3 79.3
Depth (in) 33.5 33.5 33.5 33.5
Height (in) 21.5 21.5 21.5 21.5
Number of Tines 9 10 11 12
Space Between Tines (in) 5.4 5.3 5.2 5.1
Tine Diameter (in) 1.75 1.75 1.75 1.75
Weight (lbs) 545 570 655 695



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
