Virnig

SBS84-LD-RUS84

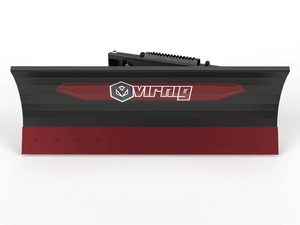

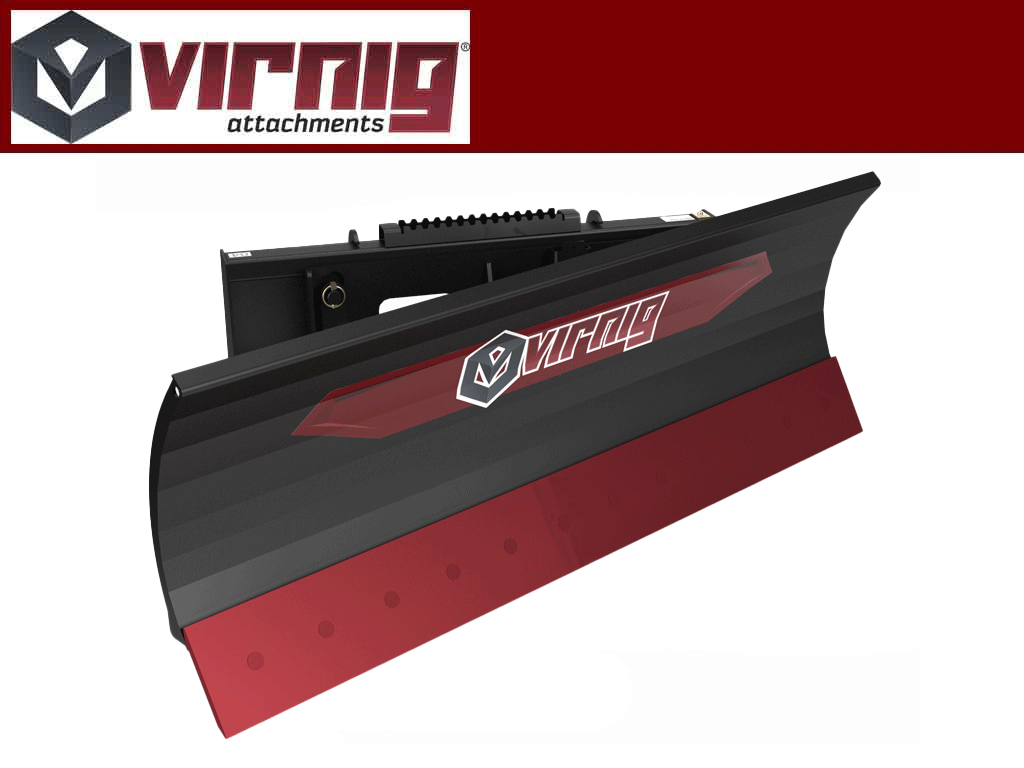

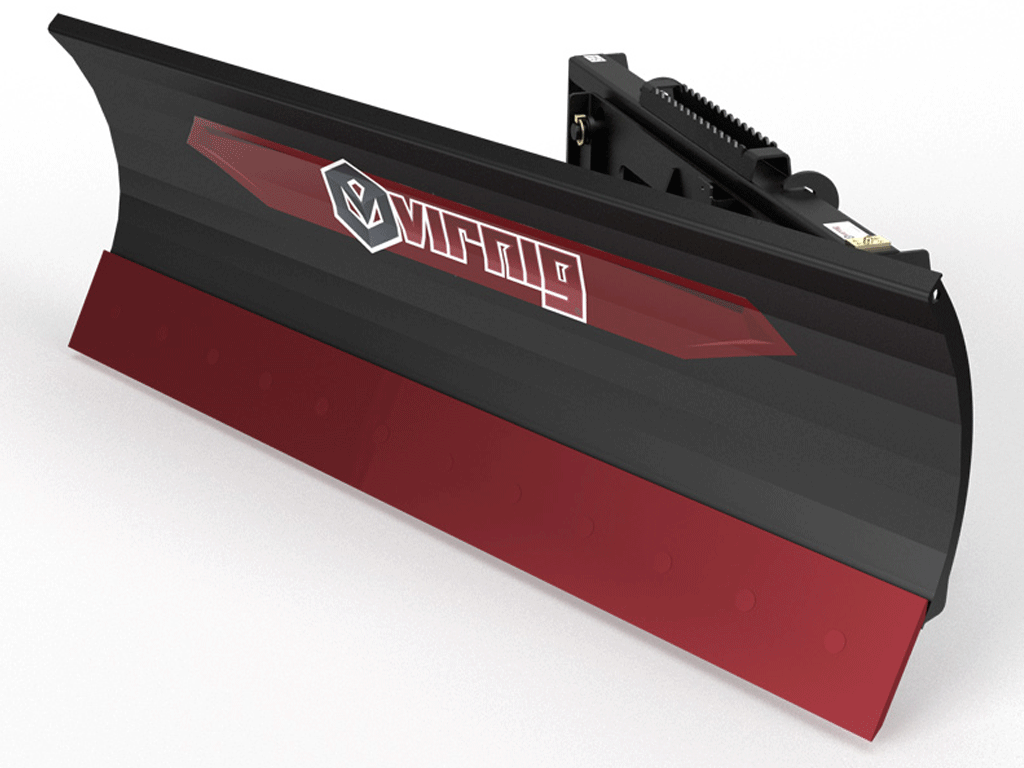

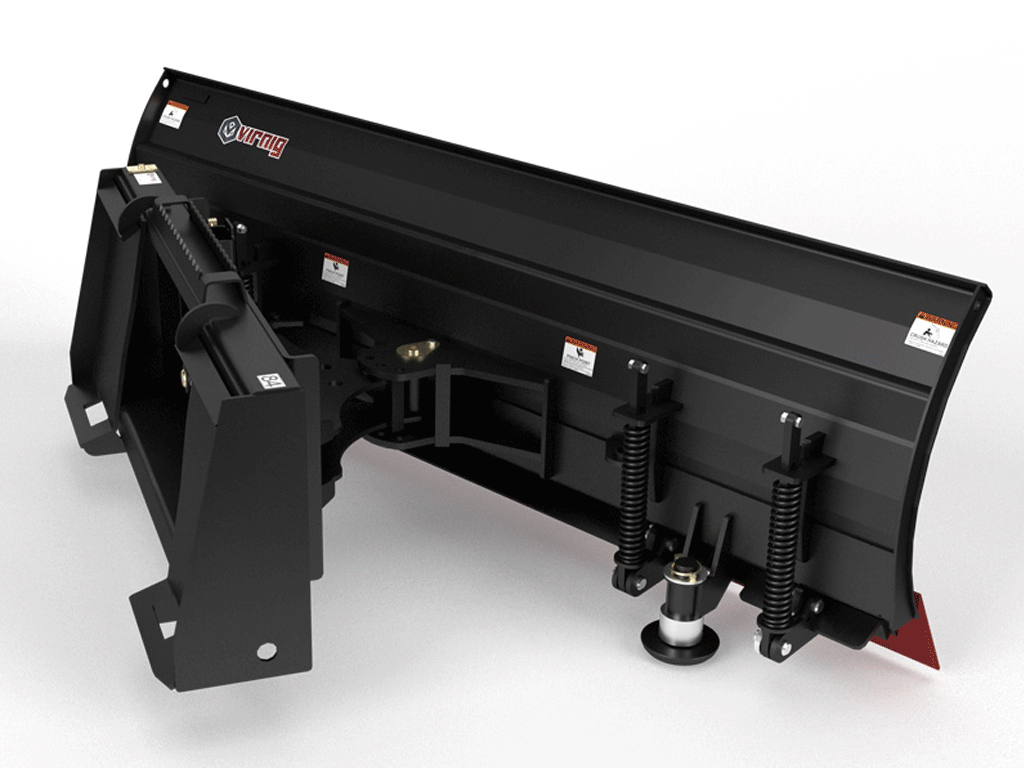

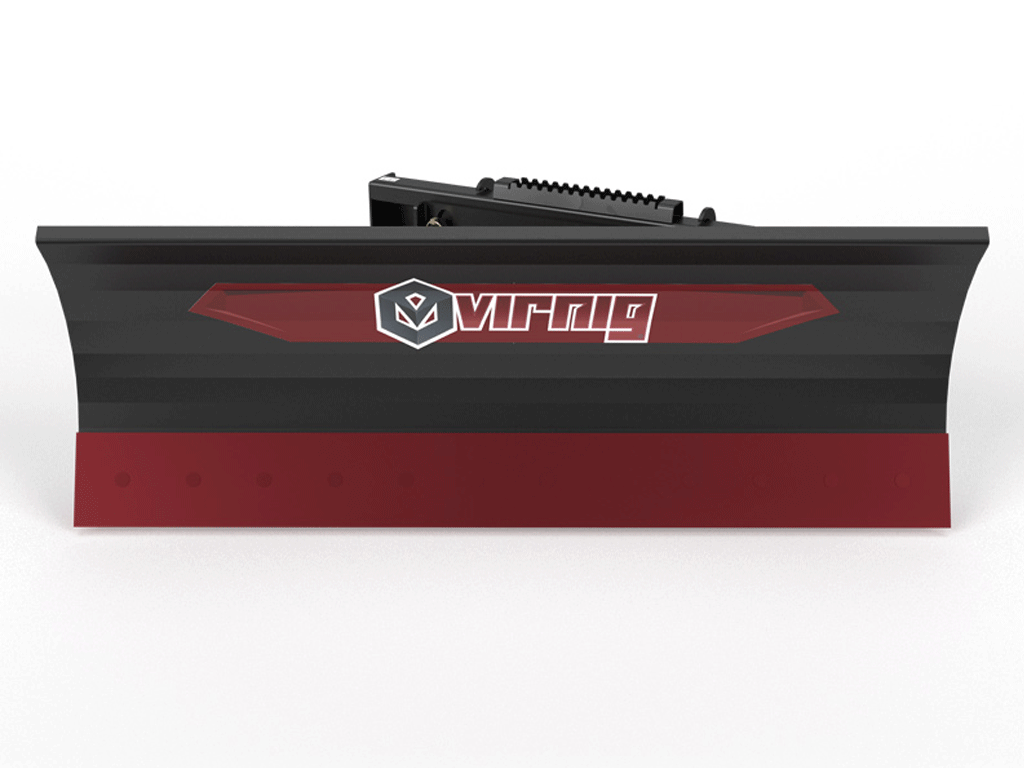

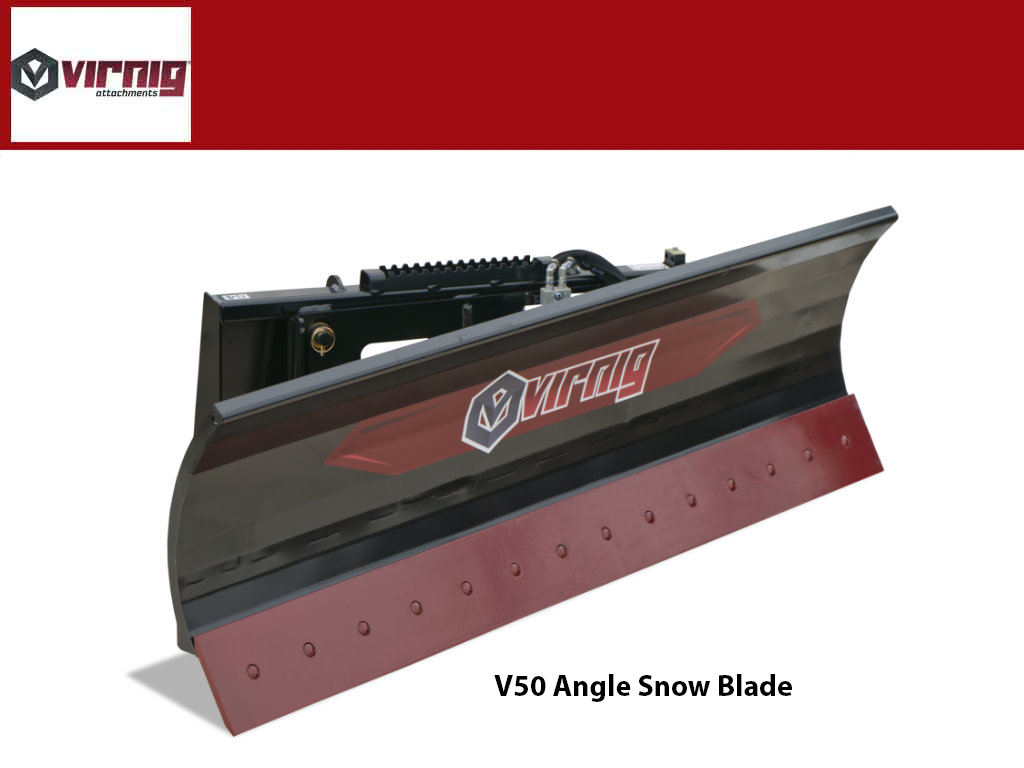

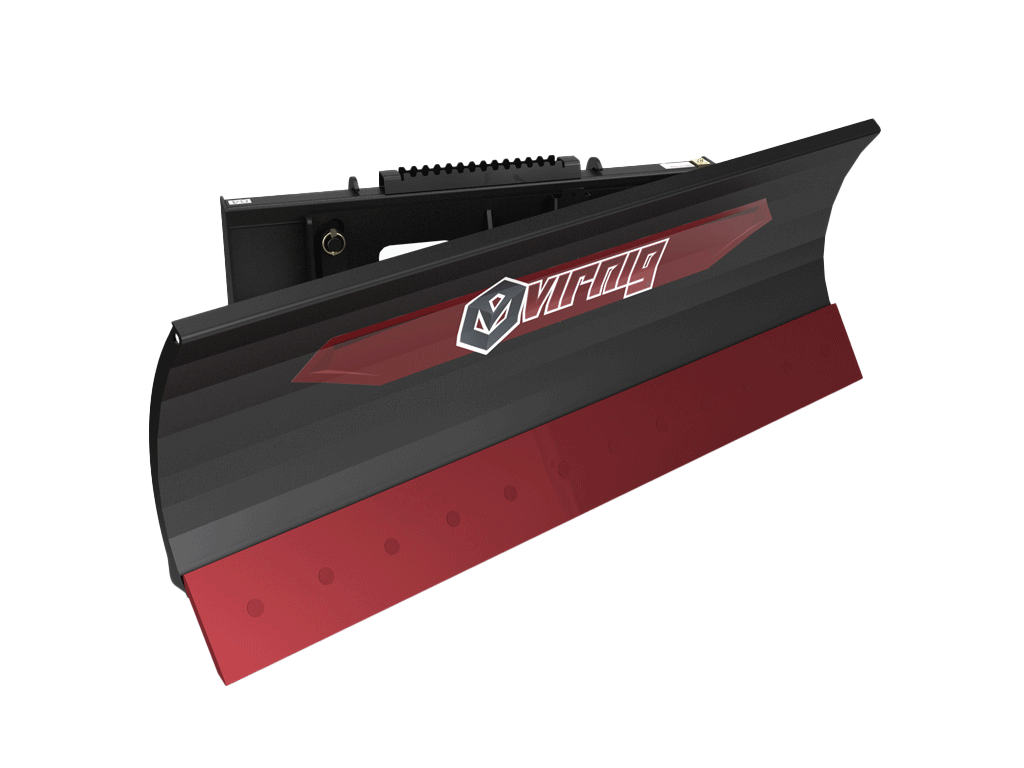

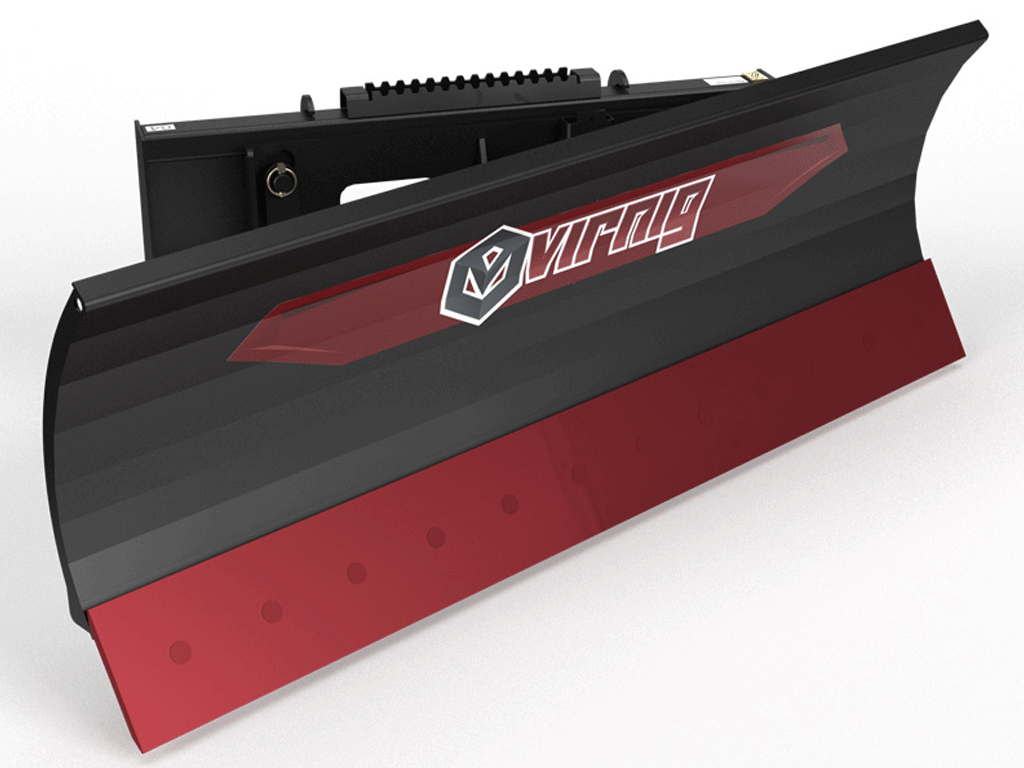

Virnig V50 Angle Snow Blade (SSL)(CTL)

MODEL
EDGE

THIS ATTACHMENT INCLUDES

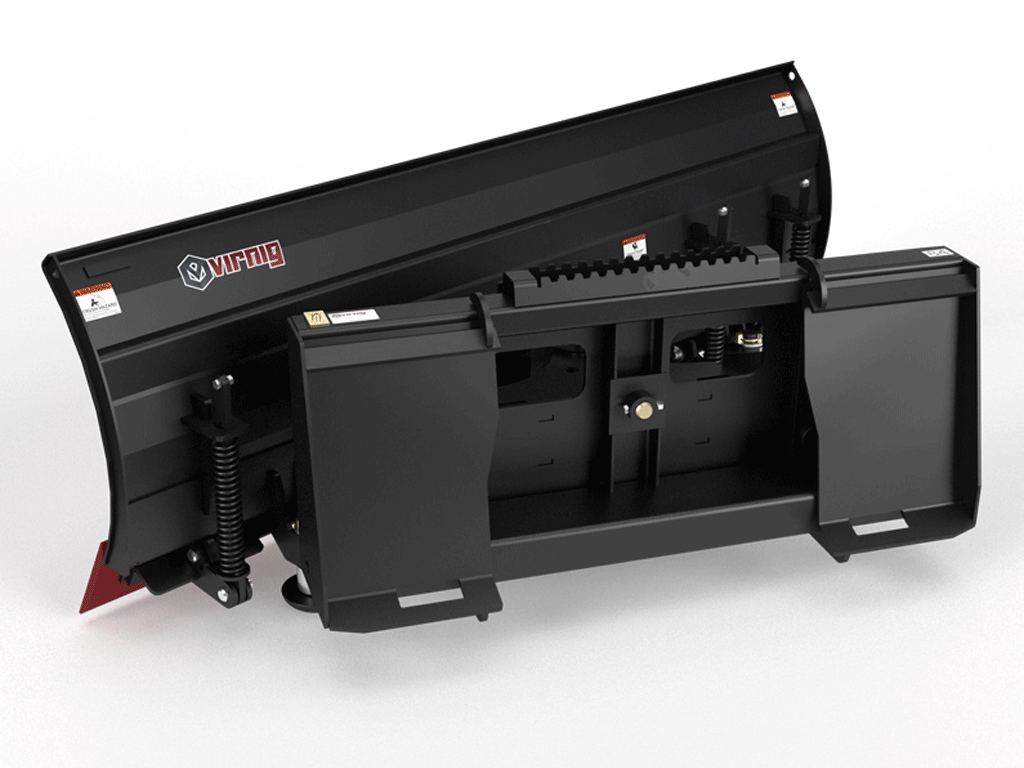

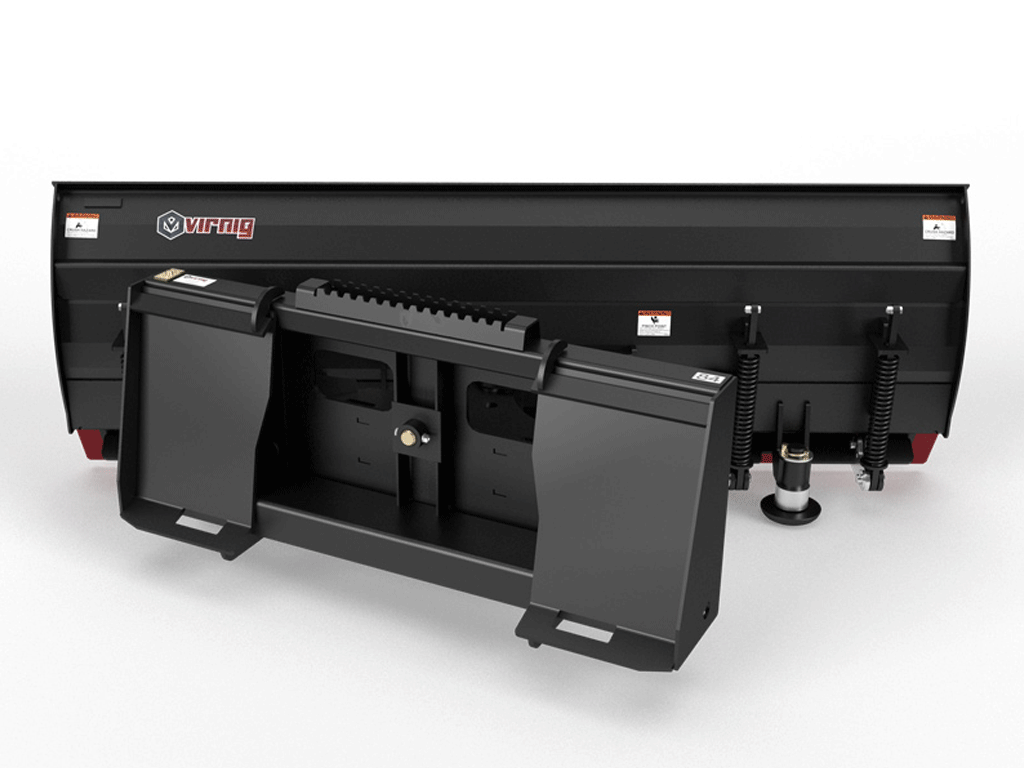

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS, CYLINDERS & FITTINGS

Virnig V50 Angle Snow Blade is a lighter version of the V60 Angle Snow Blade for less intensive snow removal jobs.

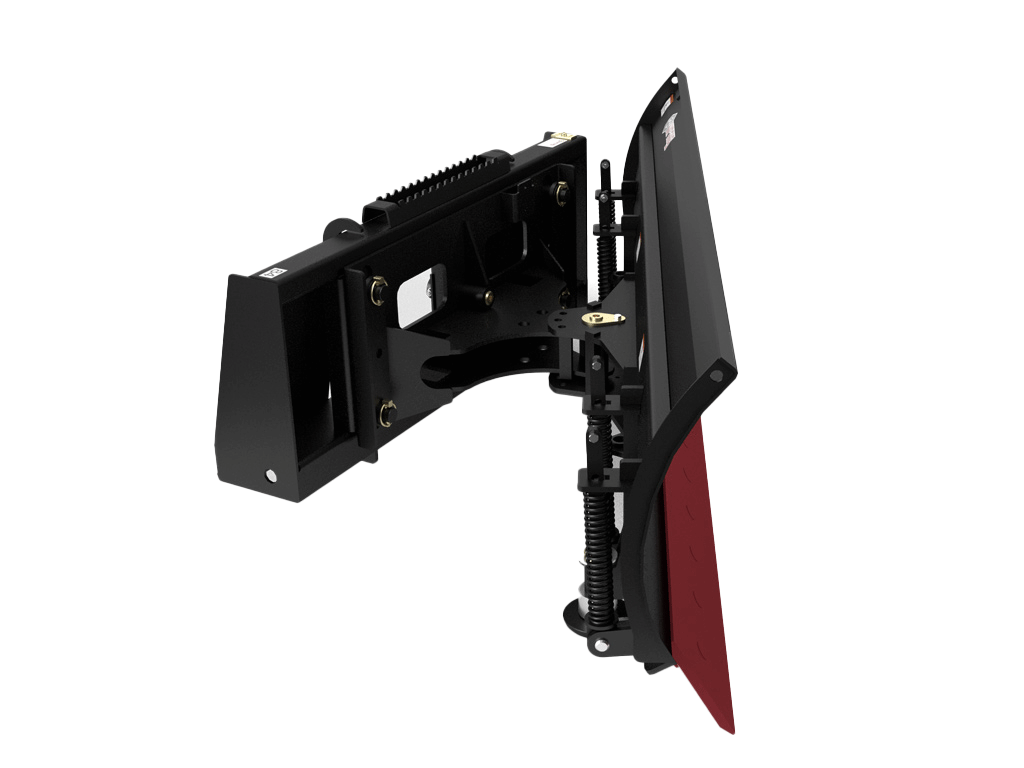

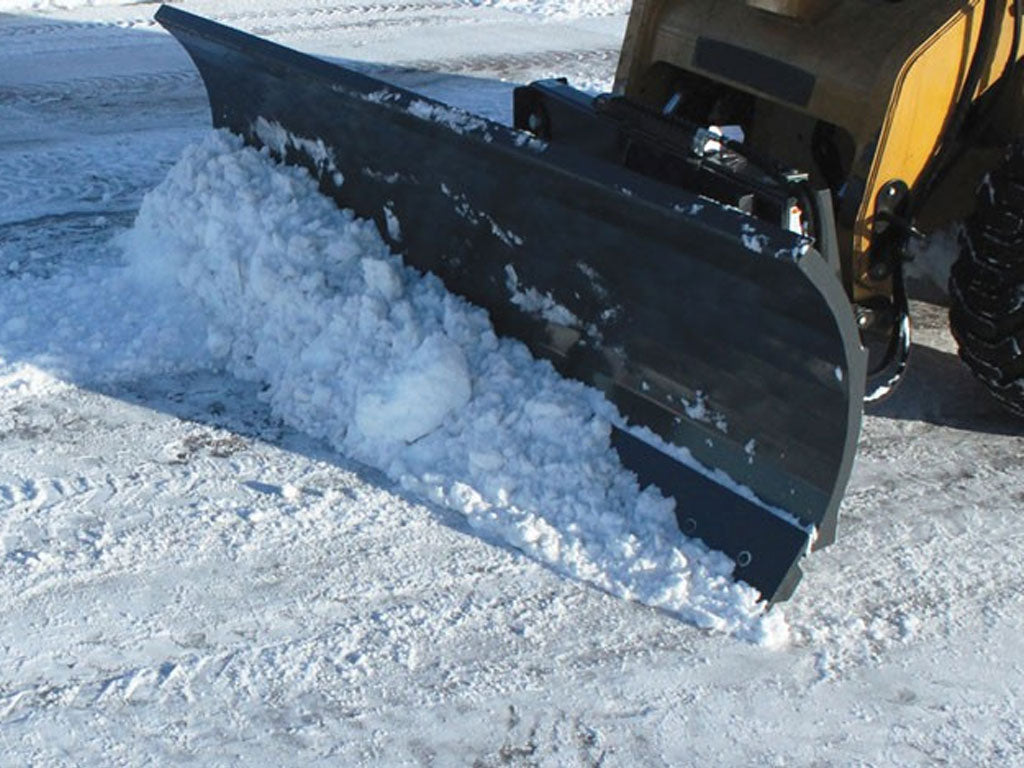

  • One-cylinder hydraulic design allows the blade to angle +/- 30° in either direction to windrow snow.
  • Designed to maintain full down pressure to help cleanly scrape hard-pack snow and ice.

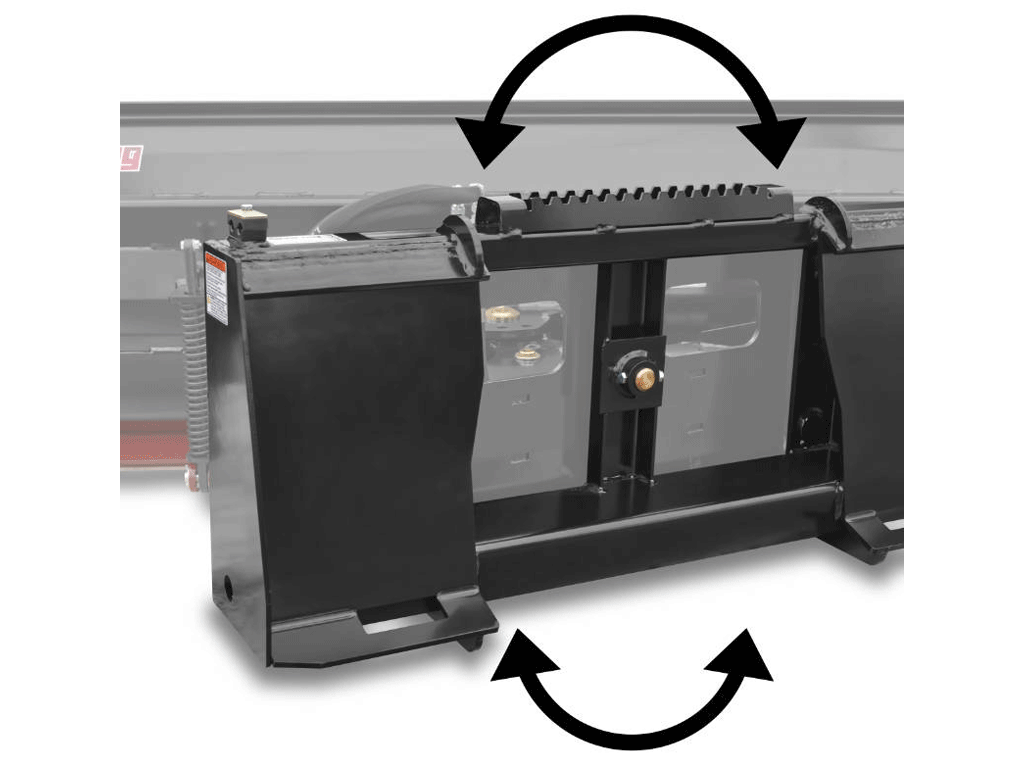

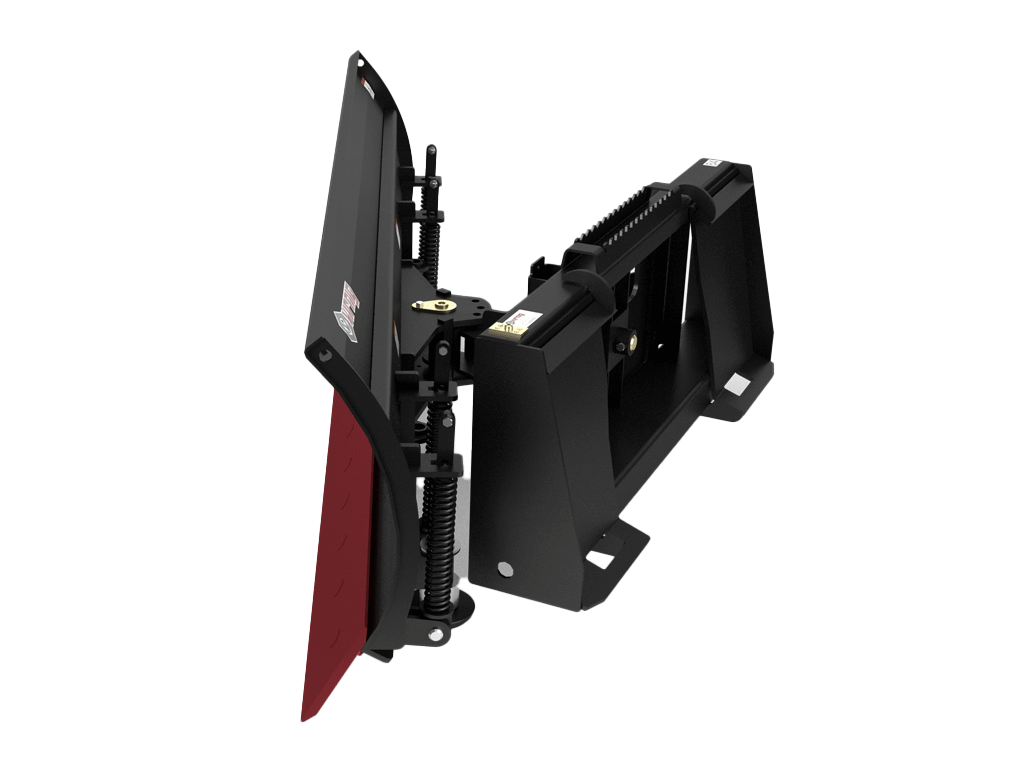

  • Side-to-side oscillation allows the cutting edge to follow the contour of the surface.
  • Corrosion, dent, and flake resistant NitroSteel® cylinder rods are more salt resistant than chrome.

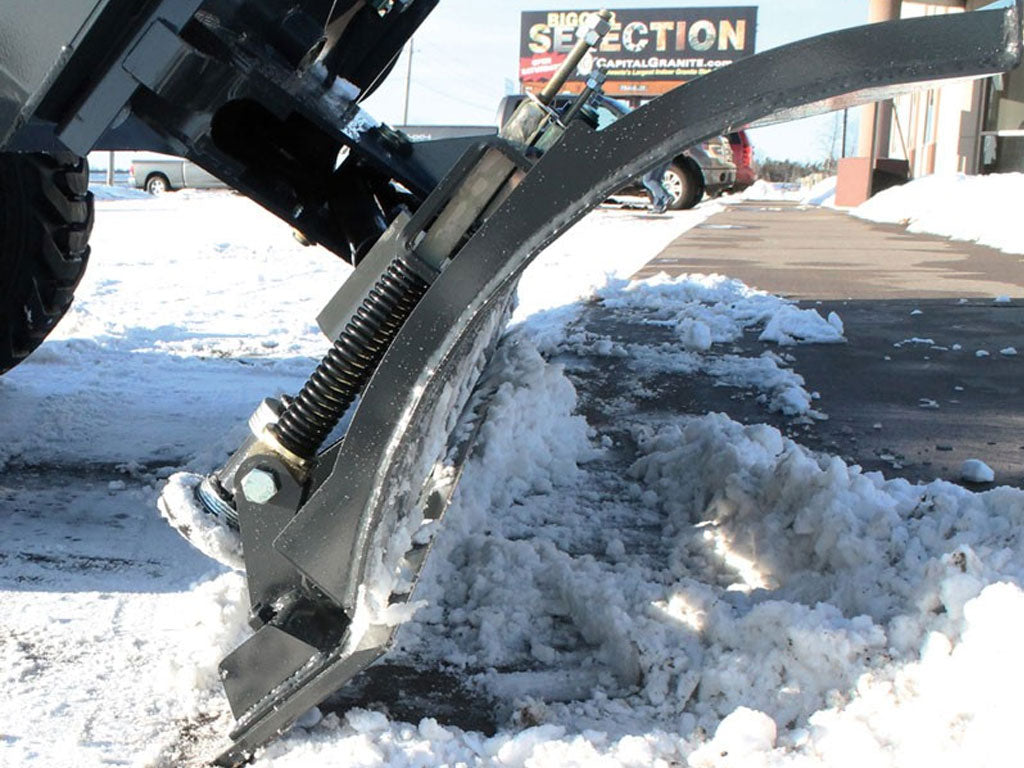

  • Trip edge with two compression springs and three hinge points with a rigid moldboard to protect the plow.

    EDGE OPTIONS

    • Steel Edge Installed
      • 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
      • Edge is quickly reversed or replaced.
    • Poly Edge Installed
      • Replaces standard steel cutting edge.
      • 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
      • Reversible and replaceable like a steel bolt-on edge.
      • Rubber Edge installed
        • Replaces standard steel edge.
        • 1 1/2” x 10” rubber edge allows 7” of total wear.
        • Reversible and replaceable like a steel bolt-on edge.



        Model SBS60-LD SBS72-LD SBS84-LD SBS96-LD
        Overall Blade Width (Inches) 62.0 74.0 86.0 98.0
        Blade Height (Inches) 31.0
        Blade Angle (Degrees) +/- 30
        Width at Full Angle (Inches) 54.0 64.0 74.0 84.0
        Moldboard Thickness (Inches) 0.19
        Cutting Edge (Inches) Steel, Poly, or Rubber
        Blade Oscillation (Degrees) +/- 4
        Approximate Weight (Pounds) 800 850 900 950
        Recommended Loader Capacity Less than 1800 pounds
