Virnig

MPV60

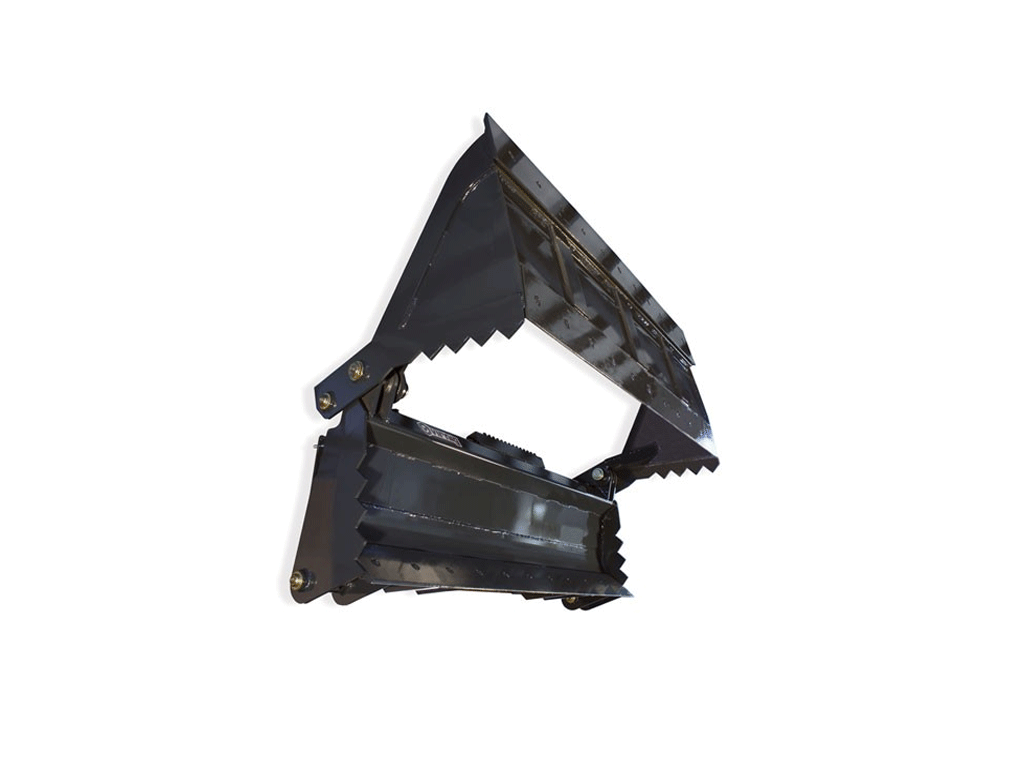

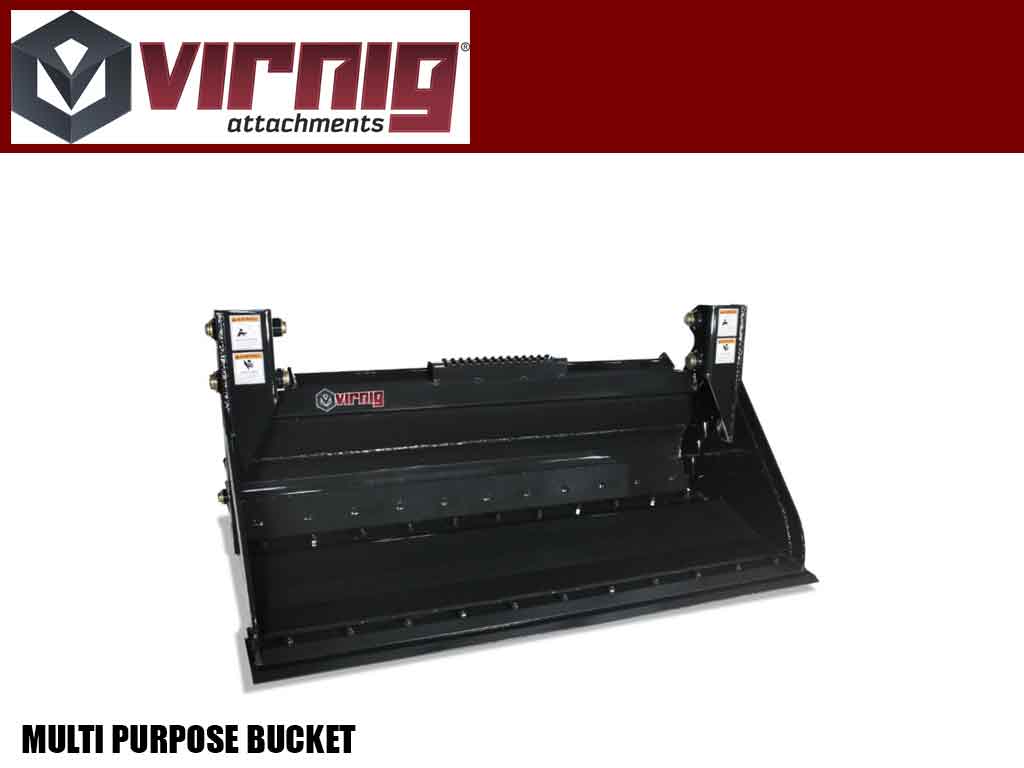

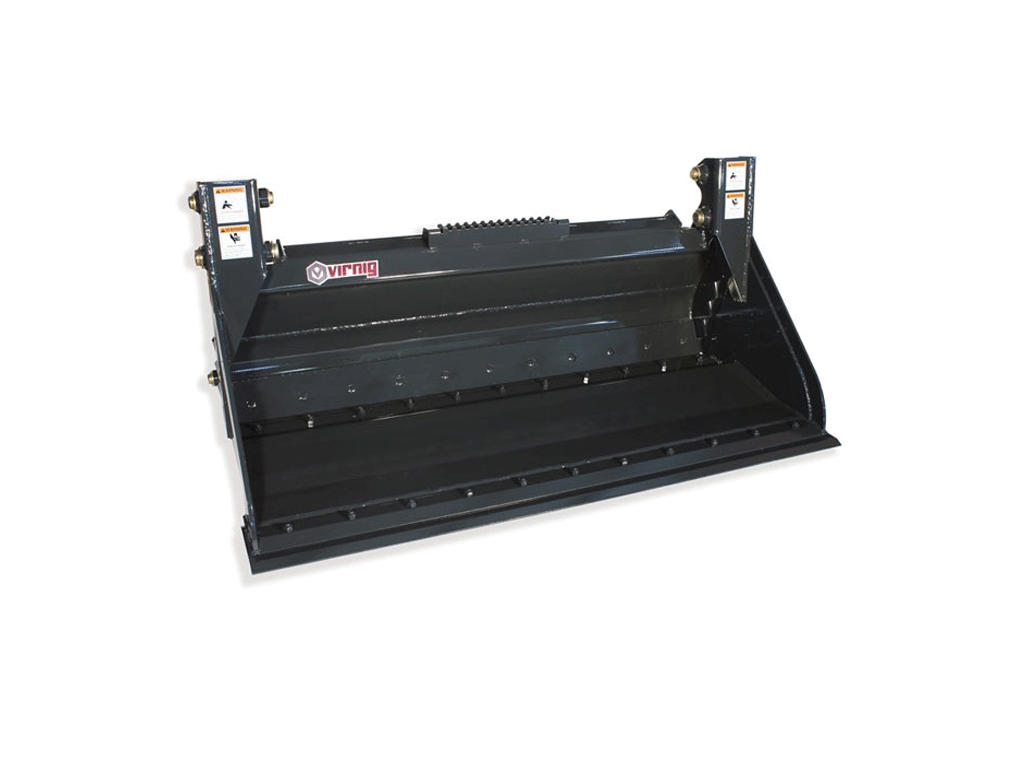

Virnig V50 Multi-Purpose 4-in-1 Bucket (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS, CYLINDERS & FITTINGS

Multiple functions in one attachment to save time and money.

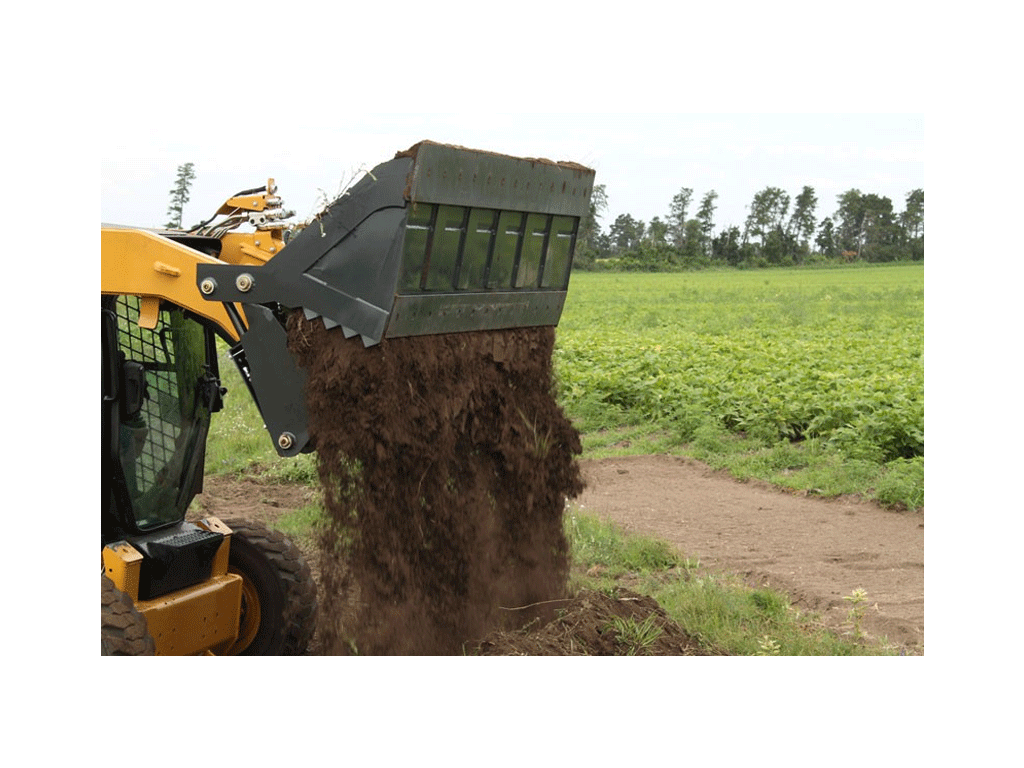

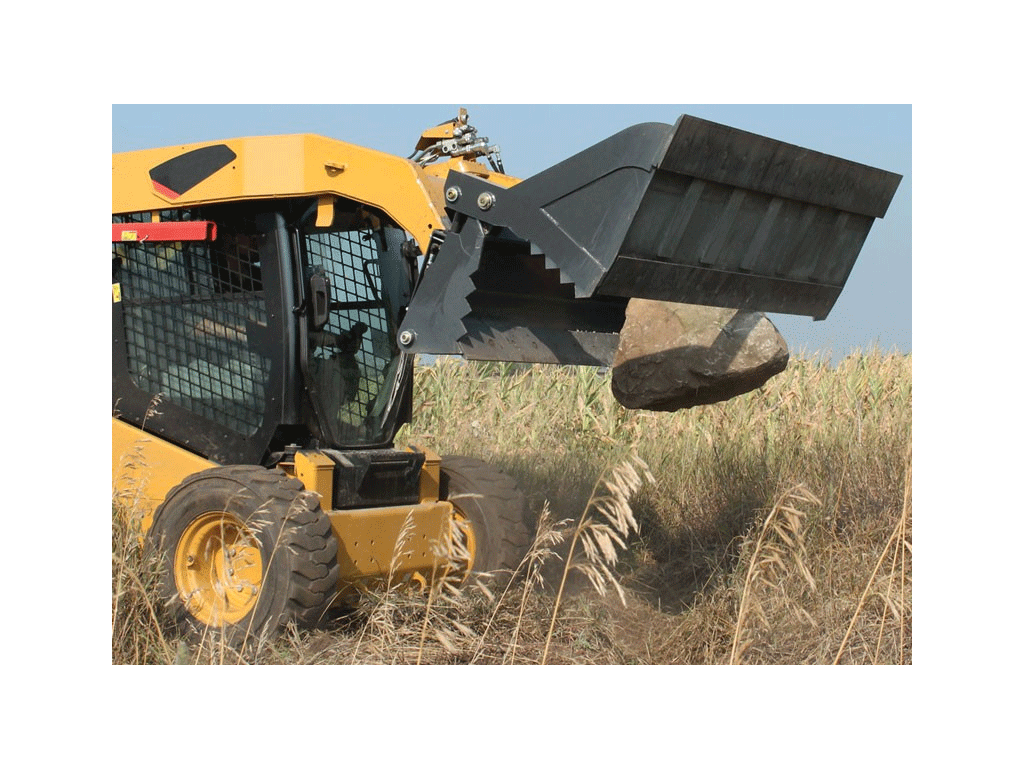

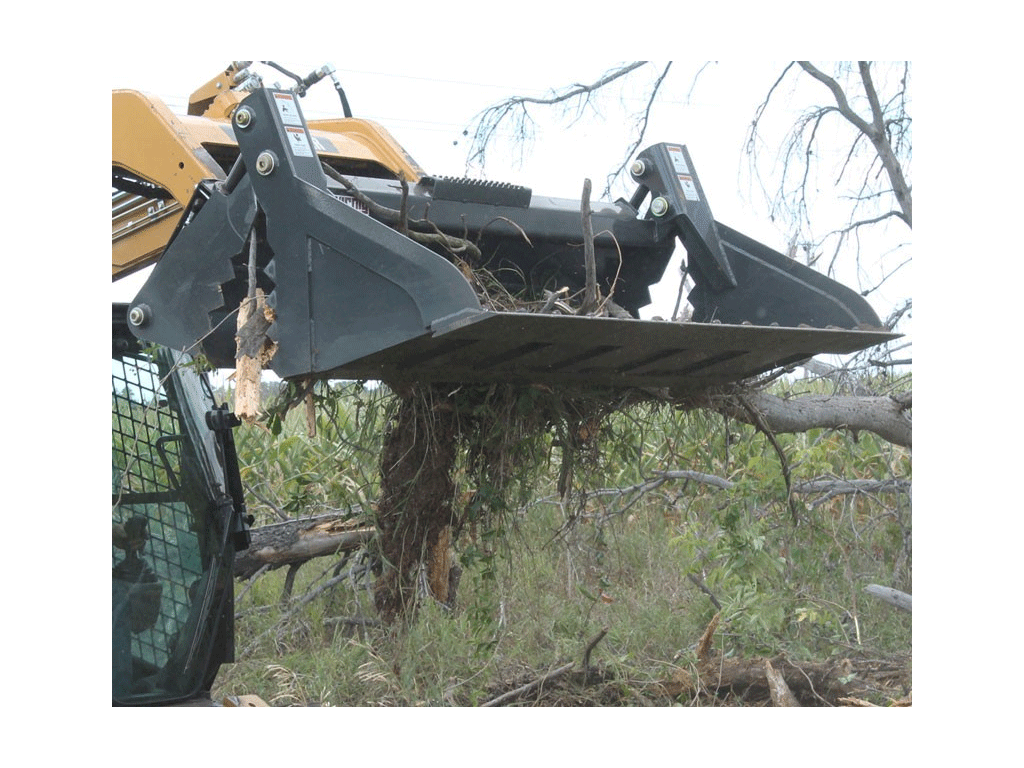

  • Functions include dozing, clamming, leveling, and bottom dumping.
  • Large 33” opening for easier, more efficient operation.

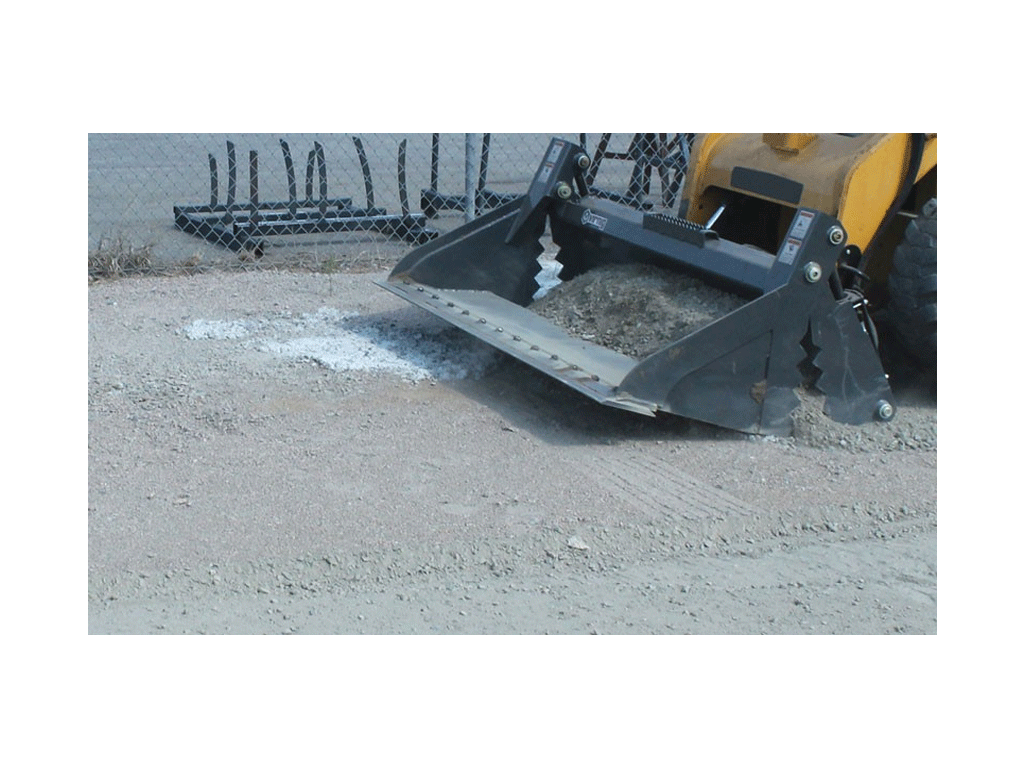

  • Design provides effective dozing, while maintaining maximum visibility.
  • ¾” x 6” weld on edge on front of bucket accepts optional edges.
  • Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA. Cylinder Guards standard.
  • A heavier duty V60 Mulit-Purpose Bucket also available.
  • Commonly called a 4-in-1 bucket.
      OPTIONAL EDGES
      • Bolt on Cutting Edge (BOCE) installed
        • Extends life of bucket.
        • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
      • Serrated Edge (SE) installed
        • Excellent alternative to toothbar for chiseling and breaking up soil.
        • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
      • Weld-on Teeth (WOT) installed
        • Replaceable Series 23 cast teeth with cast shank, welded directly to the bucket edge.
        • Excellent for breaking up compact soil.
      Optional Side Cutters - Call for info and pricing
      • Reversible - only one in industry.
      • Improves performance in hard compacted soils.
      • Cast steel lengthens life of bucket sides.
      • Not compatible with toothbars.

      Optional Holding Valve - Call for info and pricing

      • When external loads are applied, the valve increases the holdong force of the hydraulic ctylinders.
      • Works with all Virnig Multi-Purpose Buckets.





          Model    MPV     60    MPV    66 MPV 72
          Overall Bucket Width (Inches) 61.5 67.5 73.5
          Bucket Depth (Inches) 36.3
          Bucket Height (Inches) 21.3
          Dozer Width (Inches) 59.9 65.9 71.9
          Clam Opening (Inches) 33.0
          Shell Thickness (Inches) 0.25
          Hinge Structure Thickness (Inches) 0.375
          Cylinder Bore / Stroke (Inches) 2.0 / 8.375
          Cylinder Pins / Hinge pins Diameter (Inches) 1.25 / 1.563
          Structural Wear Bars Under Bucket (1/2″ x 4″) 3 3 3
          Approximate Weight (Pounds) 840 915 960
          Recommended Loader Capacity Less than 2400 pounds



          In stock items usually ship in 3-5 days

          Non stock items usually ship in 4-6 weeks
