URG66

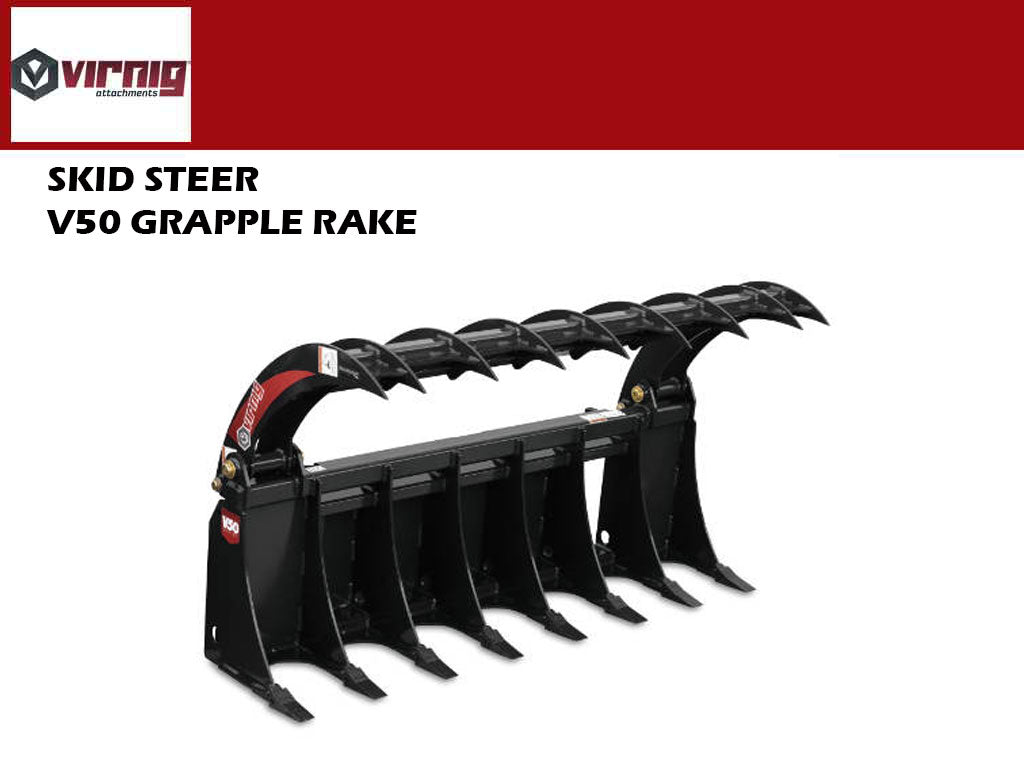

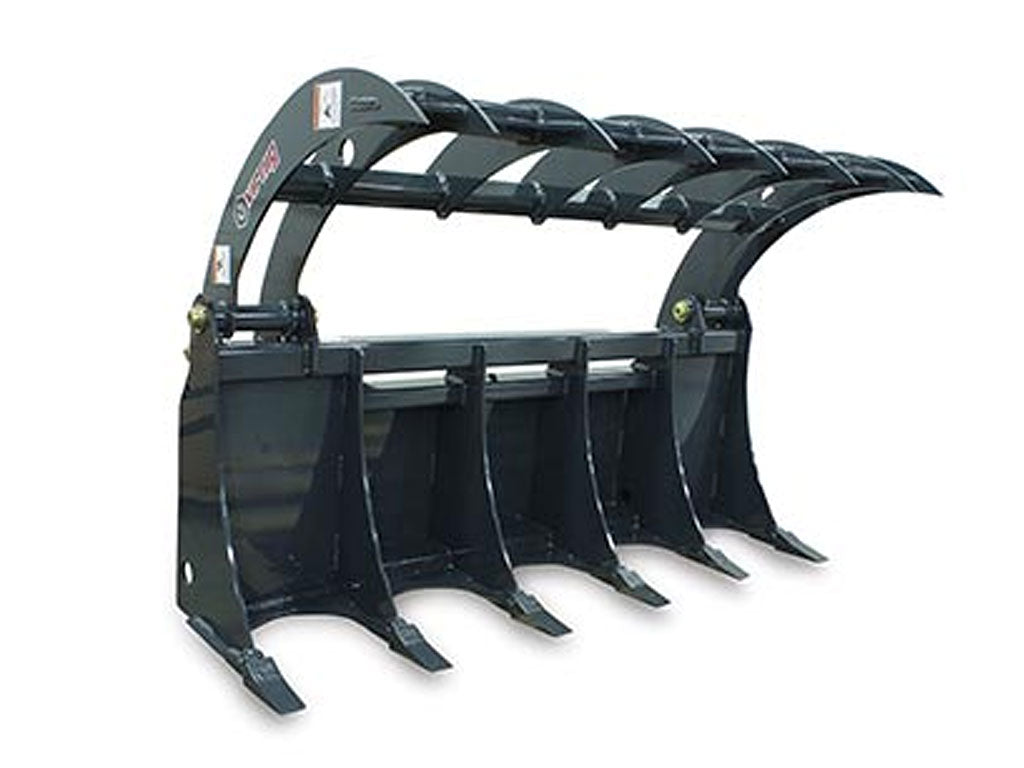

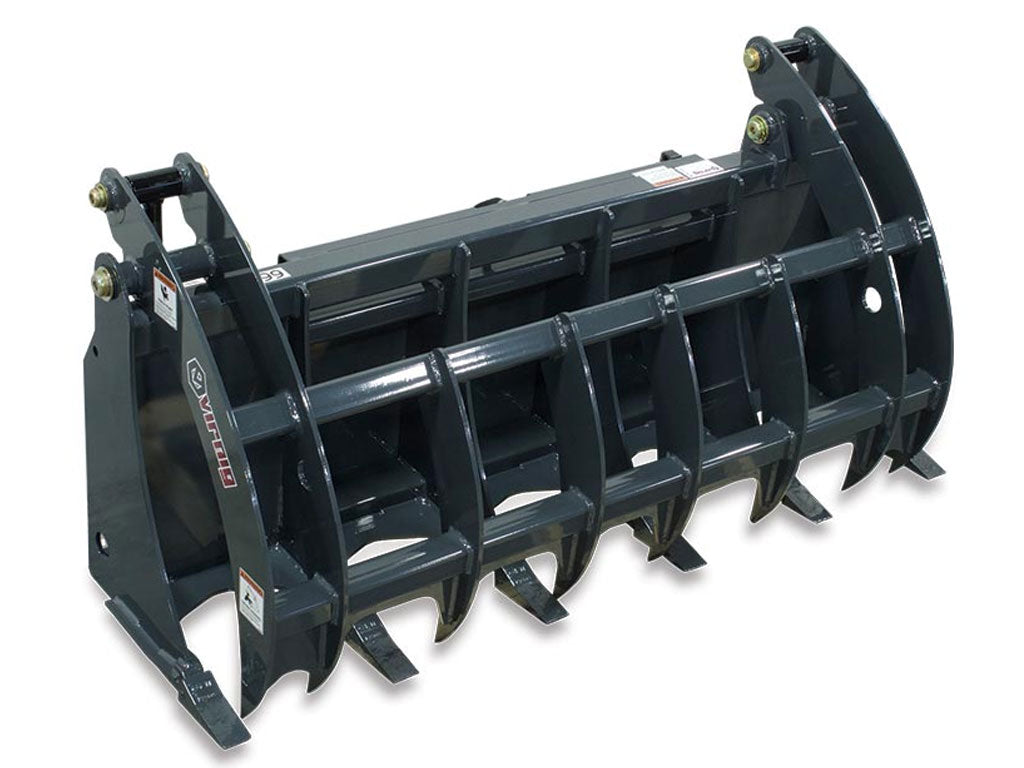

Virnig V50 Root Rake Grapple for skid steer

Size

THIS ATTACHMENT INCLUDES

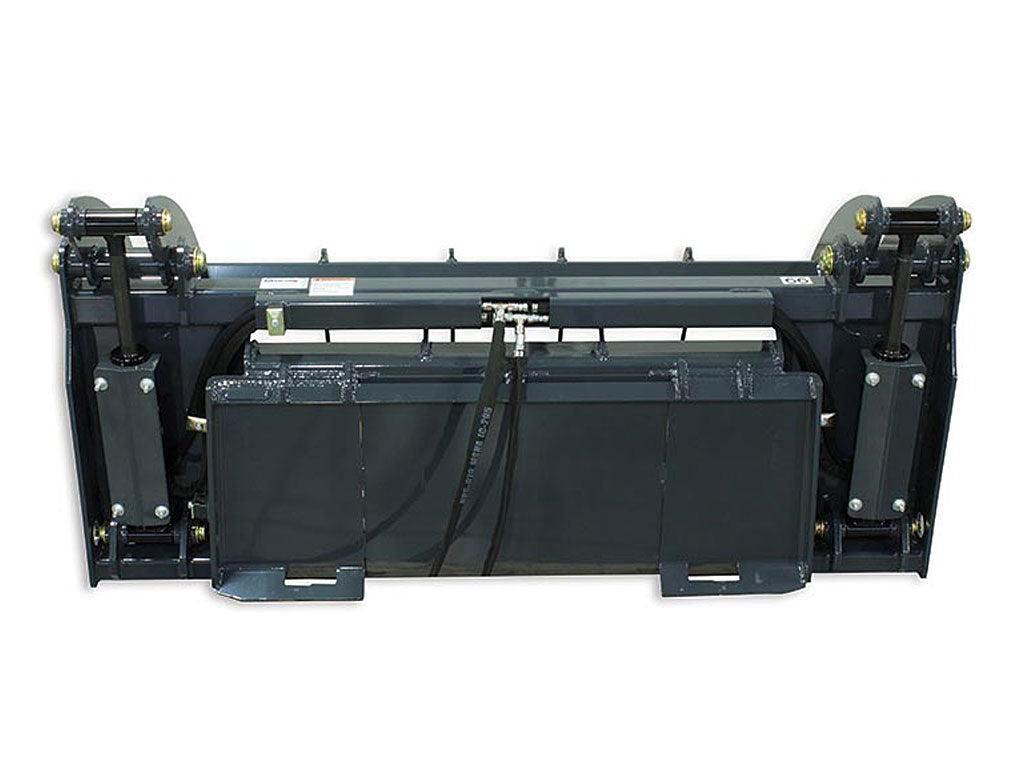

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS
  • CYLINDER GUARDS STANDARD

    Cast, pin-on teeth allow the V50 Root Rake Grapples to cut deep into and underneath roots and piles of branches for optimal brush removal. Additionally, teeth have a long wear life and can easily be replaced.

    Two-cylinder, single jaw grapple for digging, raking, piling and loading debris.

    • Unique design allows efficient forward and reverse operation to drag loose material into piles.
    • 40” grapple jaw opening to haul large amounts of brush per load.
    • Heavy-duty jaw and rake tines constructed from 3/8″ Grade 80 steel.
    • Series 23 replaceable cast teeth.
    • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.

    Known clearance issue with URG66 and URG72 on Takeuchi® track loaders and John Deere® G-Series loaders (330G, 331G, 332G, and 333G).

    • Recommended loader capacity - Less than 2400 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pins Diameter (in) 1.25 /1.563
    Model 66" 72" 78"
    Overall Width (in) 67.9 73.9 79.9
    Depth (in) 22.1 22.1 22.1
    Height: Overall / Bucket (in) 34.0 / 25.0 34.0 / 25.0 34.0 / 25.0
    Grapple Jaw Opening (in) 44.0 44.0 44.0
    Number of Teeth 6 7 8
    Space Between Teeth 10.9 9.8 8.9
    Weight (lbs) 790 845 905





    The V50 series was designed for medium and large frame skid steers. Though this is Virnig’s standard-duty line, the V50 Series often outperforms other brands’ heaviest skid steer attachments.
