Virnig

RBV60-18-F

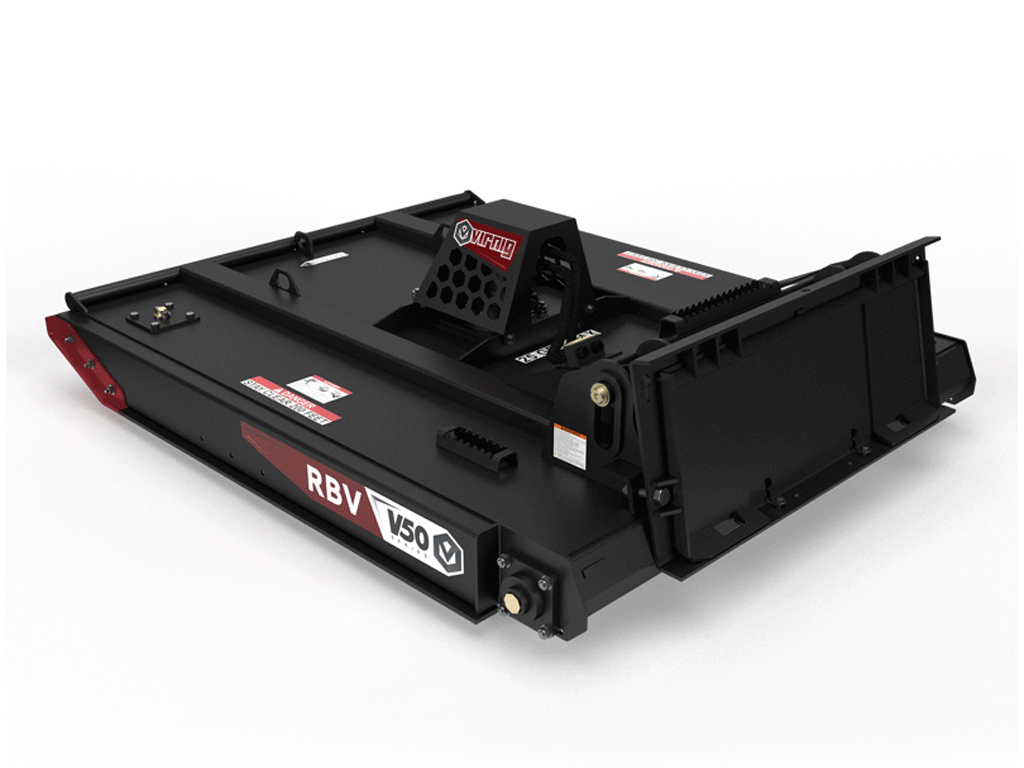

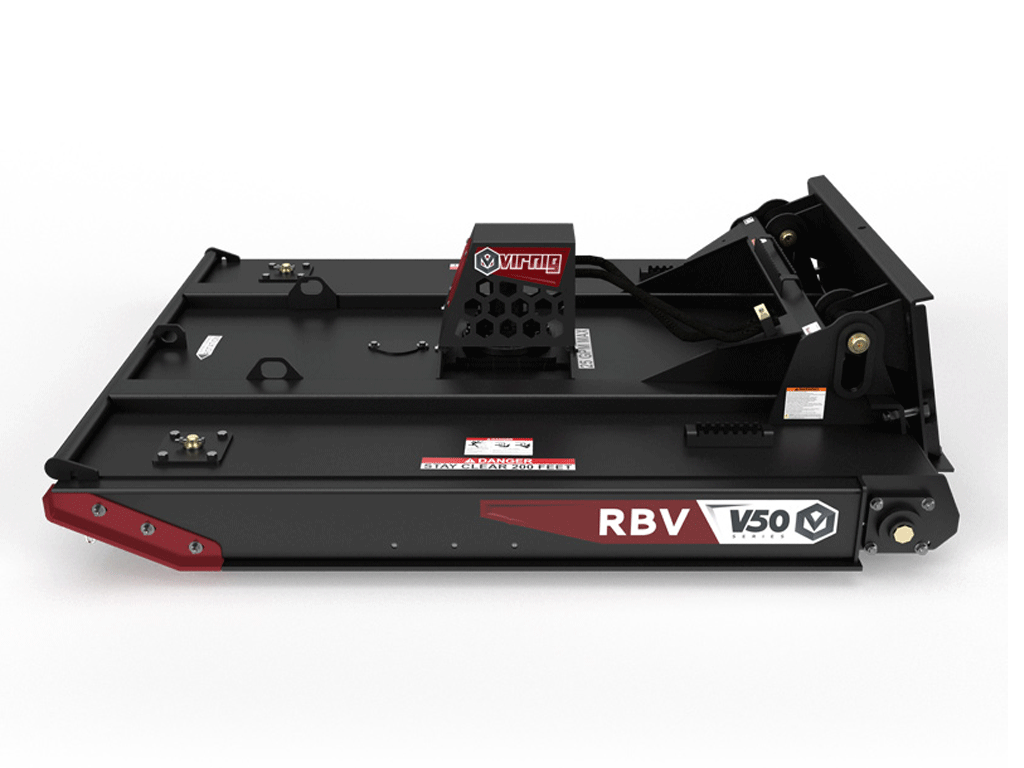

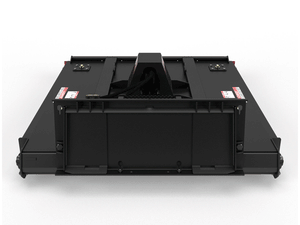

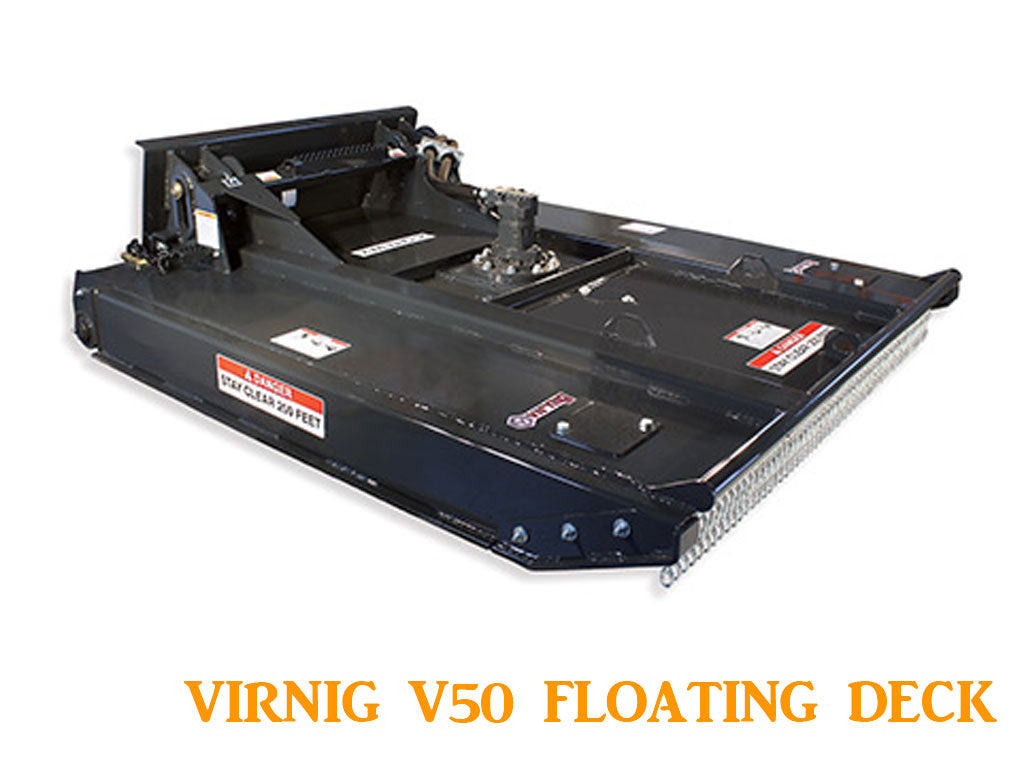

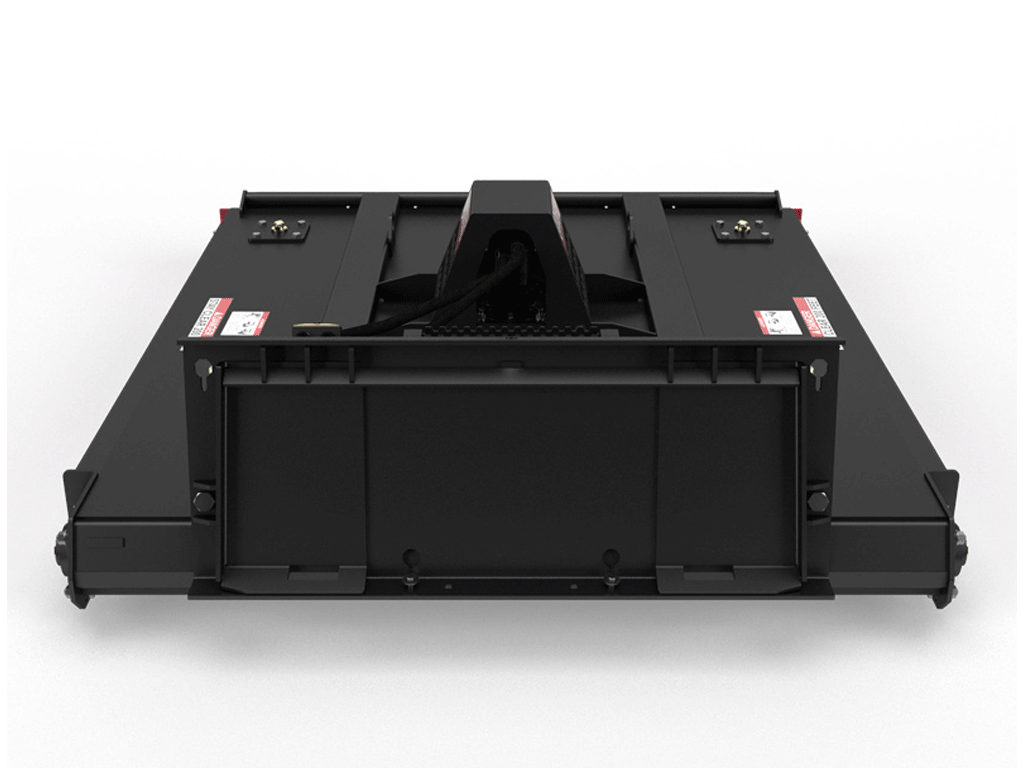

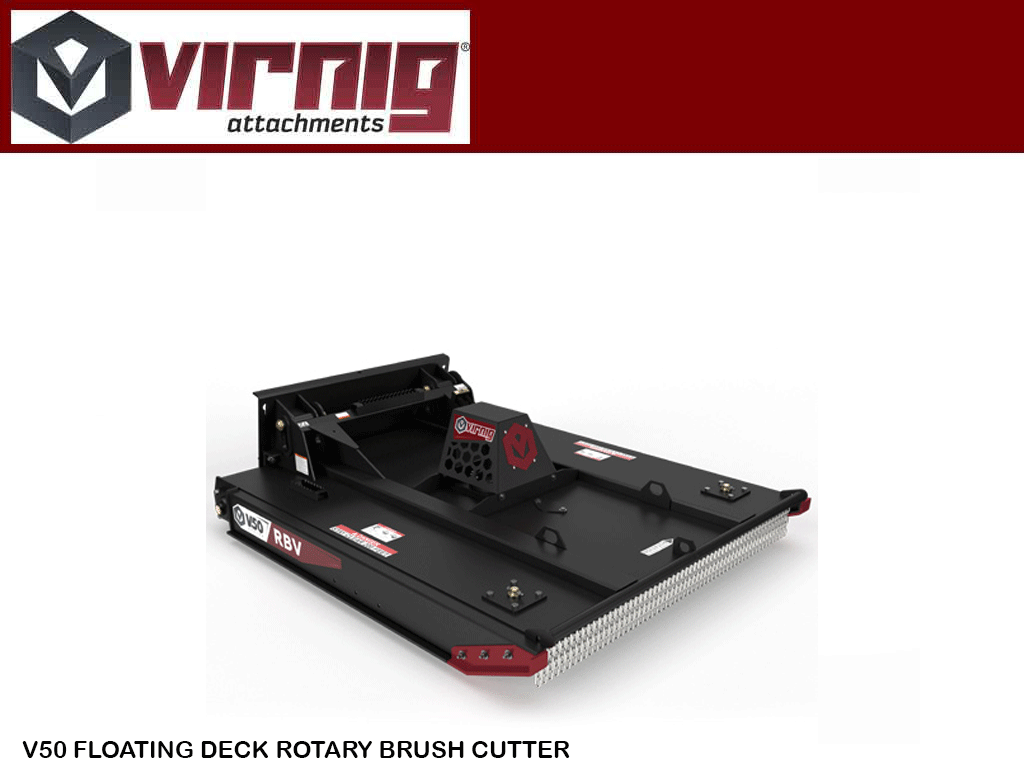

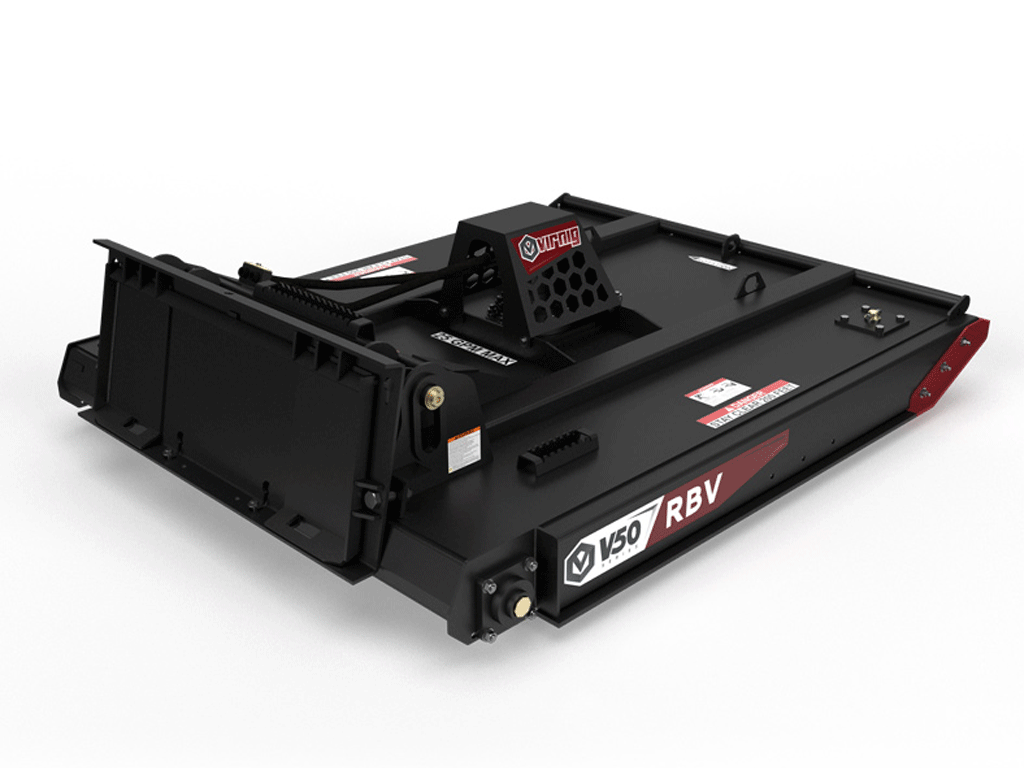

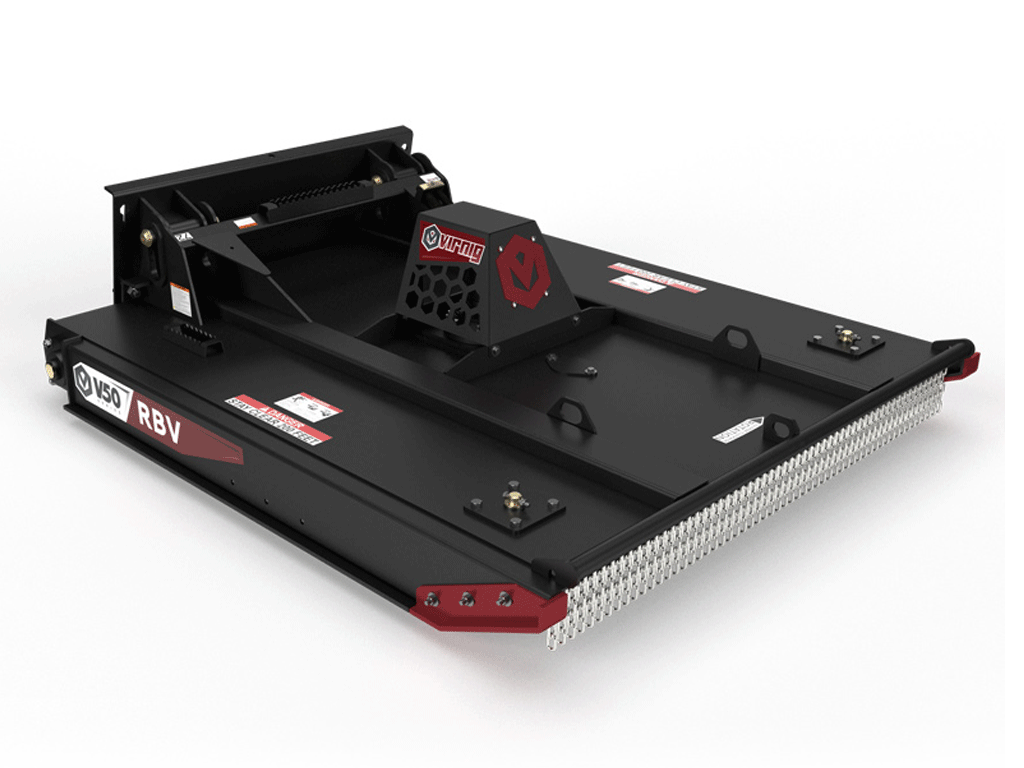

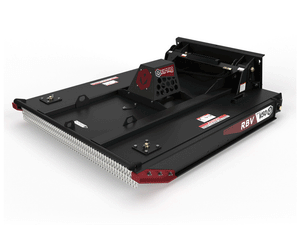

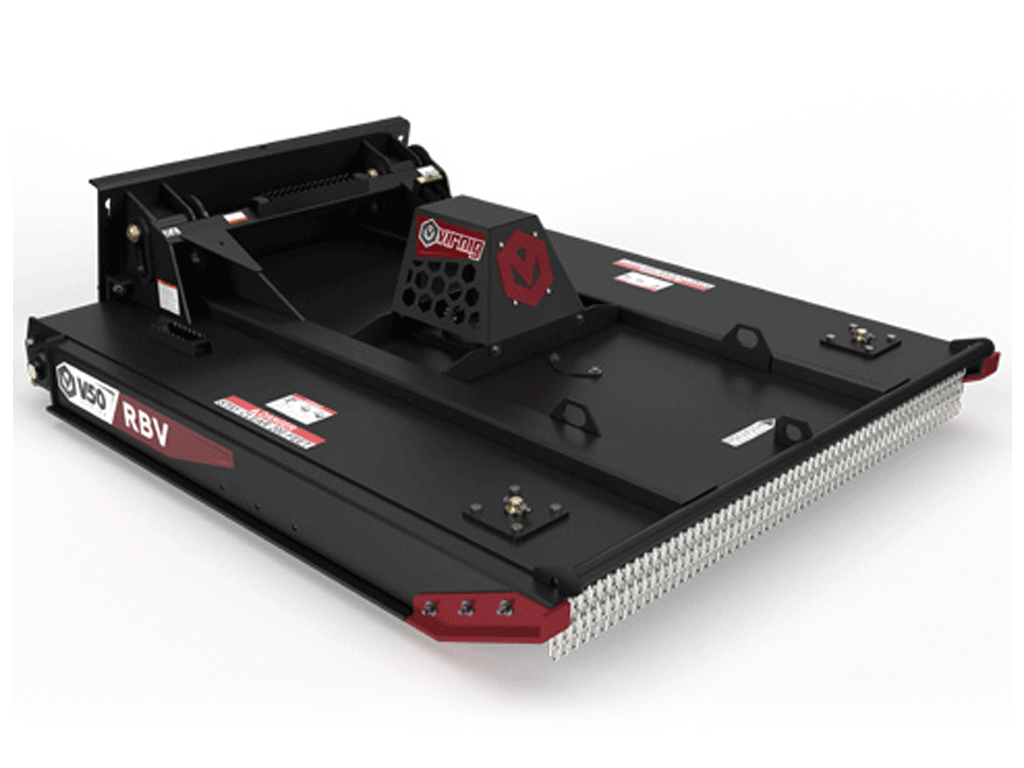

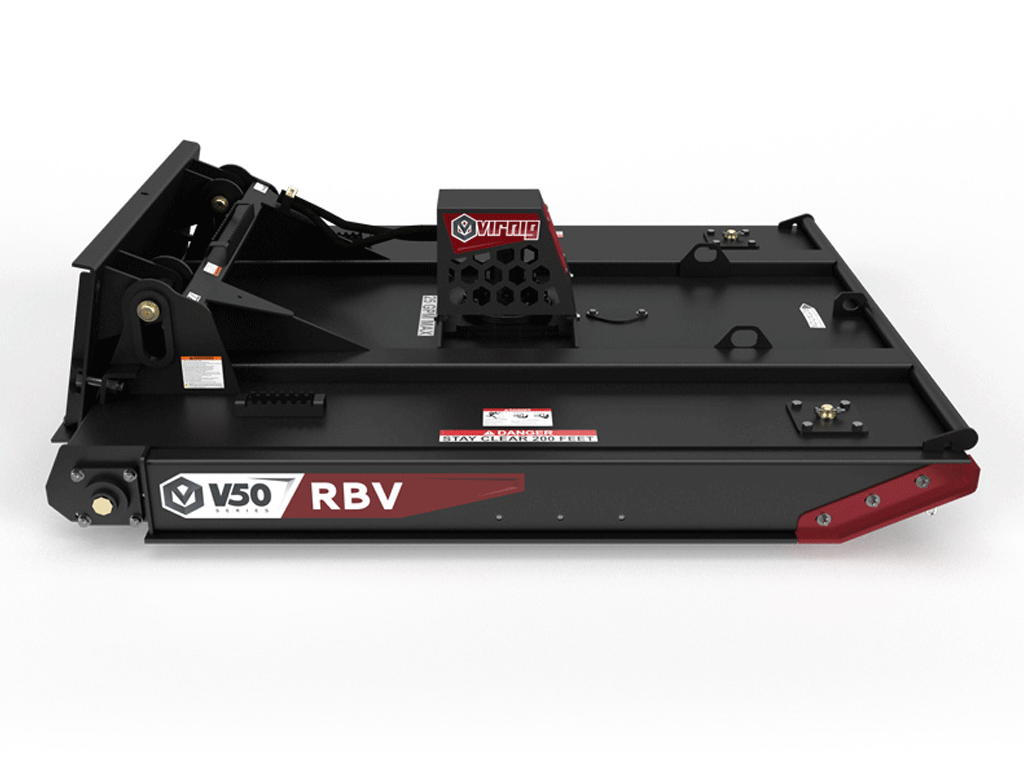

Virnig V50 Rotary Brush Cutter Floating Deck - Standard Flow (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES & COUPLERS

Cuts through brush up to 4″ in diameter with ease, while three-blade design and floating deck produce a superior finish.

V50 Rotary Brush Cutters are capable of throwing debris over 200 feet and can cause serious bodily harm or death if not used with a shatterproof cab.

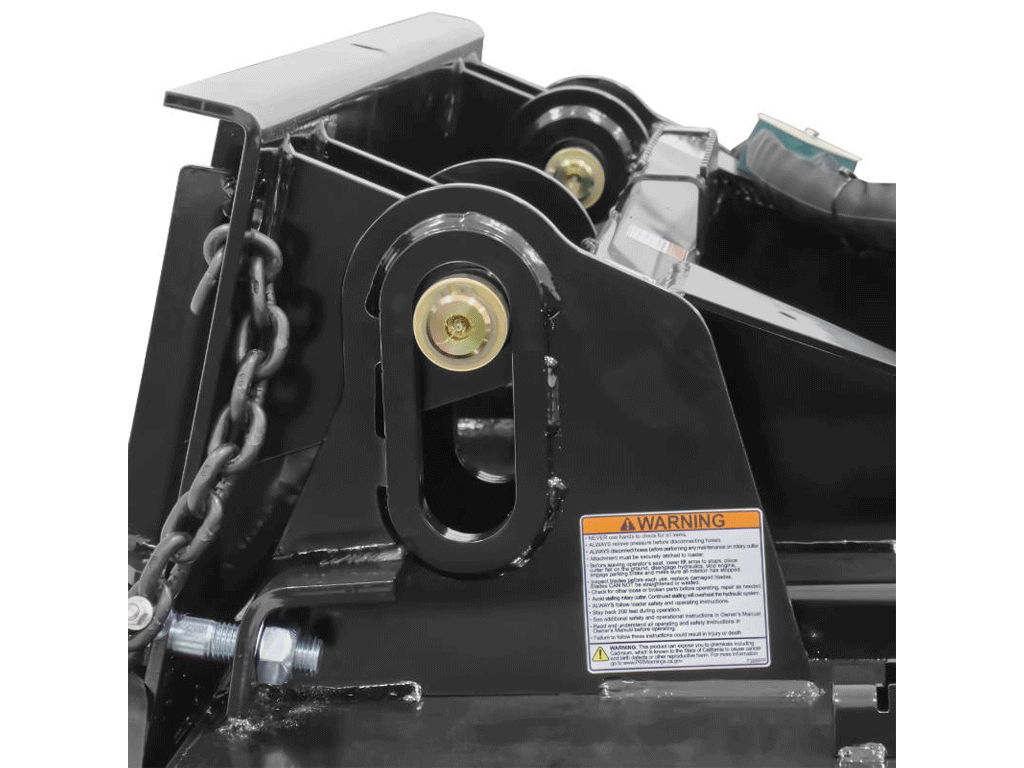

  • Innovative floating deck provides a consistent cut on uneven terrain by allowing 4 5/8” of deck travel. Deck can be secured in a fixed position if desired.

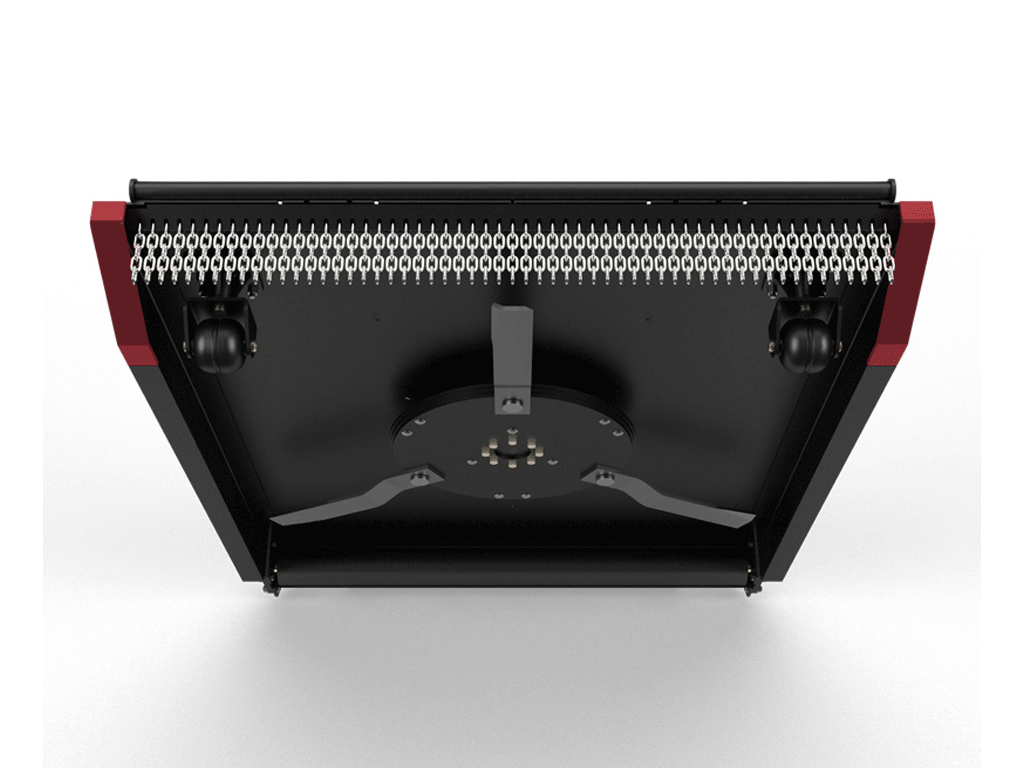

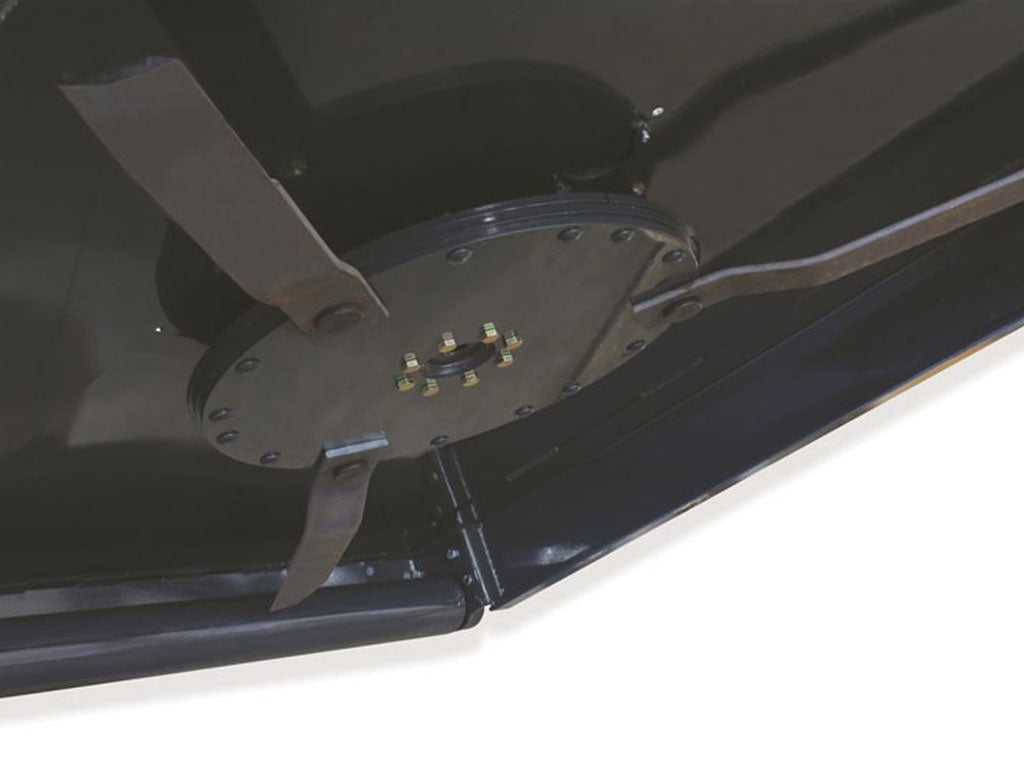

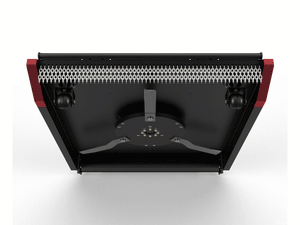

  • Three-blade cutting system, mounted to a large circular flywheel, ensures the flywheel bounces off stumps rather than catching and damaging components.
  • Standard dual hydraulic pressure relief valves with dynamic braking stops the 170-225 lb flywheel in under 10 seconds.
  • Two standard flow Eaton® motor configurations ensure optimum performance and longevity.
  • Bracing along the top connected to a push bar at the front provides rigidity for pushing over thick brush and trees.
  • ½” x 4” single side updraft blades for efficient cutting and mulching.

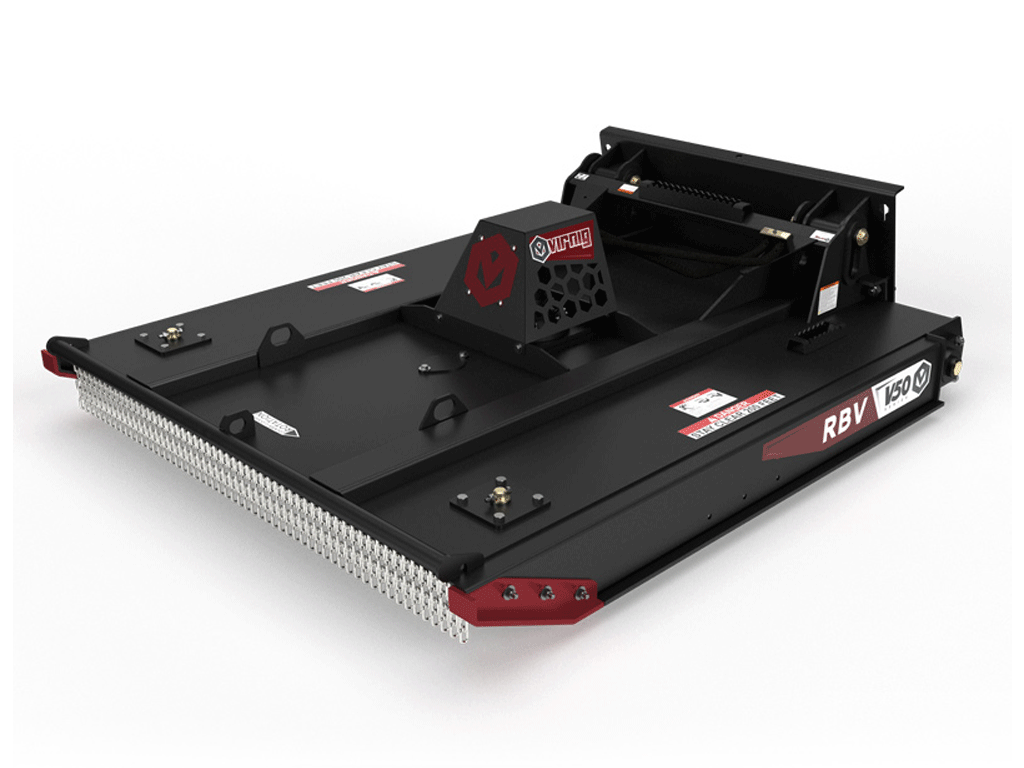

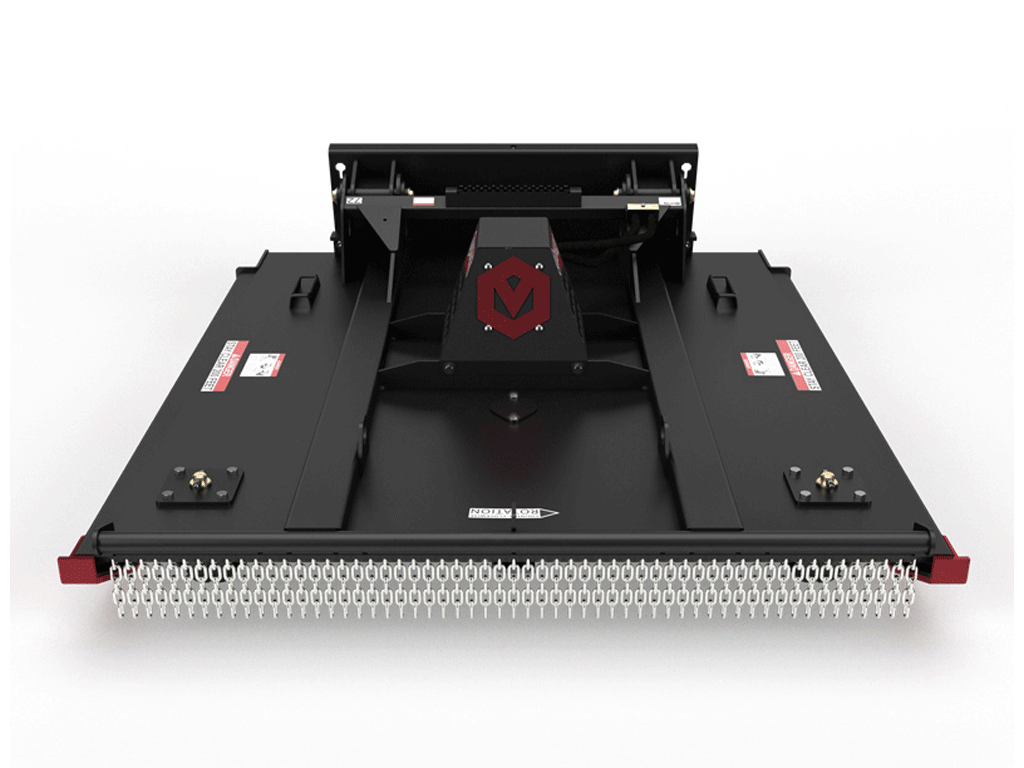

  • Standard chain curtain on front of deck prevents flying debris and provides better mulching capability.
  • Standard replaceable front skid shoes increase the mower deck’s wear life.

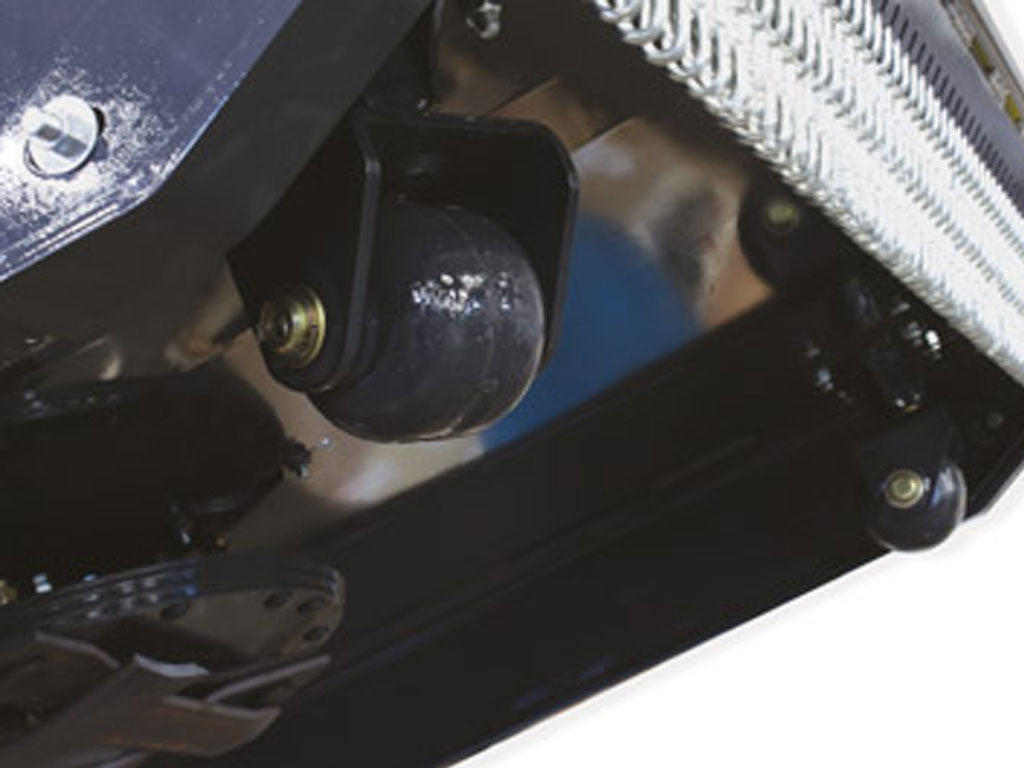

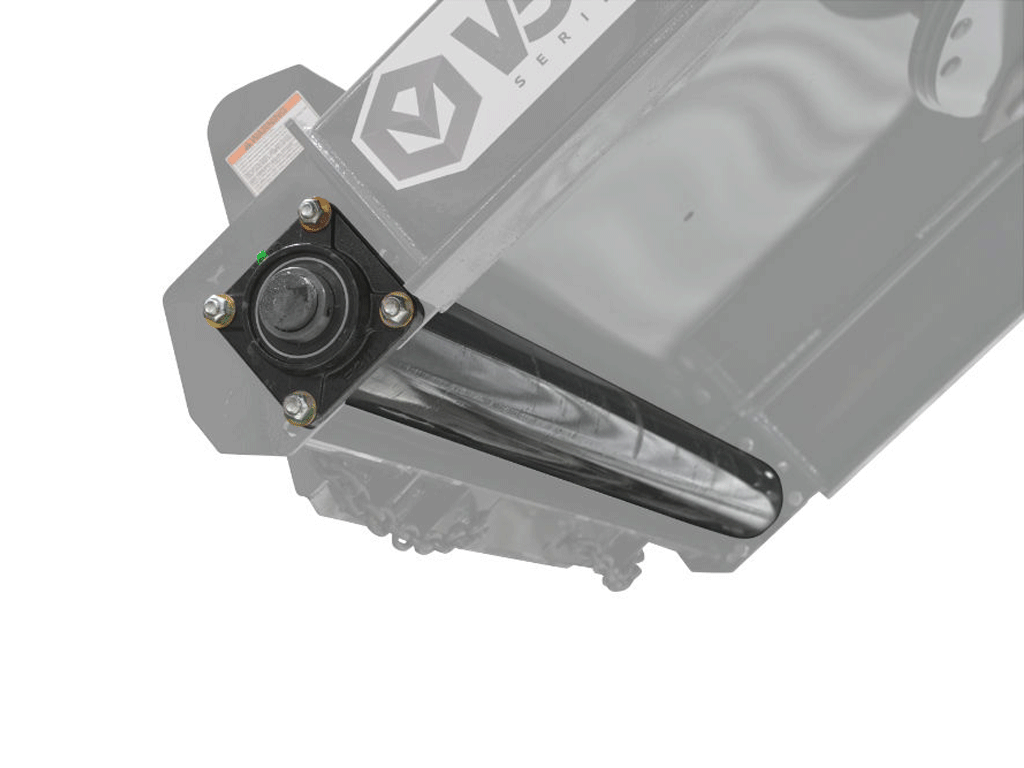

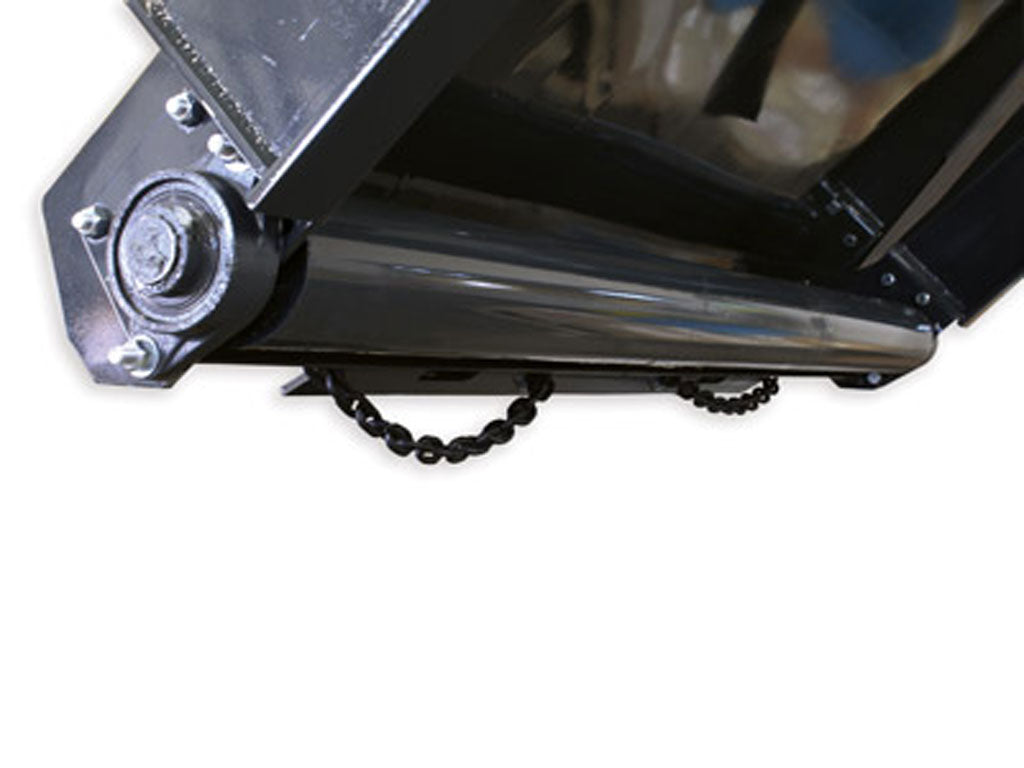

  • Optional Rear Roller and Swivel Casters available.



  • Recommended Loader Capacity: Greater than 1500 lbs ROC
  • Vertical Deck Travel (in): 4.6
  • Cutter Height (in):  20.9
  • Deck Height (in):  8.8
  • Minimum Cut Height (in):  1.8
  • Cutting Capacity, Diameter (in):  4.0
Cut Width (in) 60" 60" 66" 66" 72" 72" 78" 78"
Flow Rate (GPM) 14-18 18-25 14-18 18-25 14-18 18-25 14-18 18-25
Overall Width 66.0 66.0 72.0 72.0 78.0 78.0 84.0 84.0
Cutter Depth (in) 81.8 81.8 87.8 87.8 93.8 93.8 99.8 99.8
Weight (lbs) 1430 1430 1560 1560 1680 1680 1760 1760



Blade Tip Speed   (FPM)

Blade Tip Speed   (FPM)

 Blade Tip Speed   (FPM)

Blade Tip Speed   (FPM)

Model

14 GPM Min

18 GPM Max

18 GPM  Min

25 GPM  Max

60" 14-18 GPM

10,367 13,329

60" 18-25 GPM

10,534 14,631

66" 14-18 GPM

11,404 14,662

66" 18-25 GPM

11,588 16,094

72" 14-18 GPM

12,440 15,995

72" 18-25 GPM

12,641 17,557

78" 14-18 GPM

13,477 17,328

78" 18-25 GPM

13,695 19,020
