RBV60-18

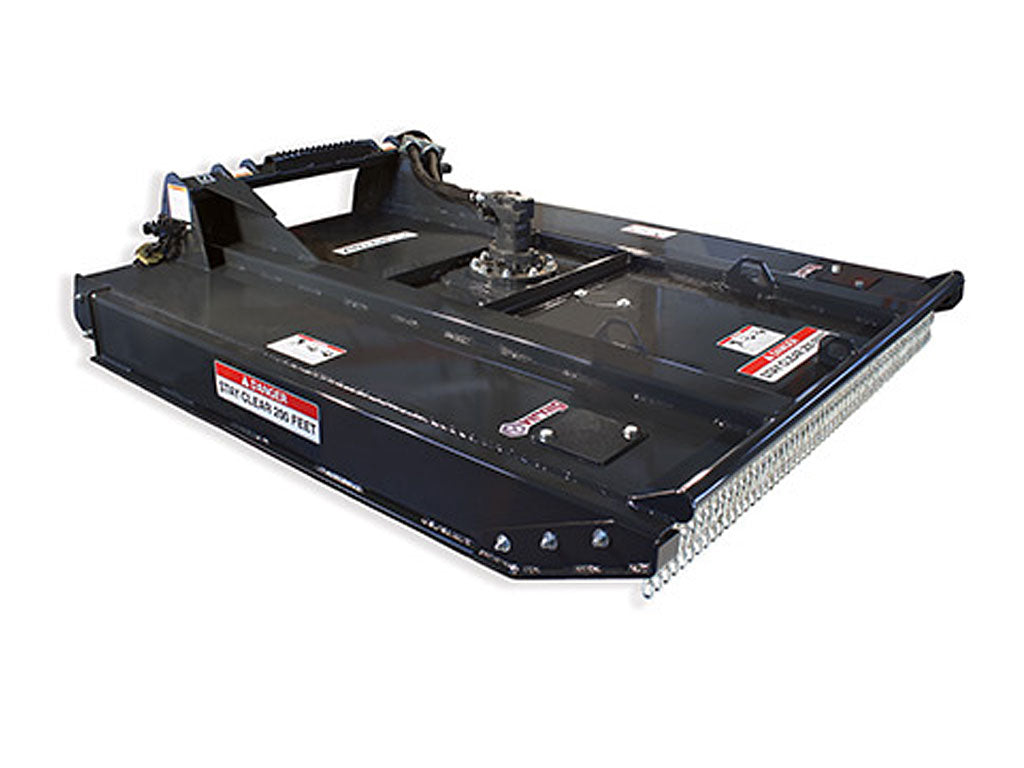

Virnig V50 Rotary Brush Cutter Standard Deck - Standard Flow (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES & COUPLERS

Cuts through brush up to 4″ in diameter with ease, while three-blade design produces a superior finish.

V50 Rotary Brush Cutters are capable of throwing debris over 200 feet and can cause serious bodily harm or death if not used with a shatterproof cab.

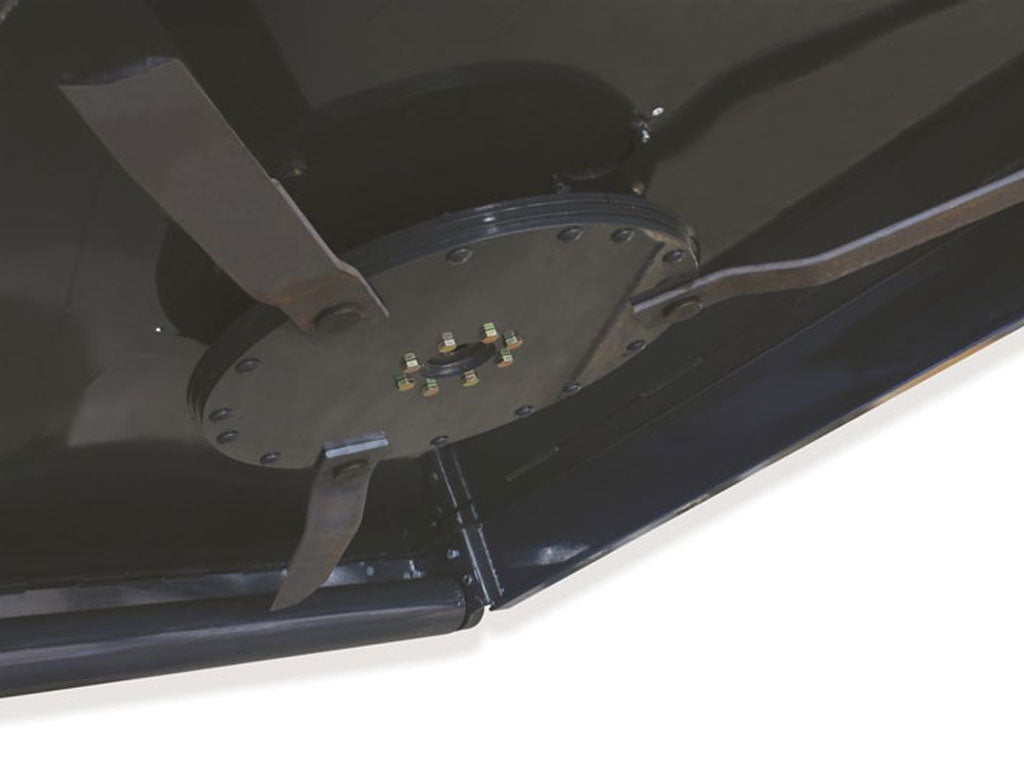

  • Three-blade cutting system, mounted to a large circular flywheel, ensures the flywheel bounces off stumps rather than catching and damaging components.
  • Standard dual hydraulic pressure relief valves with dynamic braking stops the 170-225 lb flywheel in under 10 seconds.
  • Two standard flow Eaton® motor configurations ensure optimum performance and longevity.
  • Bracing along the top connected to a push bar at the front provides rigidity for pushing over thick brush and trees.
  • Top deck and side deck .25" grade 50 plate.
  • ½” x 4” single side updraft blades for efficient cutting and mulching.
  • Standard chain curtain on front of deck prevents flying debris and provides better mulching capability.
  • Standard replaceable front skid shoes increase the mower deck’s wear life.

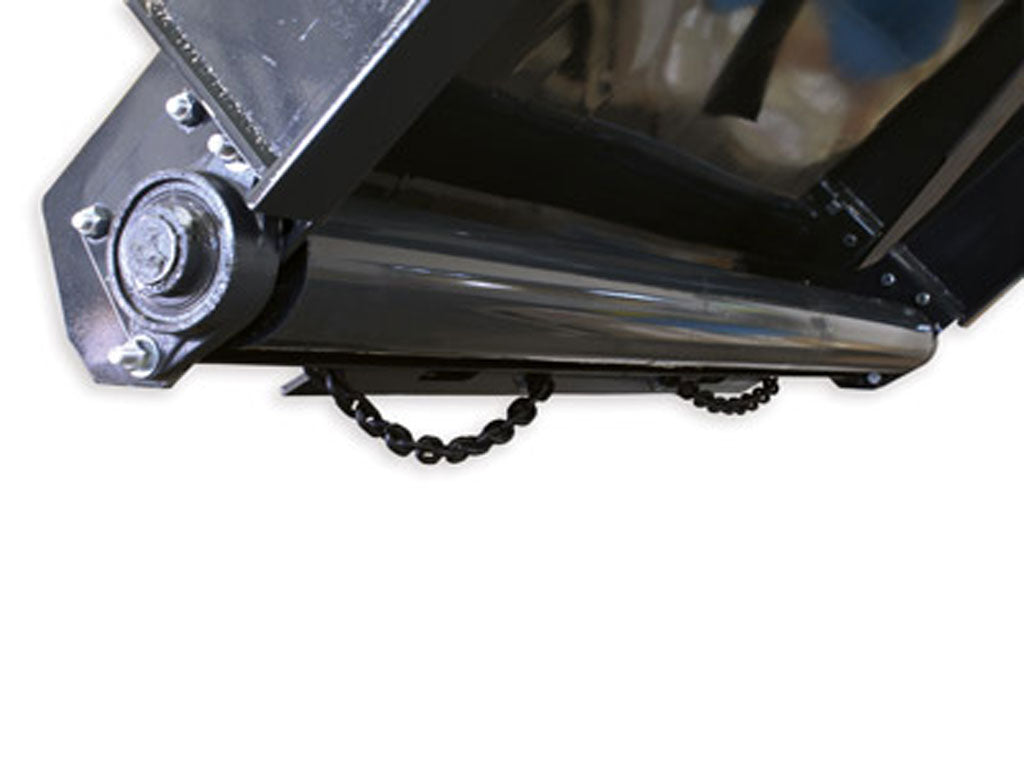

  • Optional Rear Roller and Swivel Casters available.







    • Recommended Loader Capacity: Greater than 1500 lbs ROC
    • Cutter Height (in):  20.9
    • Deck Height (in):  8.8
    • Minimum Cut Height (in):  1.8
    • Cutting Capacity, Diameter (in):  4.0
    Cut Width (in) 60" 60" 66" 66" 72" 72" 78" 78"
    Flow Rate (GPM) 14-18 18-25 14-18 18-25 14-18 18-25 14-18 18-25
    Overall Width 66.0 66.0 72.0 72.0 78.0 78.0 84.0 84.0
    Cutter Depth (in) 81.8 81.8 87.8 87.8 93.8 93.8 99.8 99.8
    Weight (lbs) 1180 1180 1325 1325 1435 1435 1540 1540



    Blade Tip Speed   (FPM)

    Blade Tip Speed   (FPM)

     Blade Tip Speed   (FPM)

    Blade Tip Speed   (FPM)

    Model

    14 GPM Min

    18 GPM Max

    18 GPM  Min

    25 GPM  Max

    60" 14-18 GPM

    10,365 13,325

    60" 18-25 GPM

    10,530 14,630

    66" 14-18 GPM

    11,400 14,660

    66" 18-25 GPM

    11,585 16,090

    72" 14-18 GPM

    12,440 15,995

    72" 18-25 GPM

    12,640 17,555

    78" 14-18 GPM

    13,475 17,325

    78" 18-25 GPM

    13,695 19,700



    In stock items usually ship in 3-5 days

    Non stock items usually ship 4-6 weeks

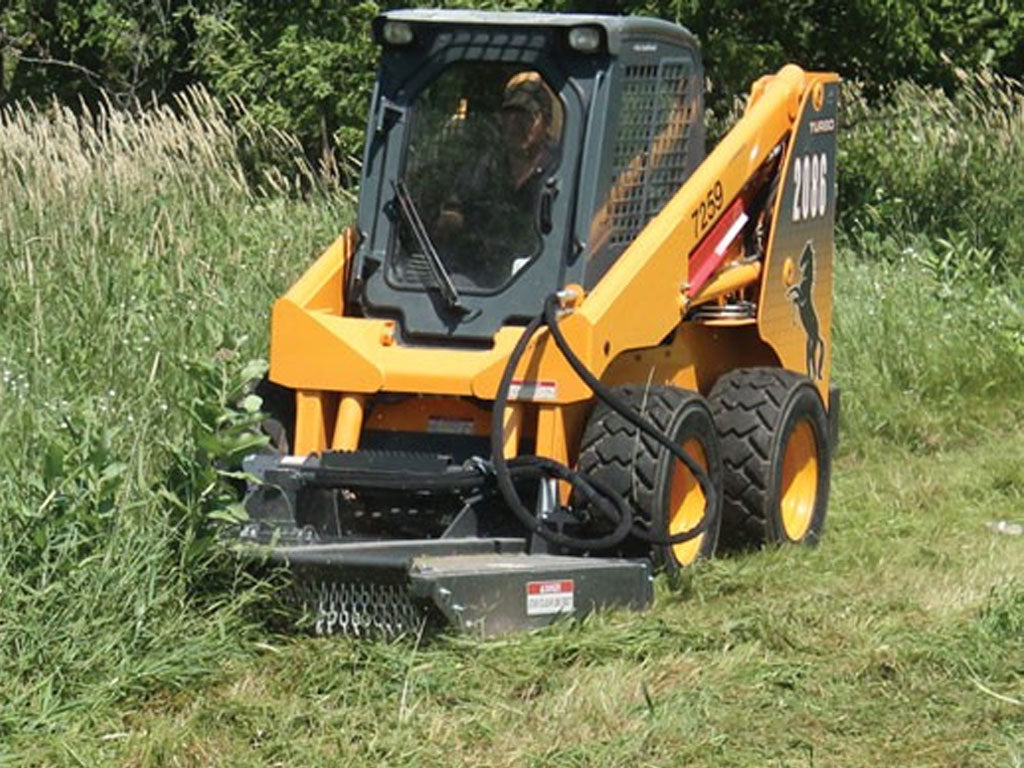

    The V50 series was designed for medium- to large frame skid steers. Though this is Virnig’s standard-duty line, the V50 Series often outperforms other brands’ heaviest skid steer attachments.
