Virnig

SRGV60

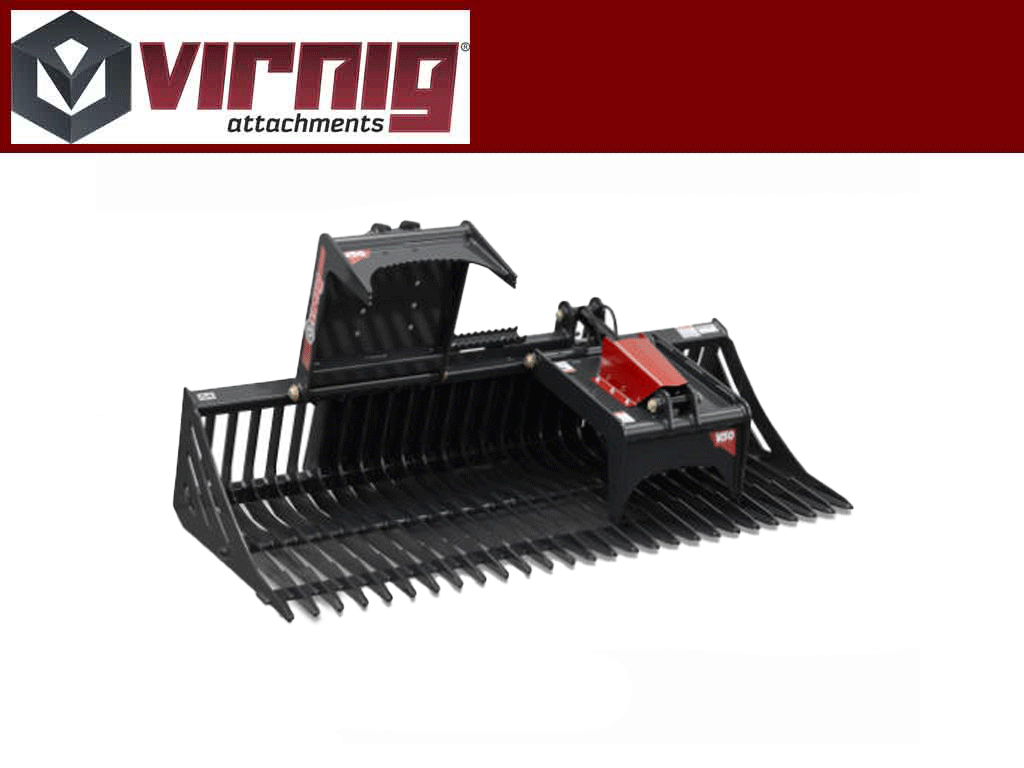

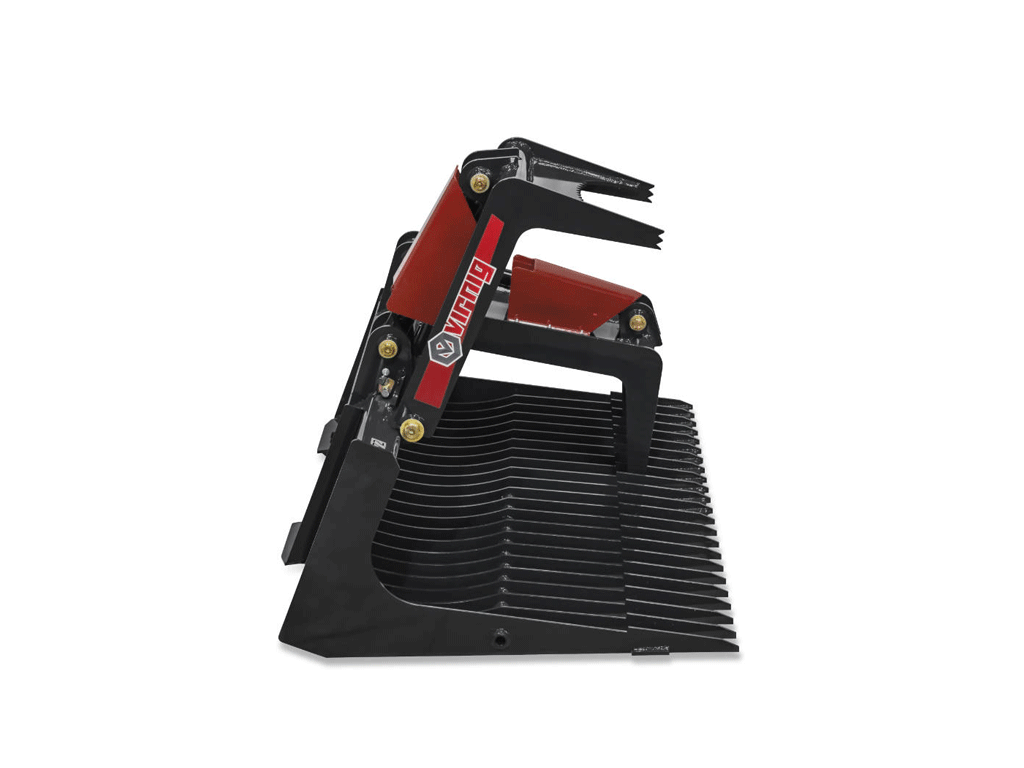

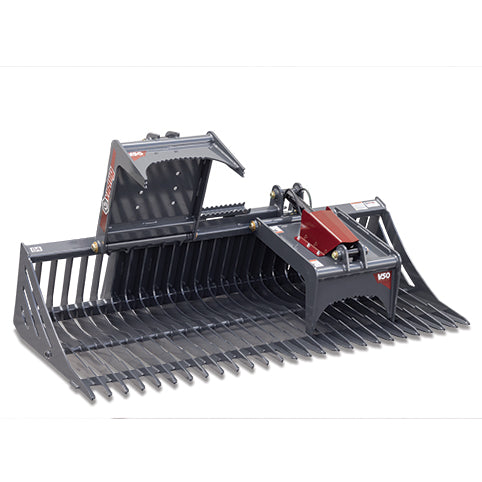

Virnig V50 Skeleton Rock Grapple (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

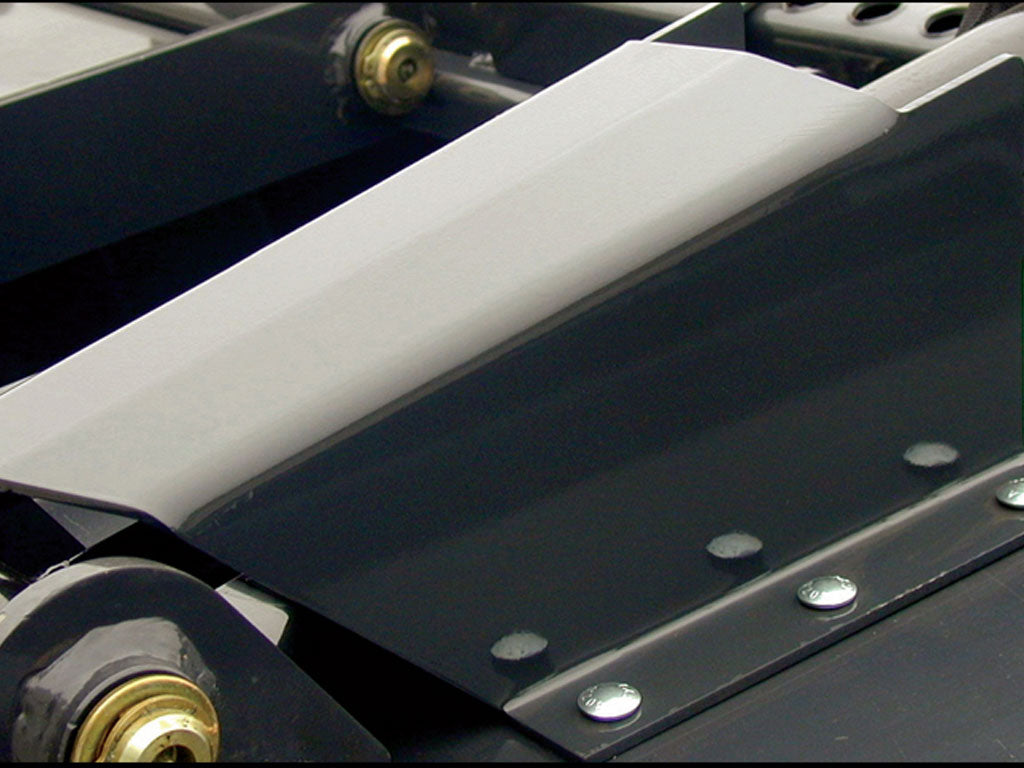

  • STANDARD CYLINDER GUARD

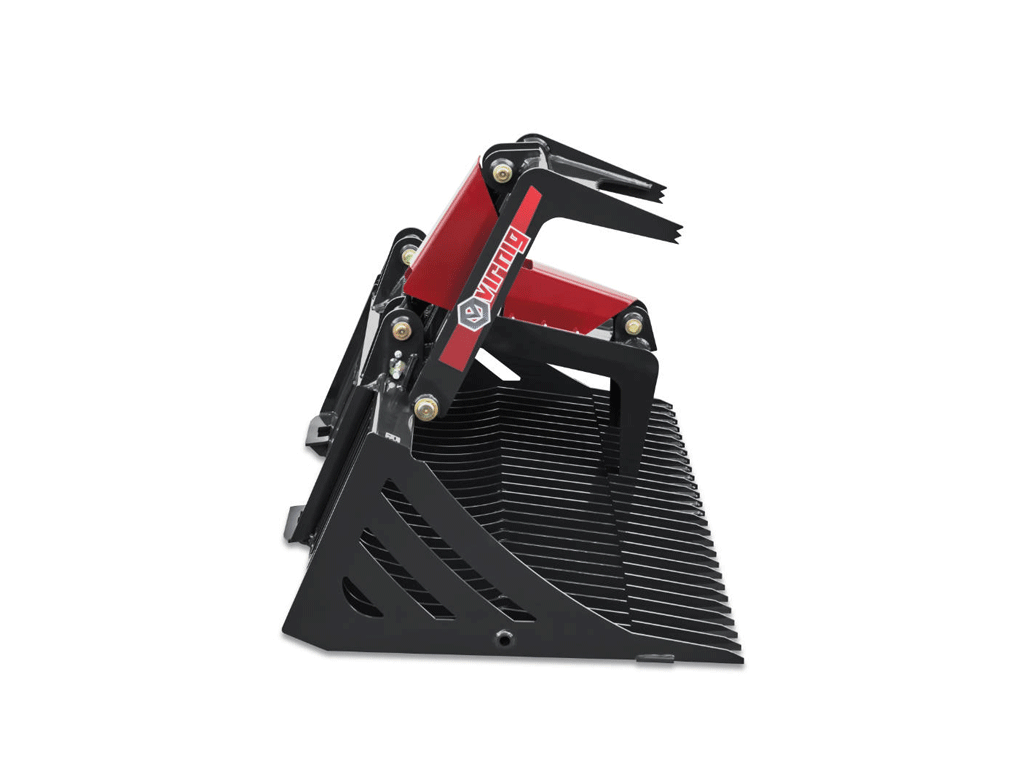

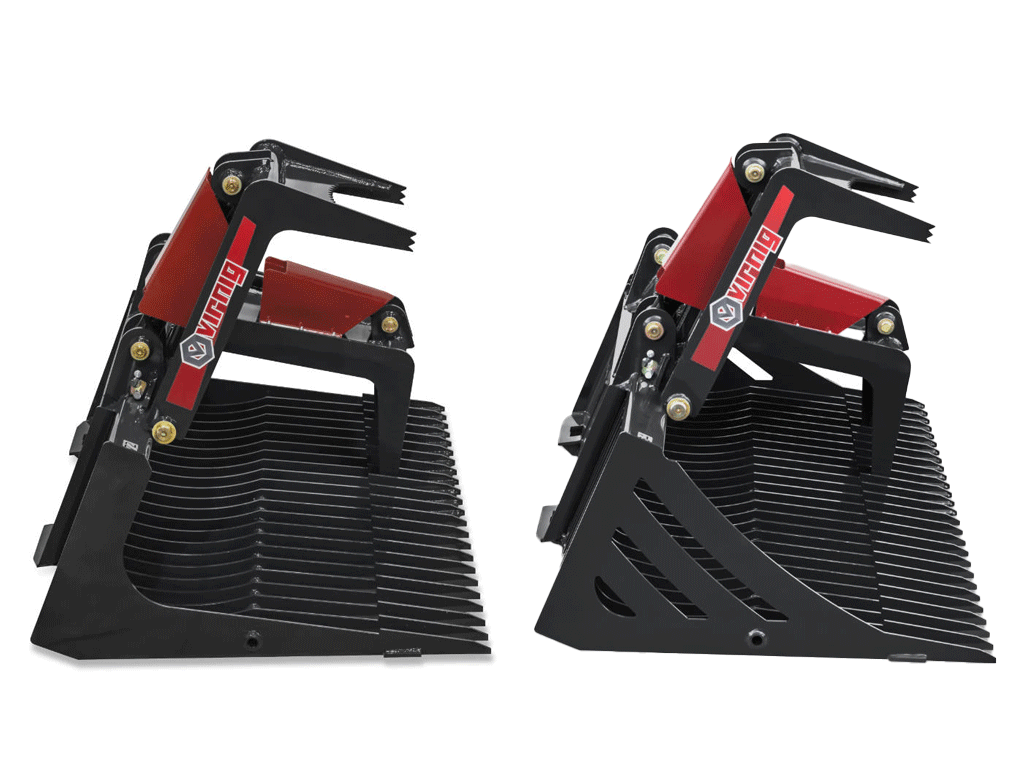

  • OPTIONAL OPEN  SIDES

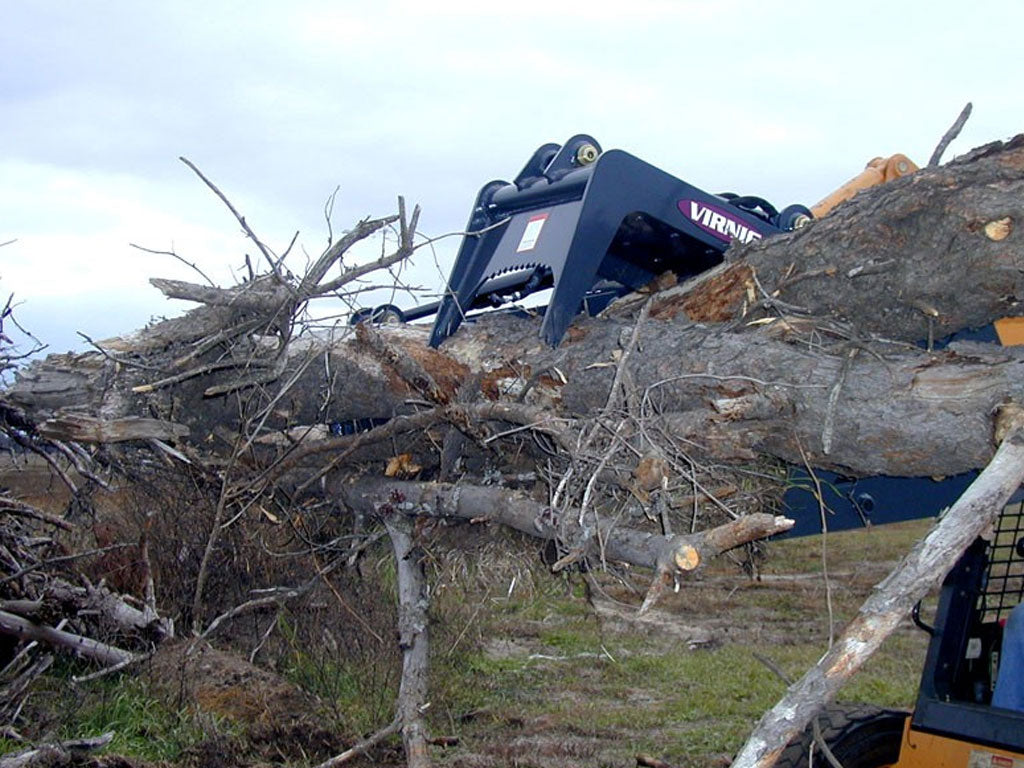

    This type of skid steer grapple has two, individual jaws with separate cylinders. Each jaw works independent of the other. The hydraulic system allows operators to securely clamp debris that has uneven surfaces while keeping consistent pressure on the entire load. Independent grapples keep oddly-sized objects tightly secured in the skid steer bucket during transport.

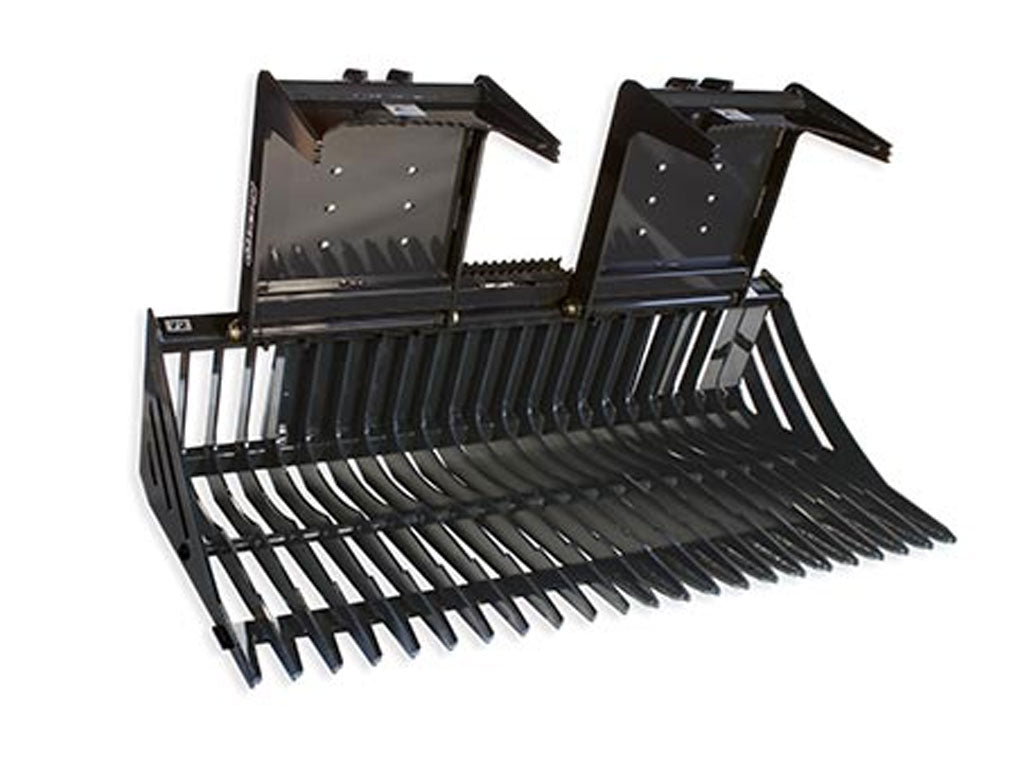

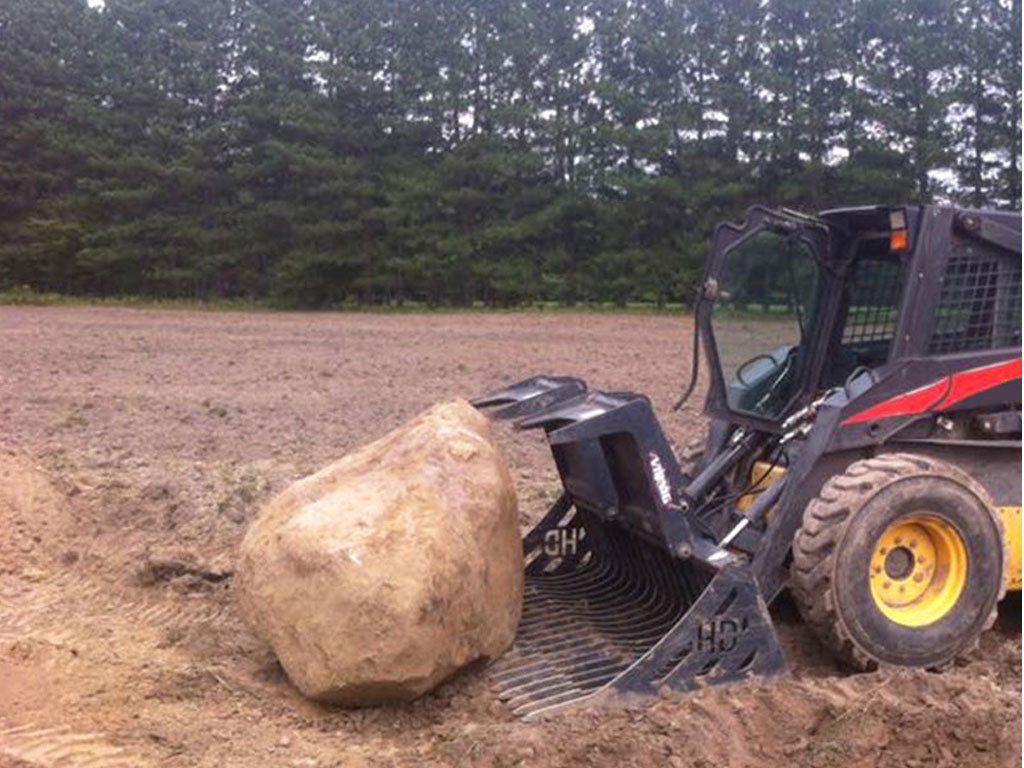

    Two-cylinder independent grapple with 3” tine spacing designed to pick rocks and debris and leave dirt behind.

    • Every tine is constructed from one piece of 3/8” Grade 80 steel, from tip to top brace, to add rigidity.
    • Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging.
    • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
    • Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
    • Teflon® coated bushings provide lubrication at all pivot locations.
    • Machine specific hydraulic package to completely protect hose routing.
    • Replaceable bolt-on step made of durable, laser cut steel in an aggressive pattern that will grip in the worst conditions.
    • Recommended loader capacity - Greater than 1500 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
    Model SRGV60 SRGV66 SRGV72 SRGV78 SRGV84
    Overall Width (in) 61.0 67.6 74.3 80.9 87.5
    Depth (in) 42.9 42.9 42.9 42.9 42.9
    Height (in) 21.5 21.5 21.5 21.5 21.5
    Grapple Jaw Opening (in) 36.1 36.1 36.1 36.1 36.1
    Number of Tines 19 21 23 25 27
    Space Between Tines 2.9 2.9 2.9 2.9 2.9
    Weight (lbs) 964 1014 1059 1104 1149



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks
