Virnig

MSHV96-SBEV96A-1

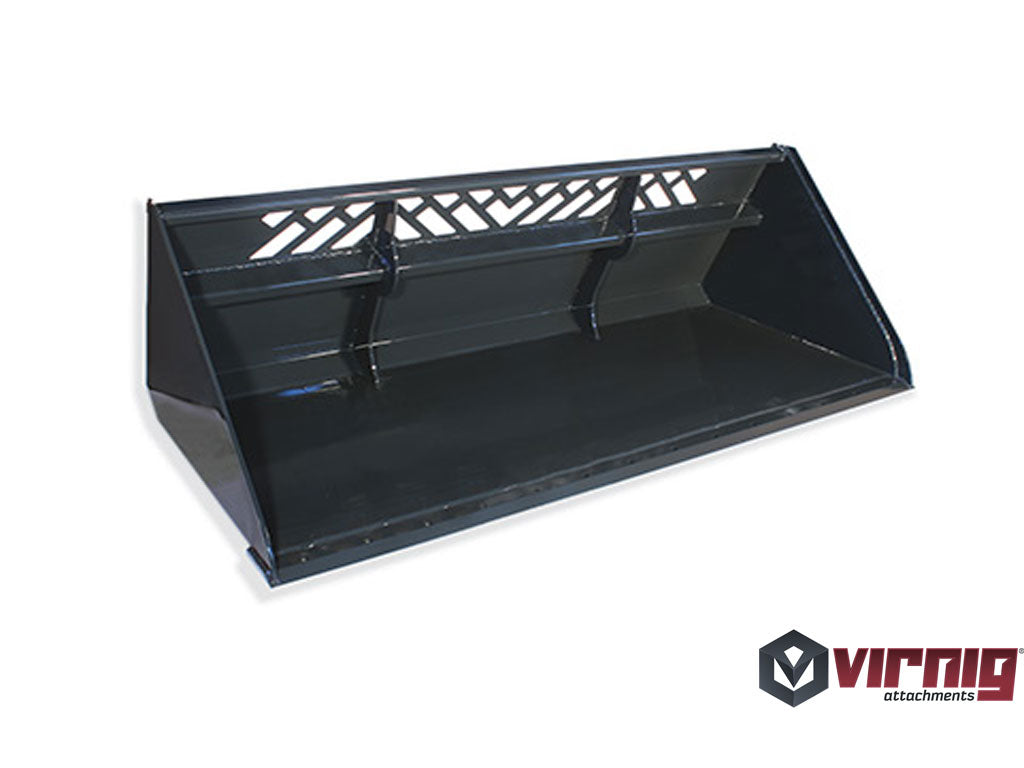

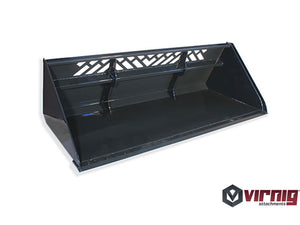

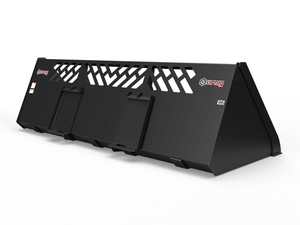

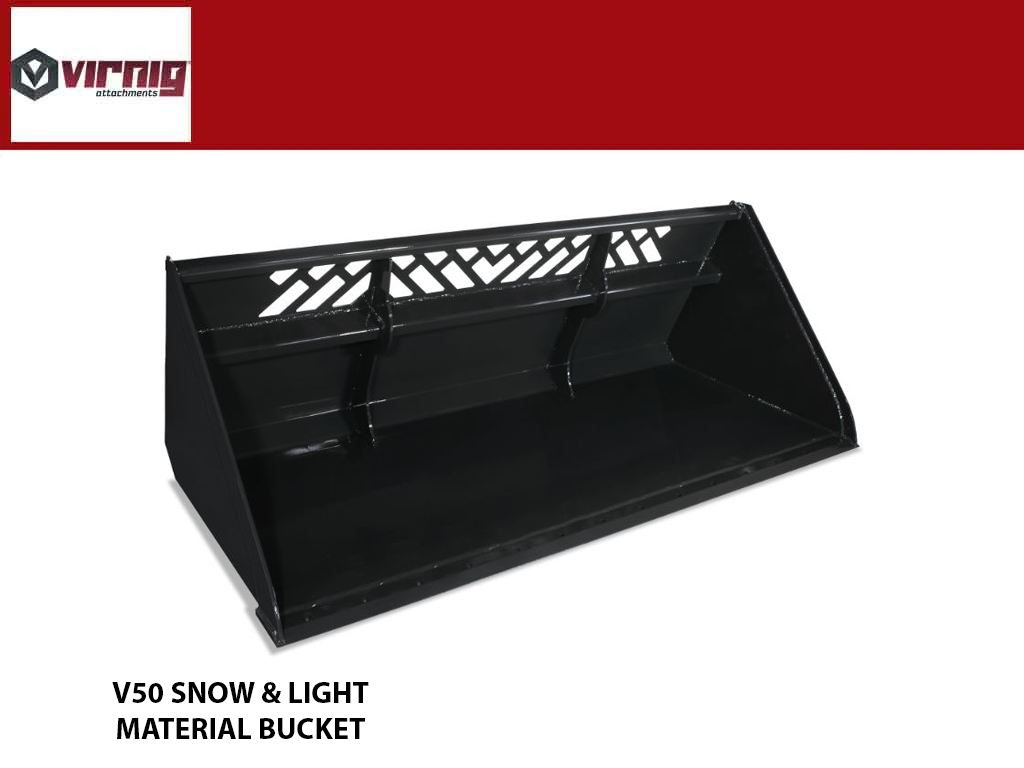

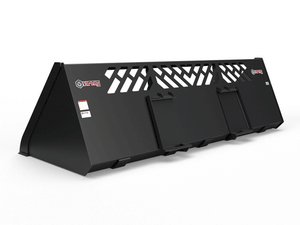

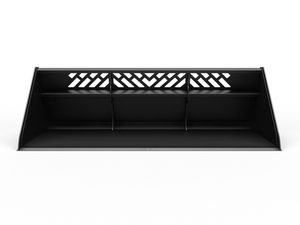

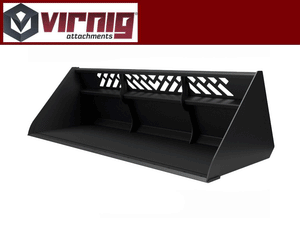

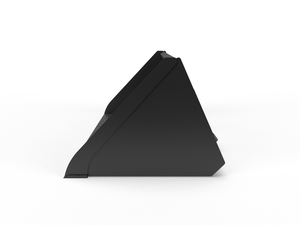

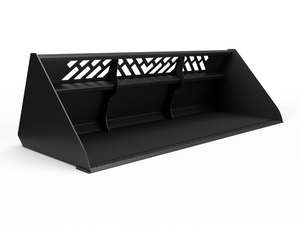

Virnig V50 Snow / Light Material Bucket (SSL)(CTL)

Size
EDGE
The Virnig V50 Snow/Light Material bucket is deeper, taller and stronger than the V40 bucket.
  •  High capacity design allows large volumes of light material to be hauled per load.
  • Windows in bucket to increase cutting edge visibility.

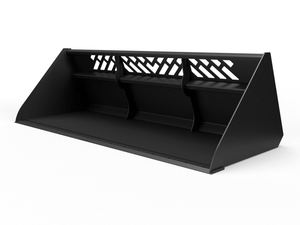

  • Two 3/8” thick vertical braces and large upper cross member inside the bucket make for reinforcement.
  • High-strength, 3/4” x 6” weld-on edge with pre-drilled holes for optional edges.

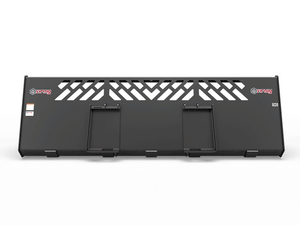

  • Manufactured with a universal mount to fit most skid steer loaders.
  • V60 Snow Bucket  also available

  OPTIONS

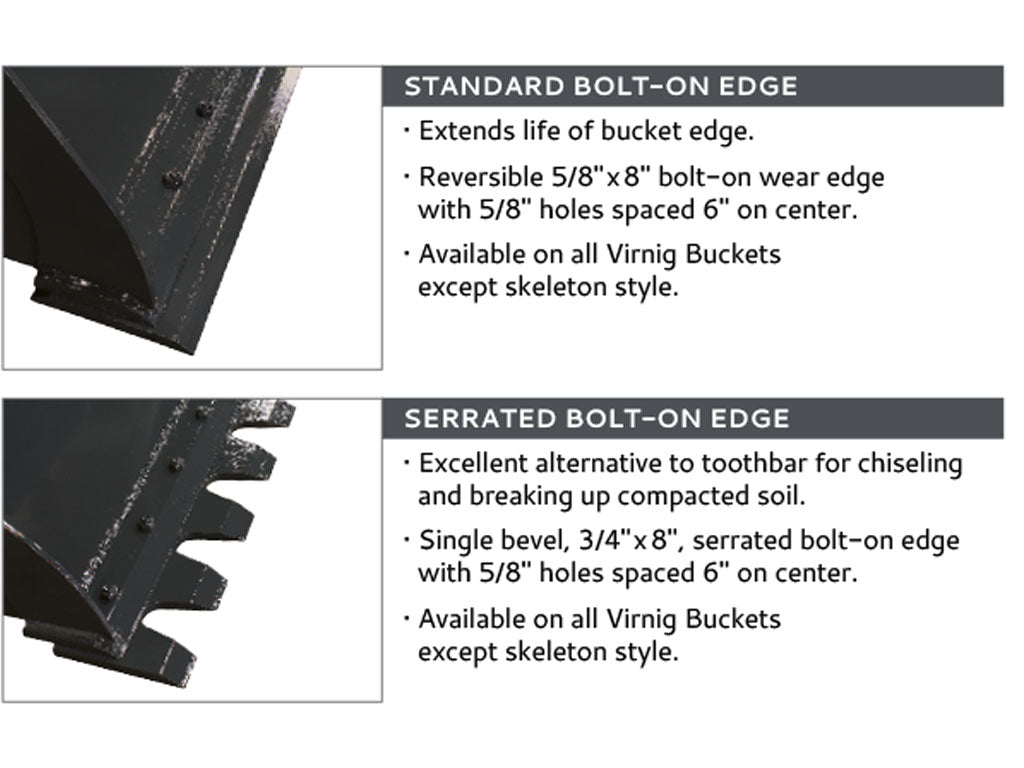

  • Bolt on Cutting Edge (BOCE) installed
    • Extends life of bucket.
    • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
  • Serrated Edge (SE) installed
    • Excellent alternative to toothbar for chiseling and breaking up soil.
    • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.



Model MSHV 72 MSHV 78 MSHV 84 MSHV 96 MSHV 101
Overall Bucket Width (Inches) 73.5 79.5 85.5 97.5 101.5
Bucket Depth (Inches) 40.6
Bucket Height (Inches) 29.8
Window Height (Inches) 8.0
Struck Capacity (Cubic Feet) 26.6 28.8 31.0 35.5 37.0
Heaped Capacity (Cubic Feet) 31.9 34.6 37.2 42.6 44.5
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.19
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 3 4 4 4 4
Approximate Weight (Pounds) 660 710 745 810 830
Recommended Loader Capacity Greater than 1800 pounds



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
