UHV60

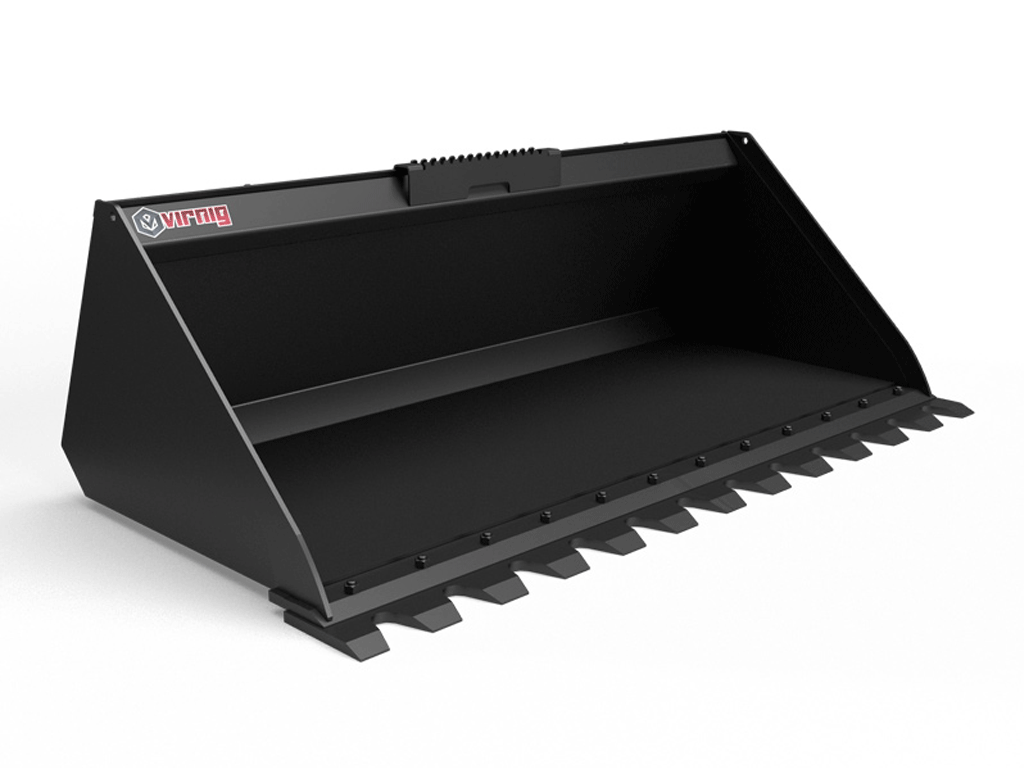

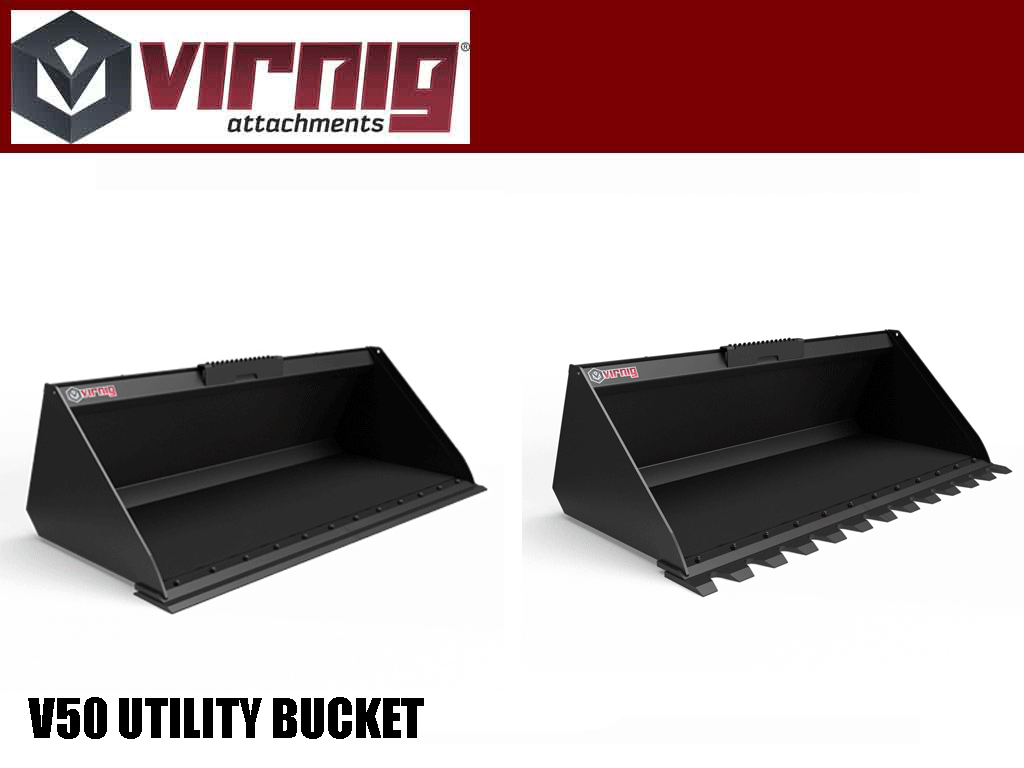

Virnig V50 Utility Bucket (SSL)(CTL)

Size
Edge

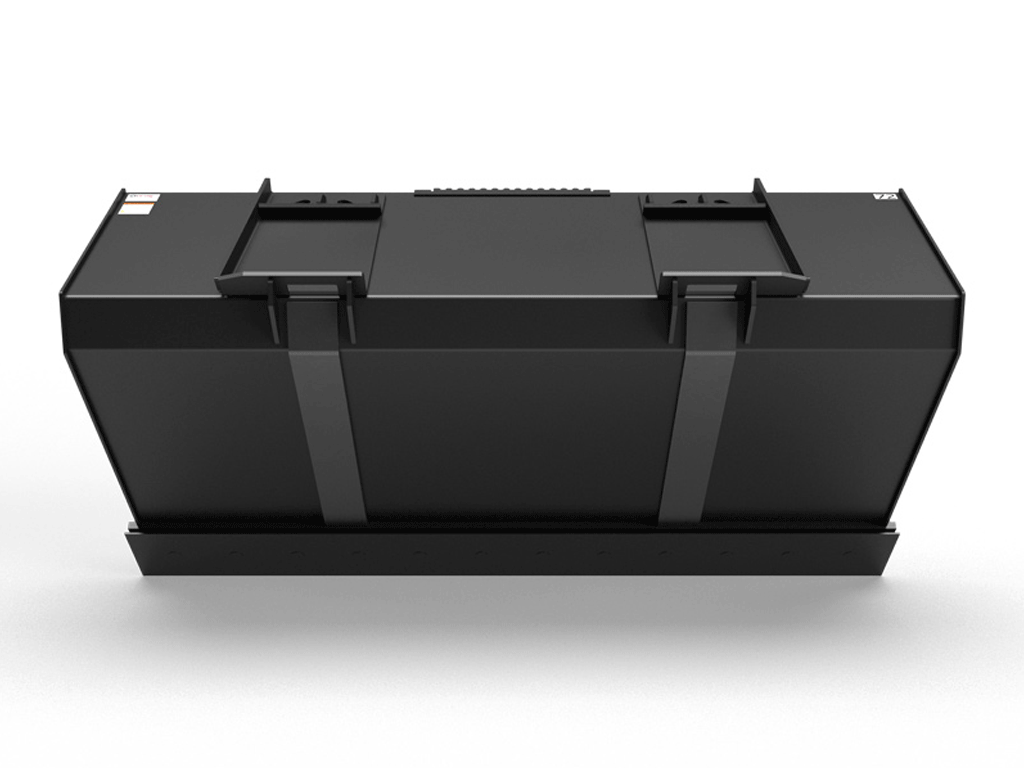

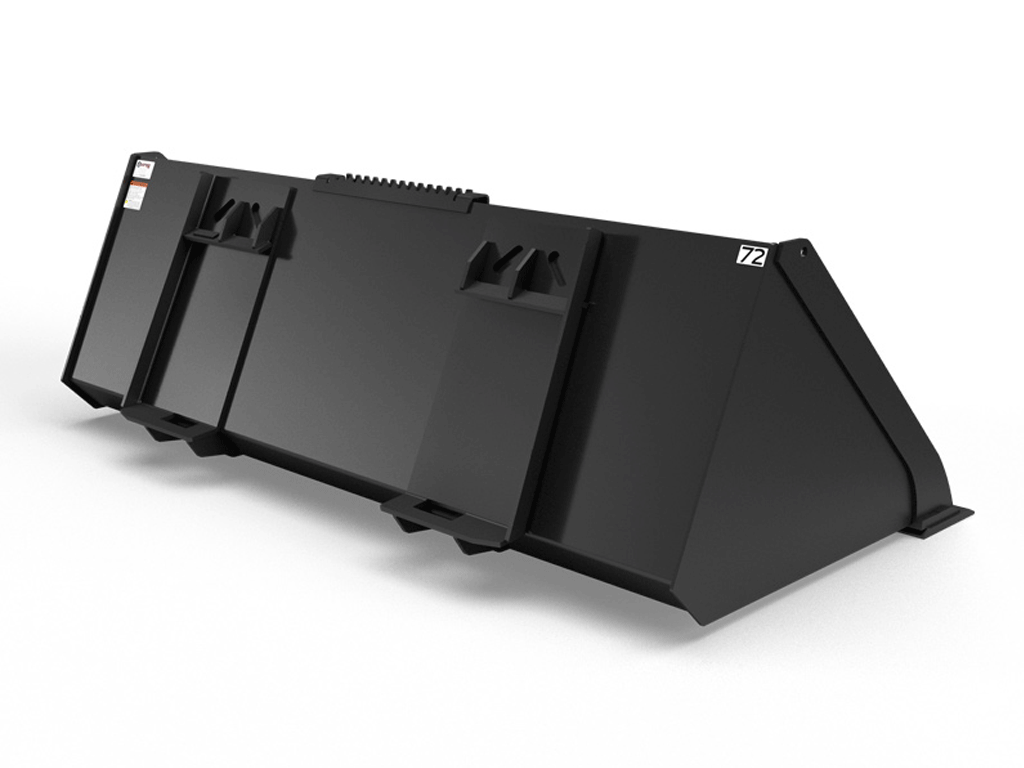

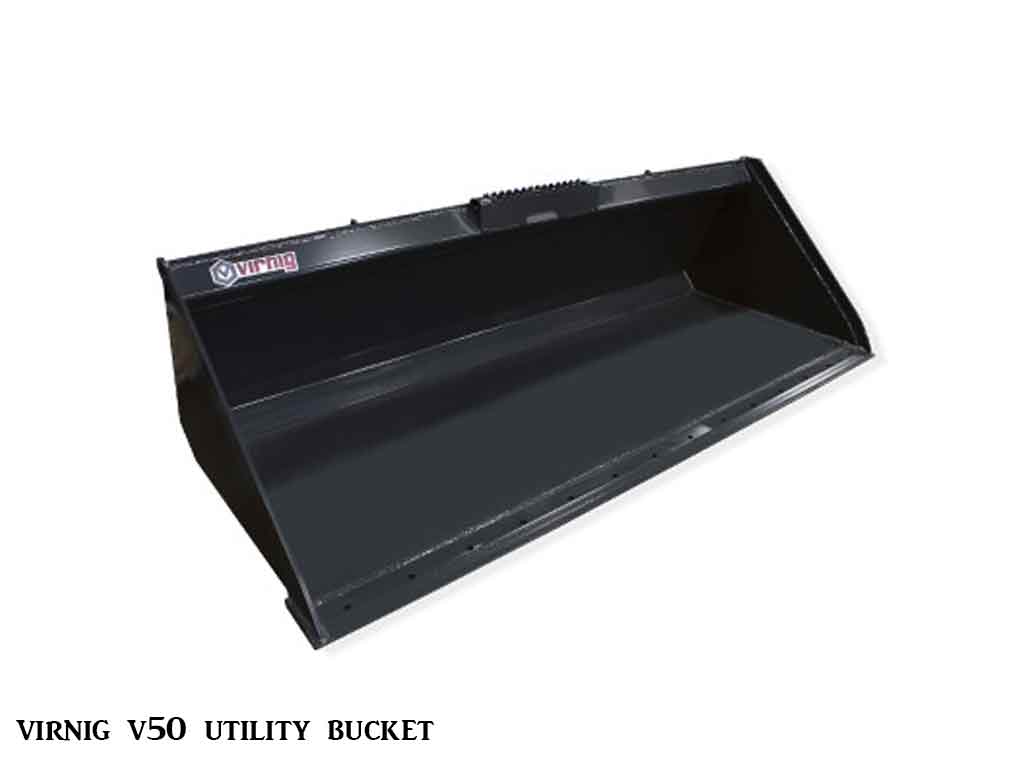

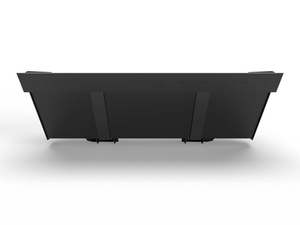

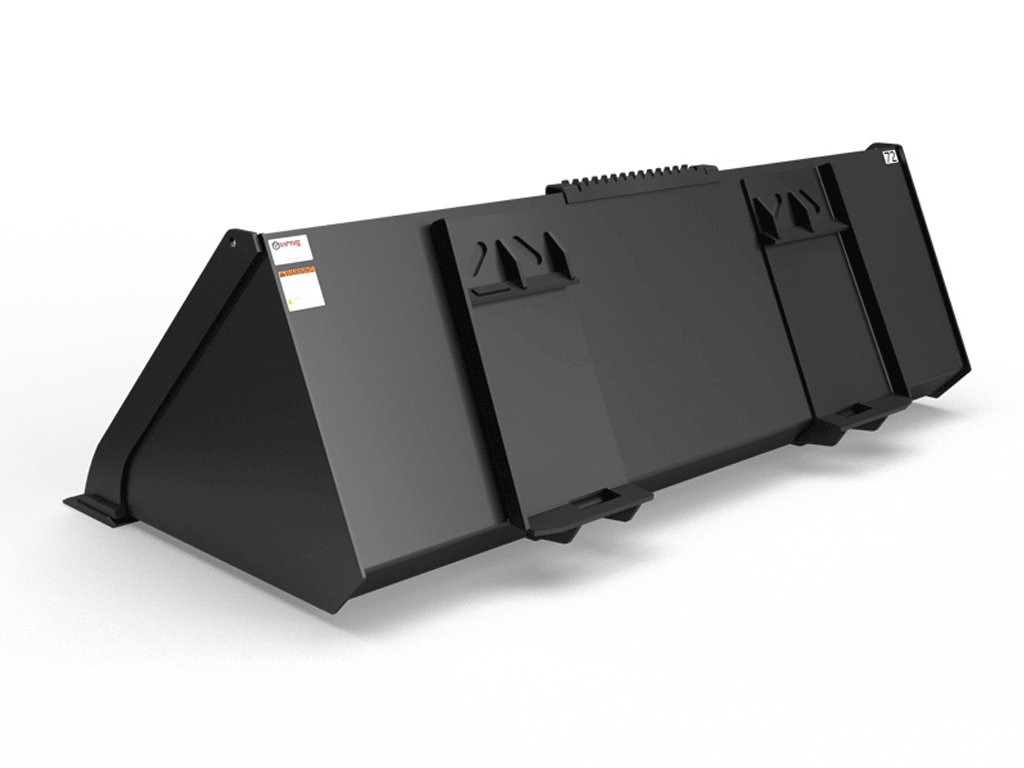

Virnig V50 Utility Bucket is a general purpose bucket suited for dense and bulk materials.

  • ¾” x 6” weld-on edge with holes for optional edges.

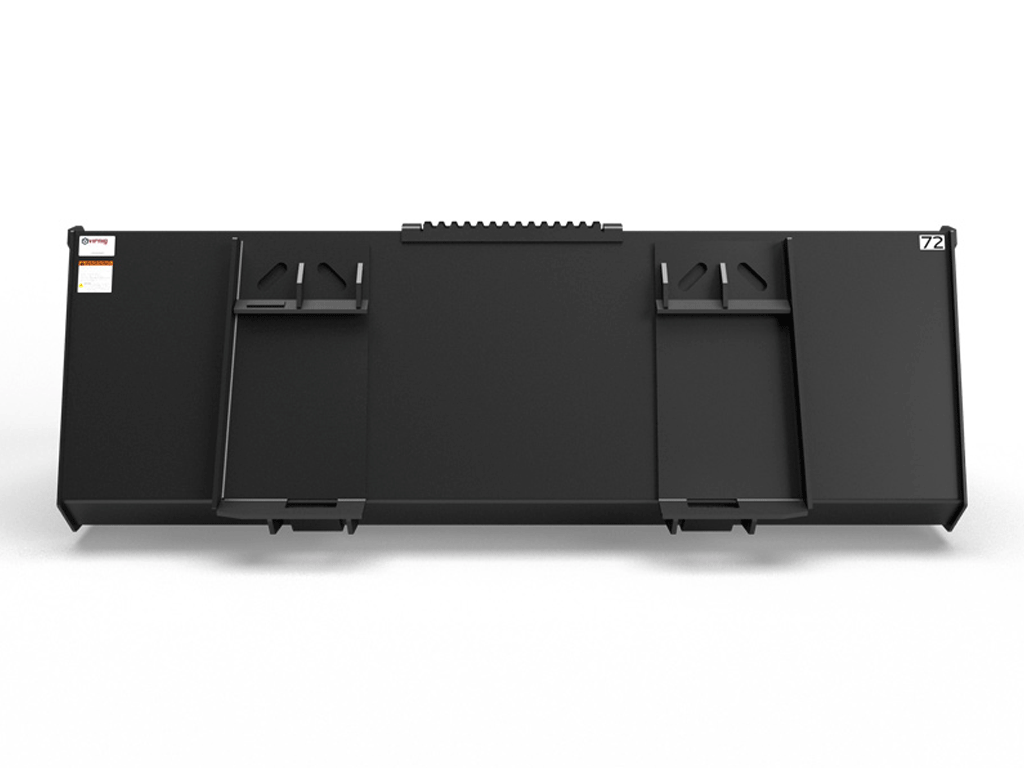

  • Manufactured with a universal mount to fit most skid steer loaders.
  • V60 Utility Bucket also available.
    OPTIONS

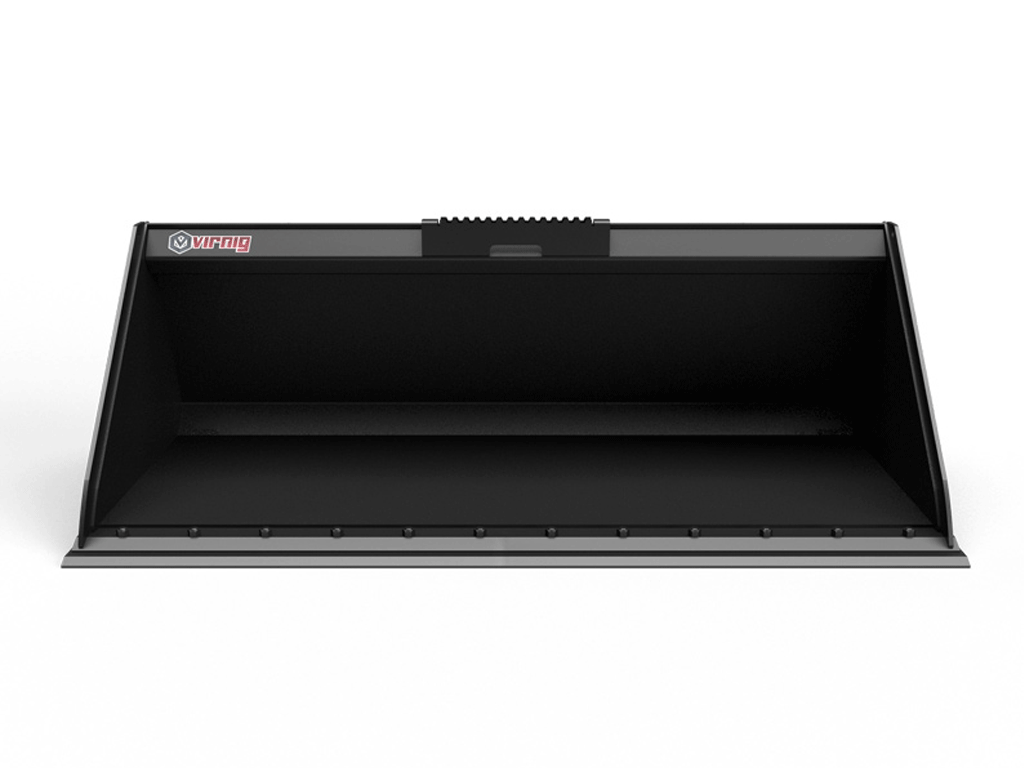

    • Weld on edge

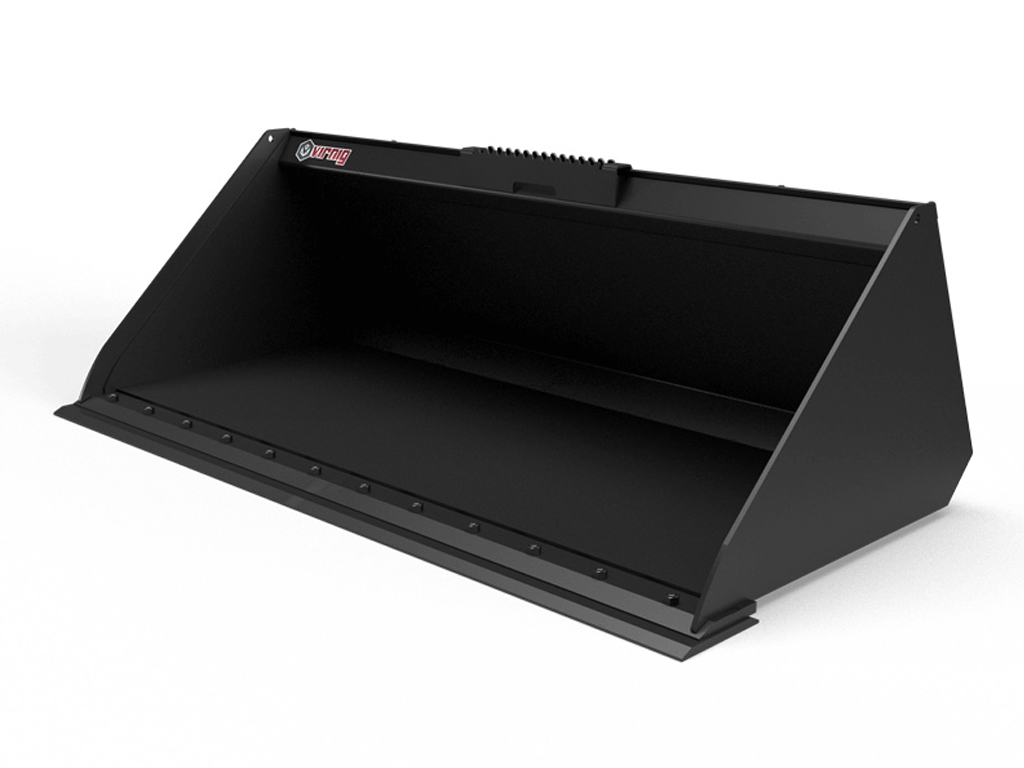

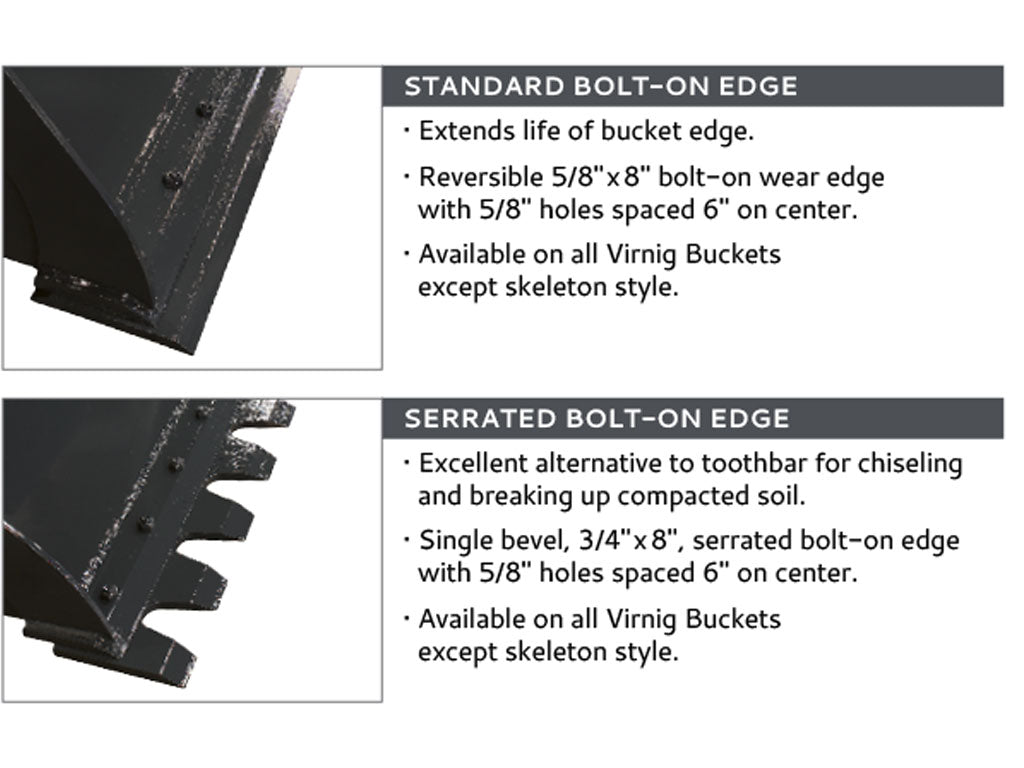

    • Bolt on Cutting Edge (BOCE) installed
      • Extends life of bucket.
      • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.

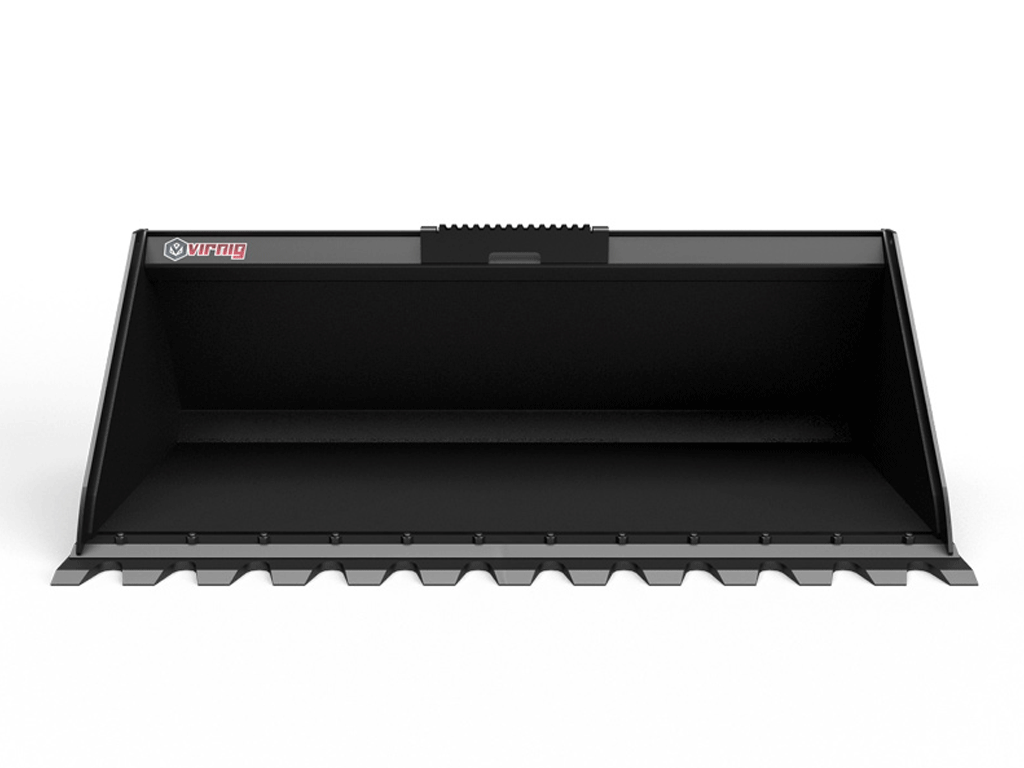

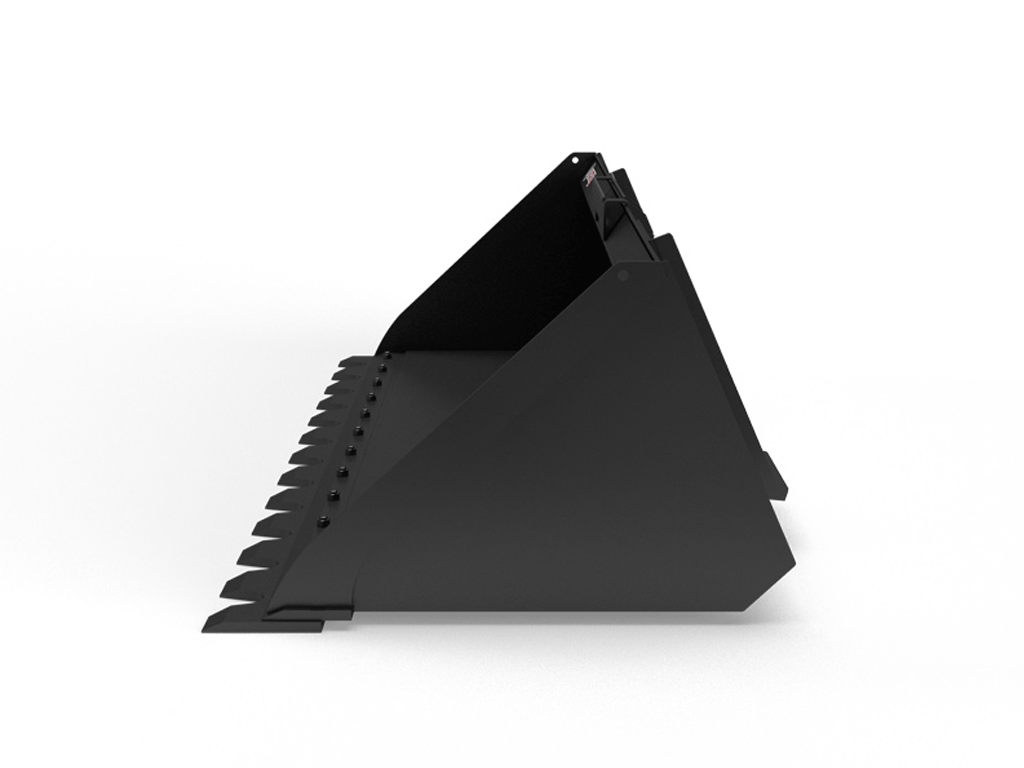

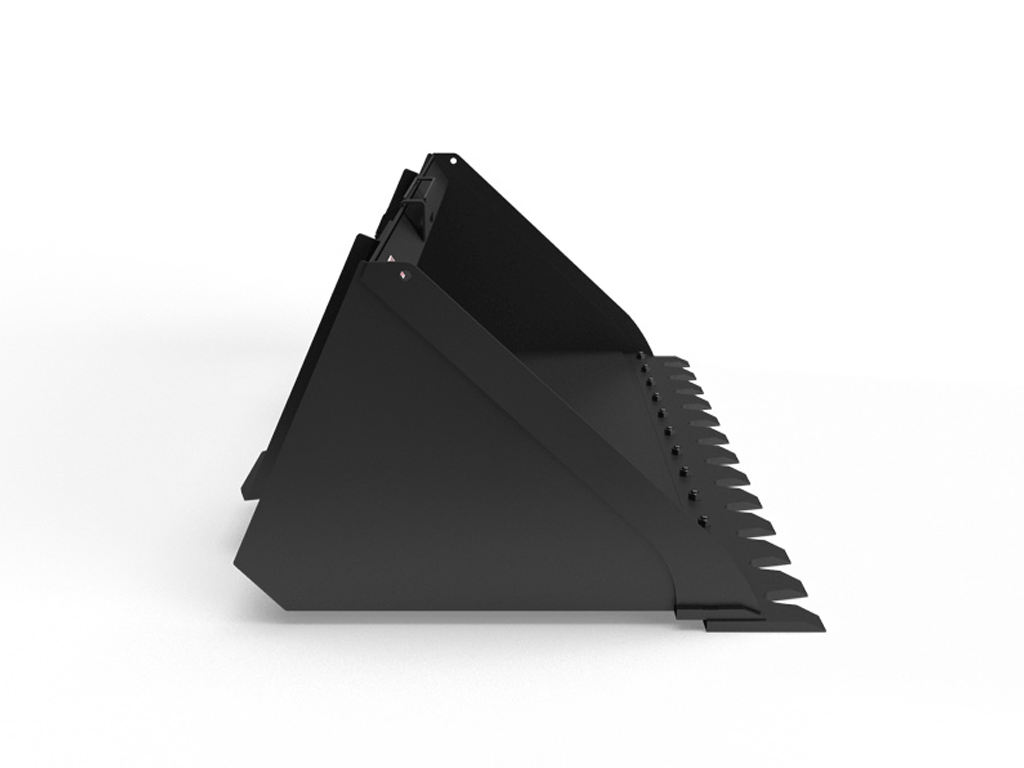

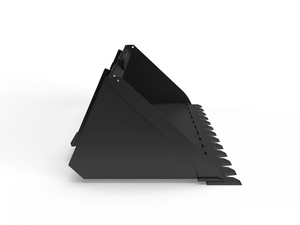

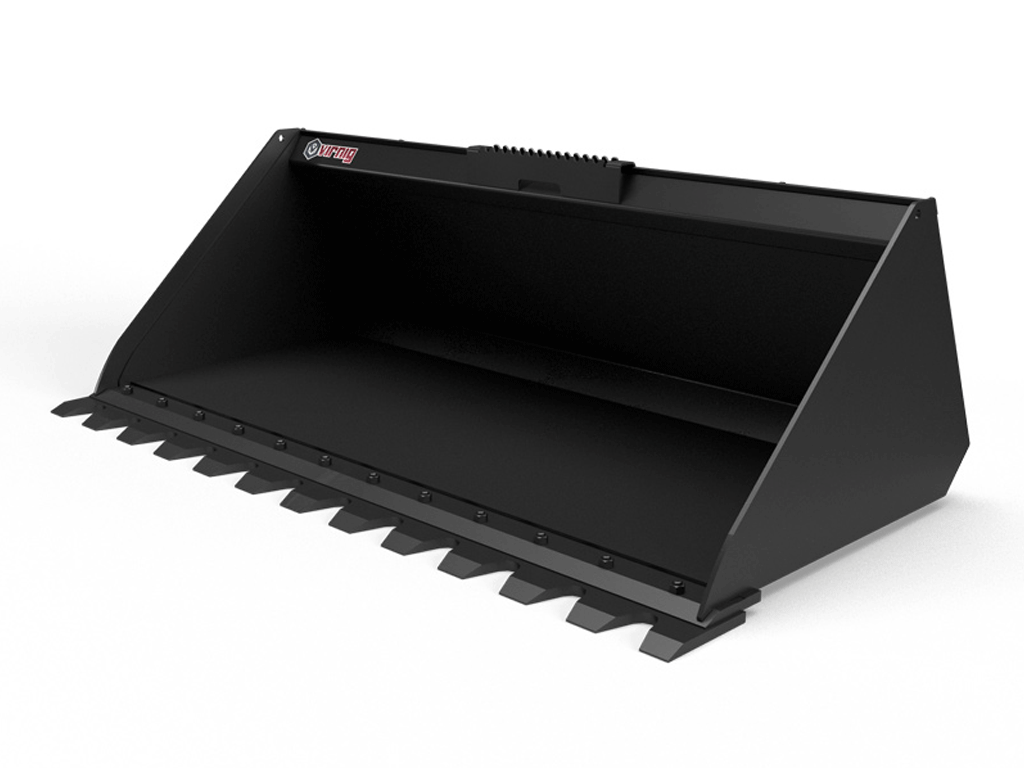

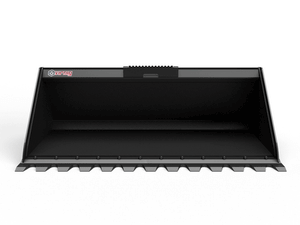

    • Serrated Edge (SE) installed
      • Excellent alternative to toothbar for chiseling and breaking up soil.
      • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
      Models UHV 60 UHV 66 UHV 72 UHV 78 UHV 84
      Overall Bucket Width (Inches) 61.5 67.5 73.5 79.5 85.8
      Bucket Depth (Inches) 35.6
      Bucket Height (Inches) 24.0
      Struck Capacity (Cubic Feet) 14.4 16.0 17.6 19.2 20.8
      Heaped Capacity (Cubic Feet) 17.3 19.2 21.1 23.0 24.9
      Bucket Back Angle (Degrees) 66
      Shell Thickness (Inches) 0.19 0.19 0.25 0.25 0.25
      Side Plate Thickness (Inches) 0.25

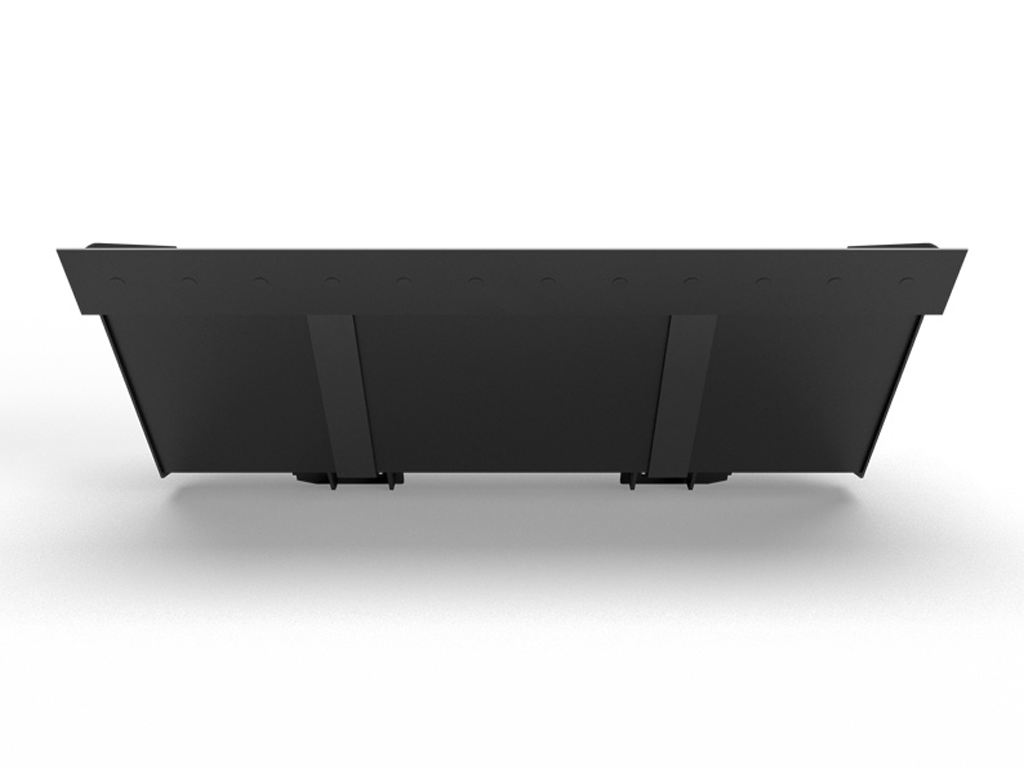

      Structural Wear Bars Under Bucket (1/2″ x 4″) 2 2 2 3 3
      Approximate Weight (Pounds) 500 530 630 680 715
      Recommended Loader Capacity Less than 2400 pounds
