Virnig

PPFG4-CYL

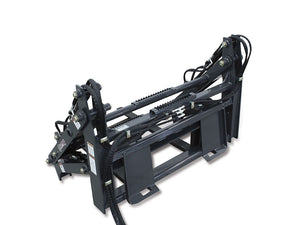

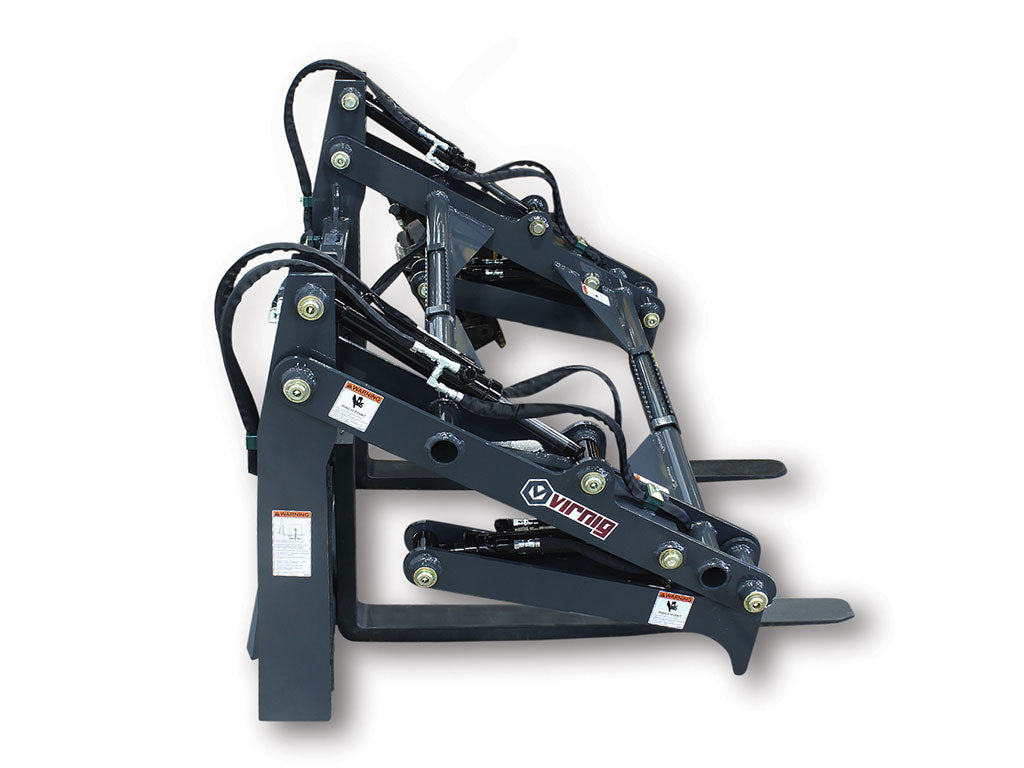

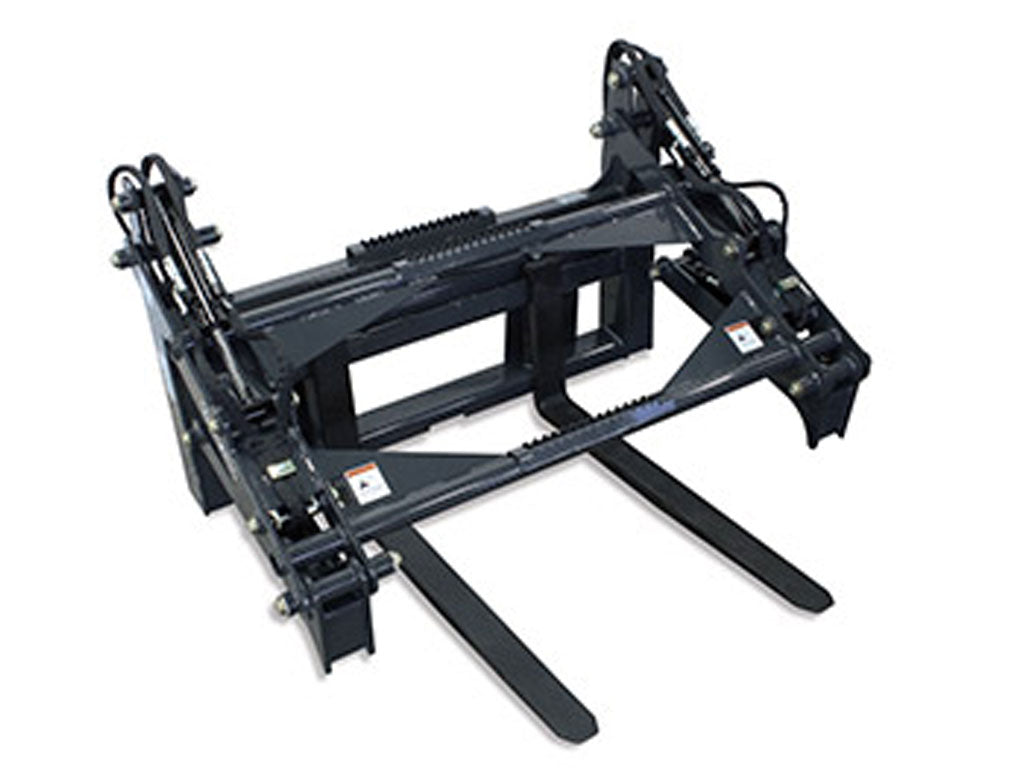

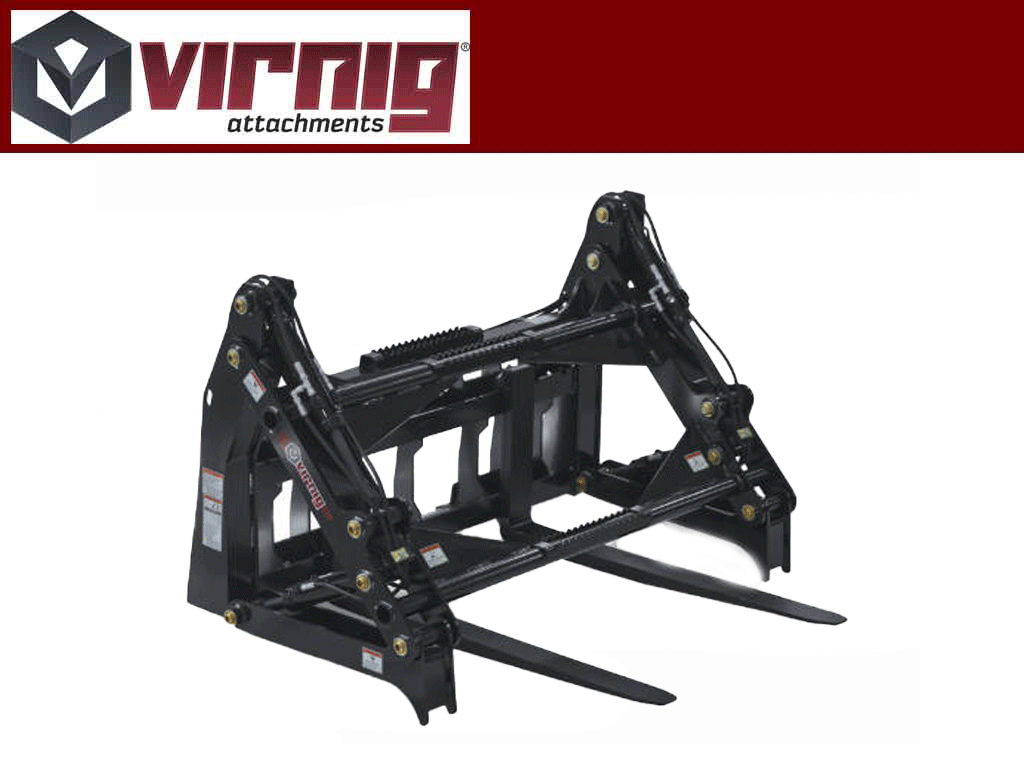

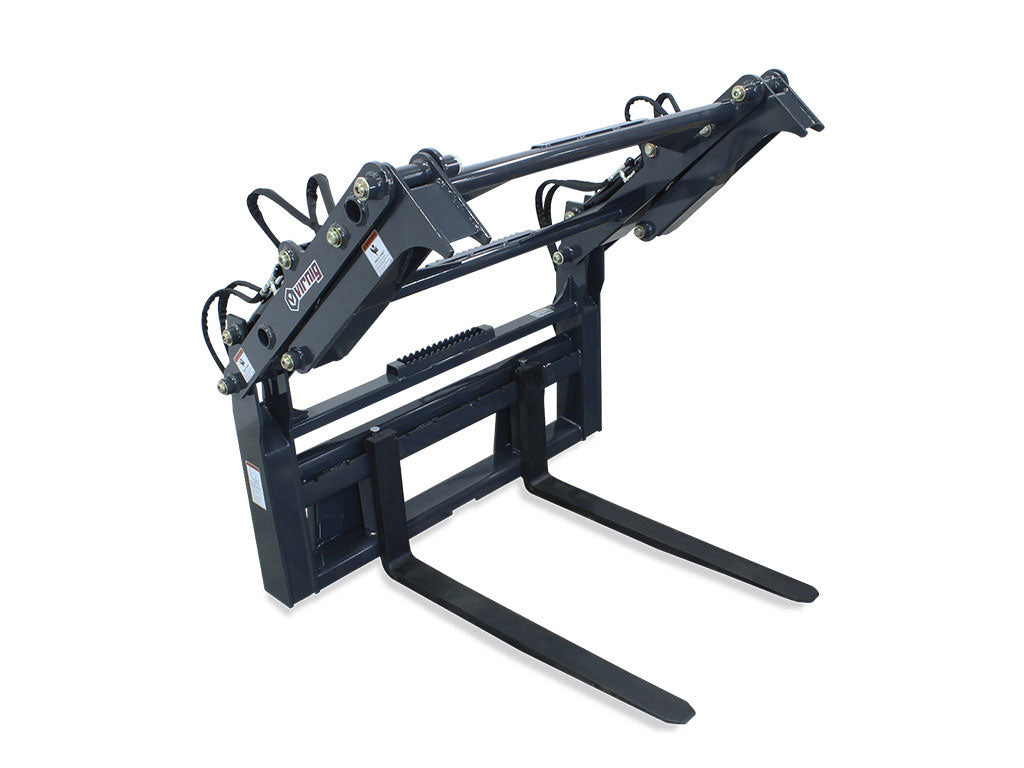

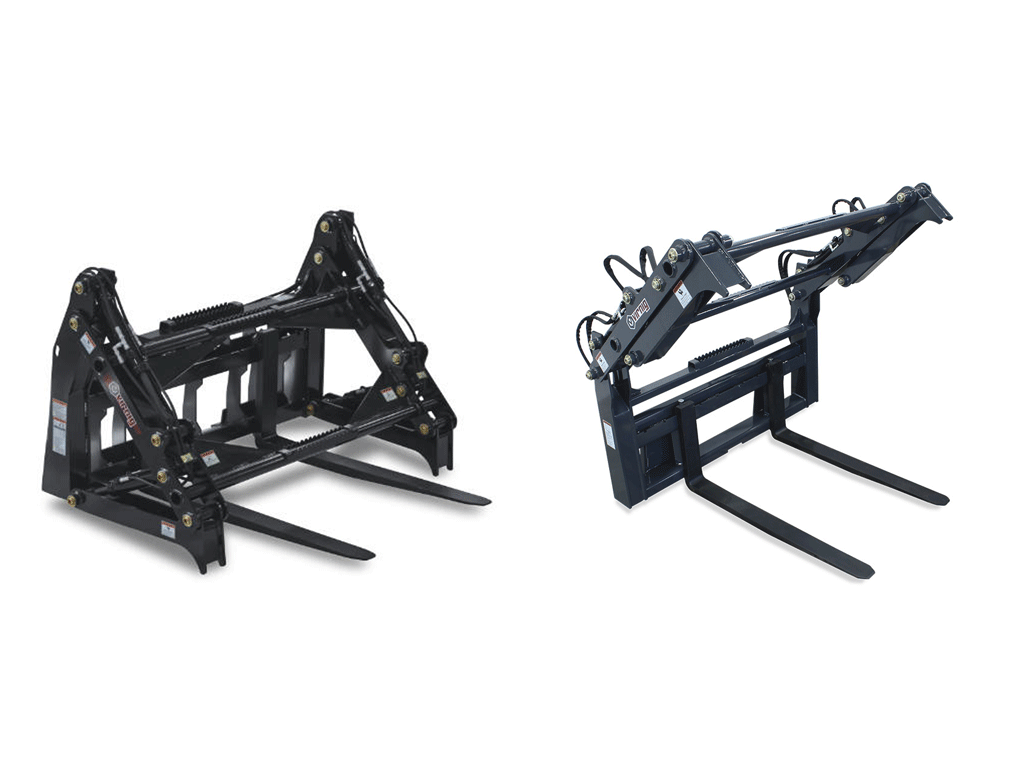

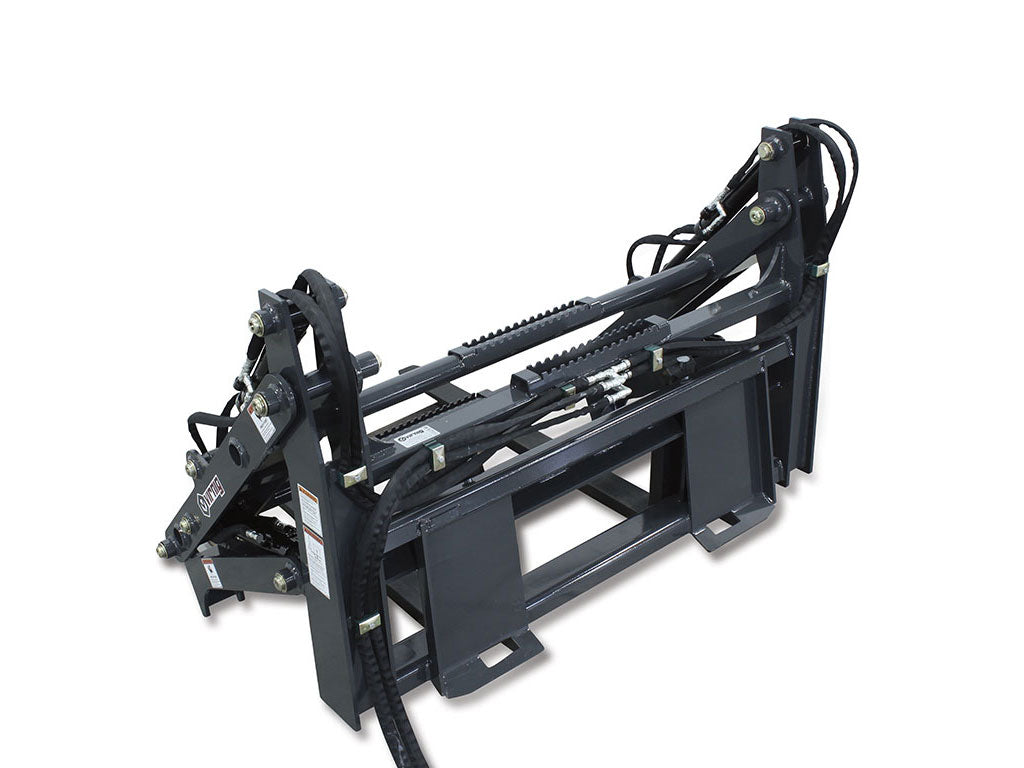

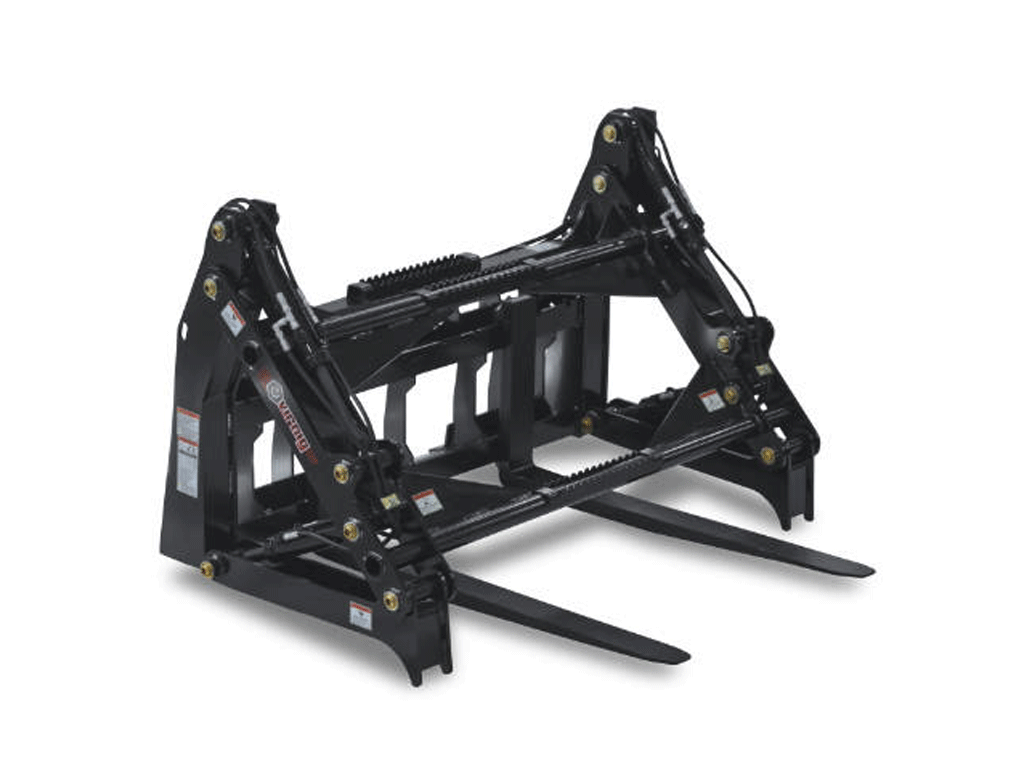

Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

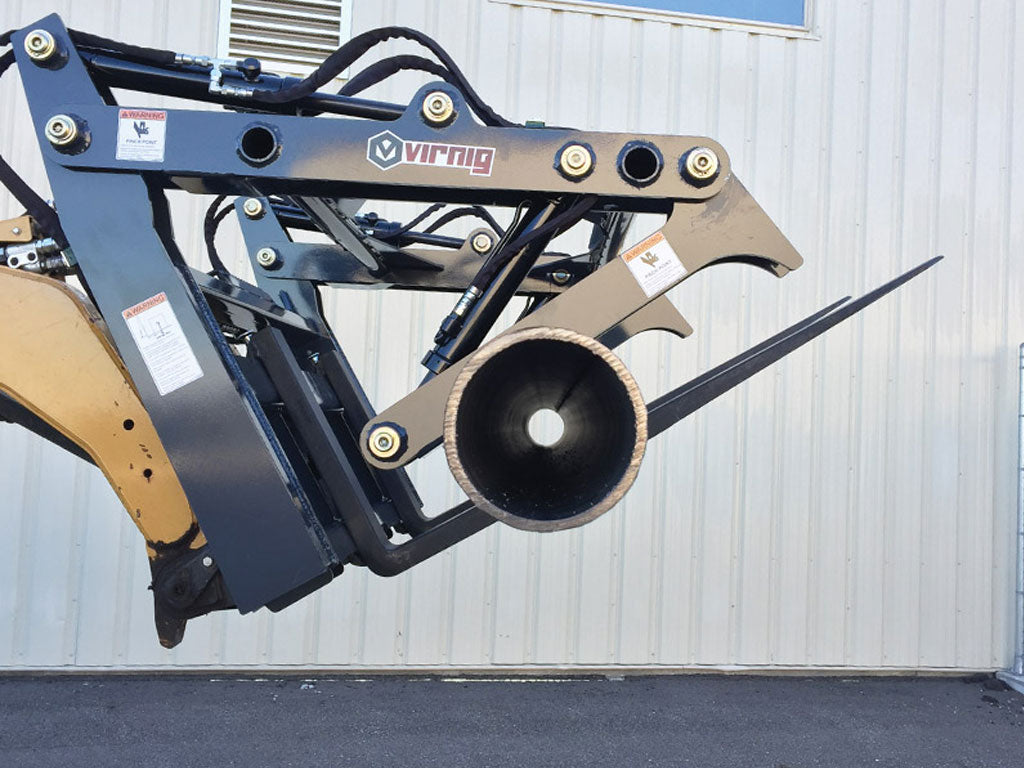

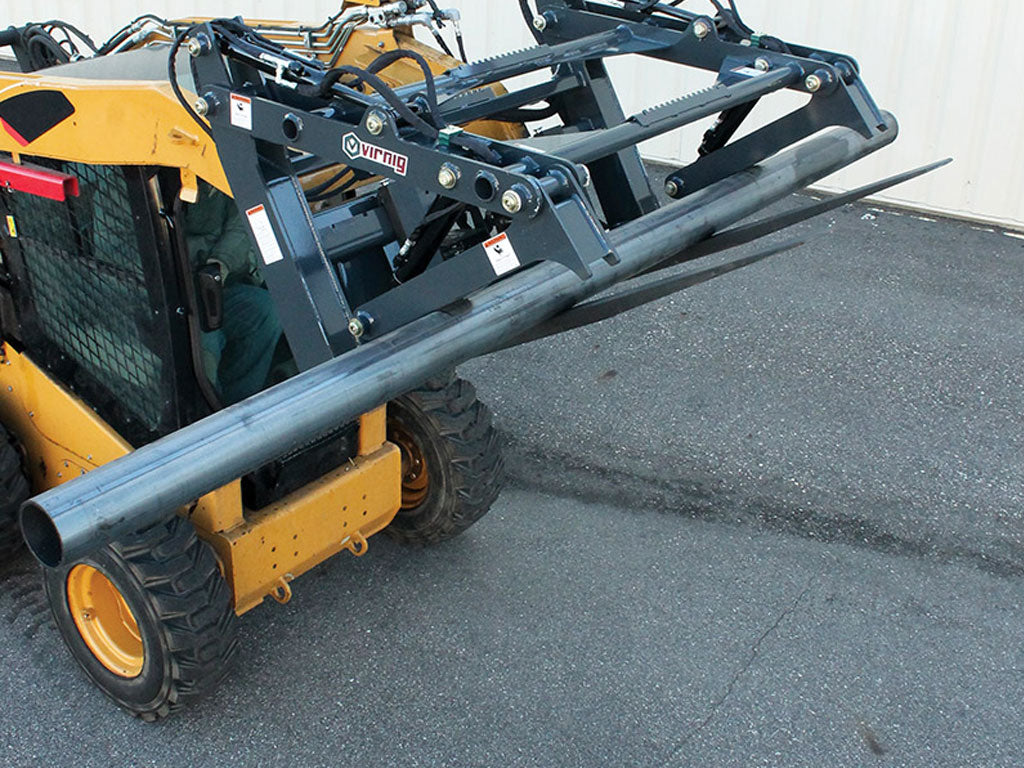

    Four-cylinder design applies consistent pressure to secure long pipe over uneven terrain.

    • Functions by main arms moving first while smaller, secondary arms move after main arm cylinders experience resistance.
    • 54ˮ wide frame keeps long material stable.
    • 48” Cascade® ITA Class II forged tines rated at 6200 pounds.
    • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
    • Greasable 1 1/4” diameter cylinder and hinge pins.
    • Machine specific hydraulic package to completely protect hose routing.

    Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).





    • Recommended Loader Capacity - Greater than 1500 lbs ROC
    • Cylinder Bore / Stroke (in)  2.5 / 8.375
    • Cylinder Pins / Hinge Pin Diameter (in) 1.25
    Model 48"
    Overall Width (in) 69
    Depth (in) 58
    Height Closed (in) 44.0
    Height Open (in) 65.0
    Grapple Arm Width 11.38
    Tine Length / Width / Thickness (in) 48 / 4 / 1.75
    Lift Capacity (lbs) 6200
    Weight (lbs) 1110



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks

    The V^) series was Constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
