HCDB72

VIRNIG V60 High capacity dirt bucket

Size
Edge

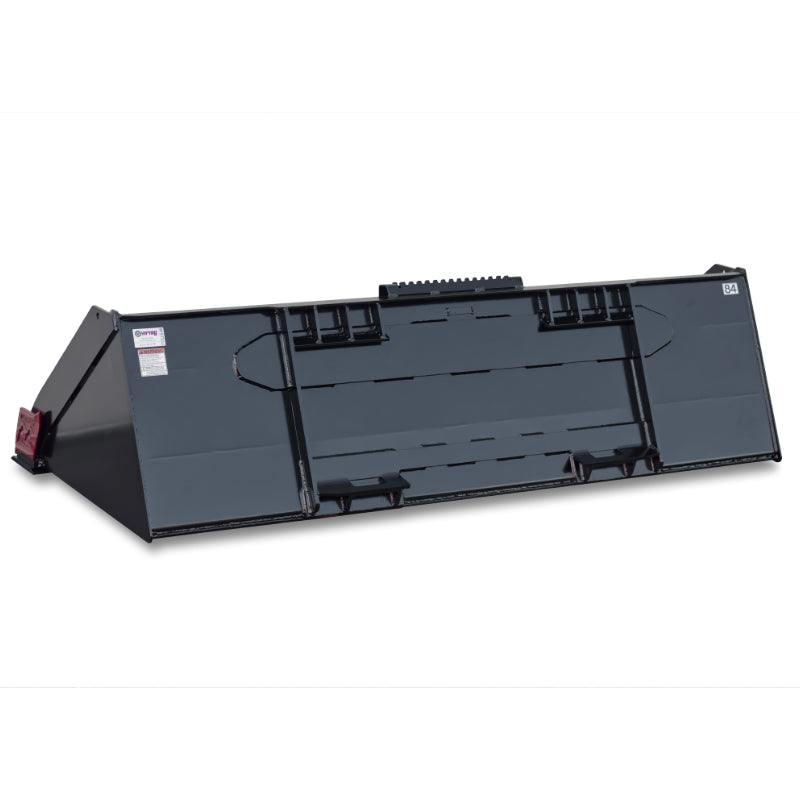

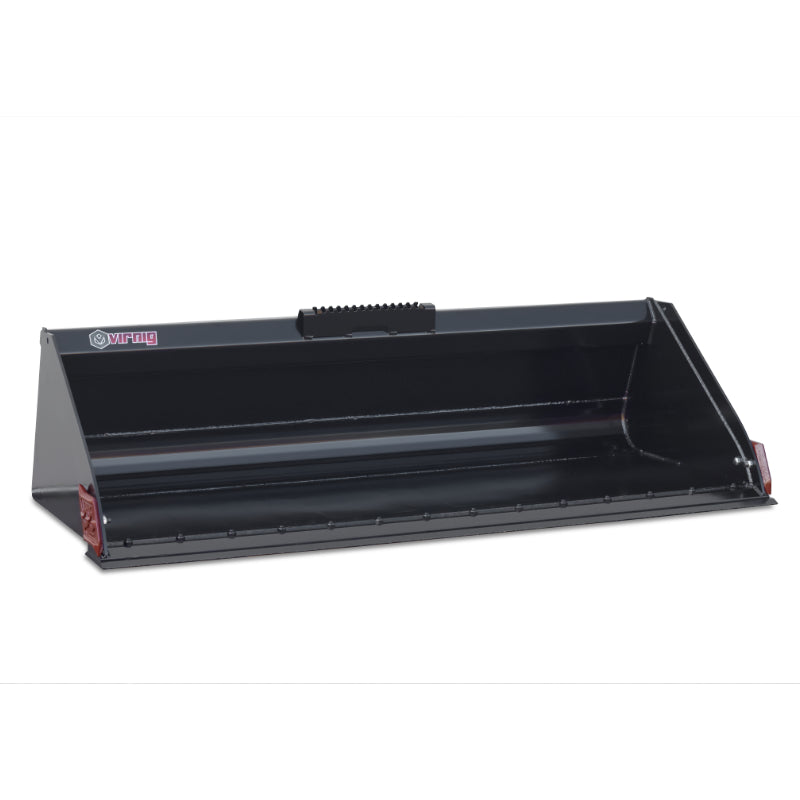

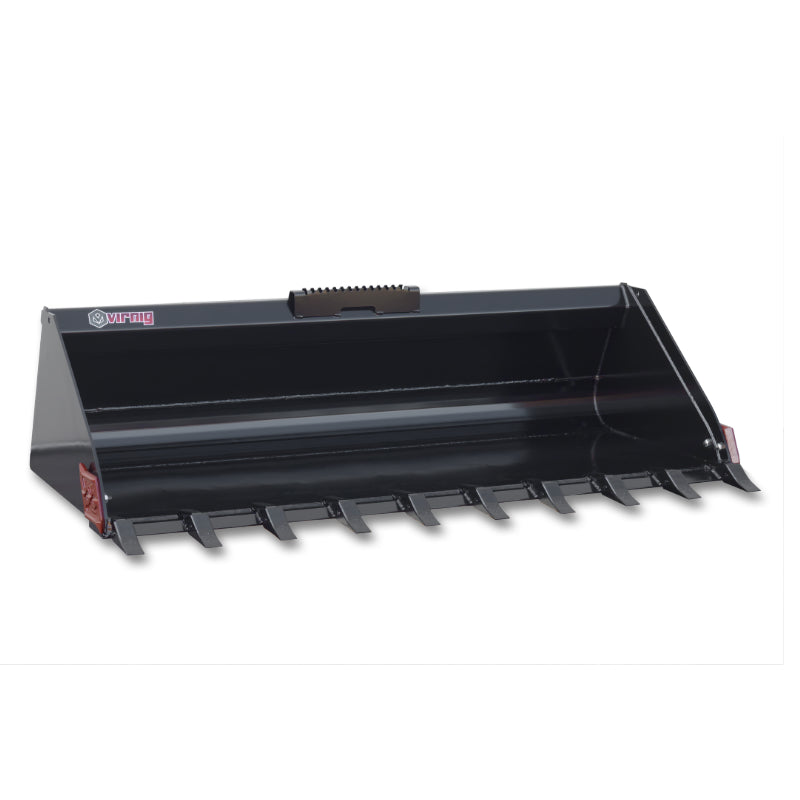

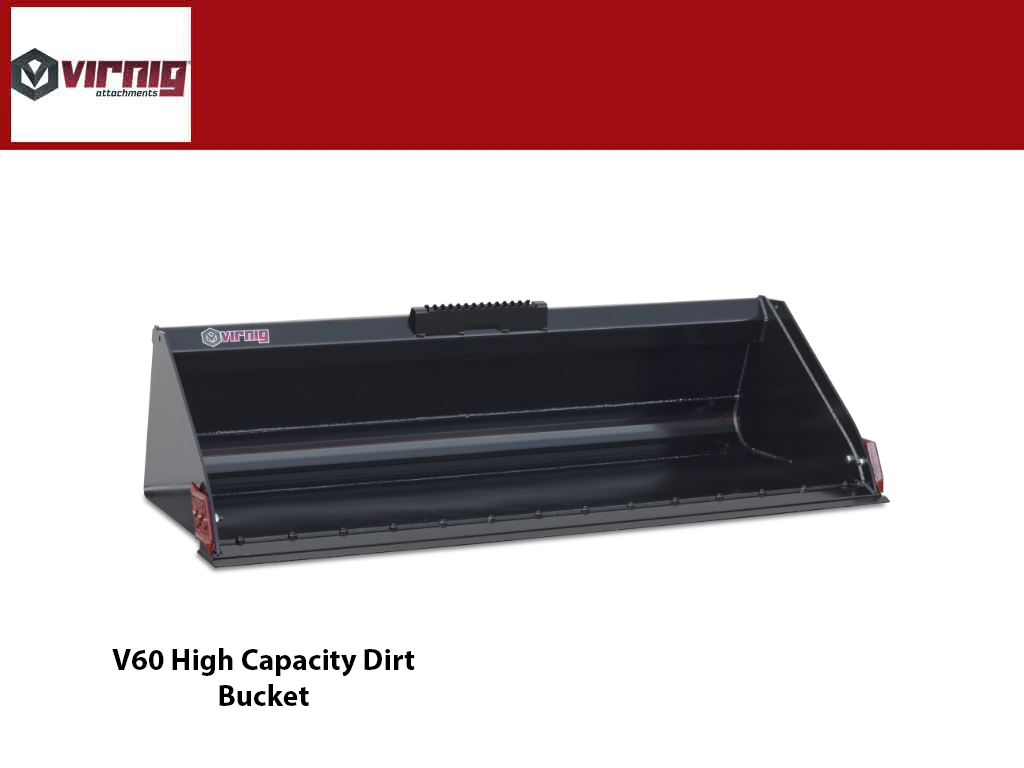

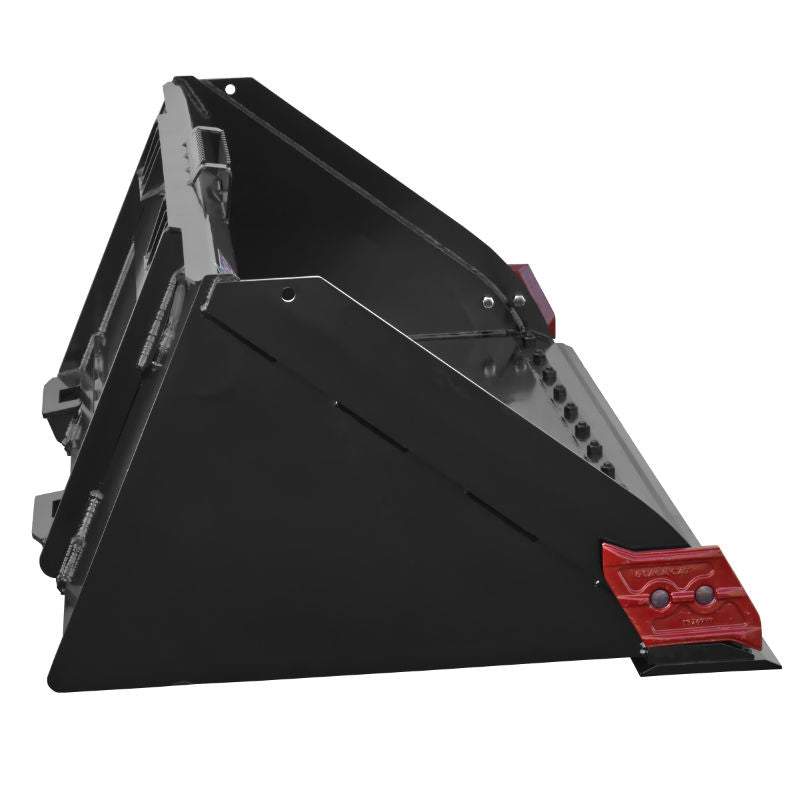

V60 High Capacity Dirt Bucket

The toughest and heaviest dirt bucket with the most capacity.

  • CUTTING EDGE VISIBLE FROM INSIDE CAB
  • GRADING BEND FOR OPTIMAL REVERSE GRADING & CURVED INSIDE FOR EASIER MATERIAL CLEANOUT
  • 1″ x 6″ WELD-ON EDGE
  • ADDITIONAL GUSSETING ON BACK OF BUCKET
  • ADDITIONAL WEAR BAR ACROSS ENTIRE BUCKET HEEL FOR LONGEVITY
  • 1/2″ x 4″ WEAR BARS PROTECT THE BUCKET BOTTOM
  • 1/4” THICK SHELL & SIDE PLATES



MODELS HCDB72 HCDB78 HCDB84 HCDB90
Width: Overall / Inside (Inches) 73.5 / 71.3 79.5 / 77.3 85.5 / 83.3 91.5 / 89.3
Overall Height (Inches) 24.1
Depth: Overall / Inside (Inches) 40.0 / 35.4
Capacity: Struck / Heaped (Cubic Feet) 19.5 / 23.4 21.1 / 25.3 22.7 / 27.2 24.3 / 29.2
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 5 5 5 5
Approximate Weight (Pounds) 805 850 890 935
Recommended Loader Capacity Greater than 2400 pounds
