Virnig

HSBP120-ELC7

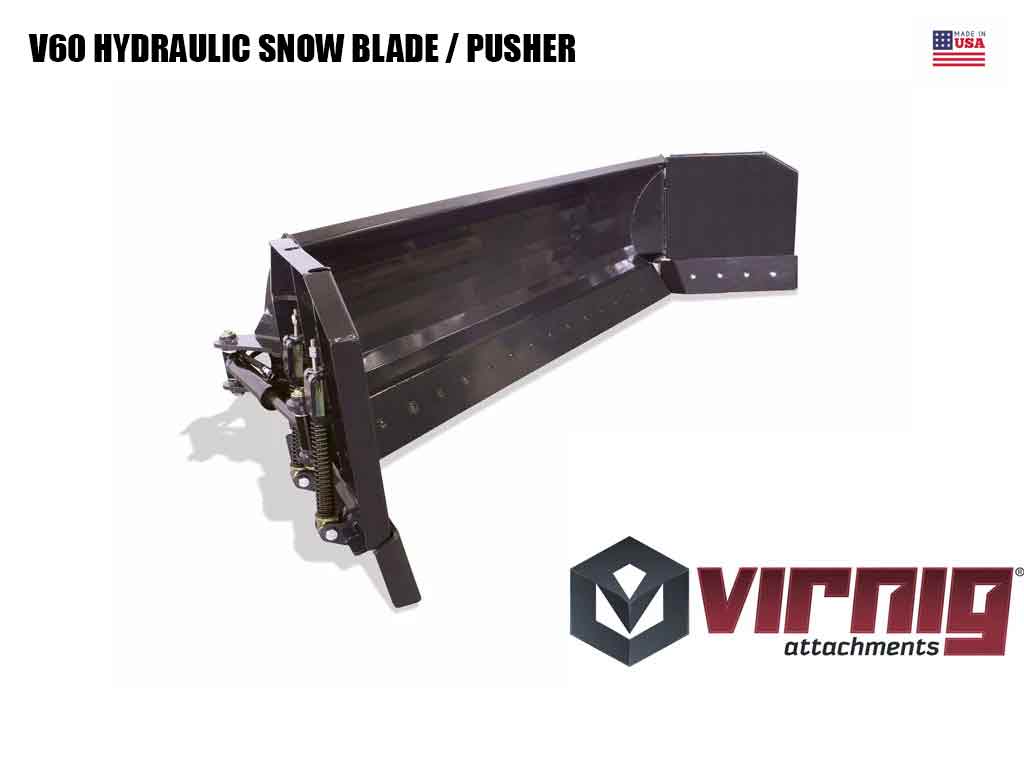

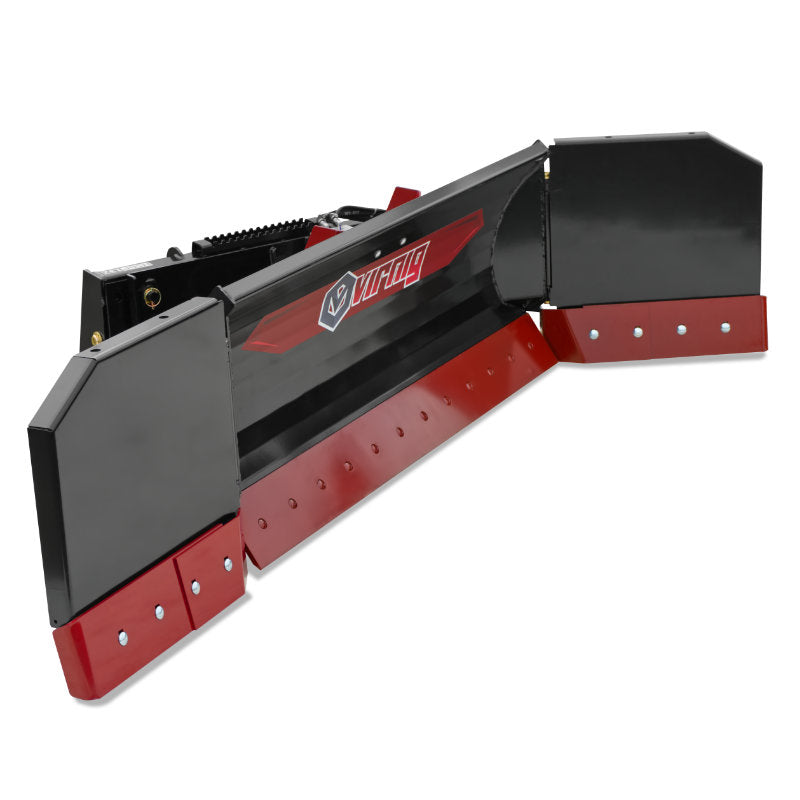

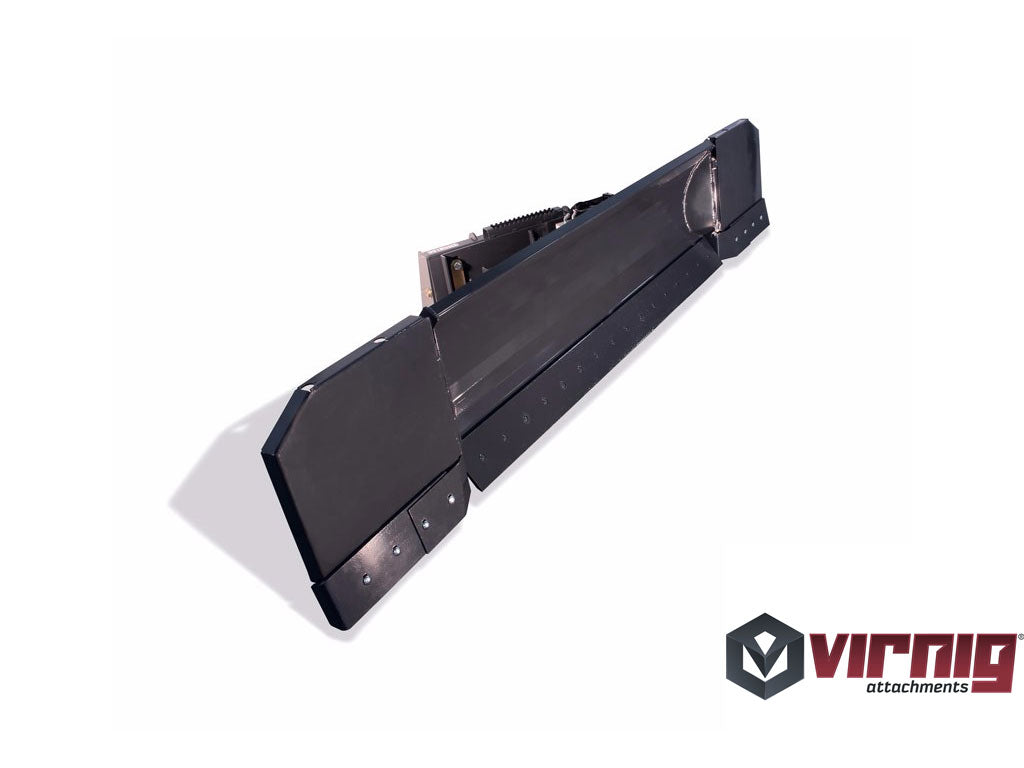

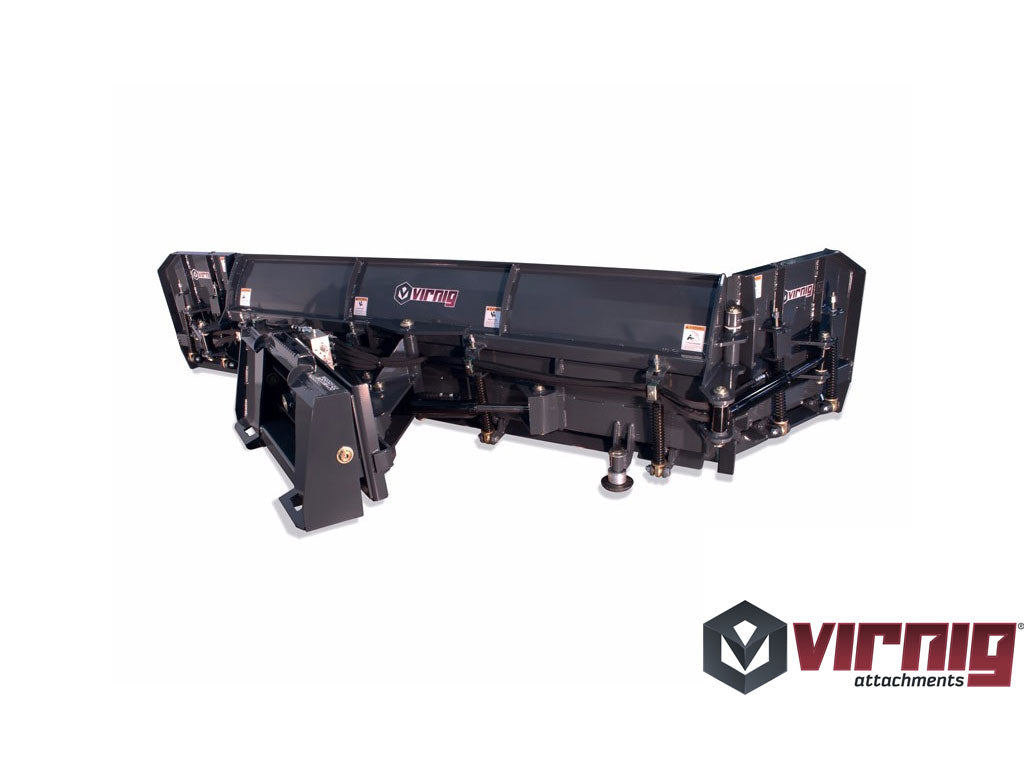

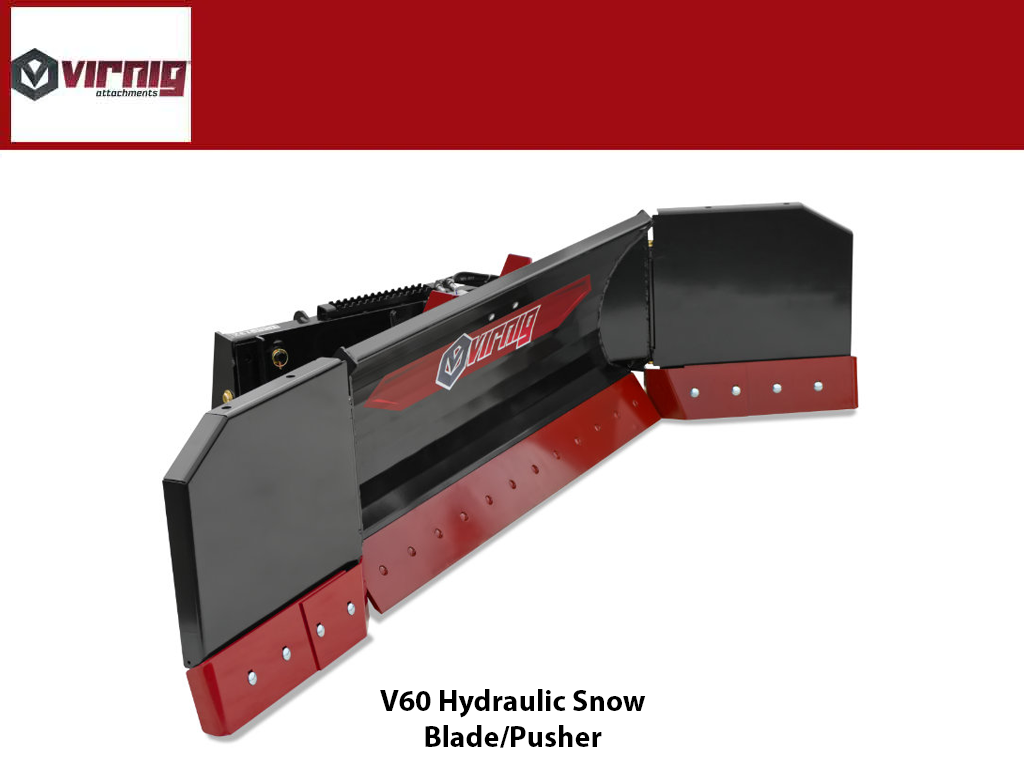

Virnig V60 Hydraulic Snow Blade/Pusher (SSL)(CTL)

Size
Electric Control

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS

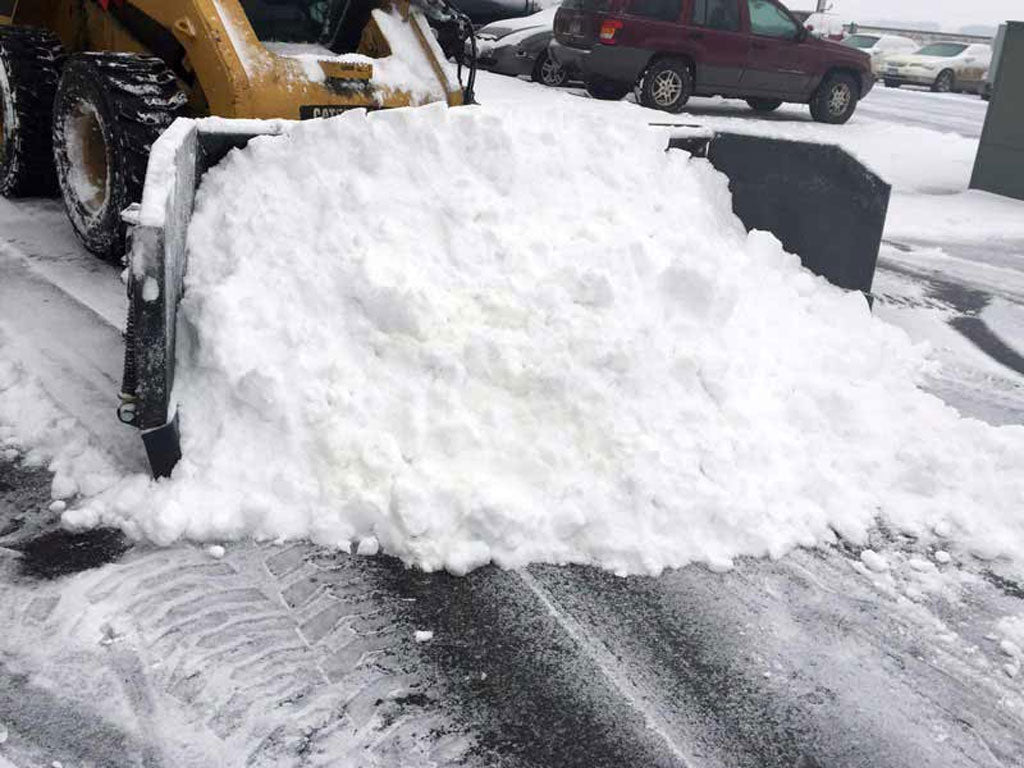

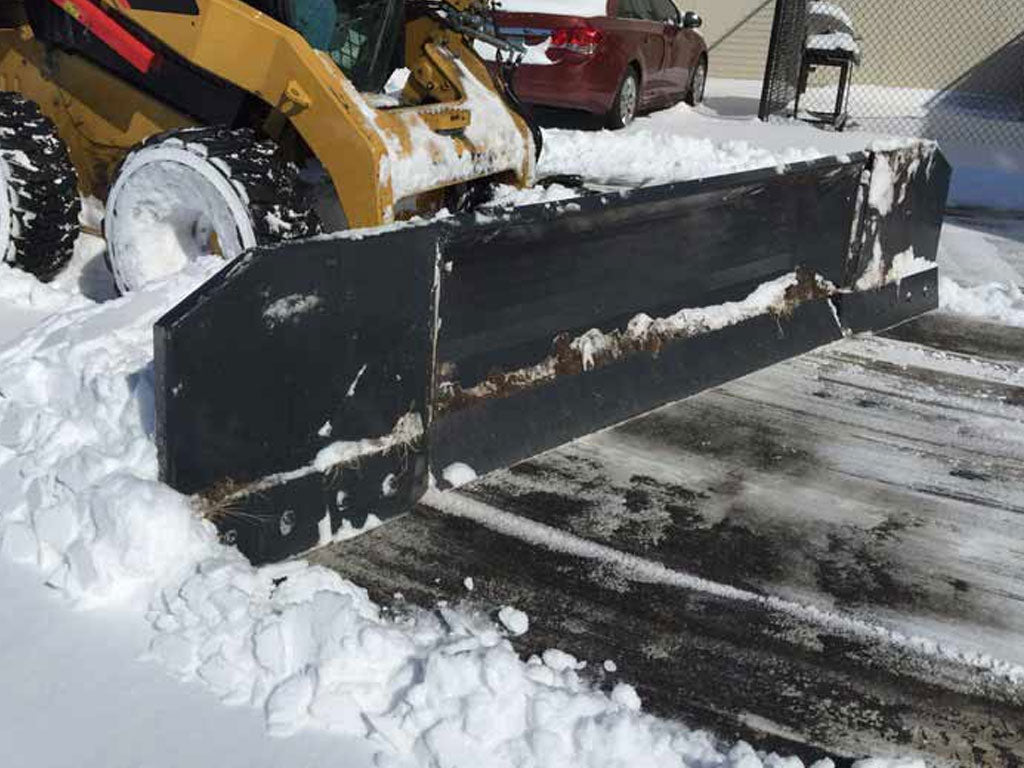

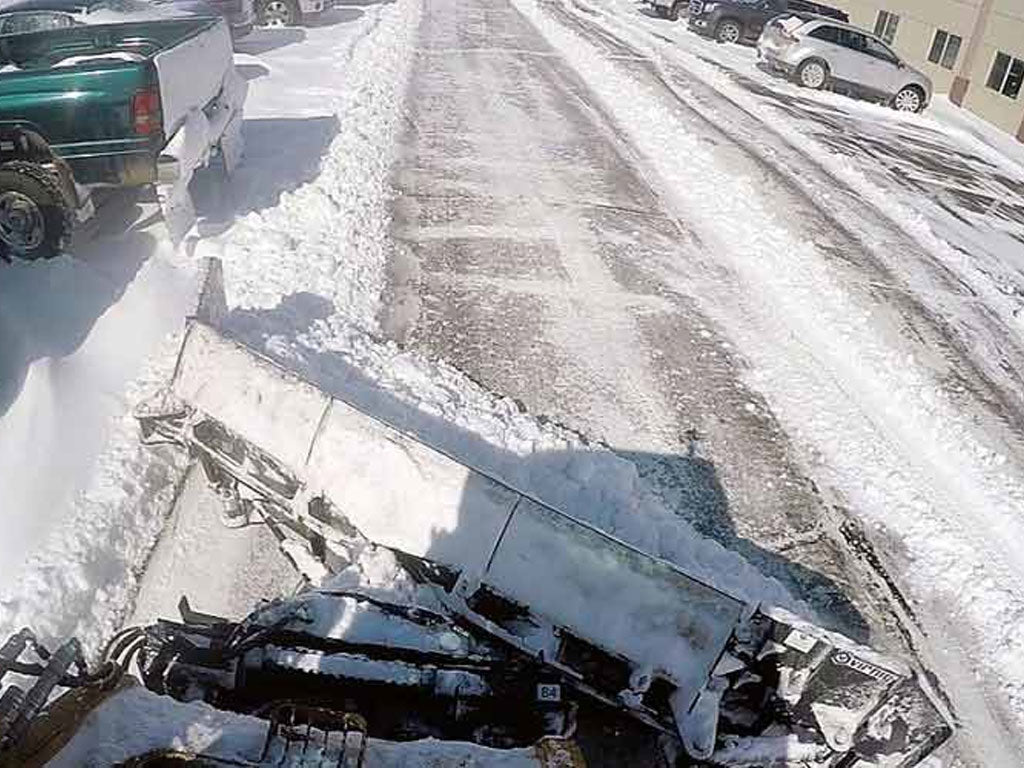

Virnig V60 Hydraulic Snow Blade/Pusher is a variable pusher allows straight and angled positions for optimal snow removal.
  • Electric over hydraulic control allows independent angling of each wing. This also allows the entire blade to be angled separately from the wings for infinite blade and wing angle configurations.

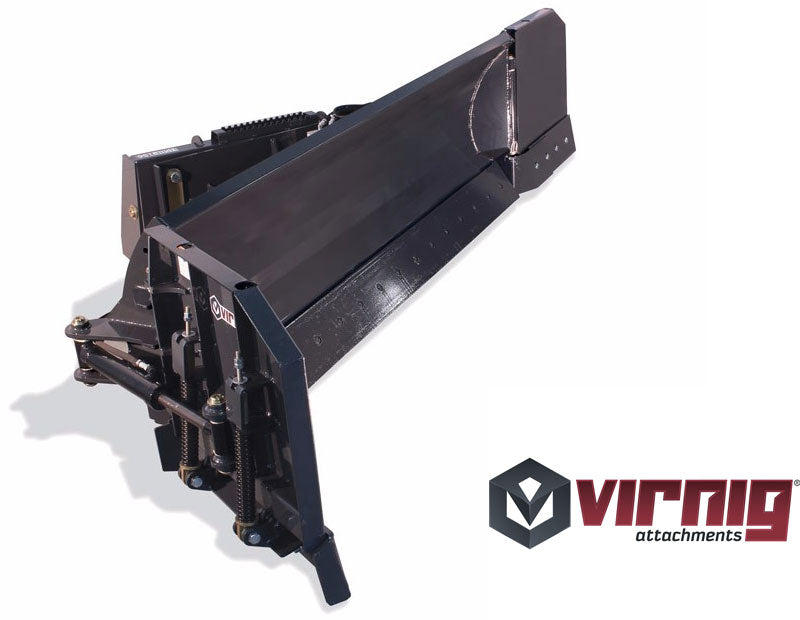

  • Floating frame link maintains full blade contact when wings are angled, while also allowing down pressure when the wings are straight.
  • Oscillation and adjustable cast skid shoes allows edge to follow uneven surfaces.
  • Hydraulic crossover relief valve protects the attachment by absorbing shock and angling the entire blade if a curb or other object is struck.

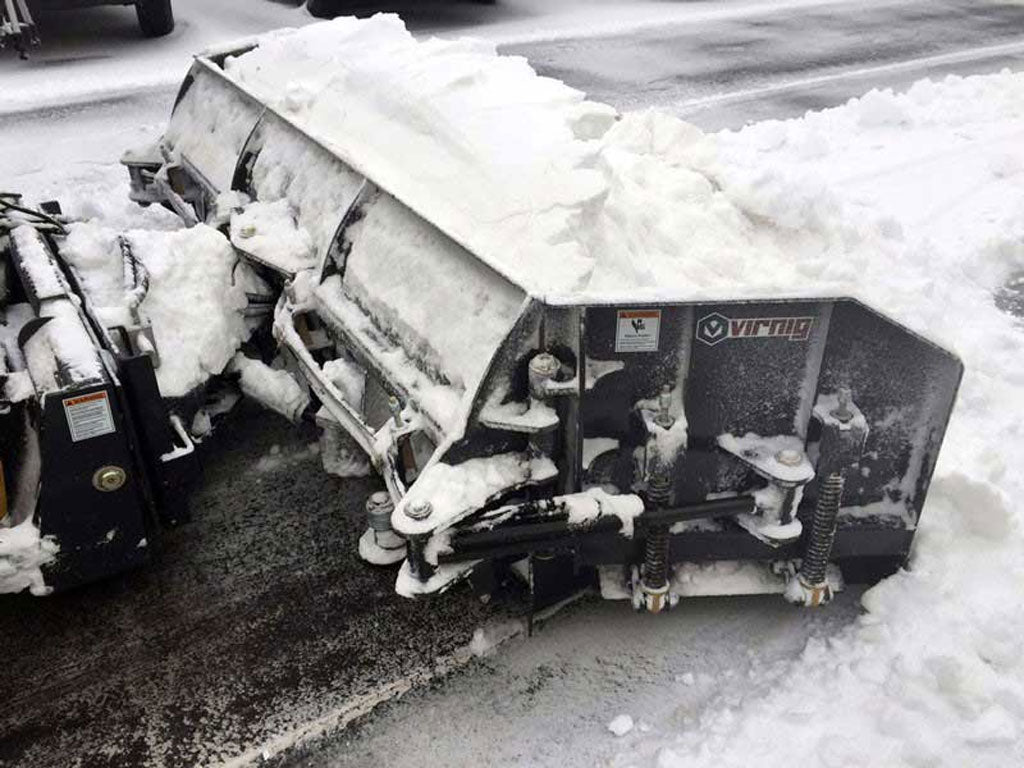

  • Three blade sections with individual trip edges utilizing eight total compression springs.
  • Middle section comes standard with 5/8” x 8” reversible, replaceable bolt-on wear edge. Design allows for 5-1/2” of total wear.
  • Wings come standard with 1/2” x 7-3/4” reversible, replaceable bolt-on wear edge made from high-tensile steel. Design allows for 5-1/2” of total wear.

EDGE OPTIONS

  • Steel Edge Installed
    • 5/8" x 8ˮ steel bolt-on edge allows 5 ½” of total wear
    • Edge is quickly reversed or replaced.
  • Poly Edge Installed
    • Replaces standard steel cutting edge.
    • 1” x 7 3⁄4” reprocessed UHMW (Ultra High Molecular Weight Polyethylene) allows 5 1⁄4” of total wear.
    • Reversible and replaceable like a steel bolt-on edge.

AVAILABLE OPTIONS

  • 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
  • Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control





Model HSBP 120 HSBP 132 HSBP 144 HSBP 156
Overall Blade Width (Inches) 124.5 136.5 148.5 160.5
Moldboard Width (Inches) 62.0 74.0 86.0 98.0
Blade Height (Inches) 31.0
Blade Angle (Degrees) +/- 30
Wing Angle (Degrees) +/- 60
Width at Full Angle Both Wings Open (Inches) 110.0 120.5 131.0 141.5
Width at Full Angle One Wing Open (Inches) 86.0 96.5 107.0 117.5
Width at Full Scoop (Inches) 96.5 108.5 120.5 132.5
Moldboard Thickness (Inches) 0.19
Cutting Edge (Inches) Steel or Polyethylene
Wing Cutting Edge (Inches) 1/2 x 7 3/4 High Tensile Steel, Bolt-on
Blade Oscillation (Degrees) +/- 4
Float Link Angle (Degrees) +/- 5
Approximate Weight (Pounds) 1590 1650 1710 1770
Recommended Loader Capacity Greater than 1800 pounds
