THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- CYLINDER GUARDS STANDARD

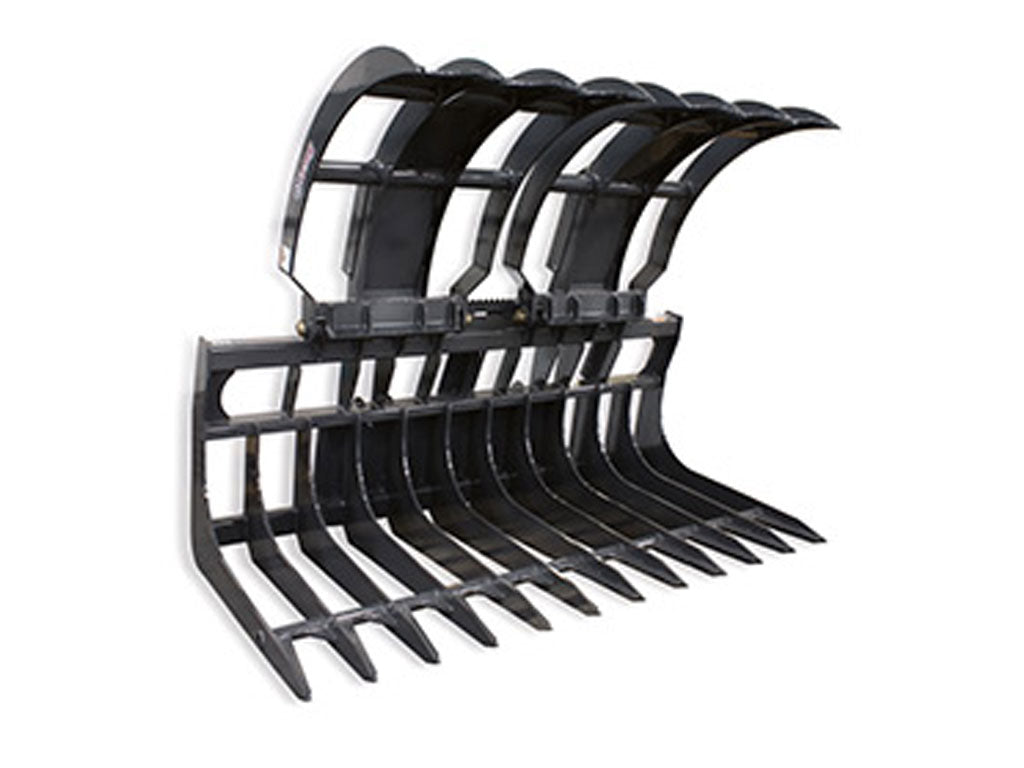

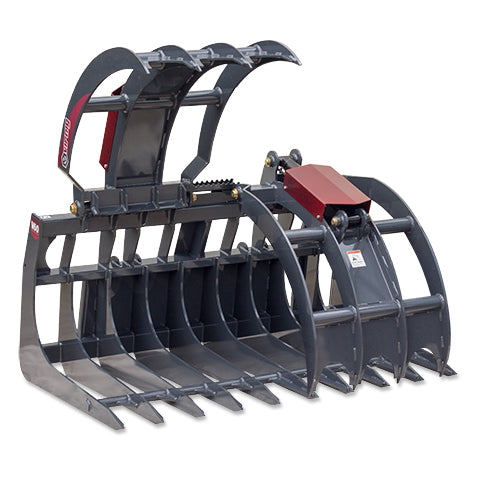

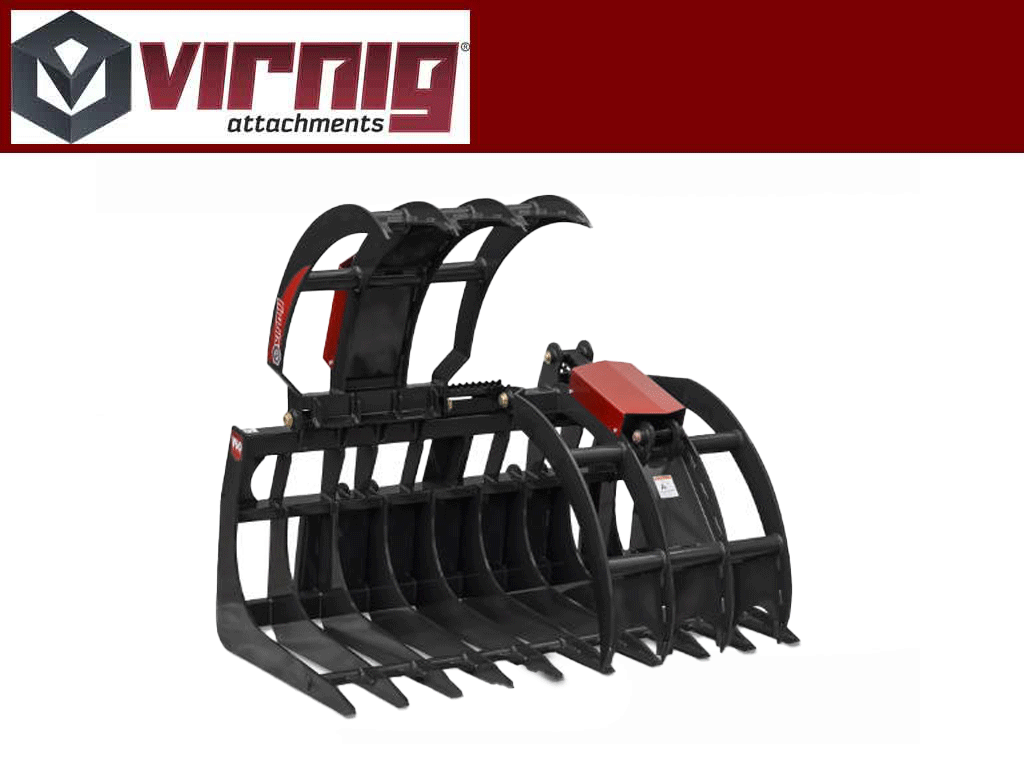

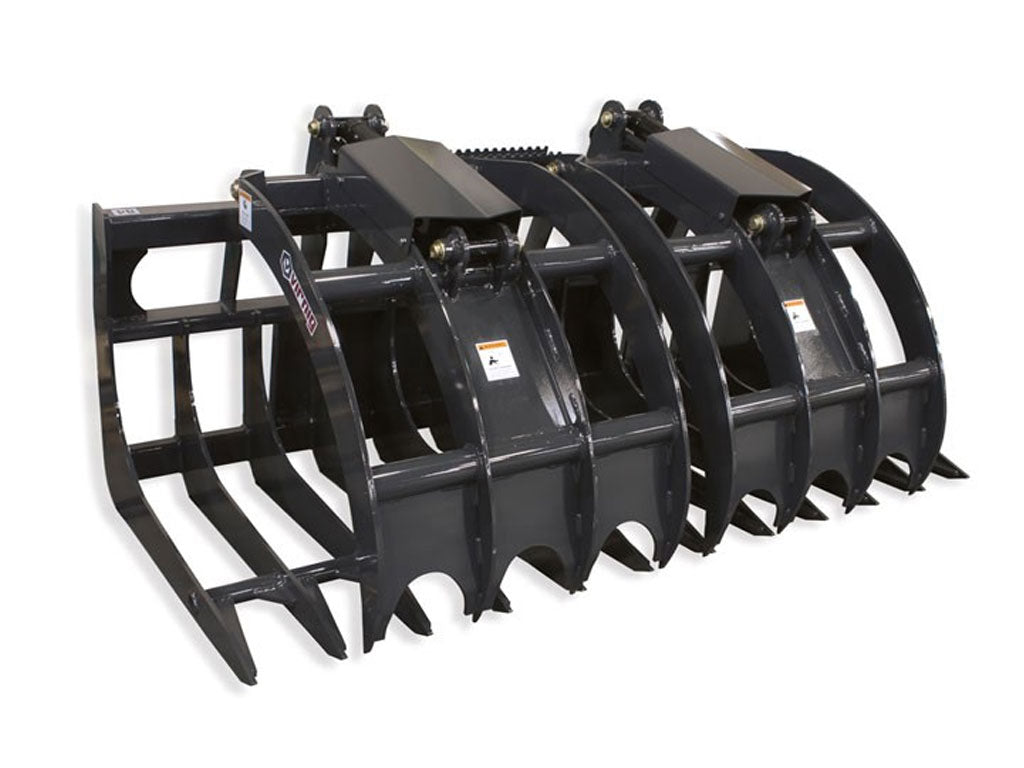

Two-cylinder independent grapple opens over 5 feet for large jobs.
- Heavy-duty 1/2″ Grade 80 steel tines and 1/2″ Grade 50 steel jaw tines.
- Open back gives excellent visibility.
- 2 1/2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
- Greasable 1 9/16” diameter hinge pins and 1 1/4” cylinder pins.
- Fully gusseted tine tips for added strength.
- Teflon® coated bushings provide lubrication at all pivot locations.
- Machine specific hydraulic package to completely protect hose routing.
- Recommended loader capacity - Greater than 2400 lbs ROC
- Cylinder Bore / Stroke (in) 2.5 / 8.375
- Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
Model |
72" |
84" |
Overall Width (in) |
73.0 |
85.0 |
Depth (in) |
46 |
46 |
Height (in) |
33.8 |
33.8 |
Grapple Jaw Opening (in) |
62.8 |
62.8 |
Number of Tines |
10 |
12 |
Space Between Tines |
7.5 |
7.1 |
Weight (lbs) |
1550 |
1650 |
In stock items usually ship in 3-5 days
Non stock items usually ship in 4-6 weeks

The V60 series was designed and constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations.
