Virnig

HMPV66

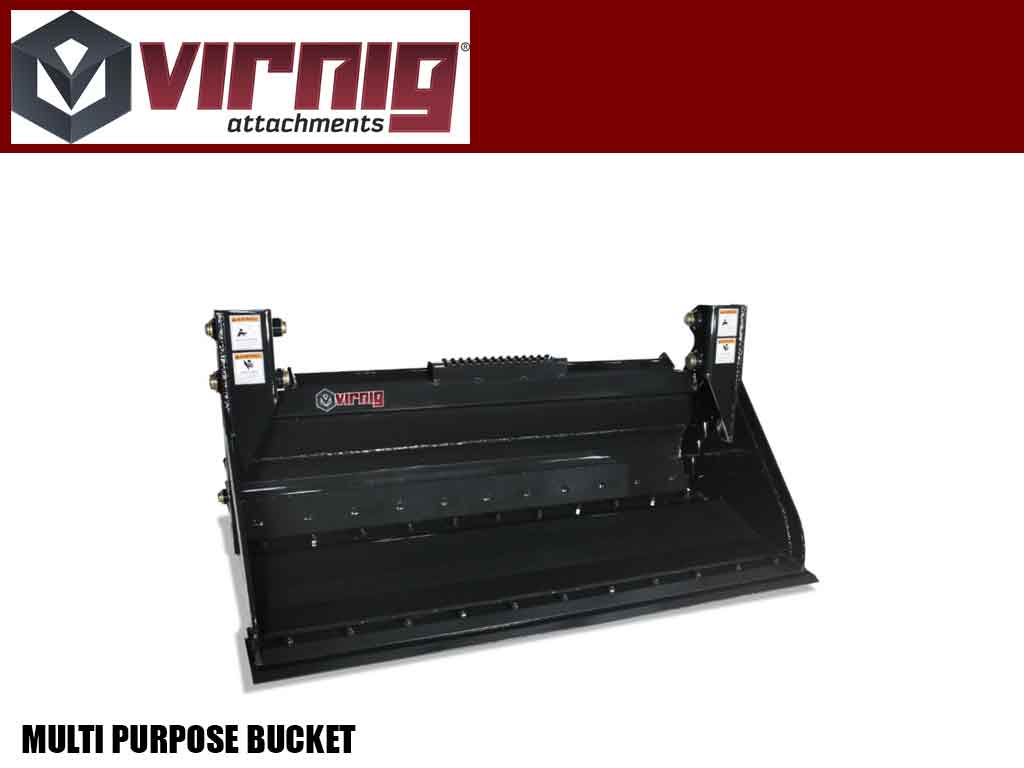

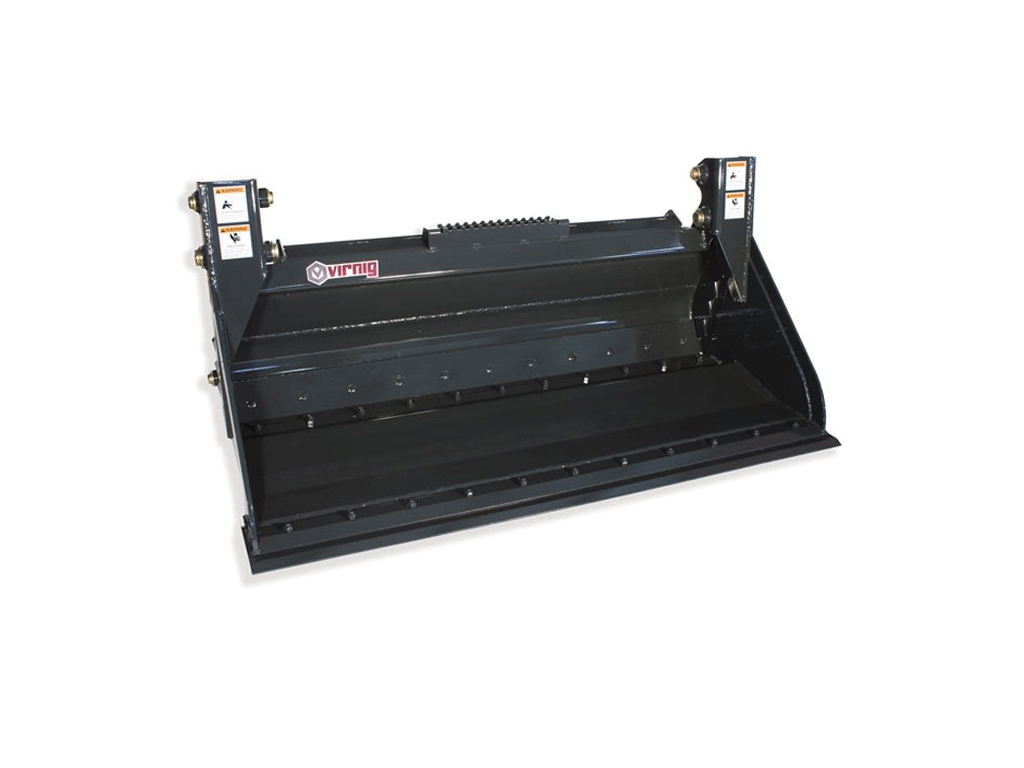

Virnig V60 Multi-Purpose 4-in-1 Bucket (SSL)(CTL)

Size
Edge

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS, CYLINDERS & FITTINGS

Multiple functions in one attachment to save time and money.

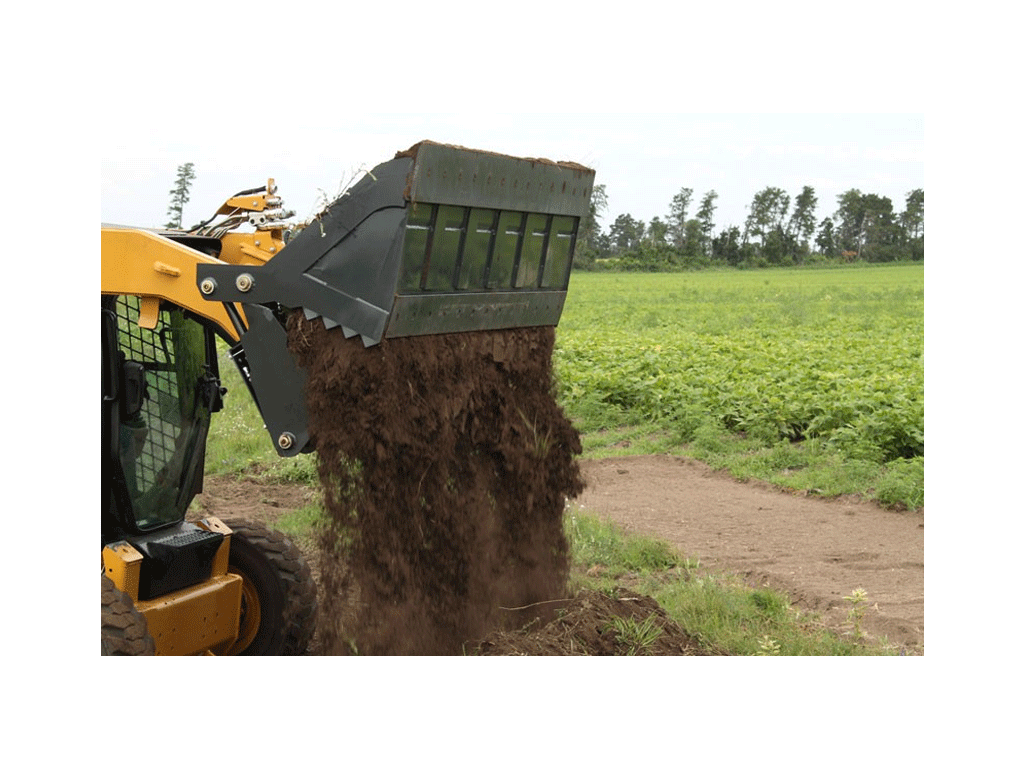

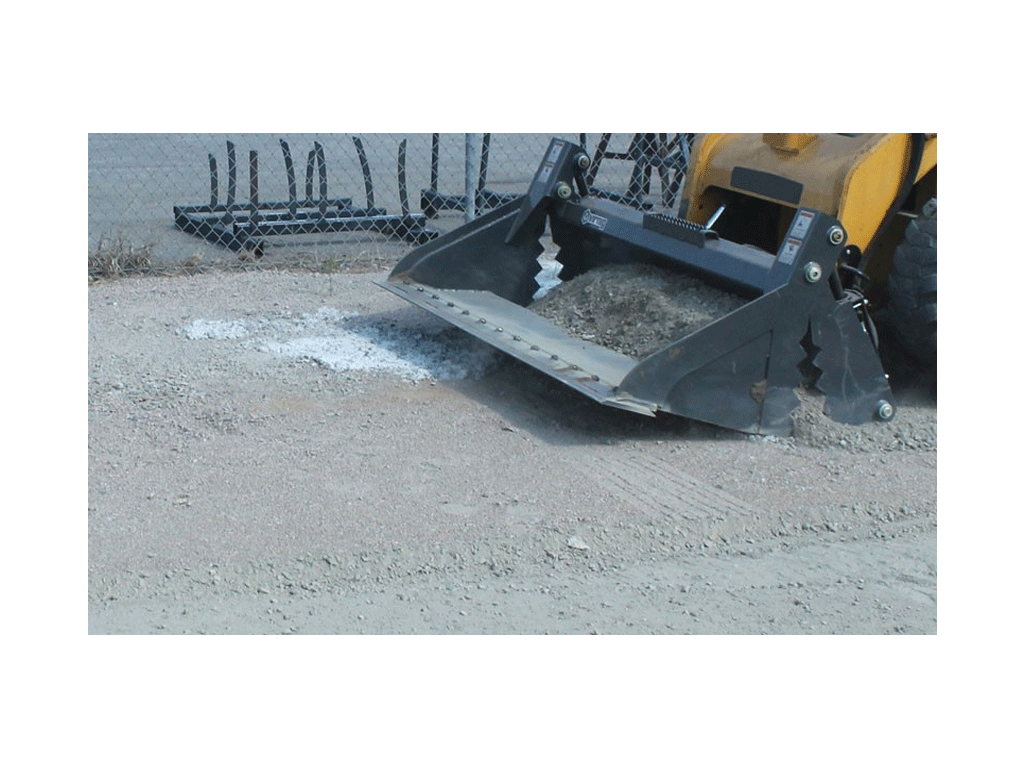

  • Functions include dozing, clamming, leveling, and bottom dumping.
  • Large 33” opening for easier, more efficient operation.
  • Design provides effective dozing, while maintaining maximum visibility.
  • HMPV models have 1/4″ shell, 1-2 extra wear bars underneath, additional bracing, 1/2″ hinge structure and reinforcement at rear corners of dozer and quick-tach plate.
  • 5/8″ x 6″ reversible, replaceable bolt-on edge at rear of clam and front of dozer.
  • 1” x 6” weld-on edge on front of bucket accepts optional edges.
  • Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA. Cylinder Guards standard.
  • Stronger than the V50 Mulit-Purpose Bucket.
  • Commonly called a 4-in-1 bucket.
      OPTIONAL EDGES
      • Bolt on Cutting Edge (BOCE) installed
        • Extends life of bucket.
        • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
      • Serrated Edge (SE) installed
        • Excellent alternative to toothbar for chiseling and breaking up soil.
        • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
      • Weld-on Teeth (WOT) installed
        • Replaceable Series 23 cast teeth with cast shank, welded directly to the bucket edge.
        • Excellent for breaking up compact soil.
      Optional Side Cutters - Call for info and pricing
      • Reversible - only one in industry.
      • Improves performance in hard compacted soils.
      • Cast steel lengthens life of bucket sides.
      • Not compatible with Toothbars.

      Optional Holding Valve - Call for info and pricing

      • When external loads are applied, the valve increases the holding force of the hydraulic cylinders.
      • Works with all Virnig Multi-Purpose Buckets.





          Model HMPV 66 HMPV 72 HMPV 78 HMPV 84
          Overall Bucket Width (Inches) 67.5 73.5 79.5 85.5
          Bucket Depth: Overall / Inside (Inches) 37.0 / 28.5
          Bucket Height (Inches) 21.3
          Dozer Width (Inches) 65.9 71.9 77.9 83.9
          Clam Opening (Inches) 33.0
          Shell Thickness (Inches) 0.25
          Hinge Structure Thickness (Inches) 0.5
          Cylinder Bore / Stroke (Inches) 2.5 / 8.375
          Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
          Structural Wear Bars Underneath Bucket (1/2″ x 4″) 4 4 5 5
          Approximate Weight (Pounds) 1045 1100 1165 1220
          Recommended Loader Capacity Greater than 2400 pounds



          In stock items usually ship in 3-5 days

          Non stock items usually ship in 4-6 weeks
