Virnig

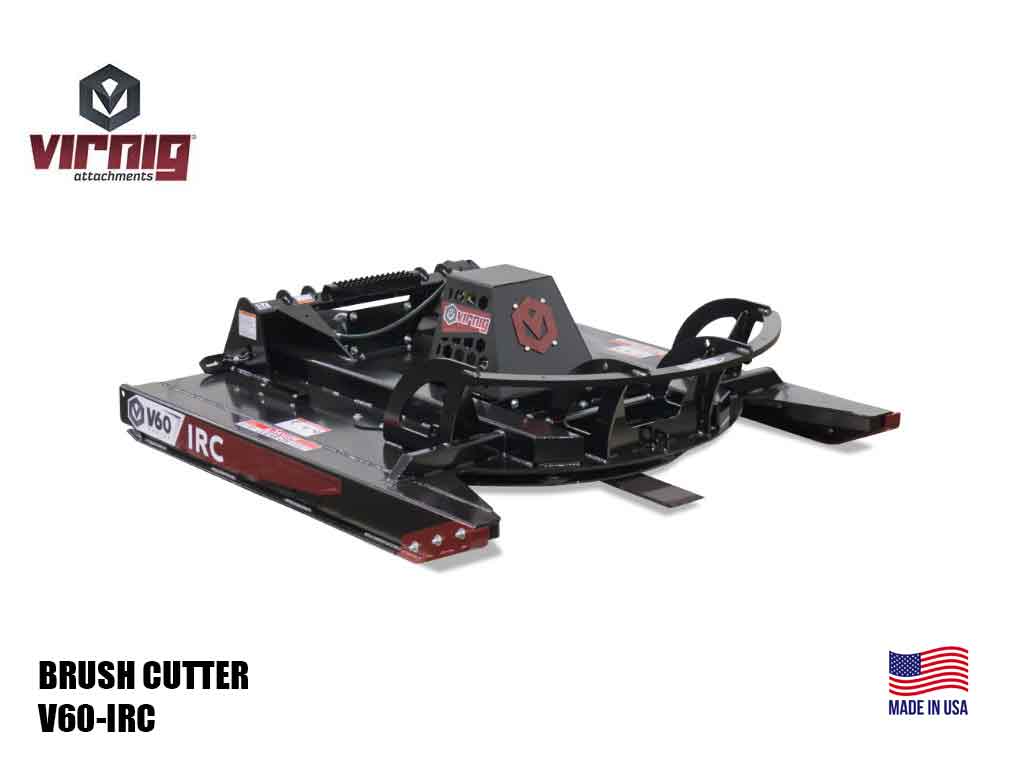

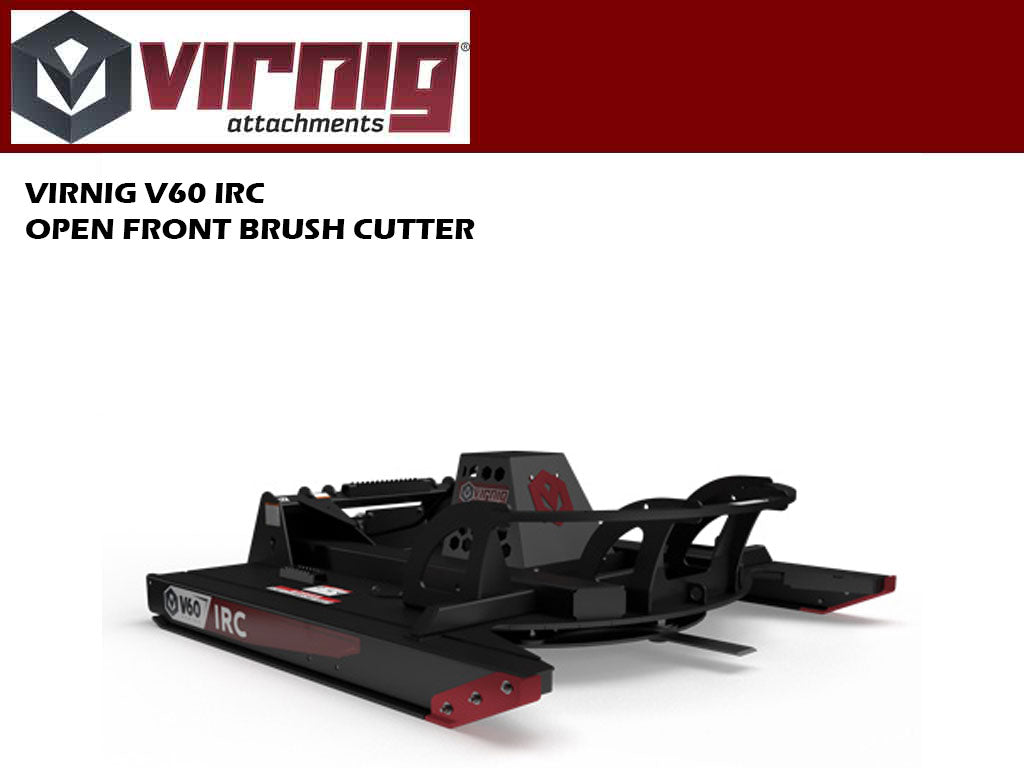

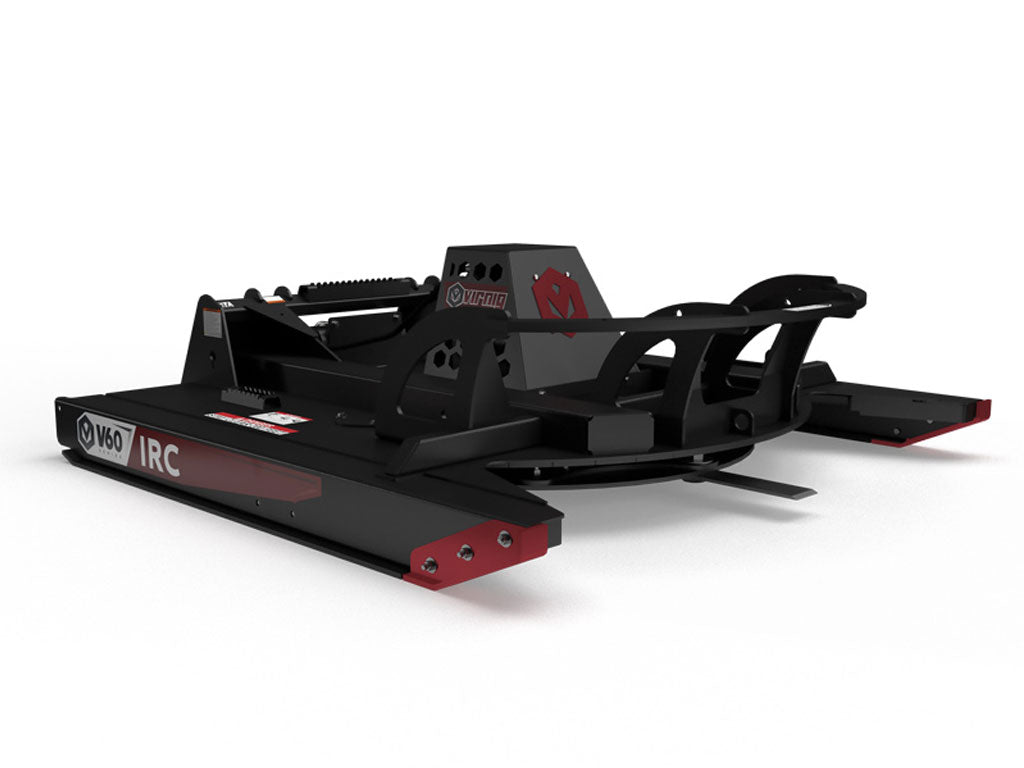

Virnig V60-IRC Rotary Brush Cutter Open Front Deck

Size
Flow
Teeth

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES & COUPLERS

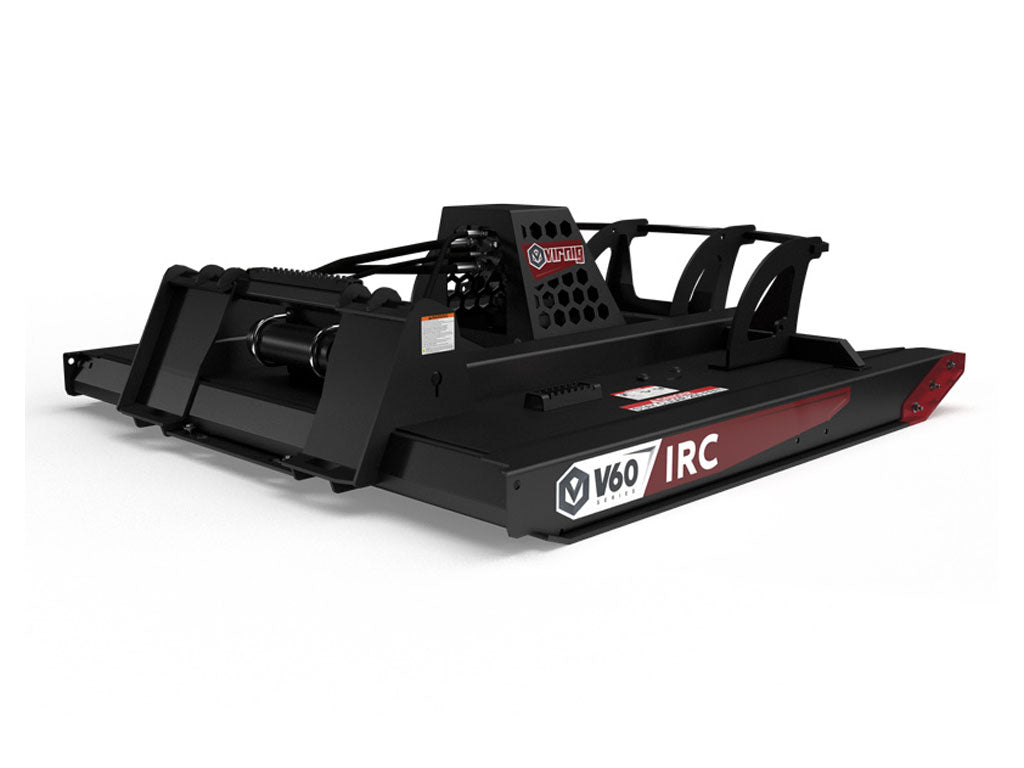

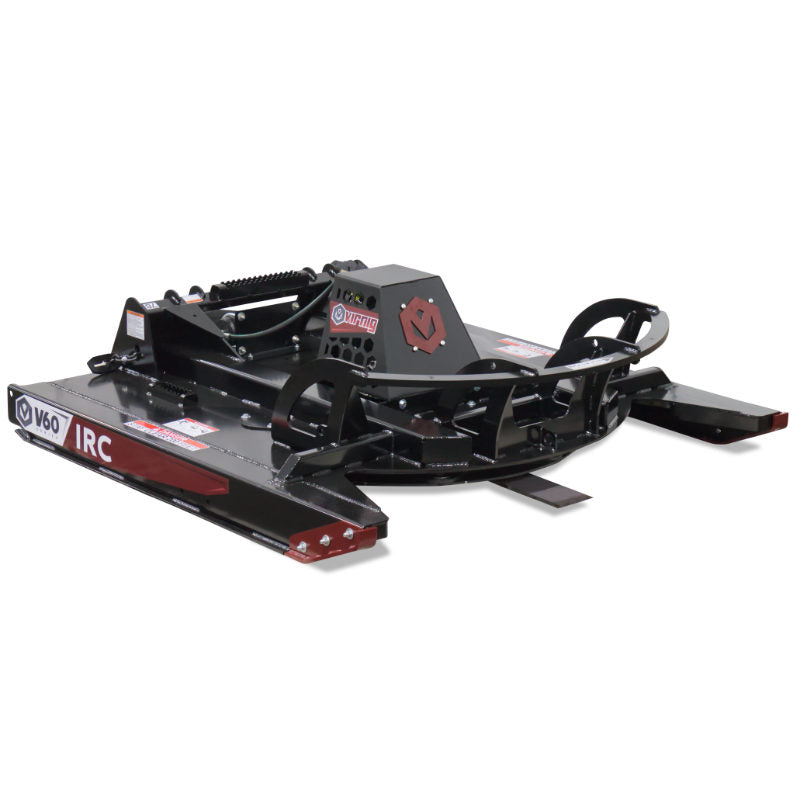

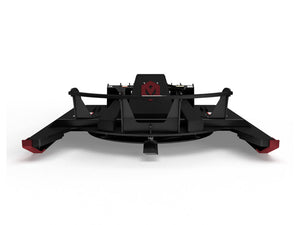

V60 INDUSTRIAL ROTARY CUTTER

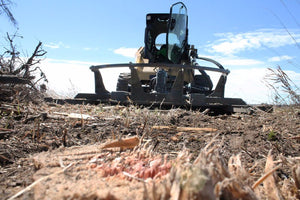

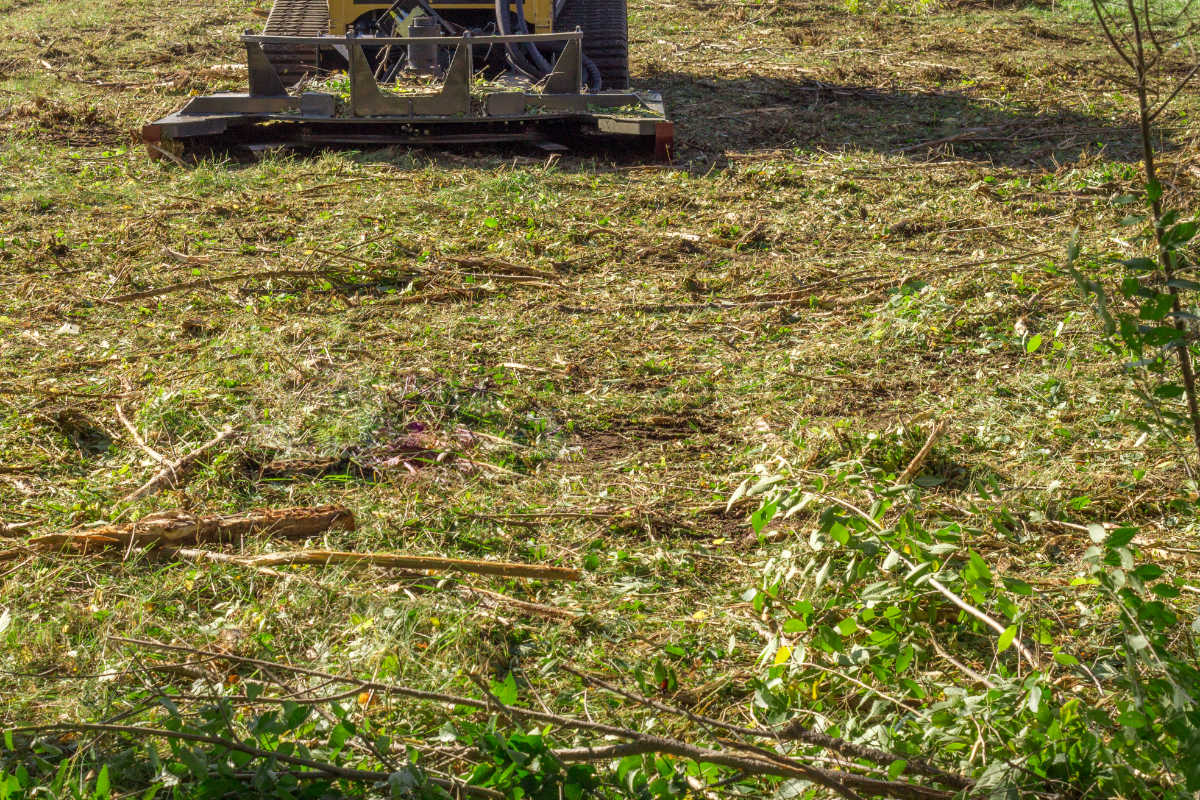

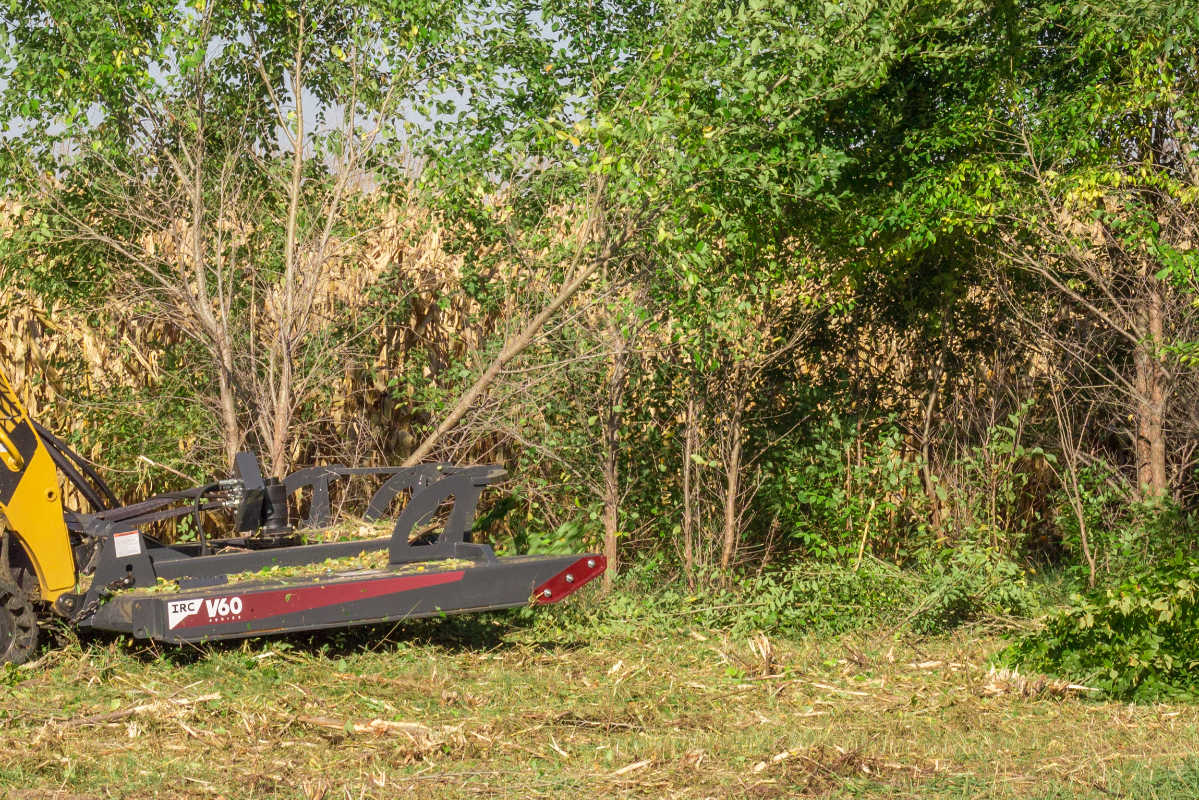

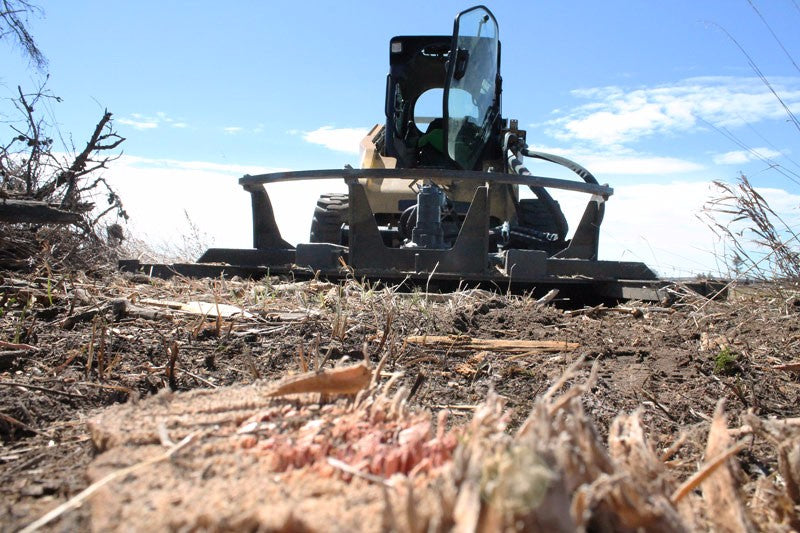

  • Clears up to 8″ diameter trees and rough-cuts thick grass and brush.

    DIRECT DRIVE SYSTEM WITH RELIEF VALVES
    Eaton® motor and USA made spindle provide optimum performance and longevity. Pressure relief valves protect the motor if obstruction is hit.

    HYDRAULIC BRAKING
    Dynamic hydraulic braking stops the flywheel in less than 15 seconds.

    VENTED MOTOR GUARD
    Shields the motor and hose adapters from falling debris while maximizing airflow to keep the motor cool.

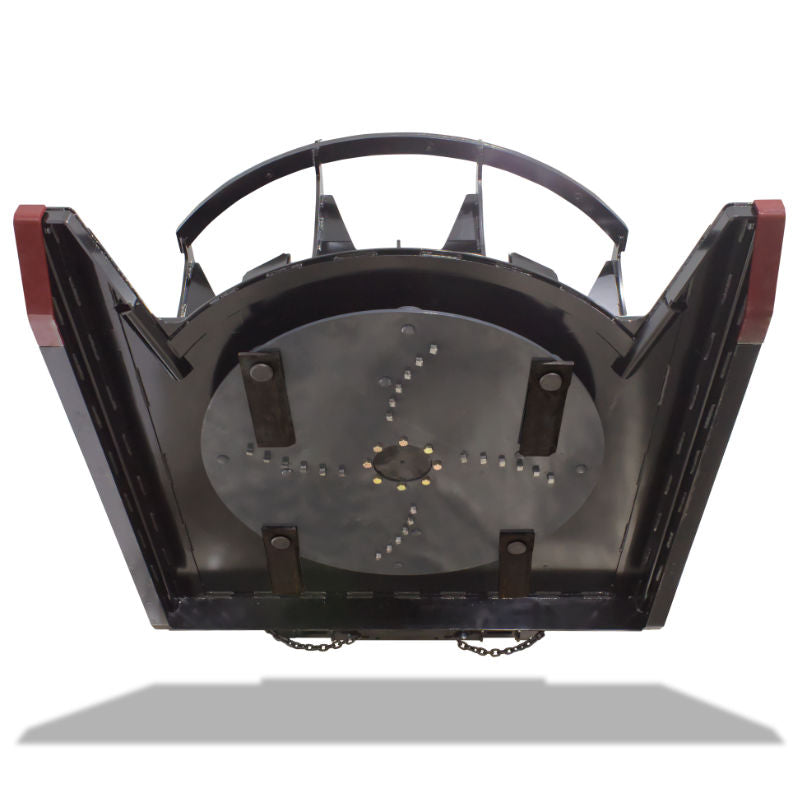

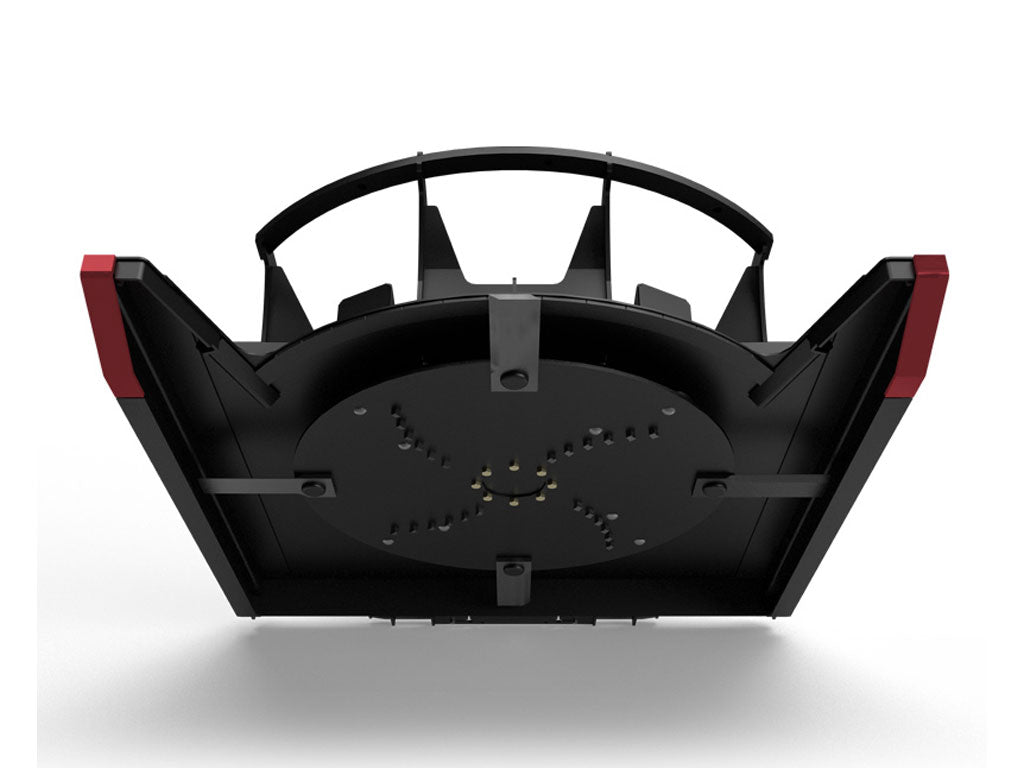

    CIRCULAR FLYWHEEL WITH DOUBLE-SIDED BLADES
    Flywheel bounces off stumps and debris. Blades can be flipped to utilize second sharpened edges.

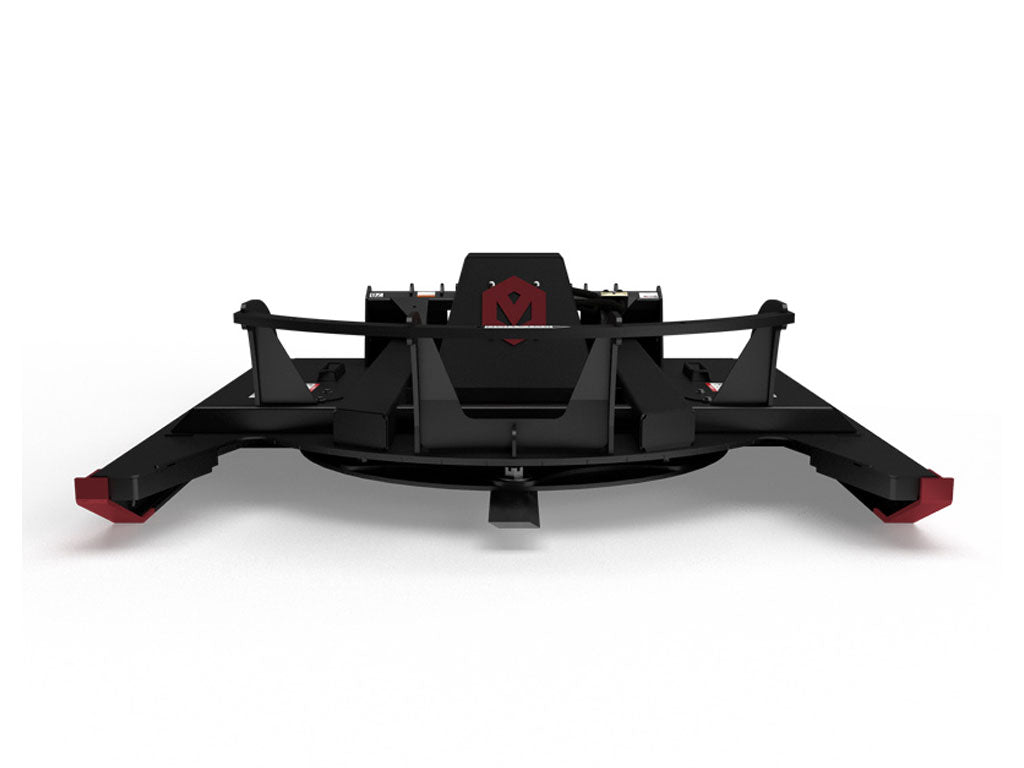

    TALL PUSH BAR
    Provides rigidity and helps push over thick brush and trees.

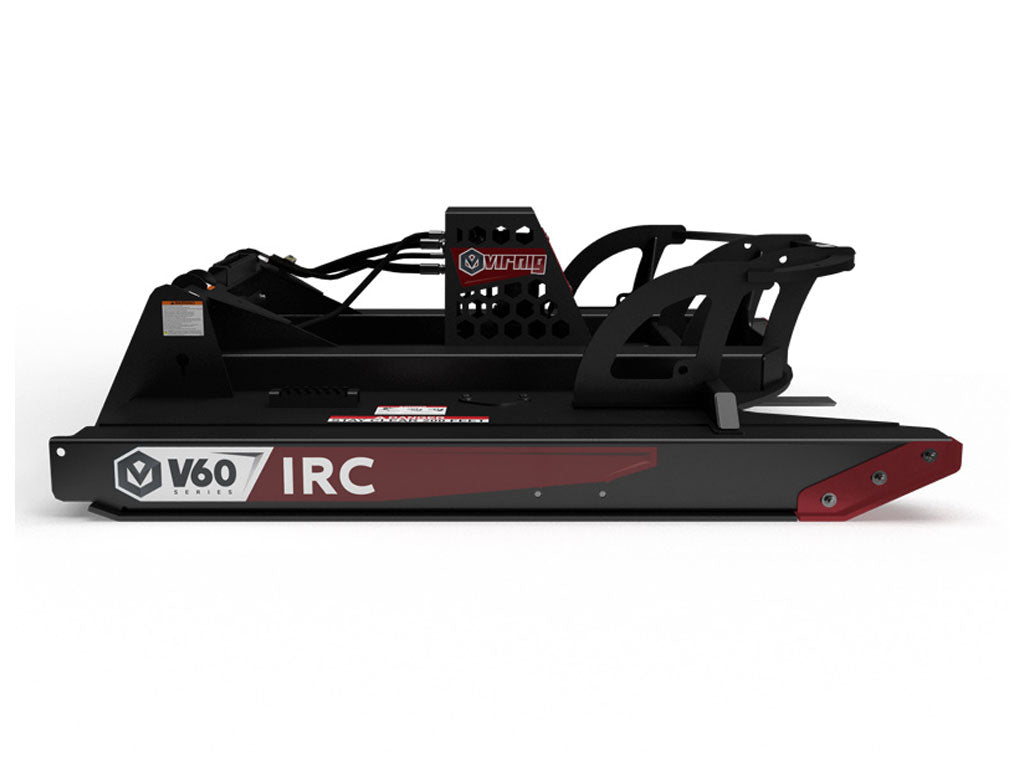

    REPLACEABLE SKID SHOES
    Increase the mower deck’s wear life.


DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON LOADER.


    ¹Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
    ²High Flow motor options add approximately 70 pounds to model weight.

    MODEL IRC72 IRC78 IRC84
    Cut Width (Inches) 72.0 78.0 84.0
    Overall Width (Inches) 78.0 84.0 90.0
    Overall Height (Inches) 20.1
    Overall Depth (Inches) 80.3 86.3 92.3
    Deck Height (Inches) 8.3
    Push Bar Height (Inches) 23.4
    Cut Height (Inches) 2.3
    Cutting Capacity, Diameter (Inches) 8.0
    Deck Thickness: Top / Side (Inches) 0.25¹
    Recommended Flow Rate (GPM) 20-25 Standard Flow, 25-45 High Flow
    Approximate Weight (Pounds) 2120² 2280² 2420²
    Recommended Loader Capacity Greater than 2200 pounds
    • Recommended Loader Capacity: Greater than 2200 lbs ROC
    • Push Bar Height (in): 23.4
    • Overall Height (in):  20.1
    • Deck Height (in):  8.3
    • Minimum Cut Height (in):  2.3
    • Cutting Capacity, Diameter (in):  8.0
     MODEL CUT WIDTH OVERALL WIDTH HEIGHT
    ICR72-25 72" 78" 20.1"
    ICR78-25 78" 84" 20.1"
    ICR84-25 84" 90" 20.1"
    ICR72-HF32 72" 78" 20.1"
    ICR78-HF32 78" 84" 20.1"
    ICR84-HF32 84" 90" 20.1"
    ICR72-HF39 72" 78" 20.1"
    ICR78-HF39 78" 84" 20.1"
    ICR84-HF39 84" 90" 20.1"
    ICR72-HF45 72" 78" 20.1"
    ICR78-HF45 78" 84" 20.1"
    ICR84-HF84 84" 90" 20.1"



     MODEL DEPTH DECK HEIGHT PUSH BAR HEIGHT
    ICR72-25 80.3" 8.3" 23.4"
    ICR78-25 86.3" 8.3" 23.4"
    ICR84-25 92.3" 8.3" 23.4"
    ICR72-HF32 80.3" 8.3" 23.4"
    ICR78-HF32 86.3" 8.3" 23.4"
    ICR84-HF32 92.3" 8.3" 23.4"
    ICR72-HF39 80.3" 8.3" 23.4"
    ICR78-HF39 86.3" 8.3" 23.4"
    ICR84-HF39 92.3" 8.3" 23.4"
    ICR72-HF45 80.3" 8.3" 23.4"
    ICR78-HF45 86.3" 8.3" 23.4"
    ICR84-HF84 92.3" 8.3" 23.4"



     MODEL CUT HEIGHT CUT DIAMETER RECOMMENDED FLOW
    ICR72-25 2.3" 8" 20-25 GPM
    ICR78-25 2.3" 8" 25-32 GPM
    ICR84-25 2.3" 8" 25-32 GPM
    ICR72-HF32 2.3" 8" 25-32 GPM
    ICR78-HF32 2.3" 8" 25-32 GPM
    ICR84-HF32 2.3" 8" 25-32 GPM
    ICR72-HF39 2.3" 8" 32-39 GPM
    ICR78-HF39 2.3" 8" 32-39 GPM
    ICR84-HF39 2.3" 8" 32-39 GPM
    ICR72-HF45 2.3" 8" 39-45 GPM
    ICR78-HF45 2.3" 8" 39-45 GPM
    ICR84-HF84 2.3" 8" 39-45 GPM



     MODEL EST WEIGHT CARRIER CAPACITY NUMBER OF TEETH
    ICR72-25 2120 LB > 2200 LB 20
    ICR78-25 2280 LB > 2200 LB 24
    ICR84-25 2420 LB > 2200 LB 28
    ICR72-HF32 2190 LB > 2200 LB 20
    ICR78-HF32 2350 LB > 2200 LB 24
    ICR84-HF32 2490 LB > 2200 LB 28
    ICR72-HF39 2190 LB > 2200 LB 20
    ICR78-HF39 2350 LB > 2200 LB 24
    ICR84-HF39 2490 LB > 2200 LB 28
    ICR72-HF45 2190 LB > 2200 LB 20
    ICR78-HF45 2350 LB > 2200 LB 24
    ICR84-HF84 2490 LB > 2200 LB 28



    BLADE TIP SPEEDS (FPM)

    Standard Flow Models

    MODEL 20 GPM 25 GPM
    ICR72-25 11020 13775
    ICR78-25 11940 14925
    ICR84-25 12861 16075


    High Flow Models

    MODEL 25 GPM 32 GPM
    ICR72-HF32 10996 14074
    ICR78-HF32 11912 15247
    ICR84-HF32 12828 16420
    MODEL 25 GPM 32 GPM
    ICR72-HF39 10996 14074
    ICR78-HF39 11912 15247
    ICR84-HF39 12828 16420
    MODEL 25 GPM 32 GPM
    ICR72-HF45 11321 13063
    ICR78-HF45 12264 14151
    ICR84-HF 13207 15240
