Virnig

SBHV96-SBEV96A-1

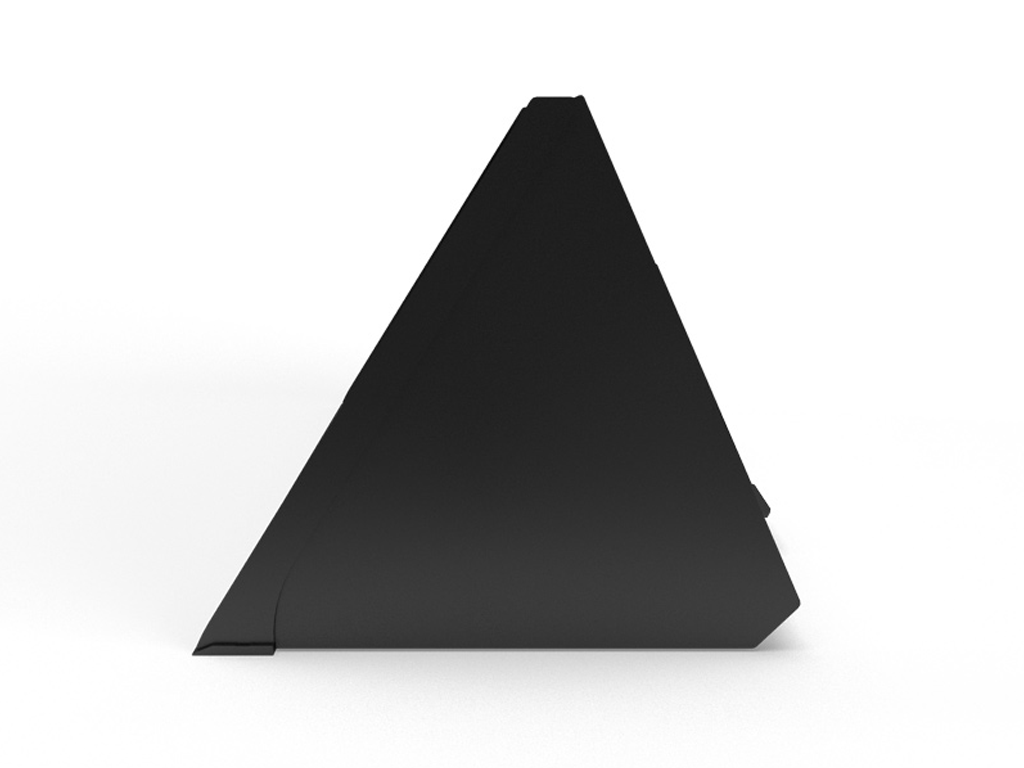

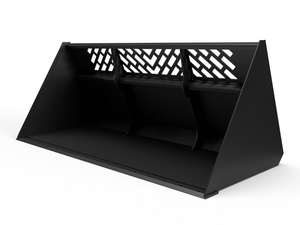

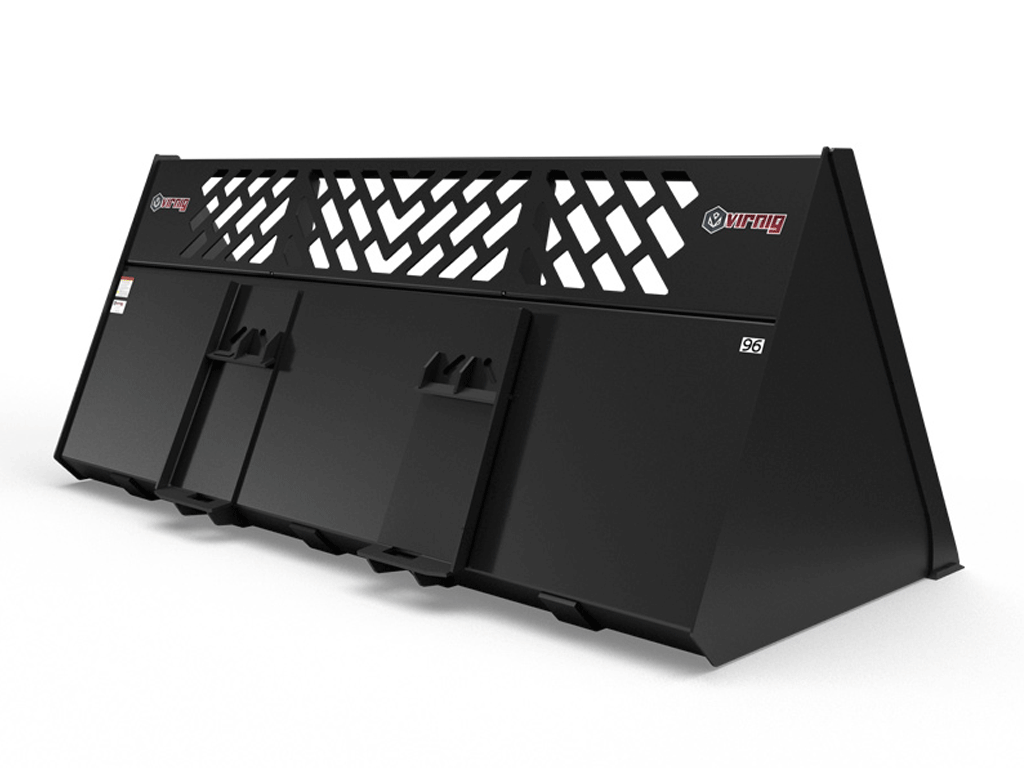

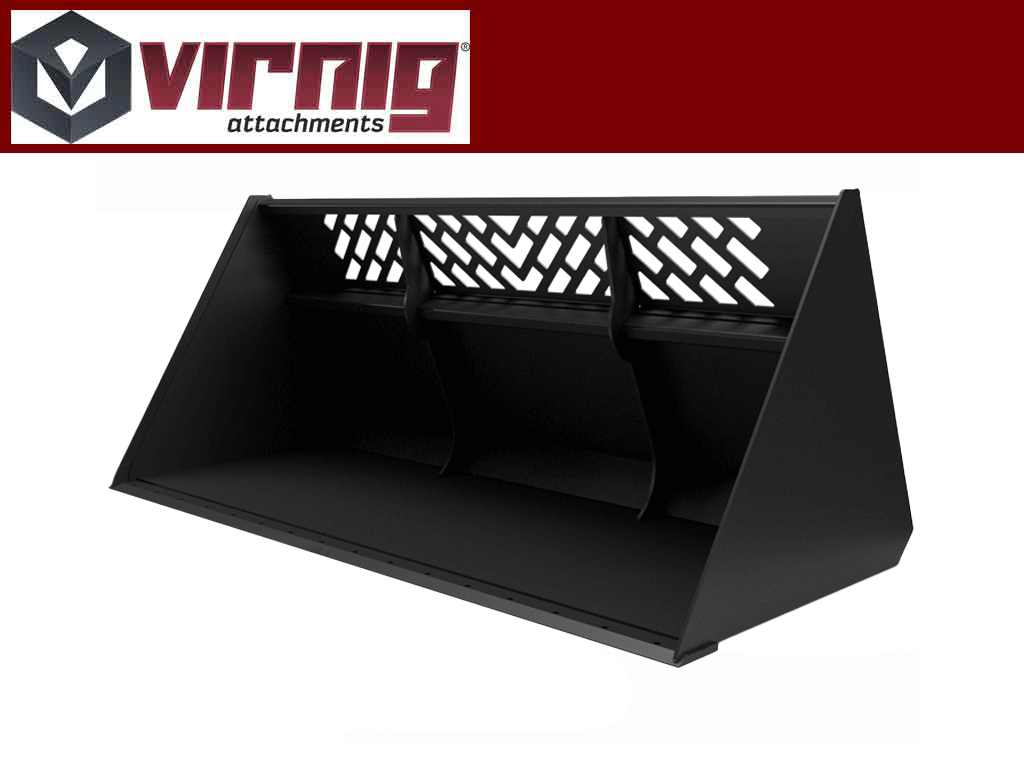

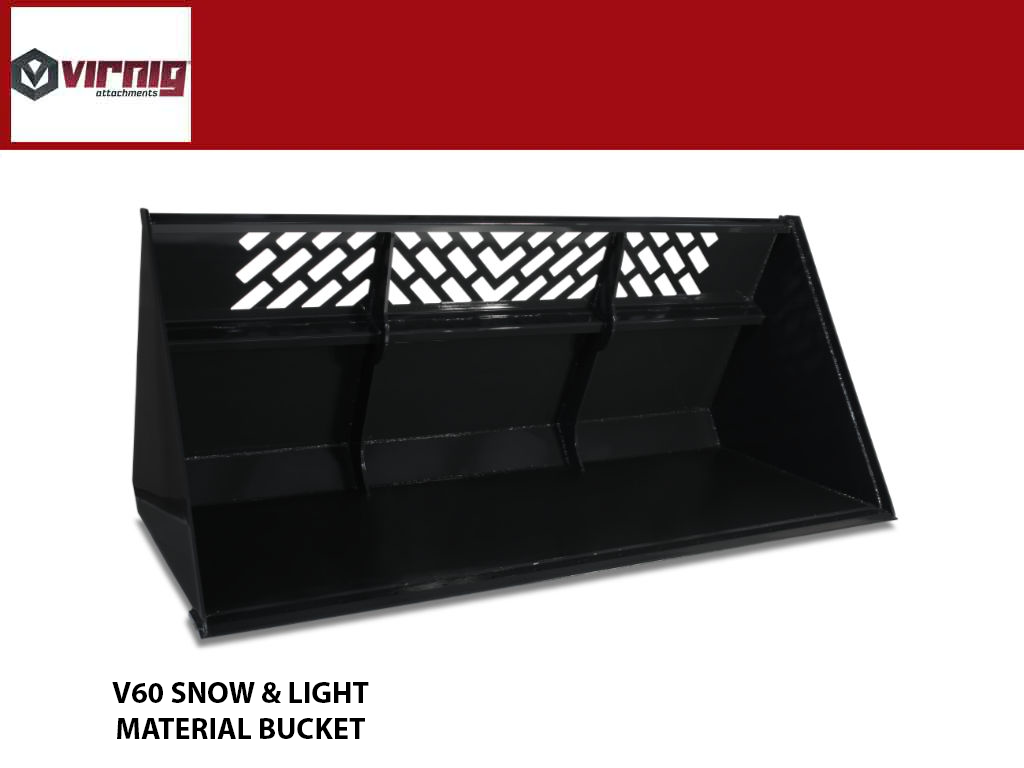

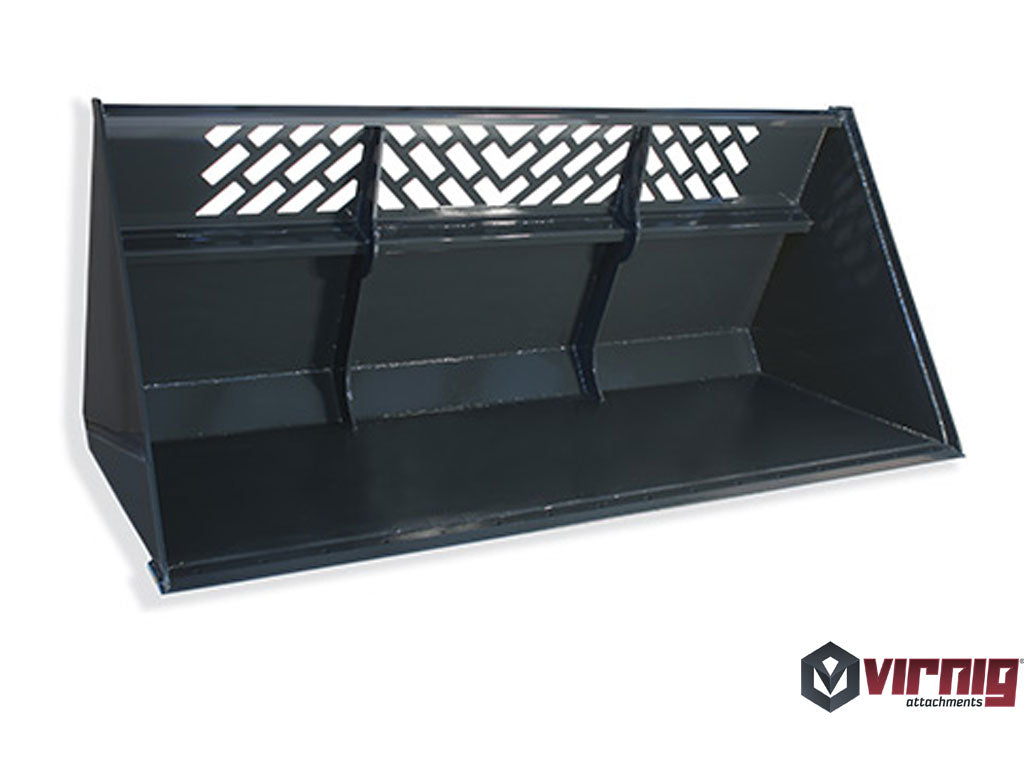

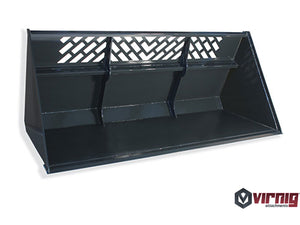

Virnig V60 Snow / Light Material Bucket (SSL) (CTL)

Size
EDGE

Virnig V60 Snow/Light Material Bucket has a 40.5” tall back and extended bottom allows large volumes of light material to be hauled per load.

  • 1/4" thick bucket shell and side plates for long-term performance.

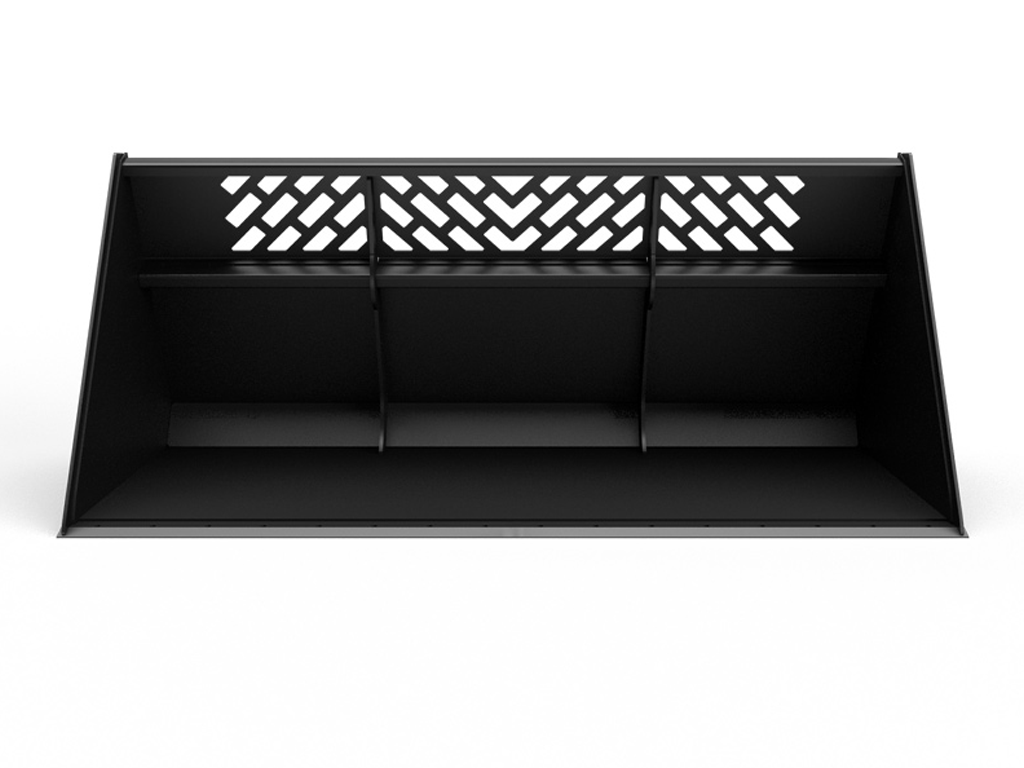

  • Windows in bucket for increased visibility.

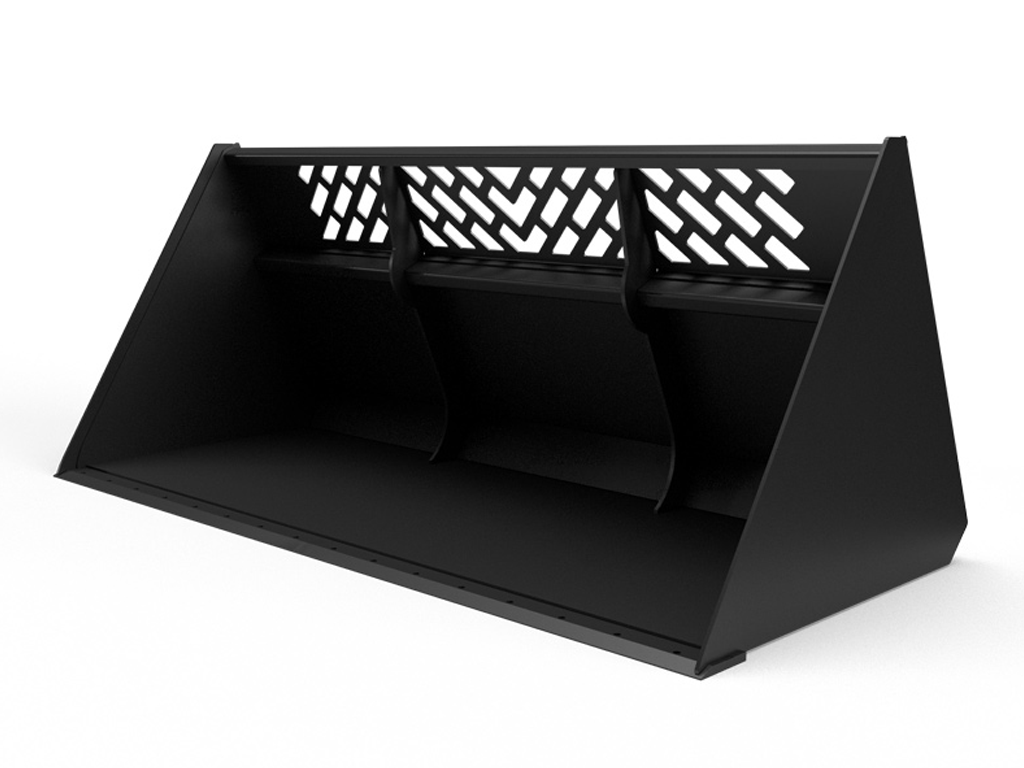

  • Two vertical, 1/2” thick braces and large upper cross member for reinforcement.
  • High-strength, 3/4” x 6” weld-on edge with pre-drilled holes for optional edges.

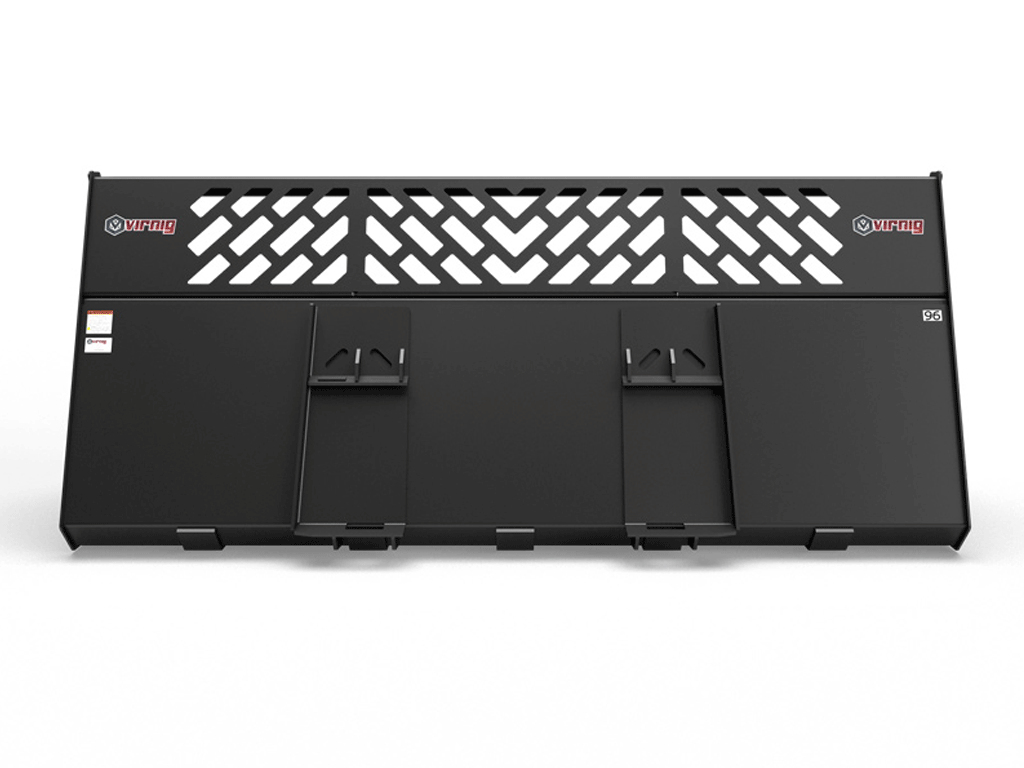

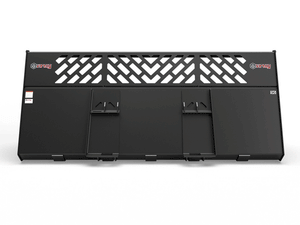

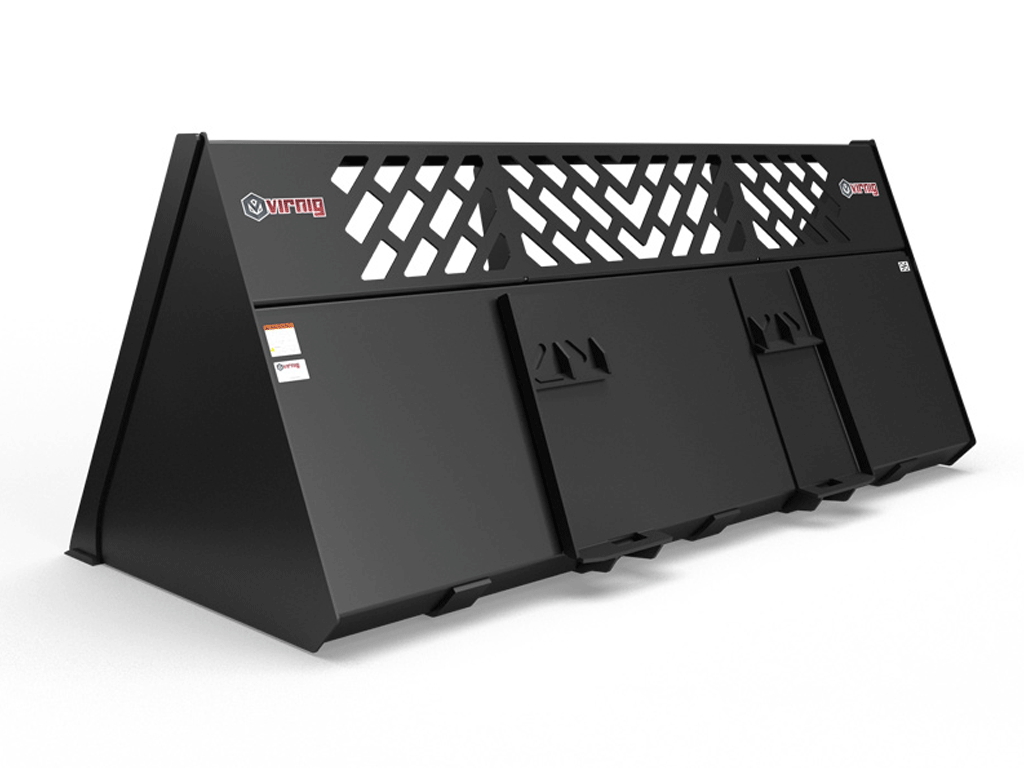

  • Manufactured with a universal mount to fit most skid steer loaders.

  OPTIONS

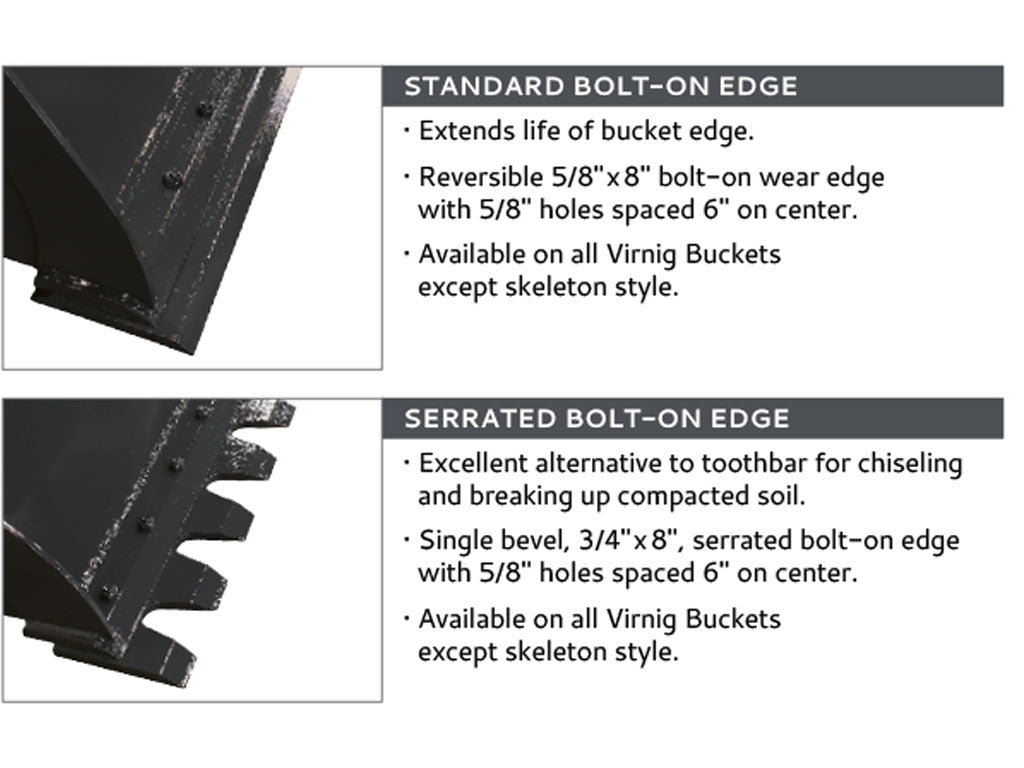

  • Bolt on Cutting Edge (BOCE) installed
    • Extends life of bucket.
    • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
  • Serrated Edge (SE) installed
    • Excellent alternative to toothbar for chiseling and breaking up soil.
    • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
Models SBHV 78 SBHV 84 SBHV 96 SBHV 101
Overall Bucket Width (Inches) 79.5 85.5 97.5 101.5
Bucket Depth (Inches) 45.5
Bucket Height (Inches) 40.5
Window Height (Inches) 12.0
Struck Capacity (Cubic Feet) 40.1 43.2 49.4 52.2
Heaped Capacity (Cubic Feet) 48.1 51.8 59.3 62.6
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 5 5 5 5
Approximate Weight (Pounds) 950 1030 1180 1250
Recommended Loader Capacity Greater than 2400 pounds



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
