ITG72

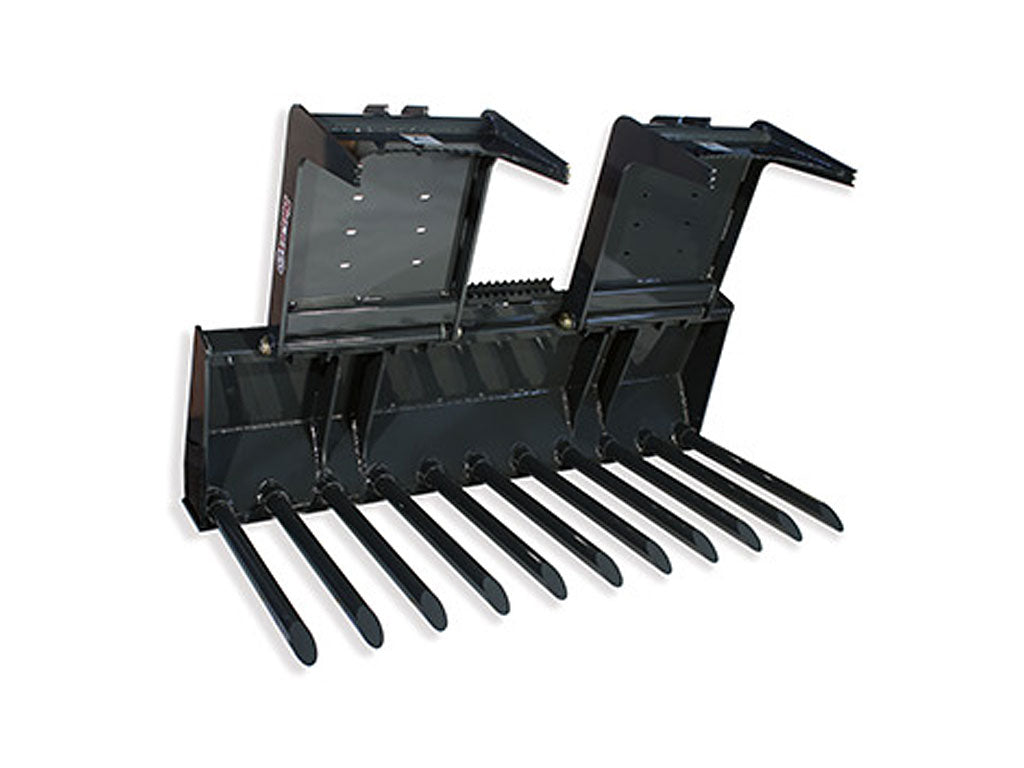

Virnig V60 Tine Fork Grapple (SSL) (CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTINGS
  • STANDARD CYLINDER GUARDS

This type of skid steer grapple has two, individual jaws with separate cylinders. Each jaw works independent of the other. The hydraulic system allows operators to securely clamp debris that has uneven surfaces while keeping consistent pressure on the entire load. Independent grapples keep oddly-sized objects tightly secured in the skid steer bucket during transport.

Two-cylinder independent grapple designed to handle a variety of materials including manure, brush and debris. No cross member for better penetration.

  • Four 1/2ˮ thick vertical braces inside the frame for added strength.
  • High tensile strength removable, replaceable 2 1/4” diameter tines.
  • No cross member at tine tips allowing better material penetration.
  • 2” bore, 8 3/8” stroke cylinders featuring corrosion, dent and flake resistant NitroSteel® cylinder rods.
  • Greasable 1 1/4” diameter cylinder pins and 1 9/16” diameter hinge pins.
  • Teflon® coated bushings provide lubrication at all pivot locations.
  • Machine specific hydraulic package to completely protect hose routing.
  • Replaceable bolt-on step made of durable, laser cut steel in an aggressive pattern that will grip in the worst conditions.

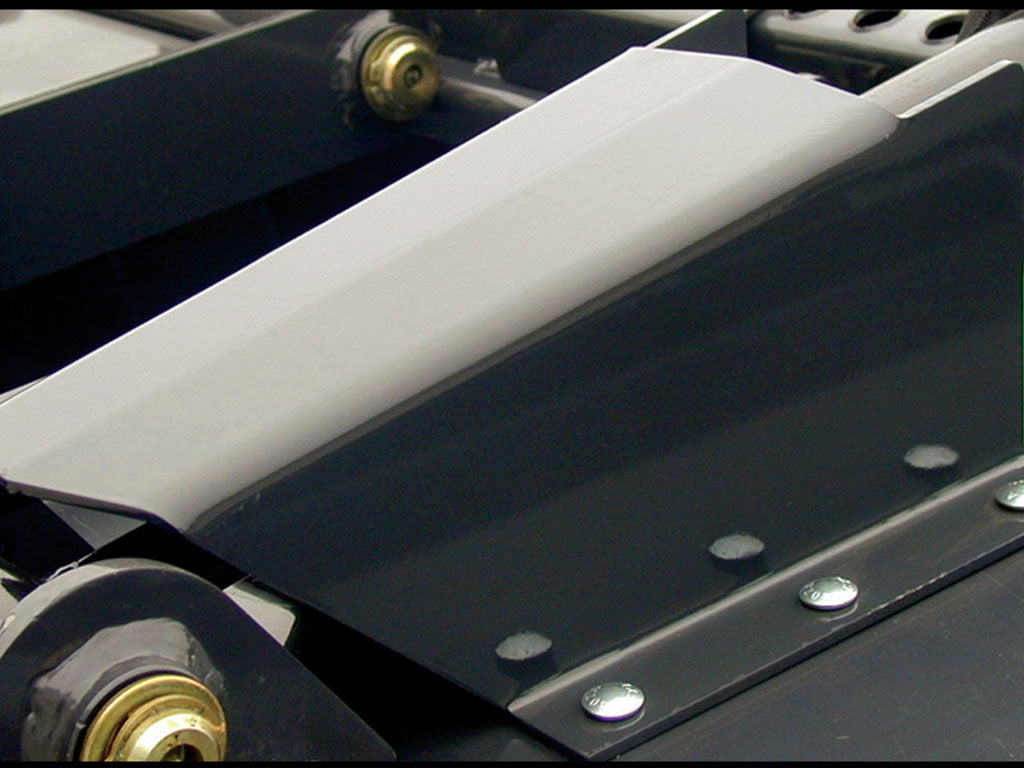

  • Standard with cylinder guards.
  • Known clearance issue on M-Series Bobcat® loaders when Cylinder Guards are installed and jaws are open.
Known clearance issue on M-Series Bobcat® loaders when Cylinder Guards are installed and jaws are open.
    • Recommended loader capacity - Greater than 2400 lbs ROC
    • Cylinder Bore / Stroke (in)  2.0 / 8.375
    • Cylinder Pins / Hinge Pin Diameter (in) 1.25 /1.563
    Model 72" 78" 84" 90"
    Overall Width (in) 73.3 79.3 85.3 91.3
    Depth (in) 37.0 37.0 37.0 37.0
    Height: Overall / Bucket (in) 28.5 / 23.5 28.5 / 23.5 28.5 / 23.5 28.5 / 23.5
    Grapple Jaw Opening (in) 40.2 40.2 40.2 40.2
    Number of Tines 11 12 13 14
    Space Between Tines 4.6 4.5 4.4 4.9
    Weight (lbs) 1325 1400 1470 1495



    In stock items usually ship in 3-5 days

    Non stock items usually ship in 4-6 weeks



    The V60 series was constructed for the most demanding applications and largest skid steers. Ideal for heavy usage and commercial operations. This is the extreme duty version of this attachment.
