Virnig

HUHV72

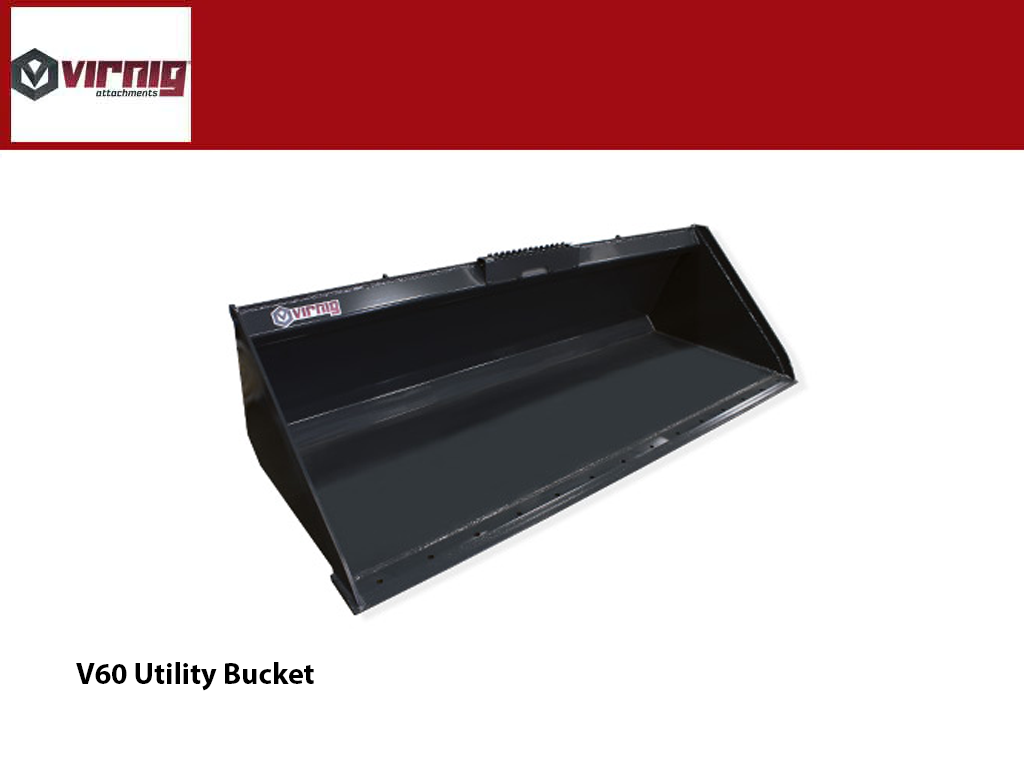

Virnig V60 Utility Bucket (SSL)(CTL)

Size
Edge

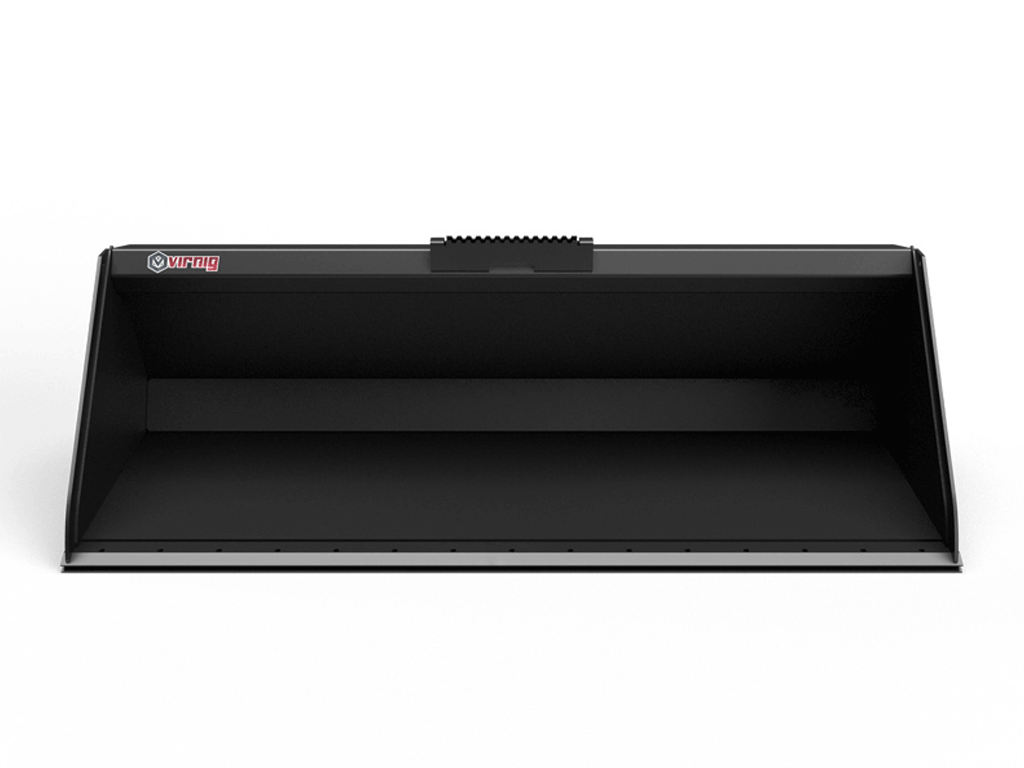

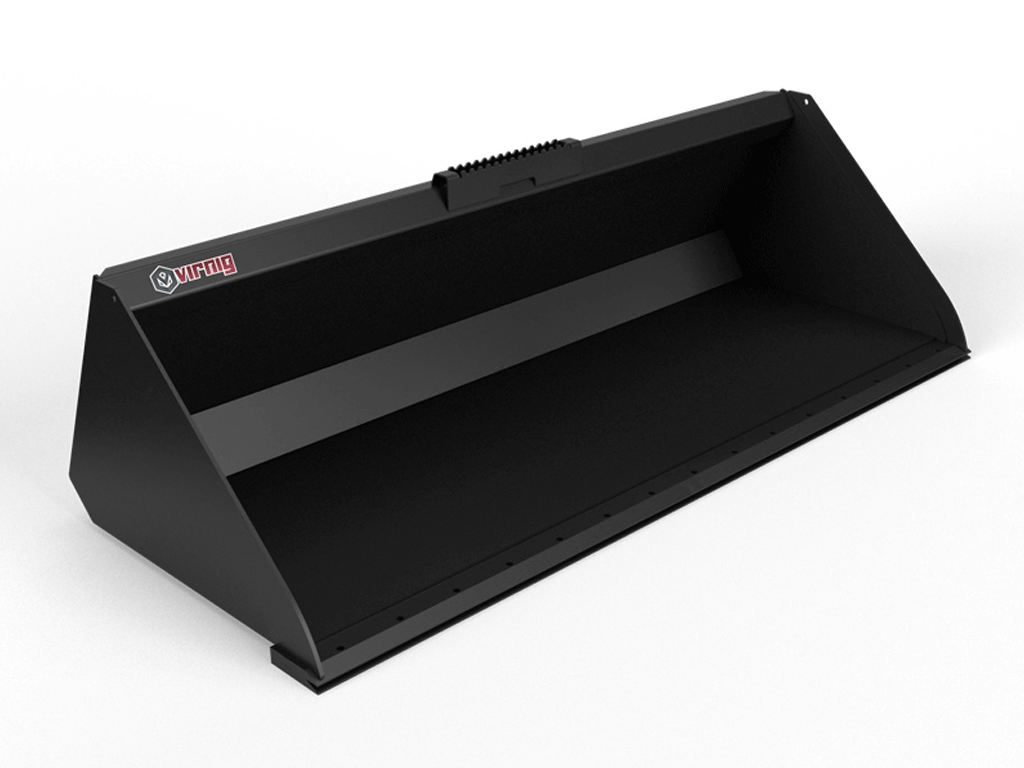

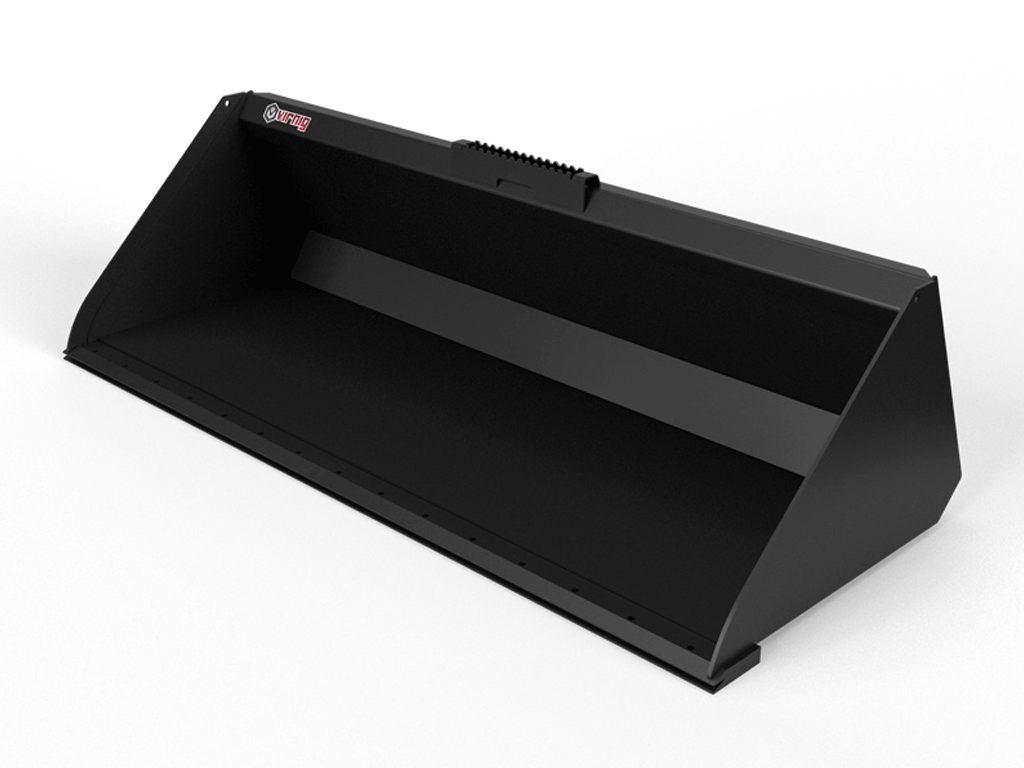

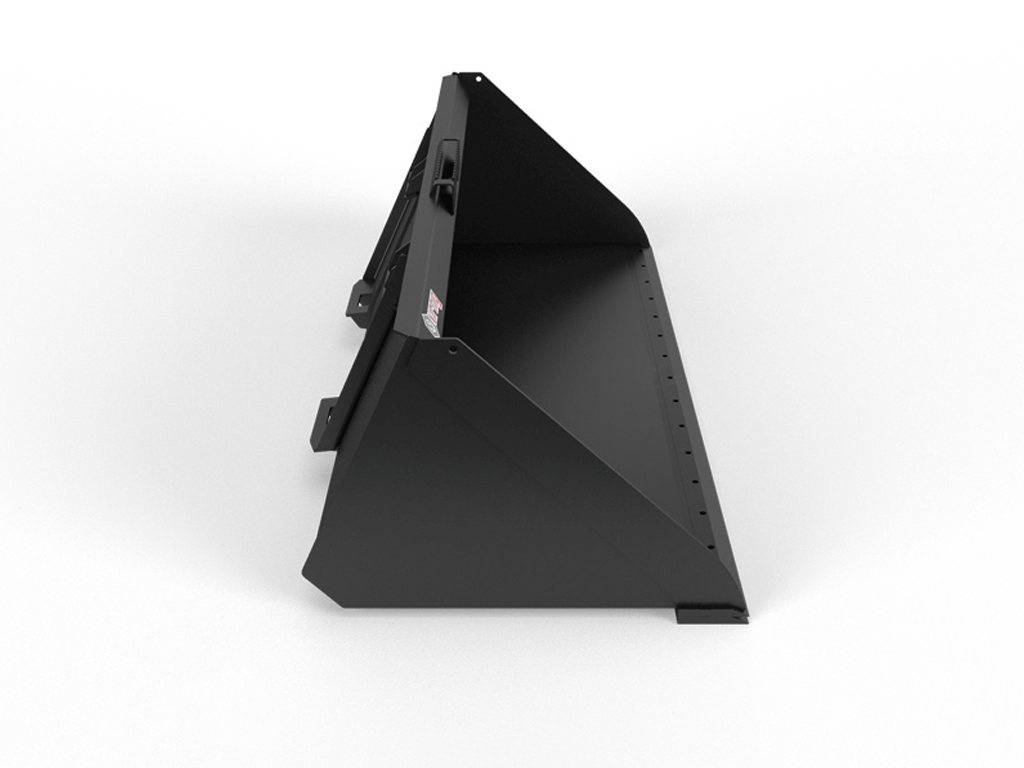

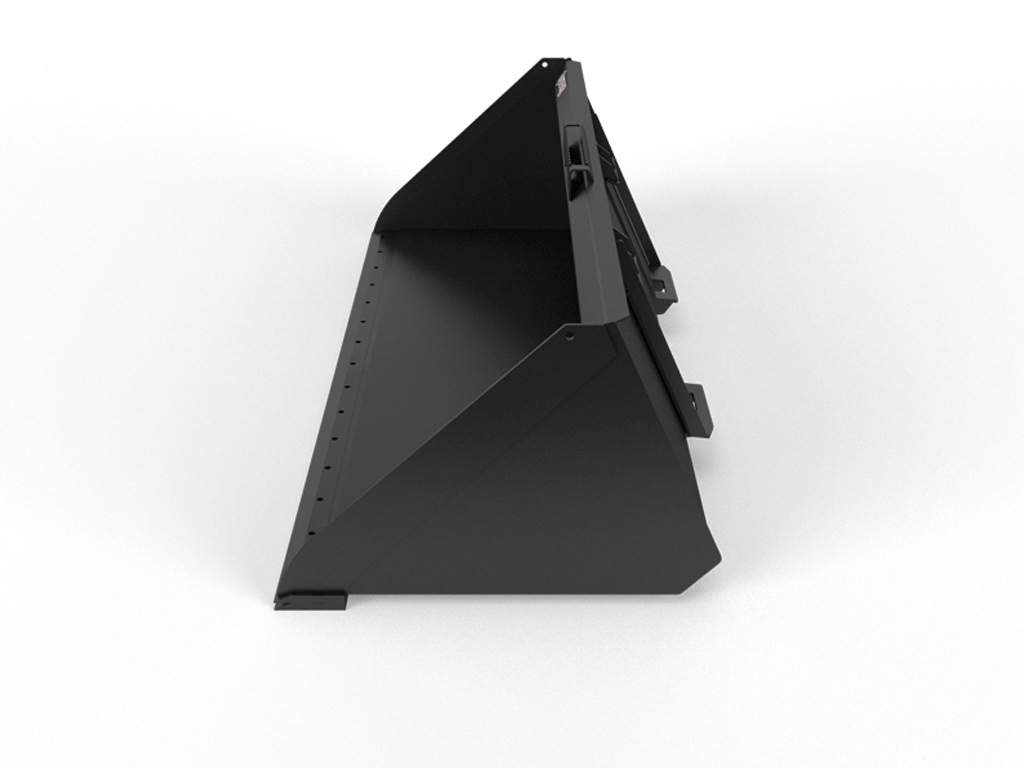

Virnig V60 Utility Bucket is a heavily constructed general-purpose bucket suited for dense and bulk materials.

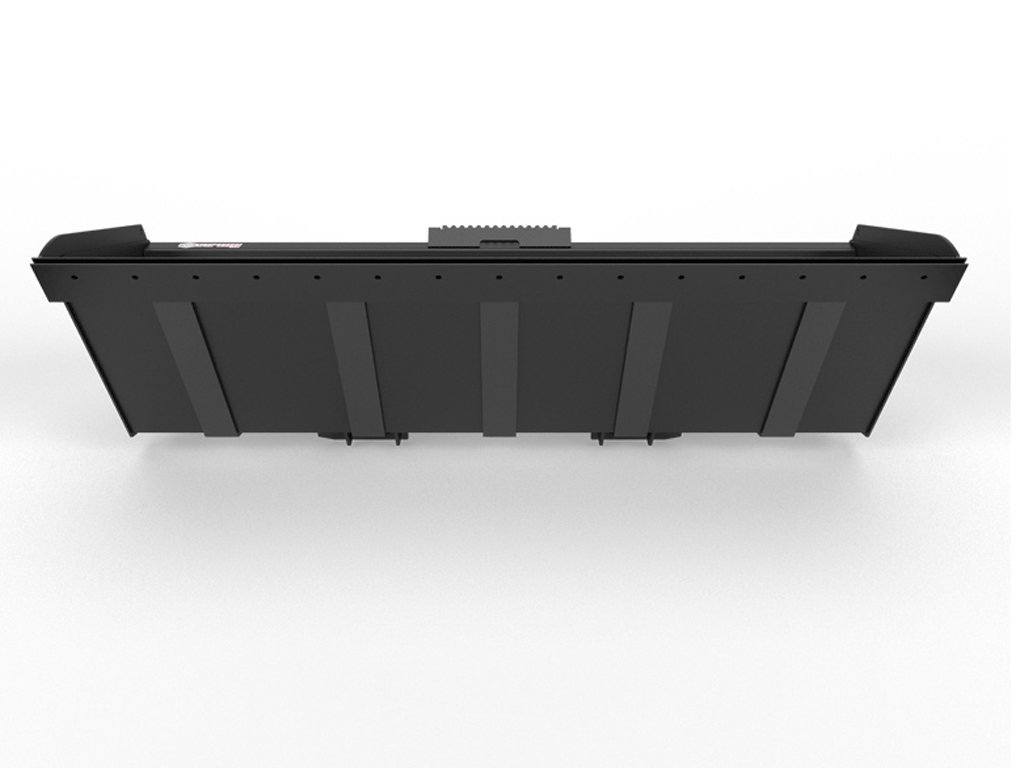

  • Features heavy duty top bracing, up to 5 wear bars underneath, and interior brace plates to add rigidity.
  • 3/4” x 6” weld-on edge with holes for optional edges.

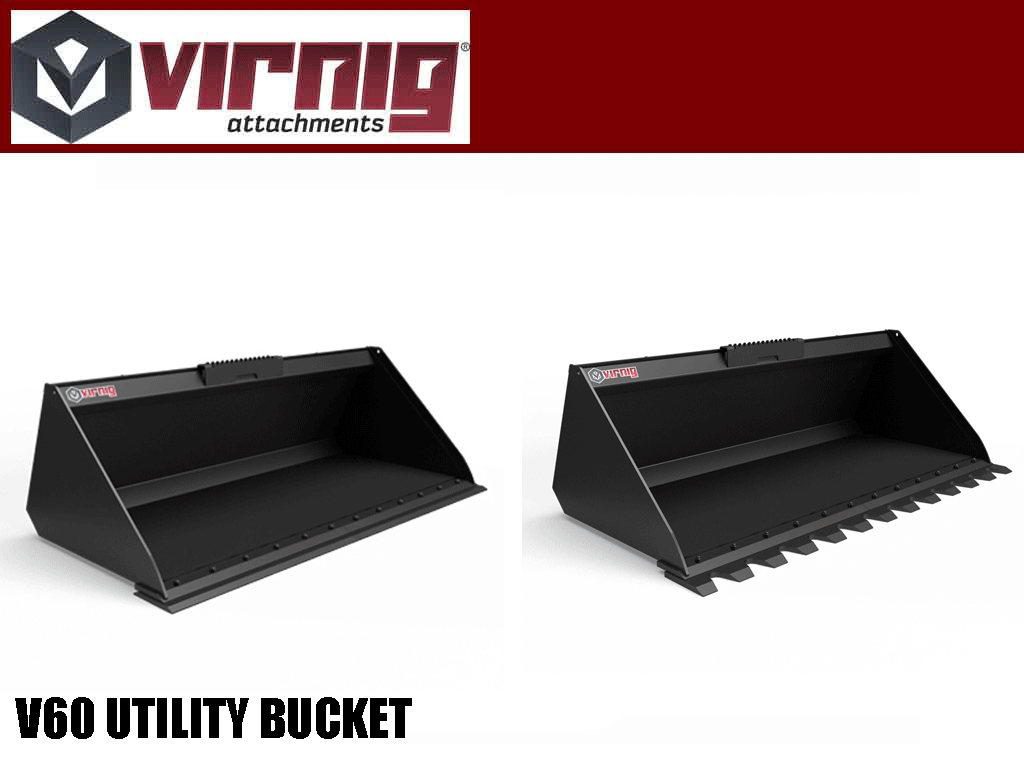

  • Bucket shown with optional bolt-on edge.

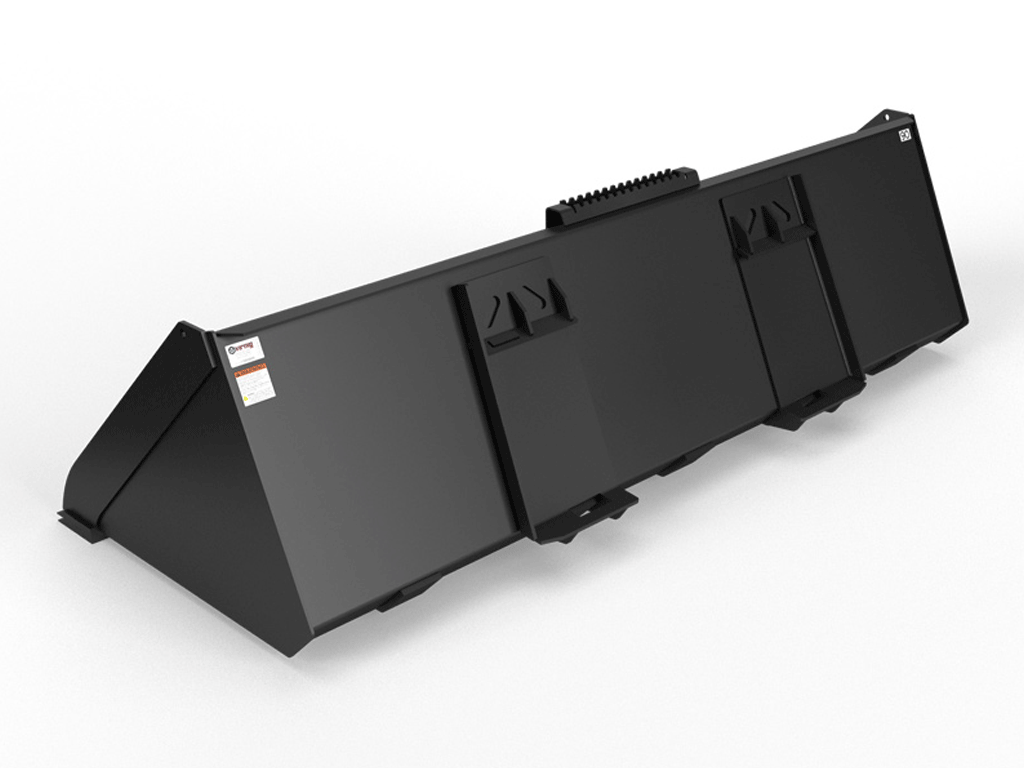

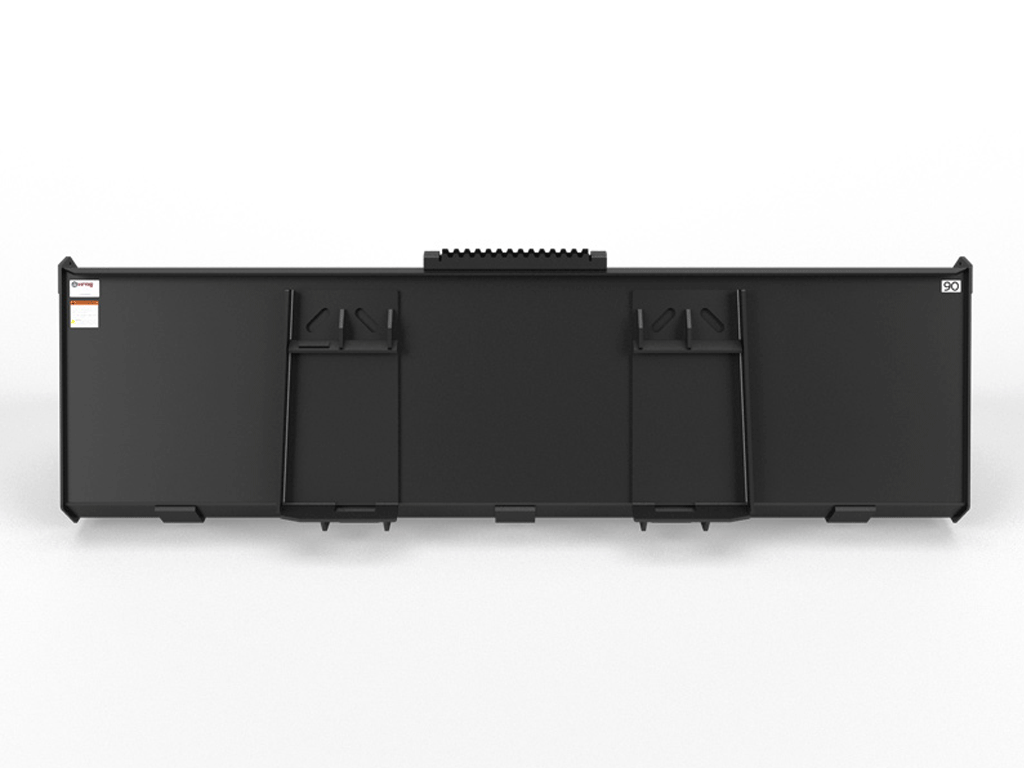

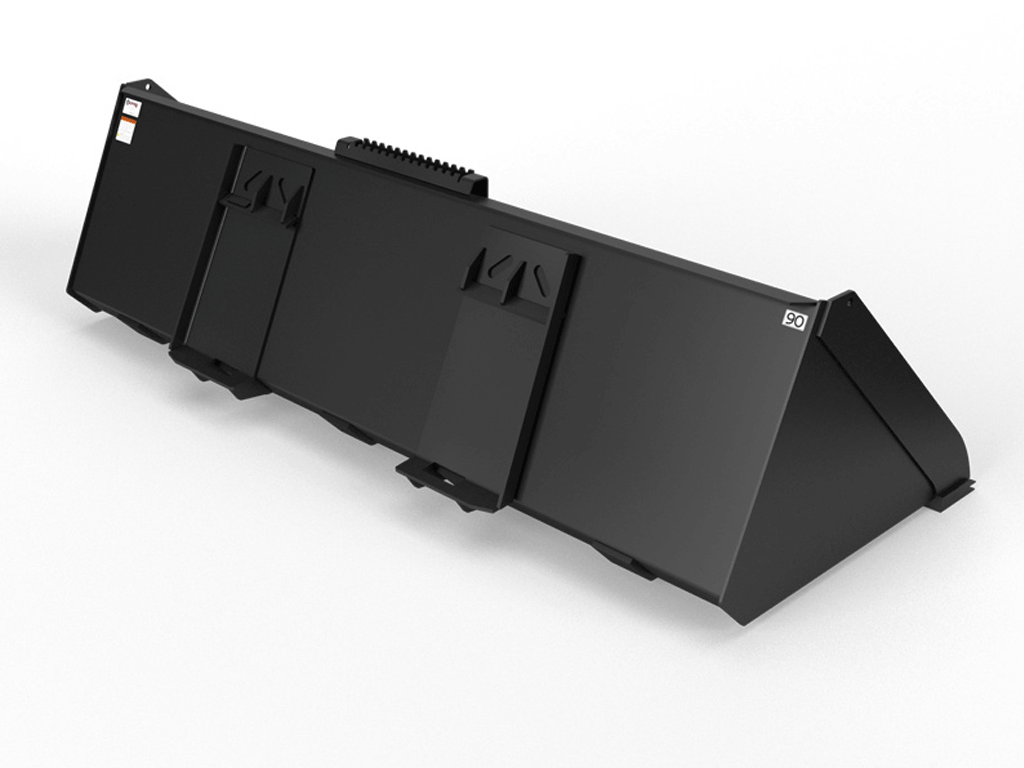

  • Manufactured with a universal mount to fit most skid steer loaders.

  OPTIONS

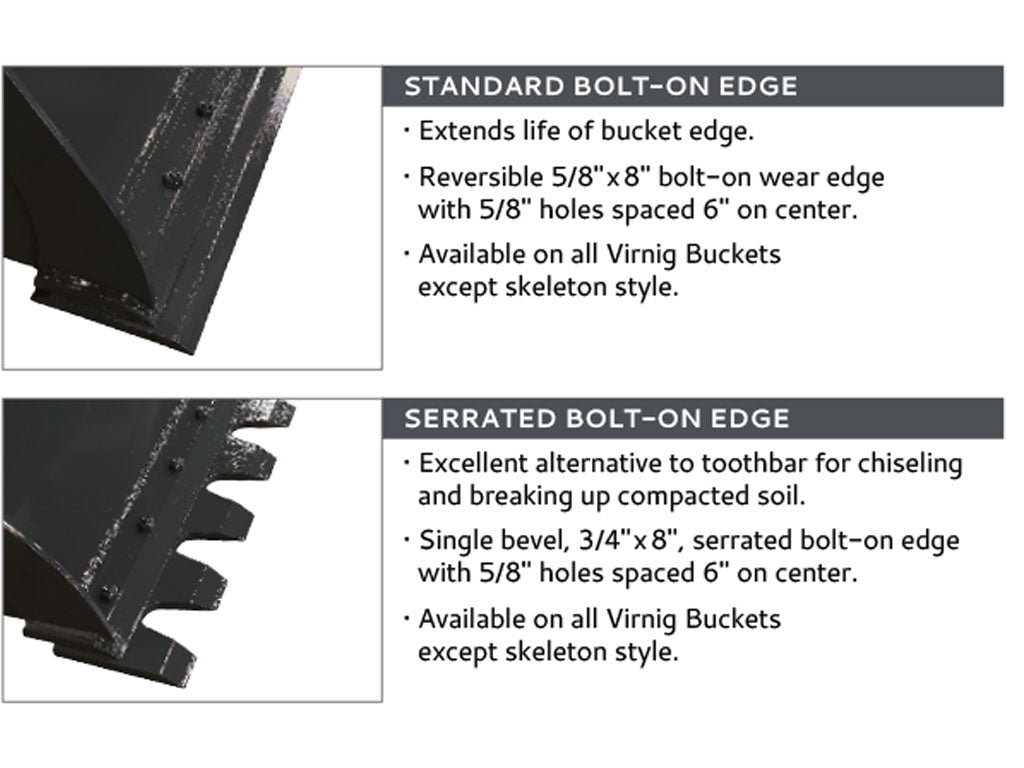

  • Bolt on Cutting Edge (BOCE) installed
    • Extends life of bucket.
    • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
  • Serrated Edge (SE) installed
    • Excellent alternative to toothbar for chiseling and breaking up soil.
    • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
Models HUHV 72 HUHV 78 HUHV 84 HUHV 90 HUHV 96
Overall Bucket Width (Inches) 73.5 79.5 85.5 91.5 97.5
Bucket Depth (Inches) 37.6
Bucket Height (Inches) 24.9
Struck Capacity (Cubic Feet) 19.2 20.9 22.6 24.3 26.0
Heaped Capacity (Cubic Feet) 23.0 25.1 27.1 29.2 31.2
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 4 5 5 5 5
Approximate Weight (Pounds) 740 775 820 860 895
Recommended Loader Capacity Greater than 2400 pounds



In stock items usually ship in 3-5 days

Non stock items usually ship in 4-6 weeks
